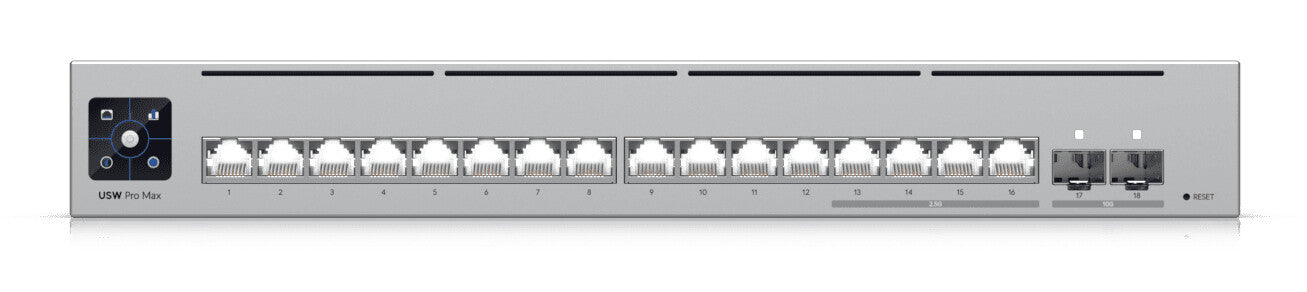

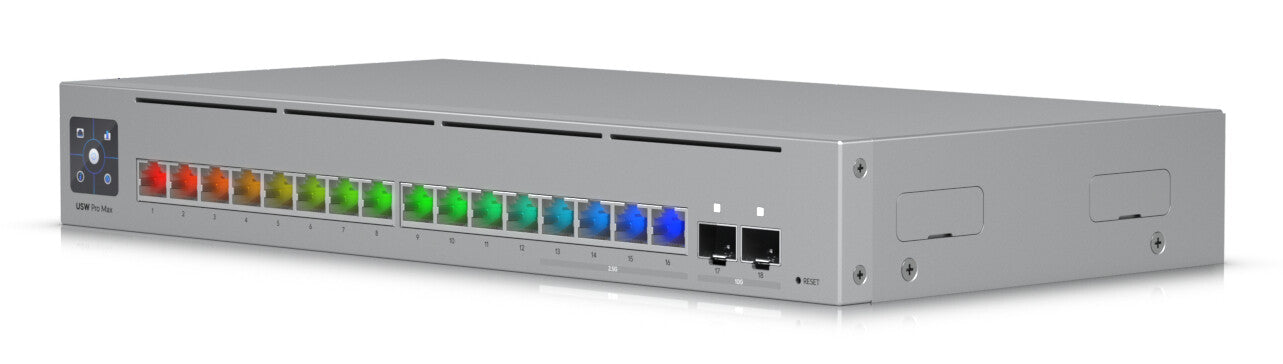

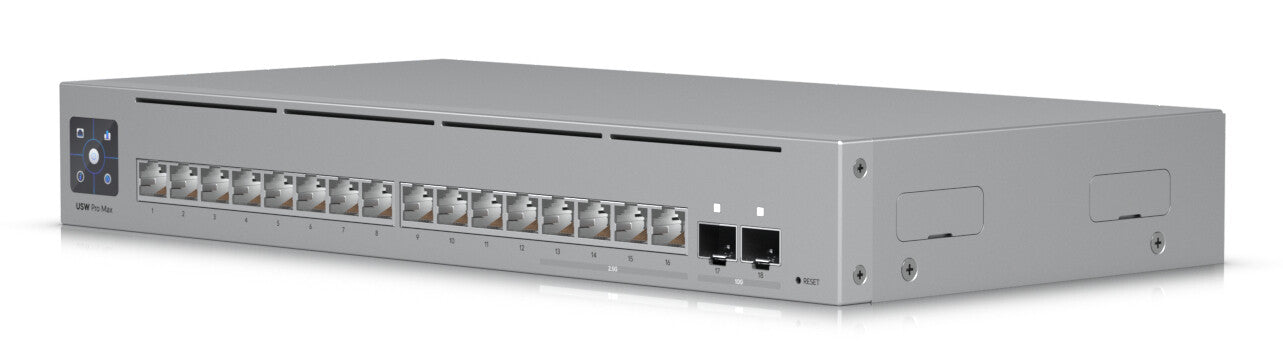

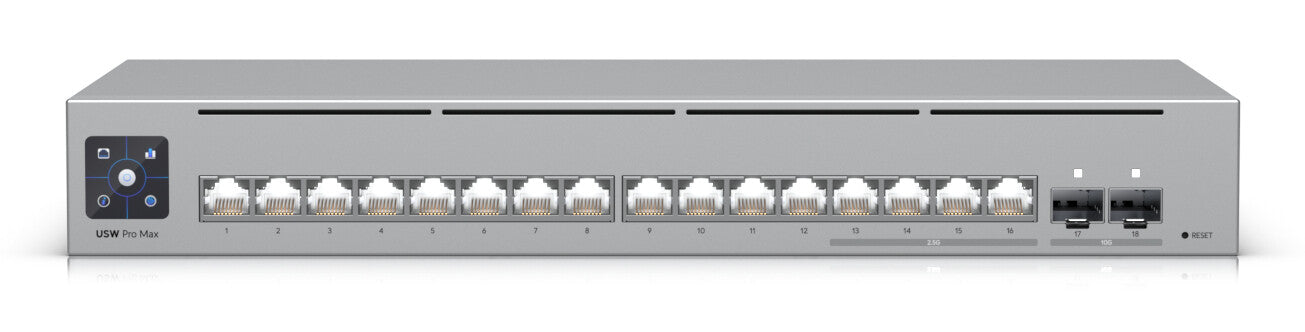

Ubiquiti Pro Max 16 L3 2.5G Ethernet (100/1000/2500) 1U Grey
A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
| Management features | |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 12 |
| 2.5G Ethernet (copper) ports quantity | 4 |
| SFP+ module slots quantity | 2 |
| Power connector | AC/DC |
| Network | |
|---|---|
| Networking standards | IEEE 802.1x |
| 10G support | Yes |
| Port mirroring | Yes |
| IPv4 routes | 512 |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 1000 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 84 Gbit/s |
| Throughput | 42 Gbit/s |
| Forwarding rate | 62 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
| Security | |
|---|---|
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x |
| Loop protection | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| Reset button | Yes |
| LED indicators | Link, Network, Speed, Status |
| Display type | LCM |
| Performance | |
|---|---|
| Fanless | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Power | |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Input current | 5 A |
| Input voltage | 4.8 - 5.2 V |
| Power consumption (max) | 25 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 85.3 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 325.1 mm |
| Depth | 160 mm |
| Height | 43.7 mm |
| Weight | 1.95 kg |
| Packaging data | |
|---|---|
| Cables included | Power |
| Rack mount kit | Yes |
-
