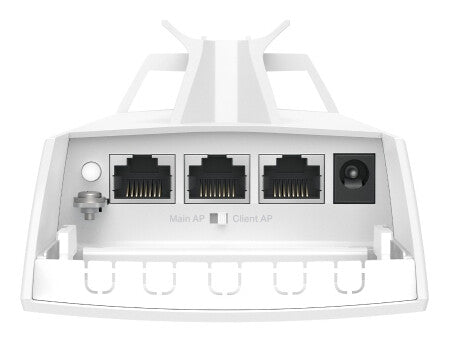

TP-Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
EAP215-Bridge KIT
Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
- 802.11ac, up to 867 Mbps on 5 GHz
- Up to 3.1 mi (5 km) Long-Range Transmission
- Auto-Pairing and Multi-Bridge Auto-Pairing
- App-Guided Alignment and Speed Testing
- 3× Gigabit Ethernet Ports
- 802.3af PoE & DC Power Supply & Passive PoE
- IP65 Weatherproof and Operating Range of -40 °C to +70 °C.
- Remote Monitoring & Management
| Data transmission | |
|---|---|
| Maximum data transfer rate | 867 Mbit/s |
| Maximum transfer distance | 5000 m |
| Antenna | |
|---|---|
| Antenna design | Internal |
| Antenna type | 2x2 |
| Antenna gain level (max) | 14 dBi |
| Wireless LAN features | |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Frequency band | 5 GHz |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| Security | |
|---|---|
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH |
| MAC address filtering | Yes |
| Management features | |
|---|---|
| Web-based management | Yes |
| Features | |
|---|---|
| Product type | Network bridge |
| Mounting type | Pole |
| Product colour | White |
| LED indicators | Power |
| Quality of Service (QoS) support | Yes |
| International Protection (IP) code | IP65 |
| Reset button | Yes |
| Power | |
|---|---|
| Power source type | DC, PoE |
| DC input voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 24 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| General | |
|---|---|
| Product family | Omada |
| Weight & dimensions | |
|---|---|
| Width | 224 mm |
| Depth | 79 mm |
| Height | 60 mm |
| Packaging content | |
|---|---|
| PoE+ Injector(s) | Yes |
| Cables included | AC |
