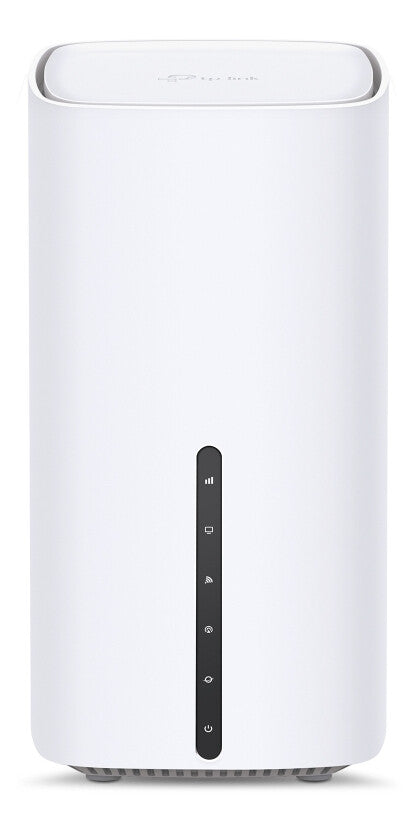

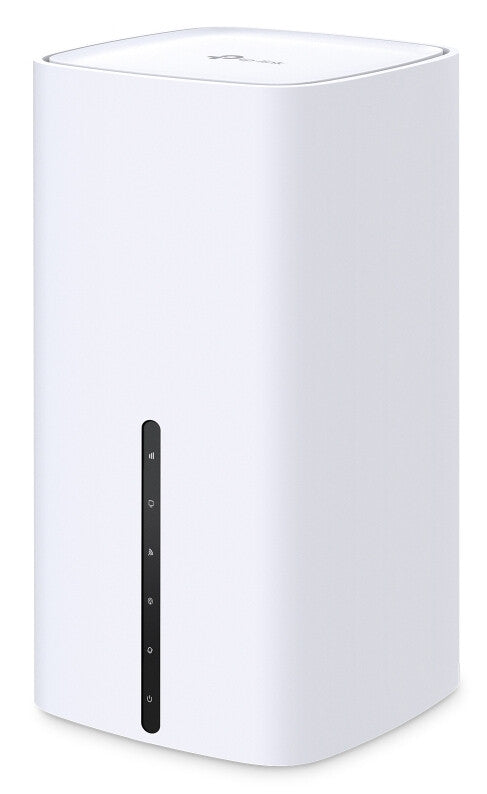

TP-Link Archer 5G AX3000 Wireless Dual-Band Gigabit Router
Enjoy 5g icon Speed Sharing Everywhere
5G AX3000 Wireless Dual-Band Gigabit Router
Superior 5G – A Revolutionary Experience
Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. At the same time, NX500 is backward compatible with 4G mode. **
Share 5G Speed with Reliable Wi-Fi
Thanks to cutting-edge 5G tech, NX500 boosts up to 4.67 Gbps download speeds fulfills your devices’ needs. Armed with WiFi 6 technology, NX500 is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.
Plug and Play, Enjoy 5G Network Everywhere
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer NX500 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

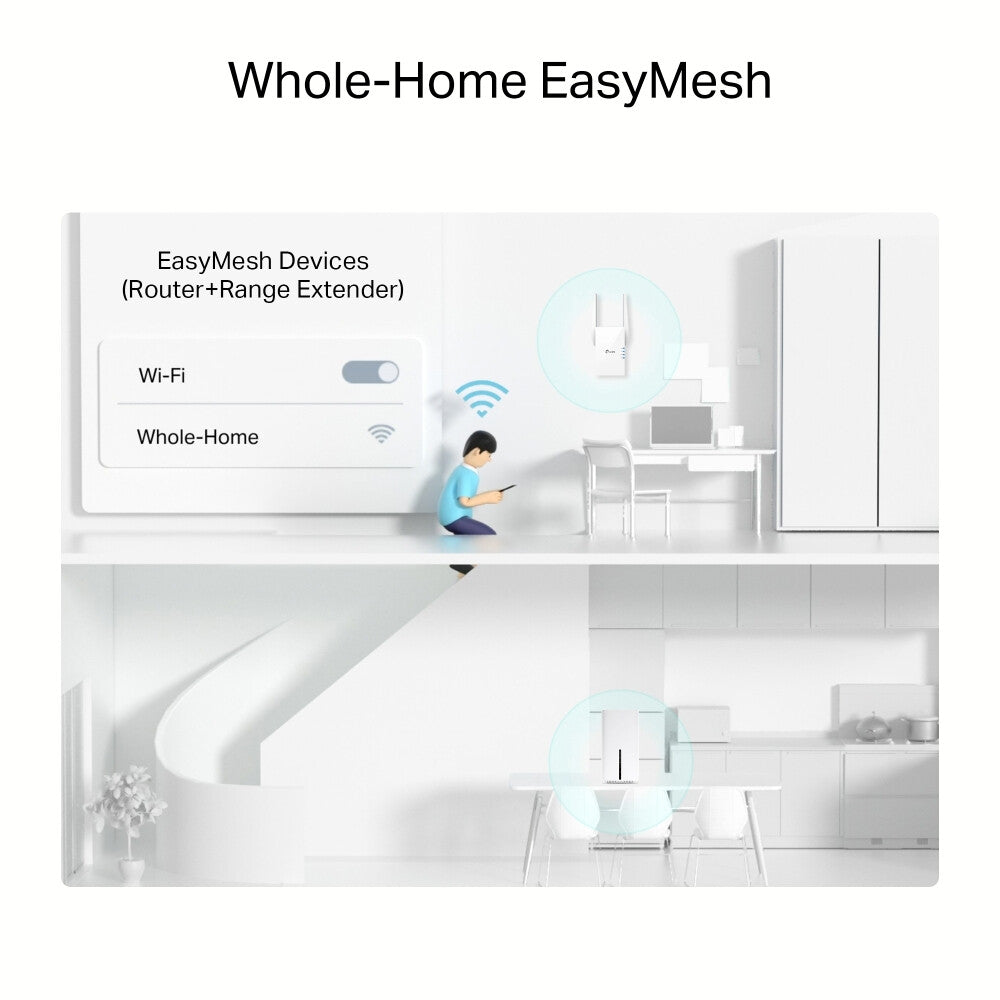

Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
Smart Roaming
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names
Available WAN Connection Backup

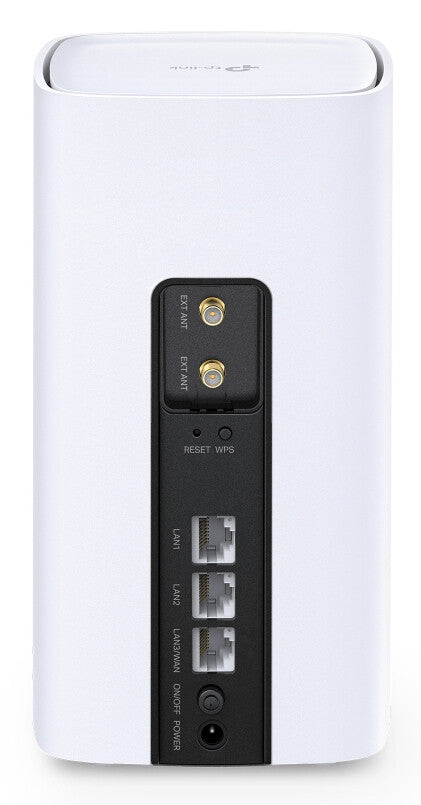

The gigabit WAN/LAN port enables NX500 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you.
Easy Setup and Use
Set up the Archer NX500 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 3000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Port triggering | Yes |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Maximum Tx power (5 GHz) | 30 dBmW |
| Maximum Tx power (2.4 GHz) | 20 dBmW |
| Mobile network | |
|---|---|
| Mobile network generation | 5G |
| 3G standards | DC-HSDPA, HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 5G bands supported | 700,800,850,900,1800,2100,2300,2500,2600,3500,3700 MHz |
| 3G bands supported | 850,900,2100 MHz |
| SIM card type | NanoSIM |
| 4G bands supported | 700,800,850,900,1800,2100,2300,2500,2600,3500,3700 MHz |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | No |
| Management features | |
|---|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Guest access | Yes |
| Parental control | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| DMZ support | Yes |
| Protocols | |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| General | |
|---|---|
| Product family | Archer |
| Design | |
|---|---|
| Product type | Desktop/pole router |
| Product colour | White |
| Built-in display | No |
| Country of origin | China |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna | |
|---|---|
| Antenna design | Internal & external |
| Antenna connector type | SMA |
| Antennas quantity | 10 |
| Power | |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 12 V |
| Output current | 2 A |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows NT, Windows RT 8.1, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 610 g |
| Height | 99 mm |
| Depth | 190 mm |
| Width | 99 mm |
| Packaging data | |
|---|---|
| Package width | 230 mm |
| Package depth | 115 mm |
| Package height | 221 mm |
| Package weight | 1.27 kg |
| Package type | Box |
| Number of products included | 1 pc(s) |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Customs product code (TARIC) | 8517620000 |
-
