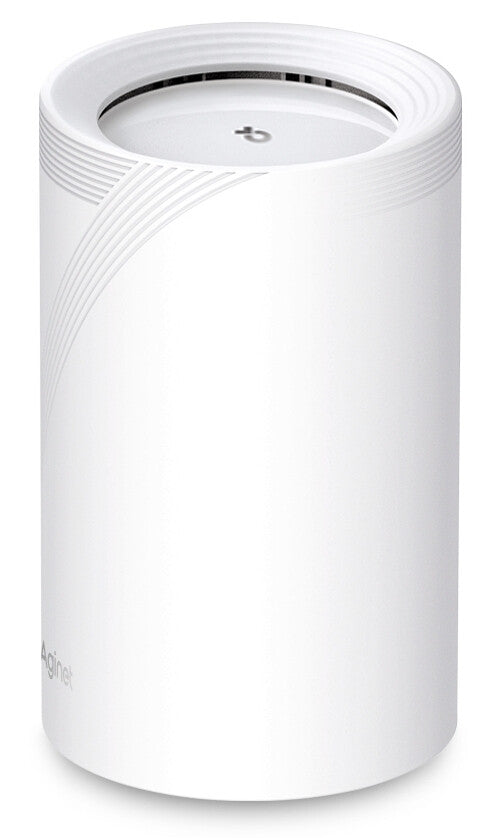

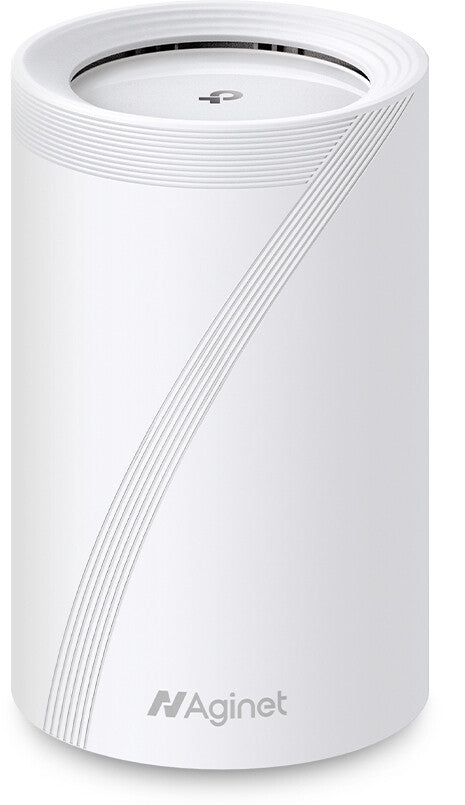

TP-Link HB610 Tri-band (2.4 GHz / 5 GHz / 6 GHz) Wi-Fi 7 (802.11be)...
Super Mesh-Powered WiFi 7
BE11000 Tri-Band Whole Home Mesh WiFi 7 System
Wi-Fi 7 — Revolutionize Your WiFi Experience
WiFi 7 has arrived with unprecedented performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.
11 Gbps Tri-Band WiFi Speeds
Next-gen 2.4 GHz, 5 GHz, and 6 GHz bands enhance WiFi speeds and efficiency significantly, ensuring a smoother experience for all applications. Enjoy fluent 4K/8K streaming, immersive AR/VR, online gaming, and blazing-fast downloads.
Multi-Gig Internet Connections

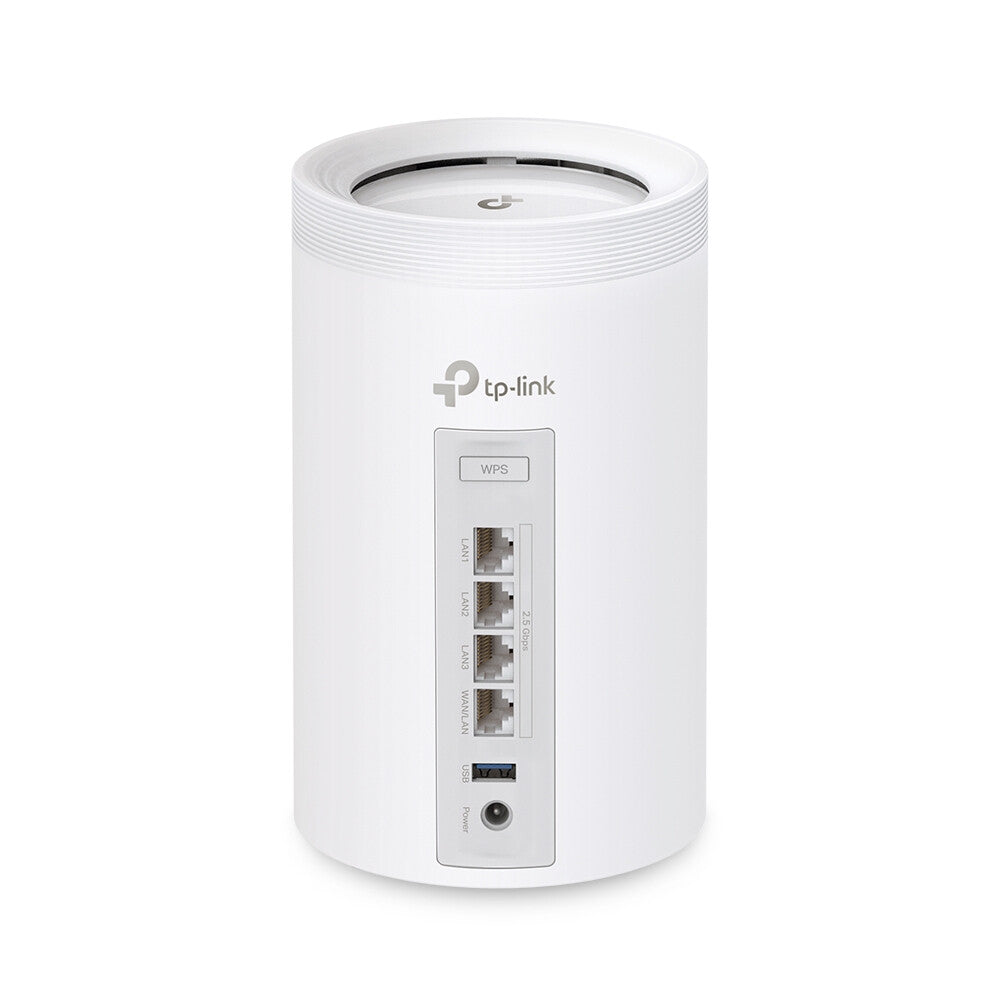

Break through the 1 Gbps bottleneck and take full advantage of your broadband plan with speeds up to 2.5 Gbps via a 2.5G WAN/LAN port. The multiple 2.5 GbE LAN ports serve as robust wired backhauls to ensure stronger and more stable mesh networking and enhance network flexibility at the same time, while the USB 3.0 port can be used to share files, music, and videos within your network at high speeds.
Extensive WiFi Coverage and Stronger Signals
A high-performance antenna array and beamforming technology combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.
4× High-Gain Antennas
The optimally positioned antenna array ensures balanced WiFi coverage with high isolation and less interference
Whole Home Coverage Backed by Robust Backhual
Empowered by EasyMesh technology, HB610 delivers strong WiFi signals to every corner of your home. Ethernet backhaul and wireless backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HB610 unit wherever you want.
Seamless Roaming with One WiFi Name
All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.
More Connections, No More Buffering
Enhanced by WiFi 7 and featuring OFDMA, Multi-link operation (MLO), and MU-MIMO, you can connect 200+ devices simultaneously to build a fully connected home. Enjoy a more efficient network that loads faster without dragging down performance.
2-in-1 Router and Access Point
The versatile and multi-purpose HB610 features options to serve as either a router or access point. Select the mode that suits your requirements for adaptable wireless and wired networking.
Easy to Set Up and Use
You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.
Supports TR-069/TR-369 Remote Management
ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols. While the home user can enjoy more efficient service experiences.
The Aginet Solution: An End-to-End Management Platform
The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.
| Design | |
|---|---|
| Certification | CE, FCC |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Reset button | Yes |
| Transmit power | 30 dBmW |
| Product type | Mesh system |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| VPN support | PPTP, OpenVPN, IPSec |
| Dynamic IP | Yes |
| Static IP | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Security algorithms | WPA, WPA2, WPA3, WMM |
| Networking standards | IEEE 802.11ax, IEEE 802.11be, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11a, IEEE 802.11g, IEEE 802.11b |
| WLAN data transfer rate (max) | 5760 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Features | |
|---|---|
| MU-MIMO technology | Yes |
| SSID Broadcast | Yes |
| Parental control | Yes |
| BeamForming | Yes |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
| Port forwarding | Yes |
| Quality of Service (QoS) support | Yes |
| Band steering | Yes |
| WPS push button | Yes |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet WAN | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Power | |
|---|---|
| AC adapter output current | 2.5 A |
| AC adapter output voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Height | 176 mm |
| Depth | 107.5 mm |
| Width | 107.5 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Ethernet cable | Yes |
| AC adapter included | Yes |
-
