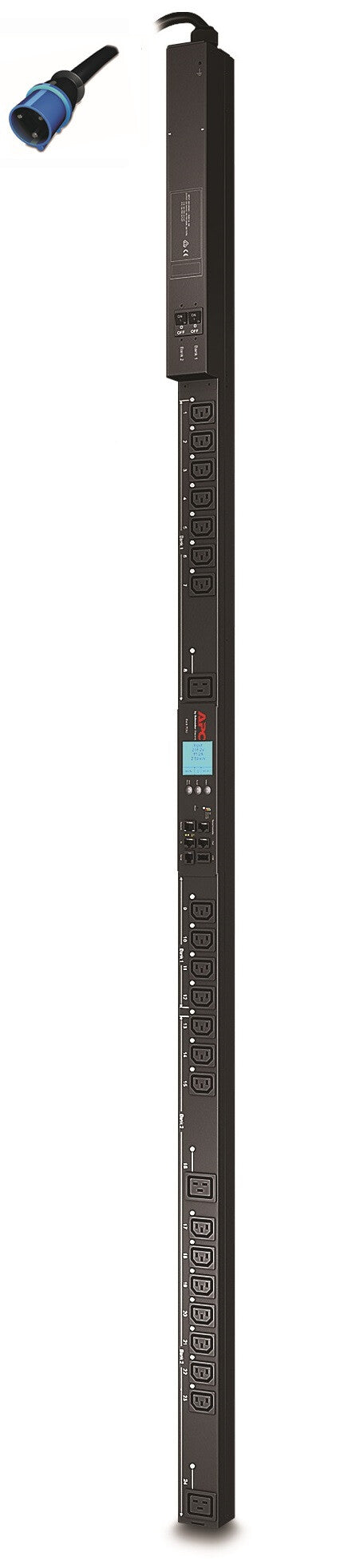

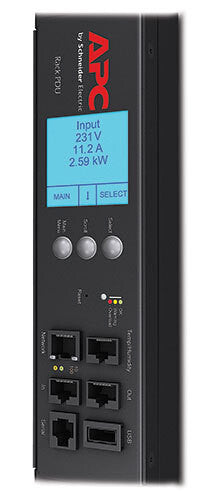

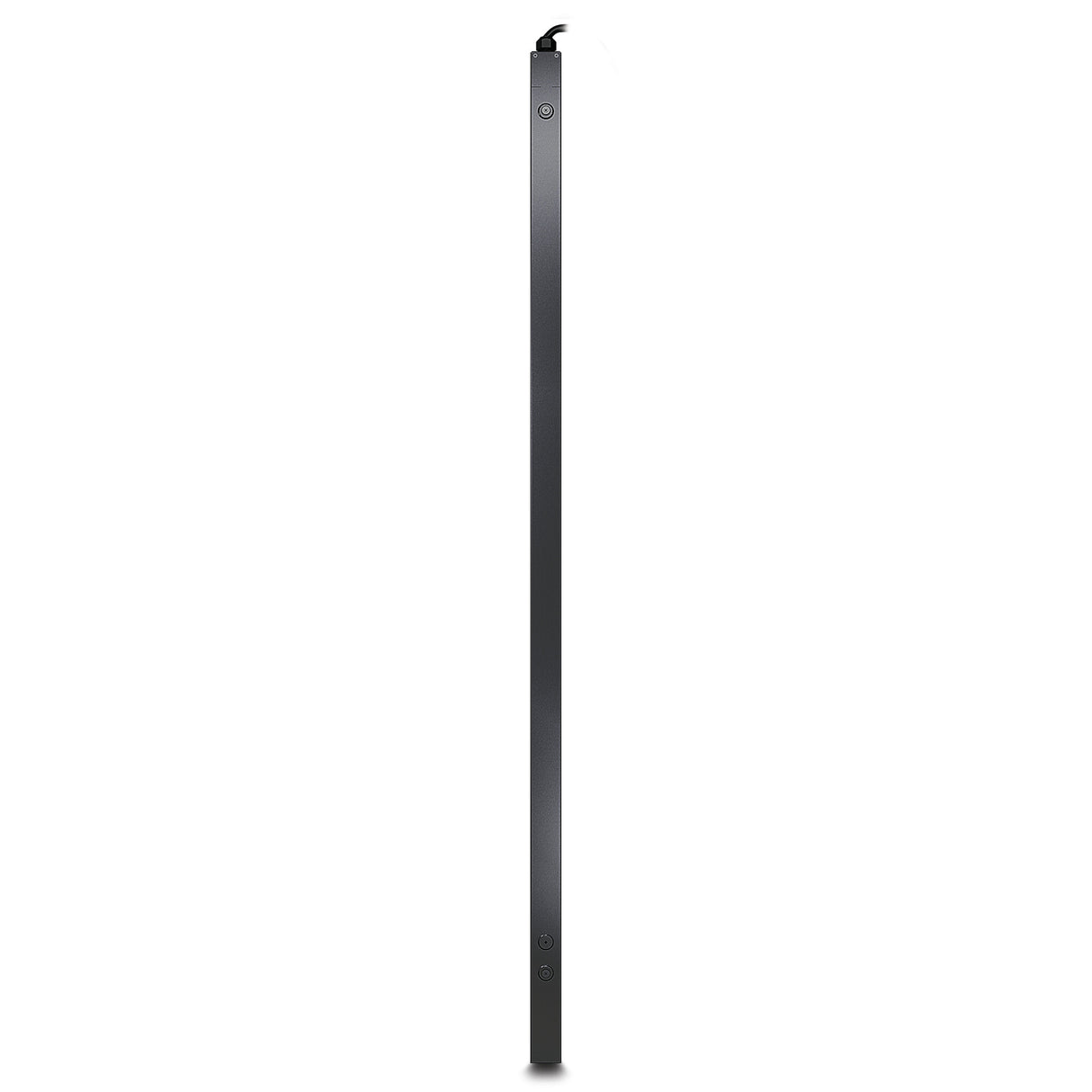

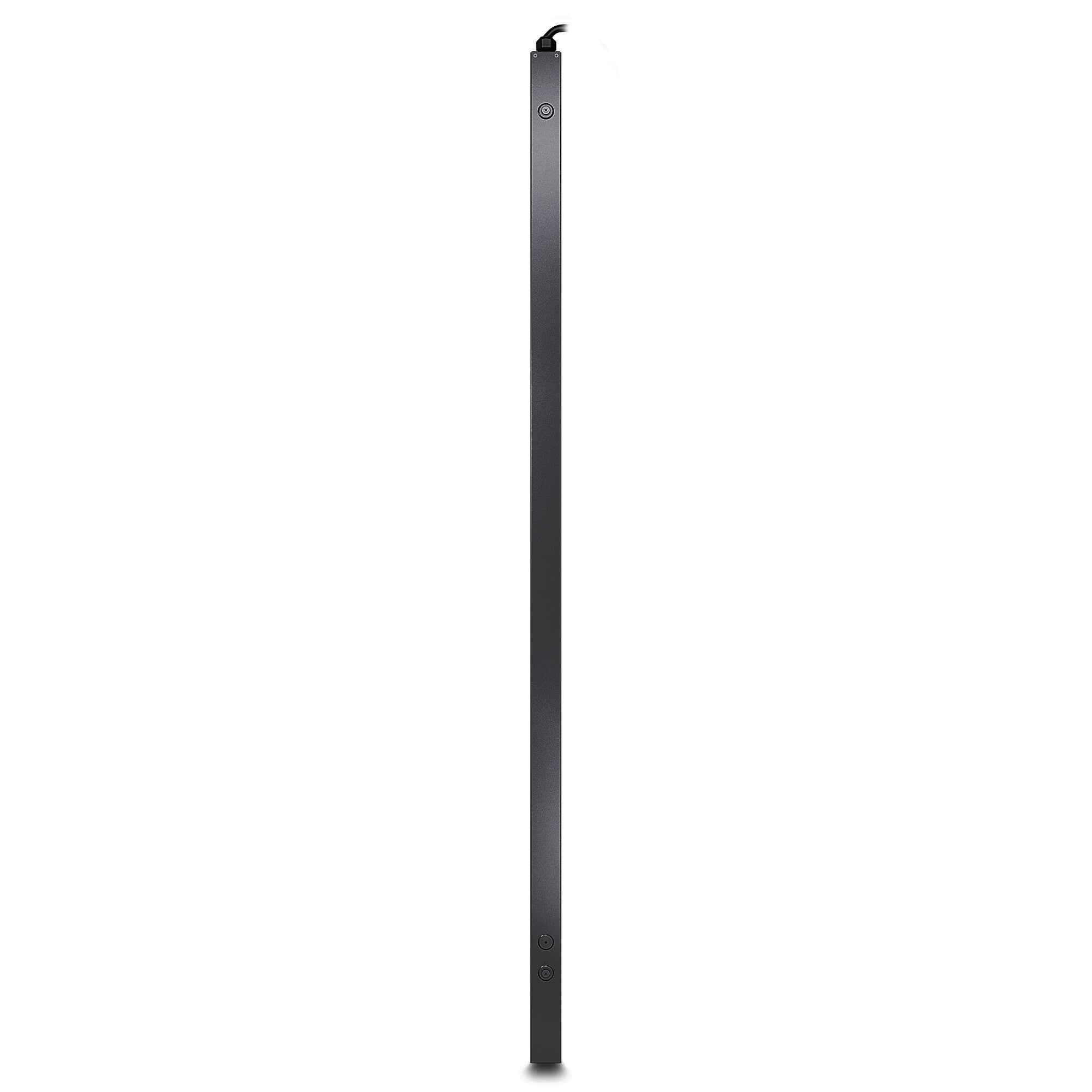

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19

APC  |  SKU: AP8653  |  Condition: Brand New  |  Código de barras: nan
£1,859.99
£1,811.99 Save £48.00 £1,859.99
£1,509.99 excluding VAT @20%
iFrame
Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

Design
PDU types Metered, Metered-by-outlet, Switched
Type Single-phase
Rack capacity 0U
Mounting Vertical
Product colour Black
Ports & interfaces
AC outlets quantity 24 AC outlet(s)

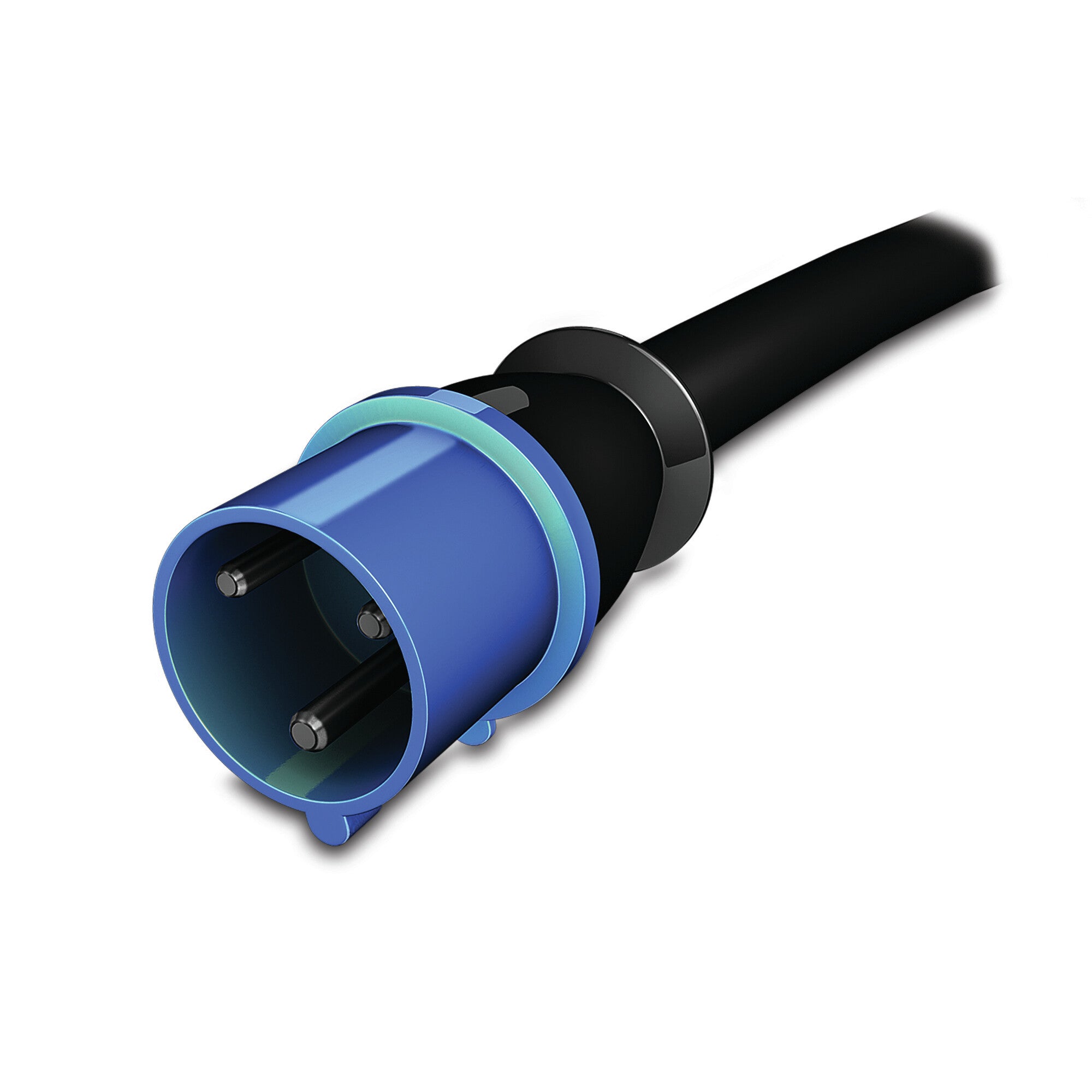

Power plug IEC309
AC outlet types C13 coupler, C19 coupler
Features
Cable length 3 m
Certification EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Management features
Monitoring Current, Power, Voltage
Outlet control Lock-out, Recycle, Turn off, Turn on
Power
Nominal input voltage 230 V
AC input frequency 50 - 60 Hz
Maximum current 32 A
Nominal output voltage 230 V
Load capacity 7680 VA
Maximum input current per phase 32 A
Maximum total current draw per phase 32 A
Maximum power 7680 W
Power protection features Overload
Weight & dimensions
Width 56 mm
Depth 51 mm
Height 1829 mm
Weight 8.23 kg
Packaging data
Package weight 10.5 kg
Package width 162 mm
Package depth 118 mm
Package height 2038 mm
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Technical details
Compliance certificates RoHS
Logistics data
Total carbon footprint 8595.81
