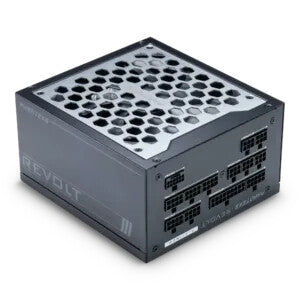

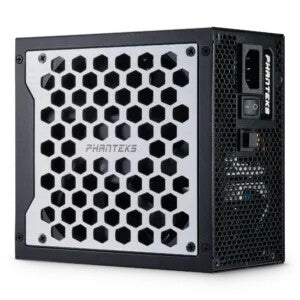

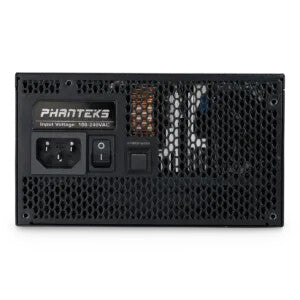

Phanteks Revolt power supply unit 1200 W ATX Black
Revolt
Designed For Custom Cables
Extending the Revolt Series power supplies, Phanteks will offer a power supply without cables for users who want custom cables from CableMod. The new Revolt power supplies give you complete control to choose which power supply and which cables you need, saving needless cables in the process.
The Revolt power supplies from Phanteks have been developed with Seasonic to ensure the highest standards of performance and reliability. All models fully support and exceed the latest Intel ATX 3.0 specifications and come with either 80 Plus Platinum or Titanium certification. Wattage capacity ranges from 1000 Watt all the way up to 1600 watt.
| Power | |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Maximum input current (@110V) | 15 A |
| Maximum input current (@220V) | 7.5 A |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Overcharge, Overheating, Short circuit |
| Ports & interfaces | |
|---|---|
| Peripheral (Molex) power connectors (4-pin) | 5 |
| Cabling type | Fully-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Packaging data | |
|---|---|
| Package type | Box |
-
