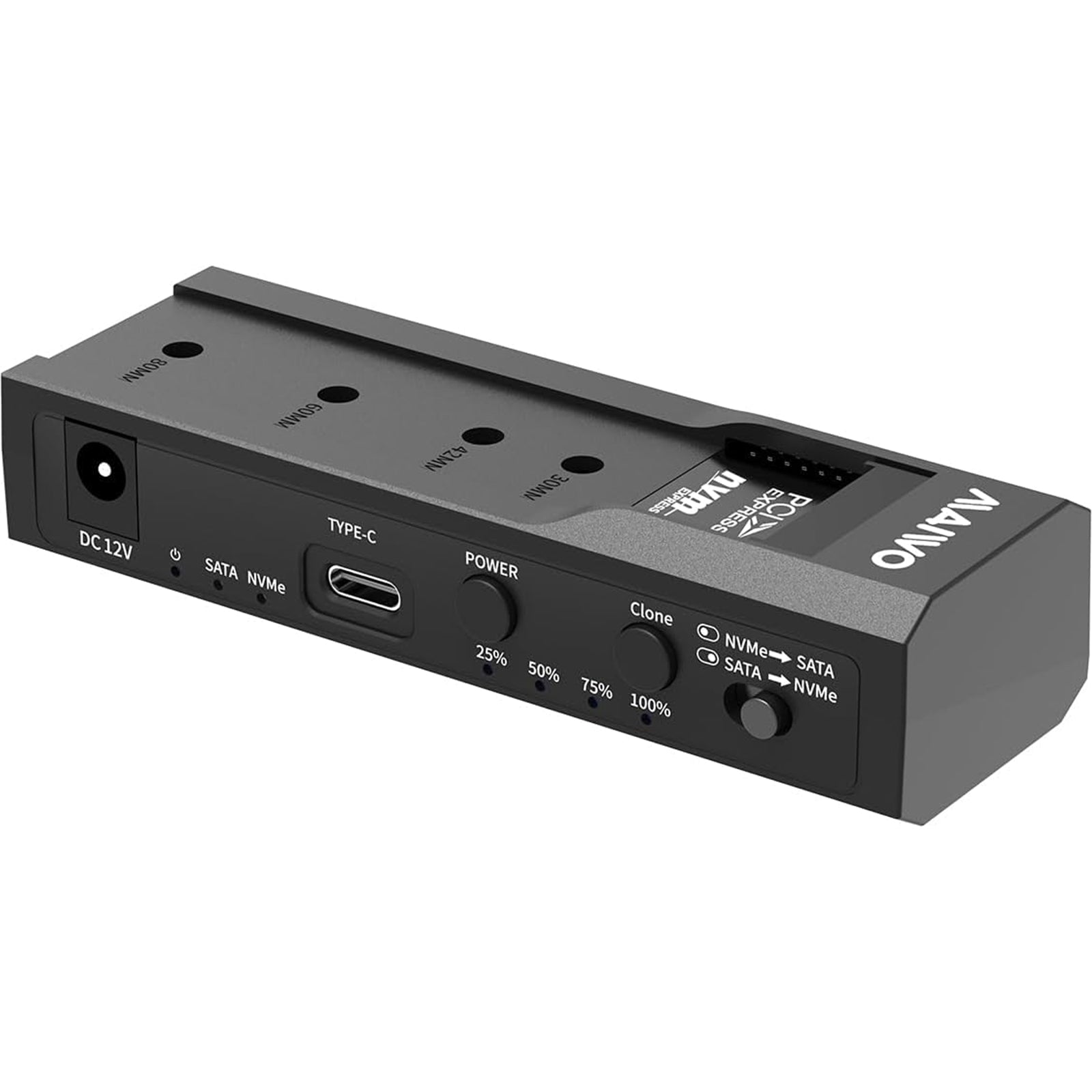

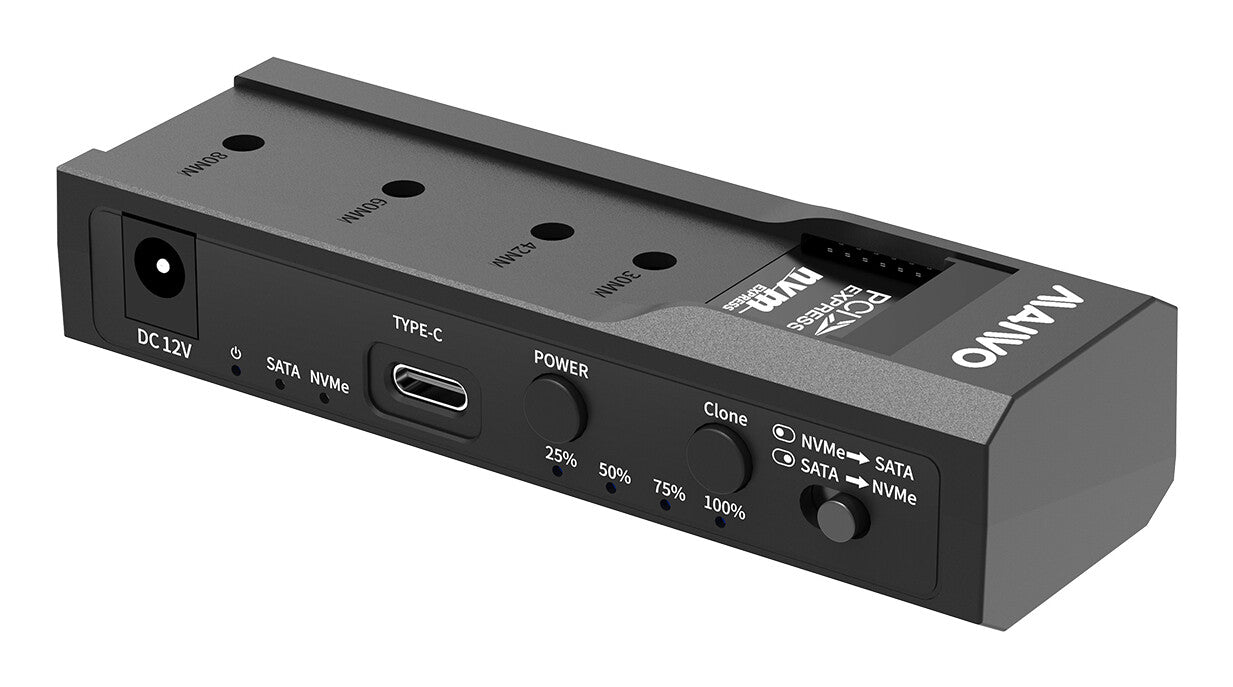

Maiwo USB Type-C, Dual Bay HDD/NVMe M2 SSD 10Gbps Clone Converter For 2.5" and 3.5" SATA, Clone SATA to NVMe Instantly

MAIWO K10635N type C 10Gbps to dual bay HDD/NVMe M2 SSD clone converter for 2.5" and 3.5" SATA

Key Features
Screw-less design easy to install HDD and SSD

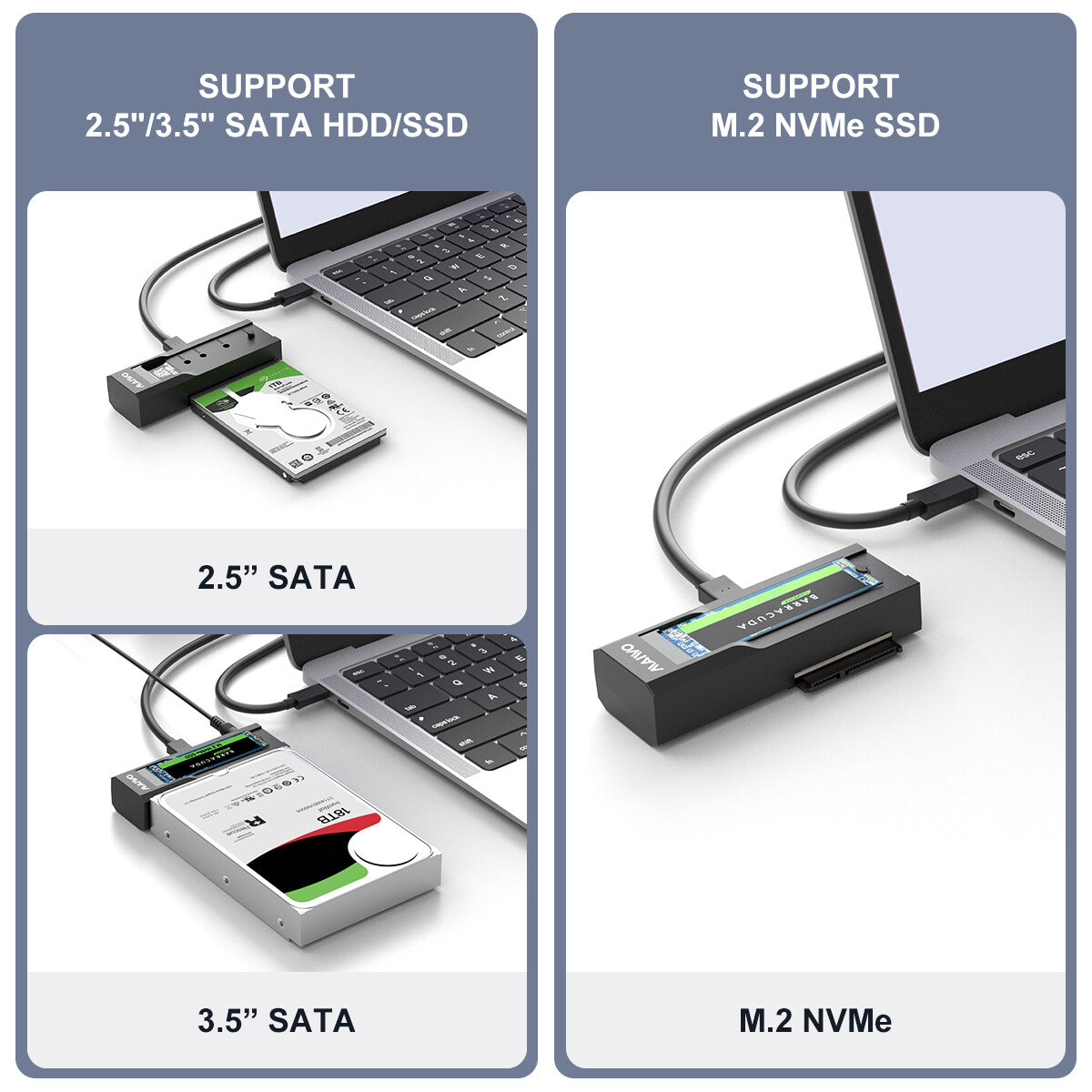

Compatible for different kinds of HDD/SSD in the market, including M-key NVMe SSD,2.5" SATA HDD/SSD and 3.5" SATA HDD, can recognize two disks simultaneously when connecting with PC
Support M-key NVMe SSD
Offline clone, dual way, can copy 2.5"/3.5" SATA => NVMe or NVMe => 2.5"/3.5" SATA, switch to control source and target disk
Four LED lights indicate clone progress 25%,50%,75% and 100%
Interface: Type C to SATA/M-key M2
Support SSD size: 2230,2242,2260 ,2280

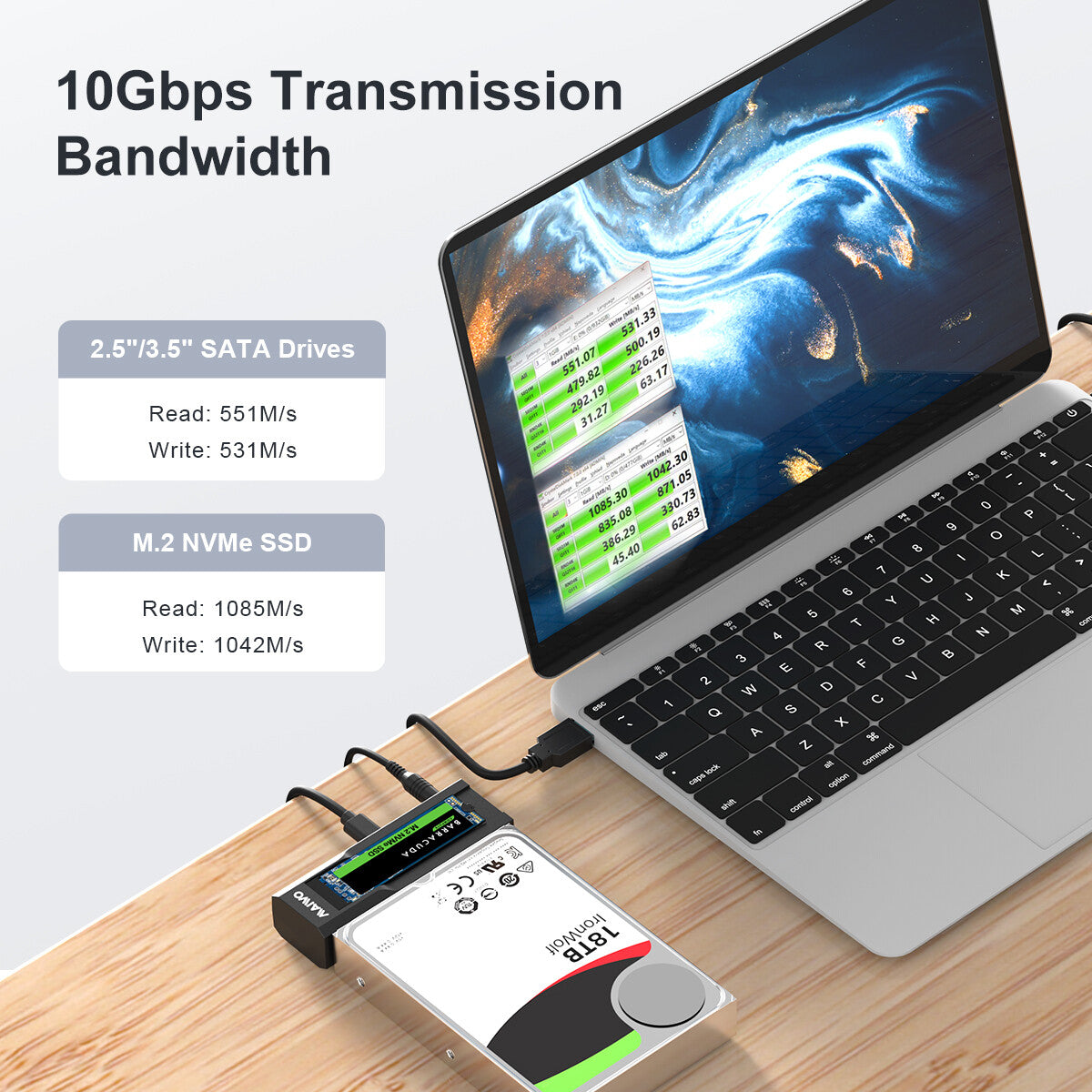

USB speed to 10Gbps max
Support U.A.S.P, will improve speed 30% at win8 or above
Compatible with windows, MAC and Linux
Unit size:108 x 35 x 24 mm

Perfect For

System Upgrades
Easily migrating an OS from an old SATA HDD to a modern, fast M.2 NVMe SSD.

Data Recovery
Accessing data from different drive types without needing multiple specialized adapters.

Content Creation
Managing large libraries of media files across different storage mediums at high speed.

Clear Indicator Light

Drive Indicatior
Light Flashes when read & write, light goes off when in sleep mode.

Clone Indicator
Light flashes when cloning, light up when cloning is finished.

Step 1

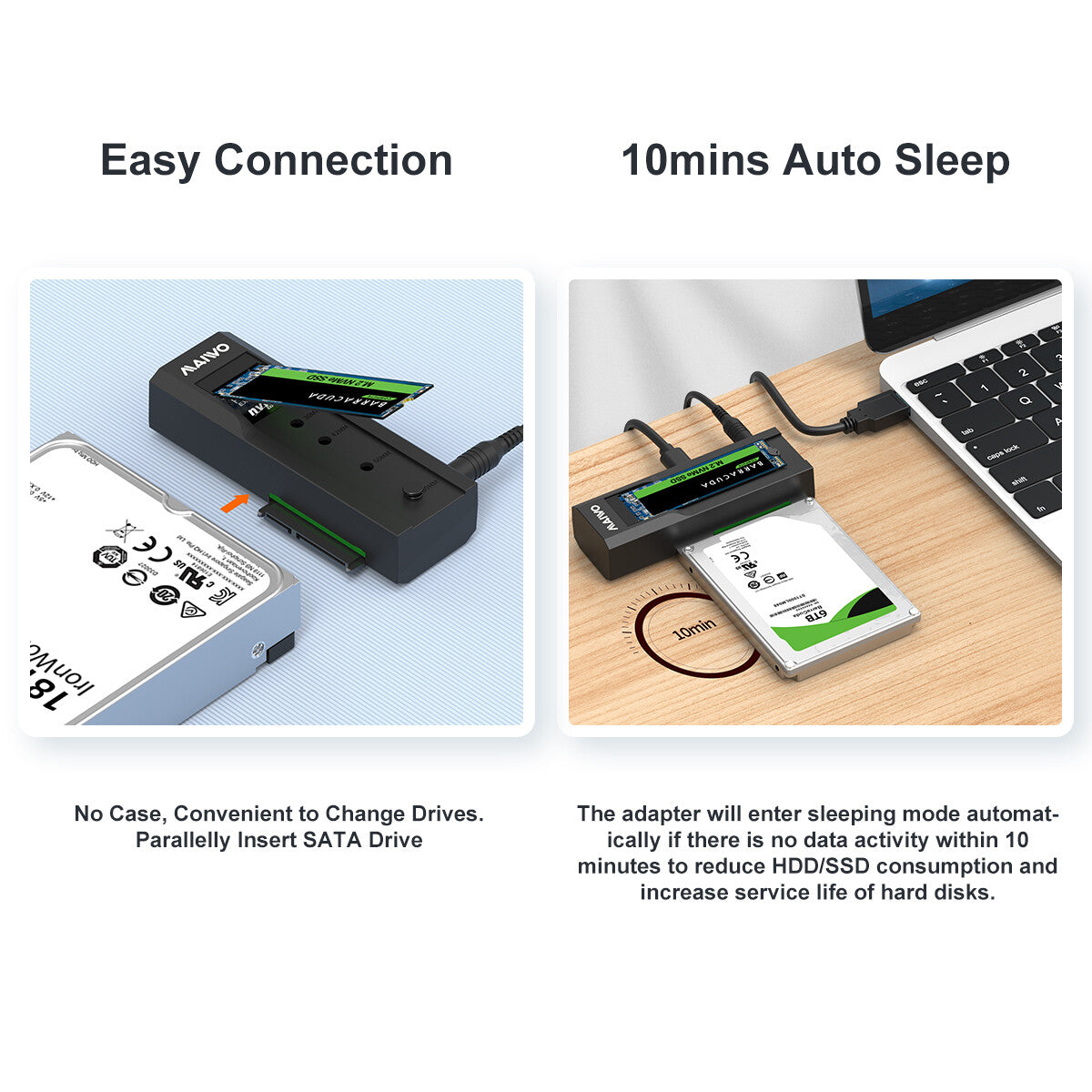

Insert 2.5"/3.5" SATA drive into the SATA Port, or insert M.2 NVMe SSD into the M2 port.

Step 2
Spin the silicone cork to fix the M.2 hard drive.

Step 3
Connect the adapter to your device via data cable.

Step 4

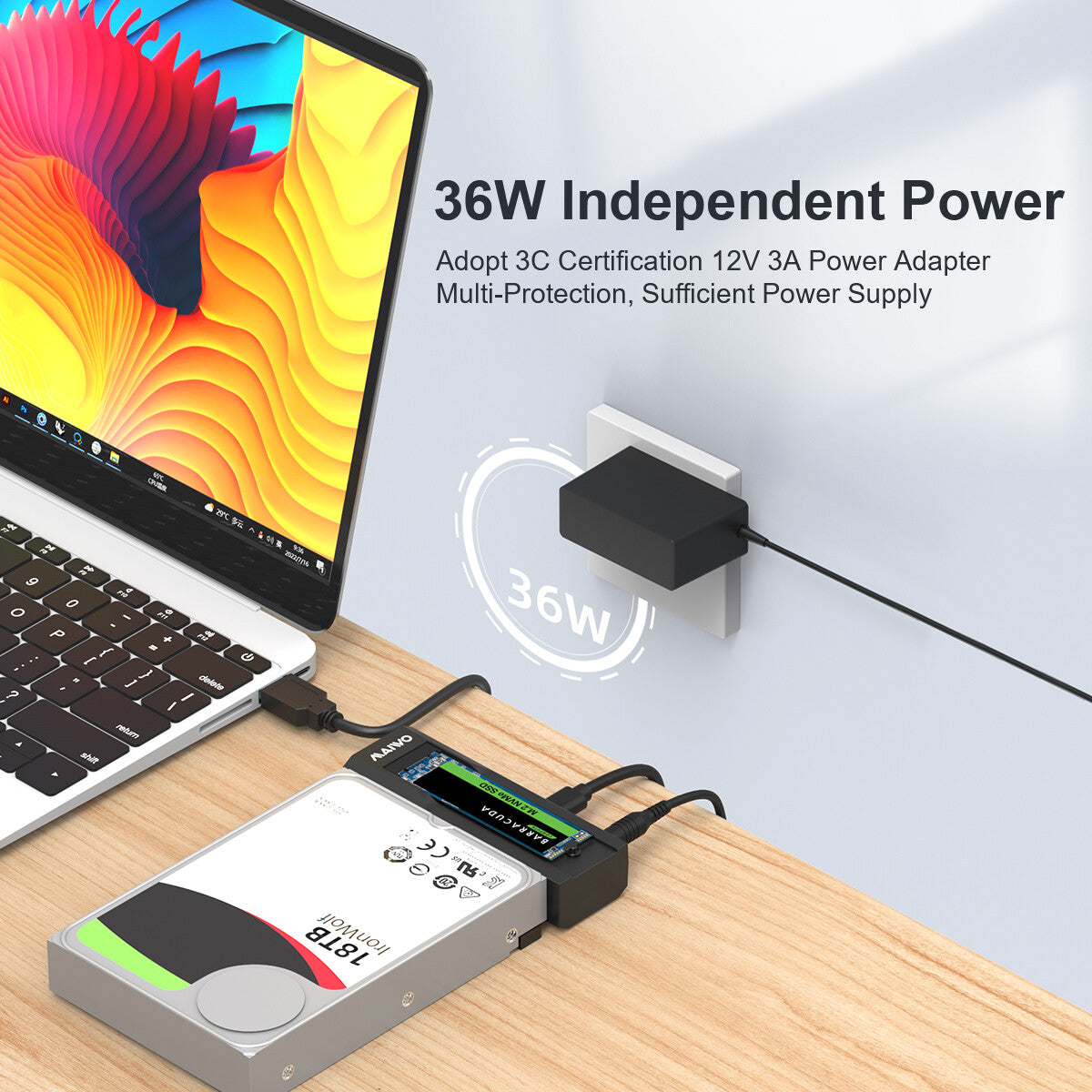

Connect the power adapter and open the power switch.

Clone Operation Steps

Step 1
Choose the clone mode
Make sure the capacity of the target drive is larger than or equal to the source drive
Connect the power adapter, open the POWER switch, the power light, lights up and then the two Drive Indicators light up

Step 2
Long-press Clone button for 5 seconds and the Clone Indicator flashes
Press Clone button within 5 seconds to enter clone mode
Corresponding progress indicators start to flash when cloning
Indicators are on once cloning is finished

Note:
You must remove the USB-C cable from the PC for the cloning process to work

Box Contents
Package Content:
1 x adapter
1 x cable
1 x power adapter
3 x screws
1 x manual
1 x warranty card

Warranty
1 Year

• HD Size: 2.5 & 3.5
• Internal Connection: SATA III
• External Connection: USB Type - C
