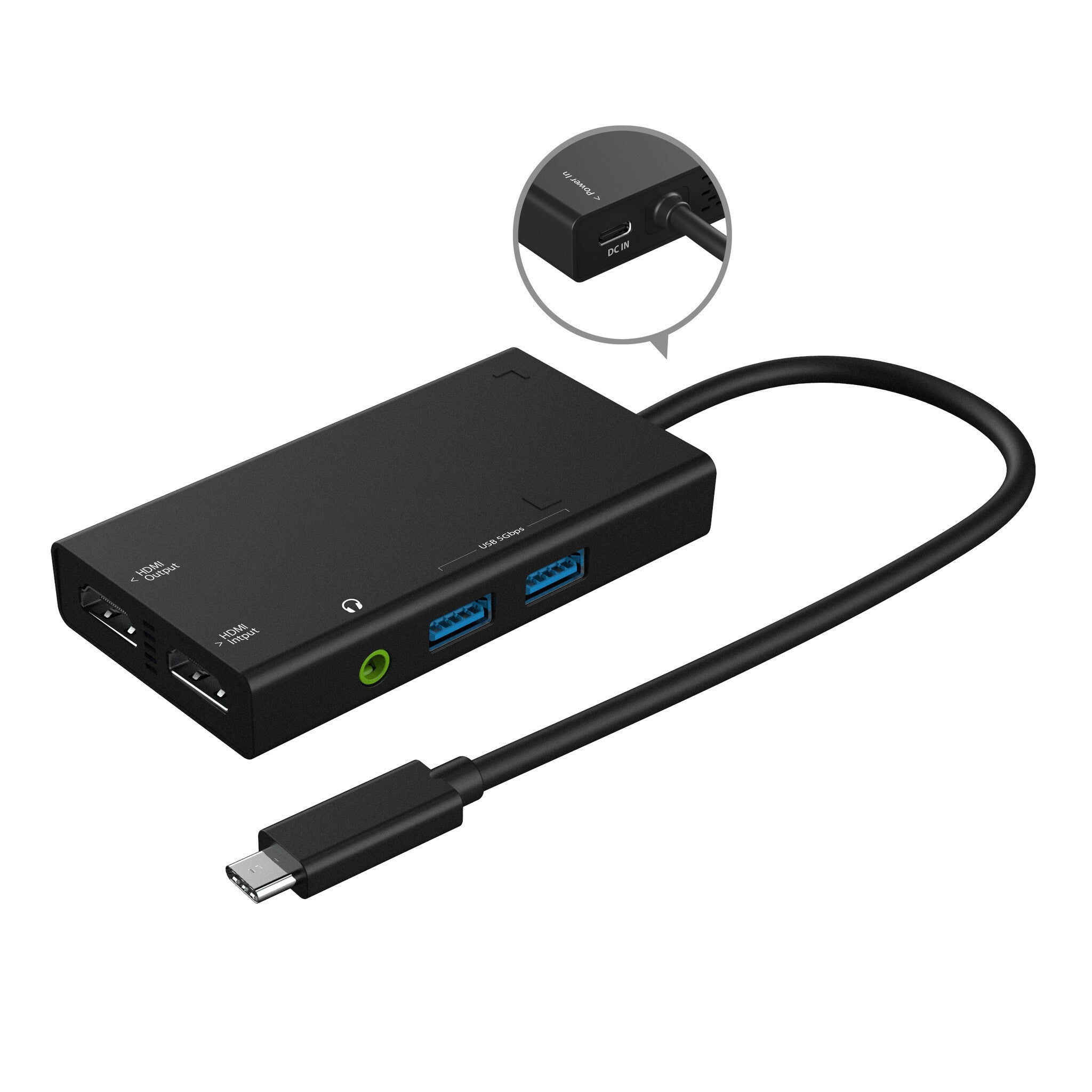

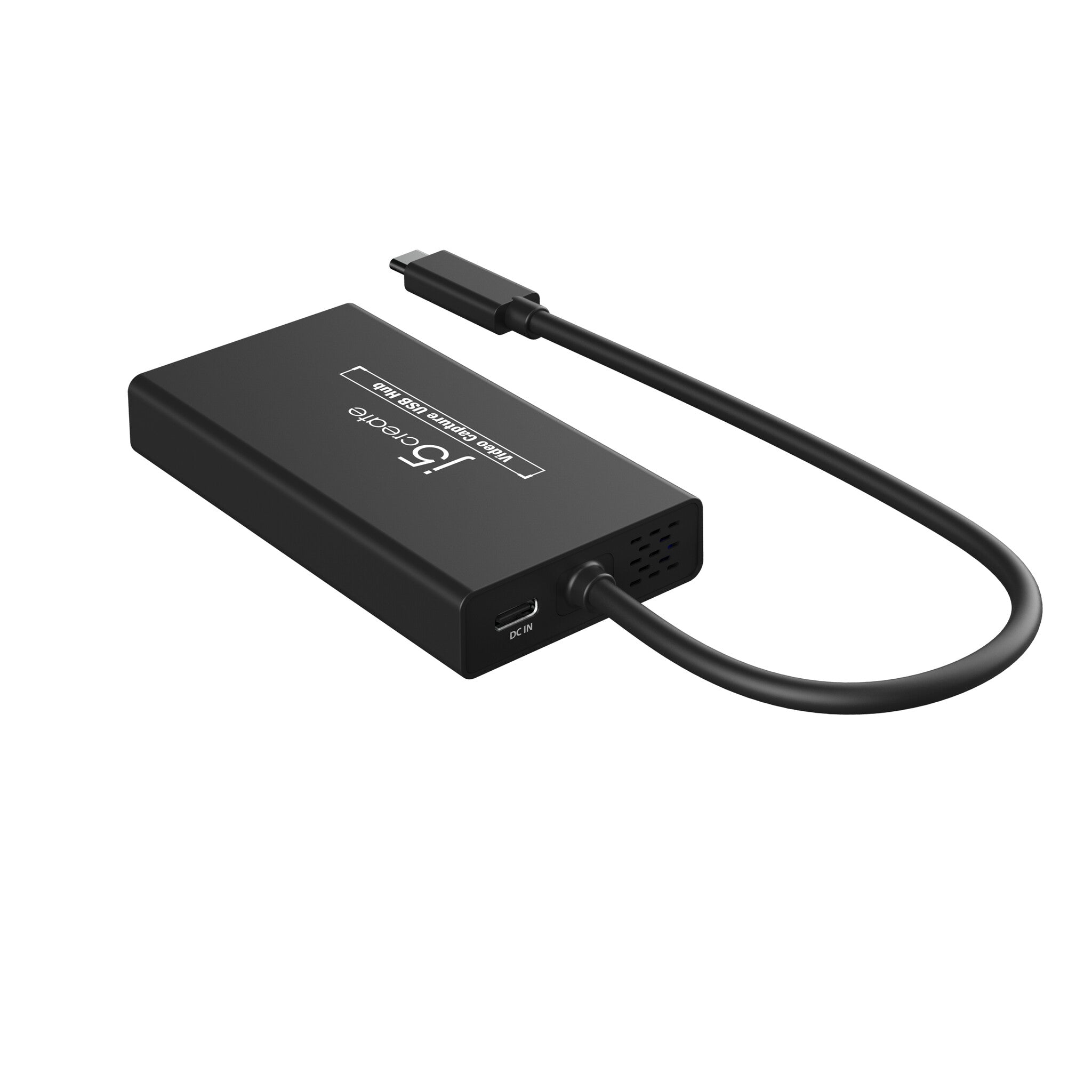

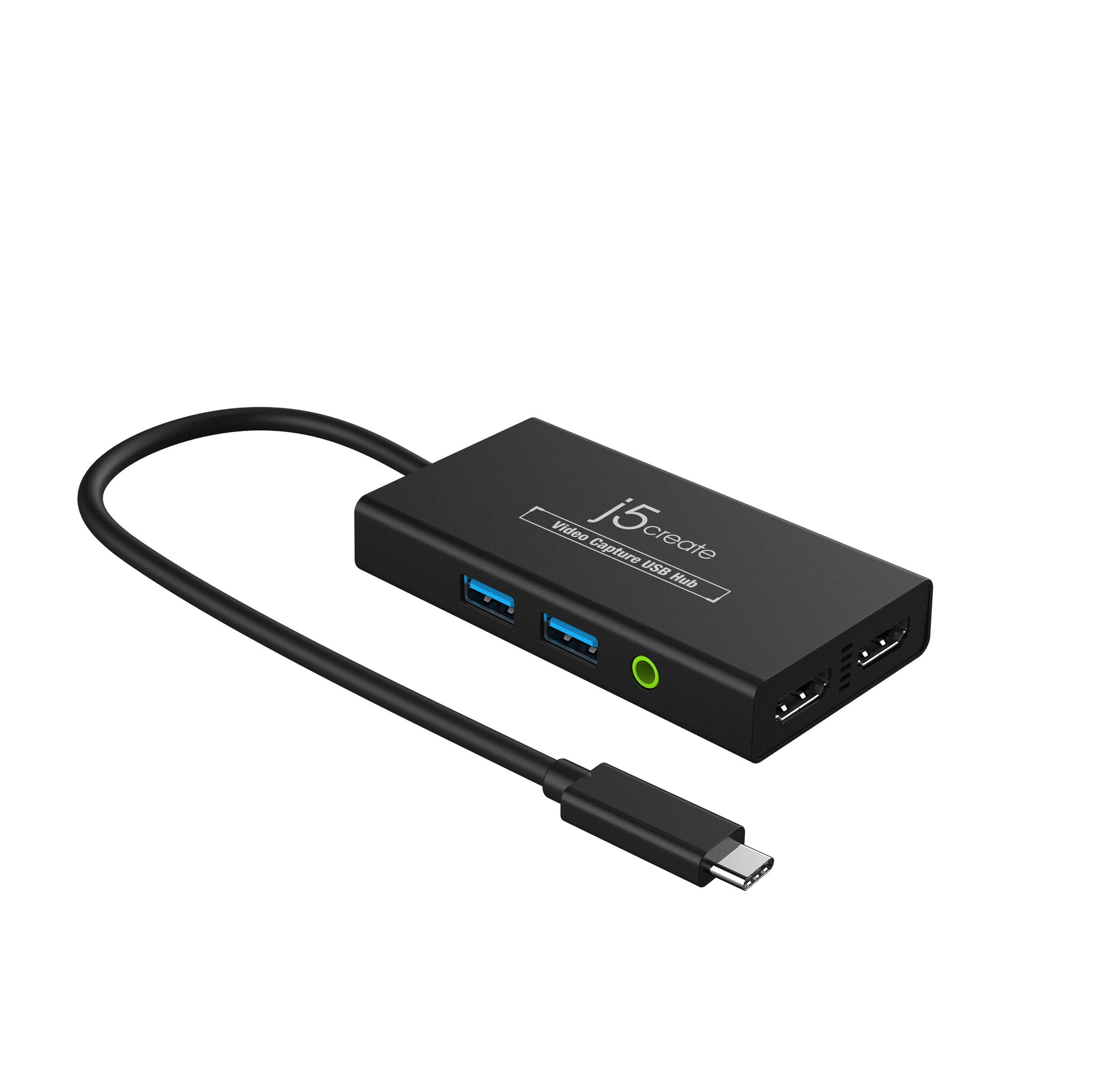

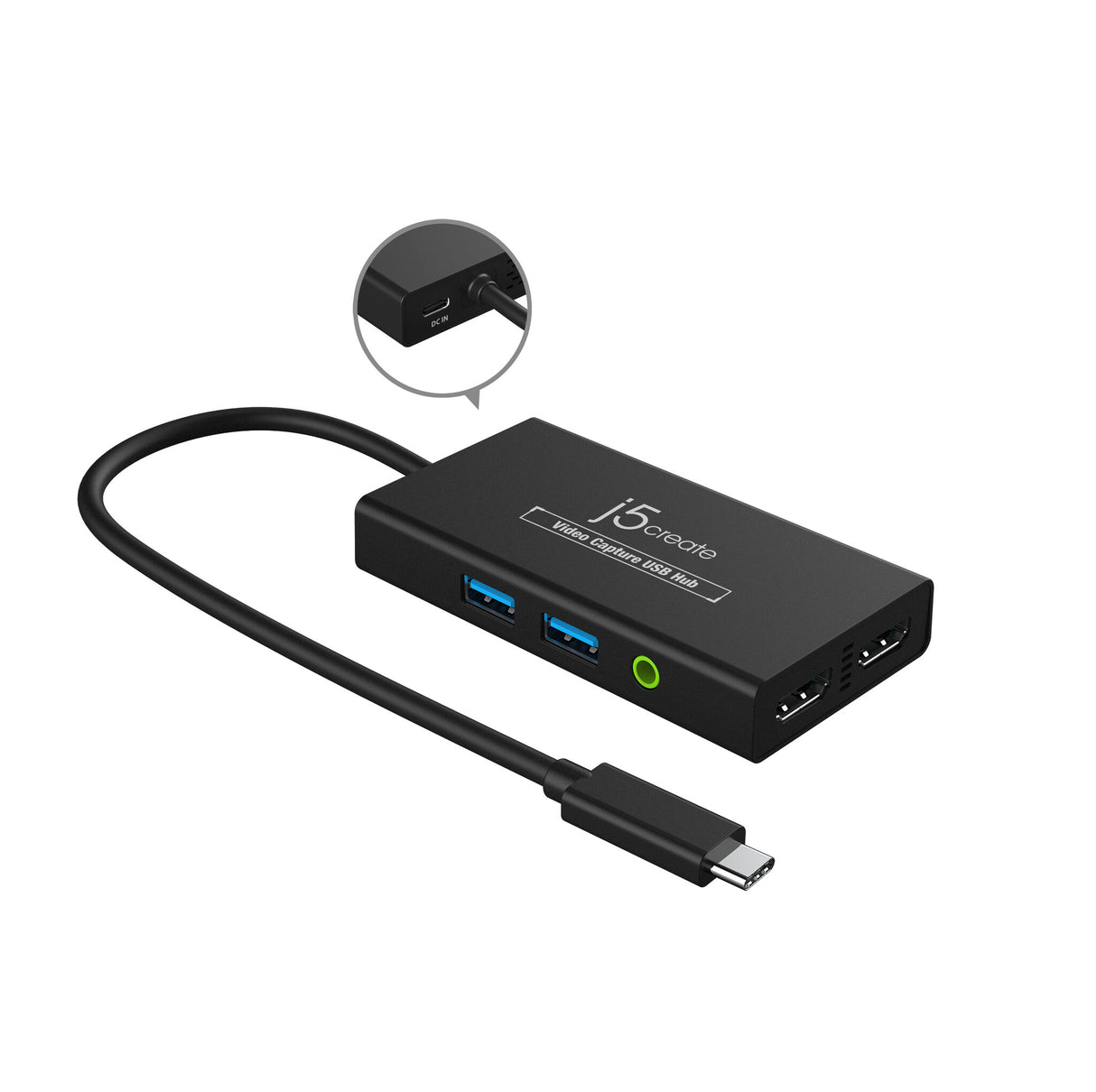

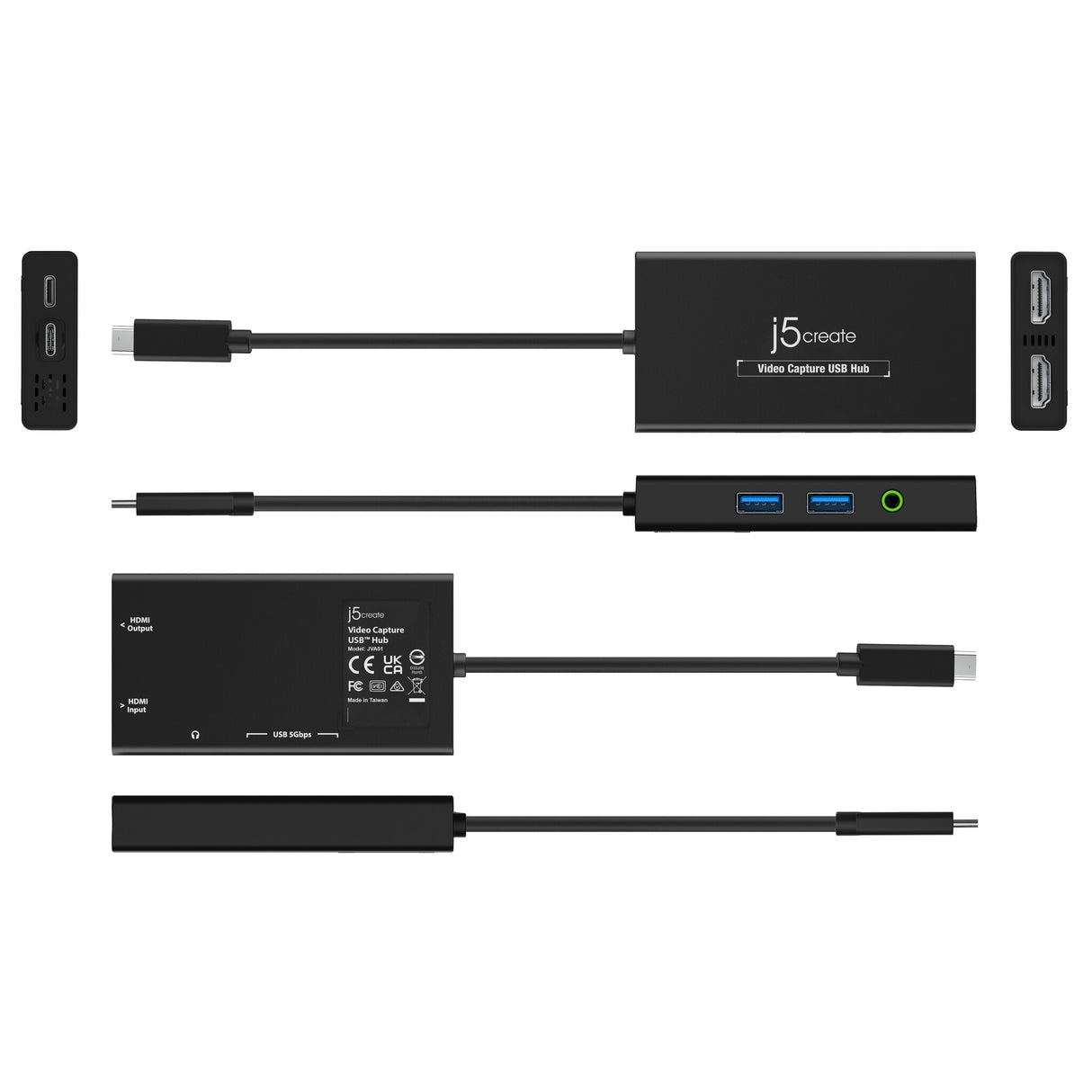

j5create JVA01-N Video Capture USB™ Hub
The Video Capture USB™ Hub is a dual-purpose device that combines an HDMI™ capture card with a USB-C® hub. With the 1080p video capture and 4K USB-C® display, as well as Power Delivery 3.0, you can stream in UHD without interruptions while charging your connected device. It also includes two SuperSpeed USB™ 5Gbps ports for further peripheral connectivity. The compact and lightweight design makes this video capture hub perfect for mobile streaming. When not used for streaming, it acts as a standard USB-C® hub, allowing you to add two additional USB™ peripherals and a 4K HDMI™ display. It also supports upstream charging to keep your laptop powered while in use.
| Performance | |
|---|---|
| Product colour | Black |
| Internal | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Memory card slot(s) | No |
| Plug and Play | Yes |
| Cable length | 0.3 m |
| Housing material | Plastic |
| Capturing from | Digital camera, Game console, PC |
| High Dynamic Range (HDR) supported | No |
| Country of origin | Taiwan |
| Compatible products | Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 (USB™ 3.2 is recommended). |
| Video | |
|---|---|
| Analog signal format system | Not supported |
| Supported resolutions | HDMI™ In: 3840 x 2160 USB-C® display: 3840 x 2160 Capture/Record: 1920 x 1080 |
| Maximum refresh rate | 30 Hz |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| USB connector type | USB Type-A |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Headphone outputs | 1 |
| Power | |
|---|---|
| Power supply type | USB |
| Input voltage | 20 V |
| Input current | 3 A |
| Output current | 3 A |
| Output voltage | 20 V |
| Software | |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Android |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 85% |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Width | 50.5 mm |
| Depth | 96.5 mm |
| Height | 15 mm |
| Weight | 69 g |
| Packaging data | |
|---|---|
| Package weight | 148.2 g |
| Package depth | 125 mm |
| Package width | 193 mm |
| Package height | 22.5 mm |
| Package type | Box |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
| Quantity | 1 |
-
