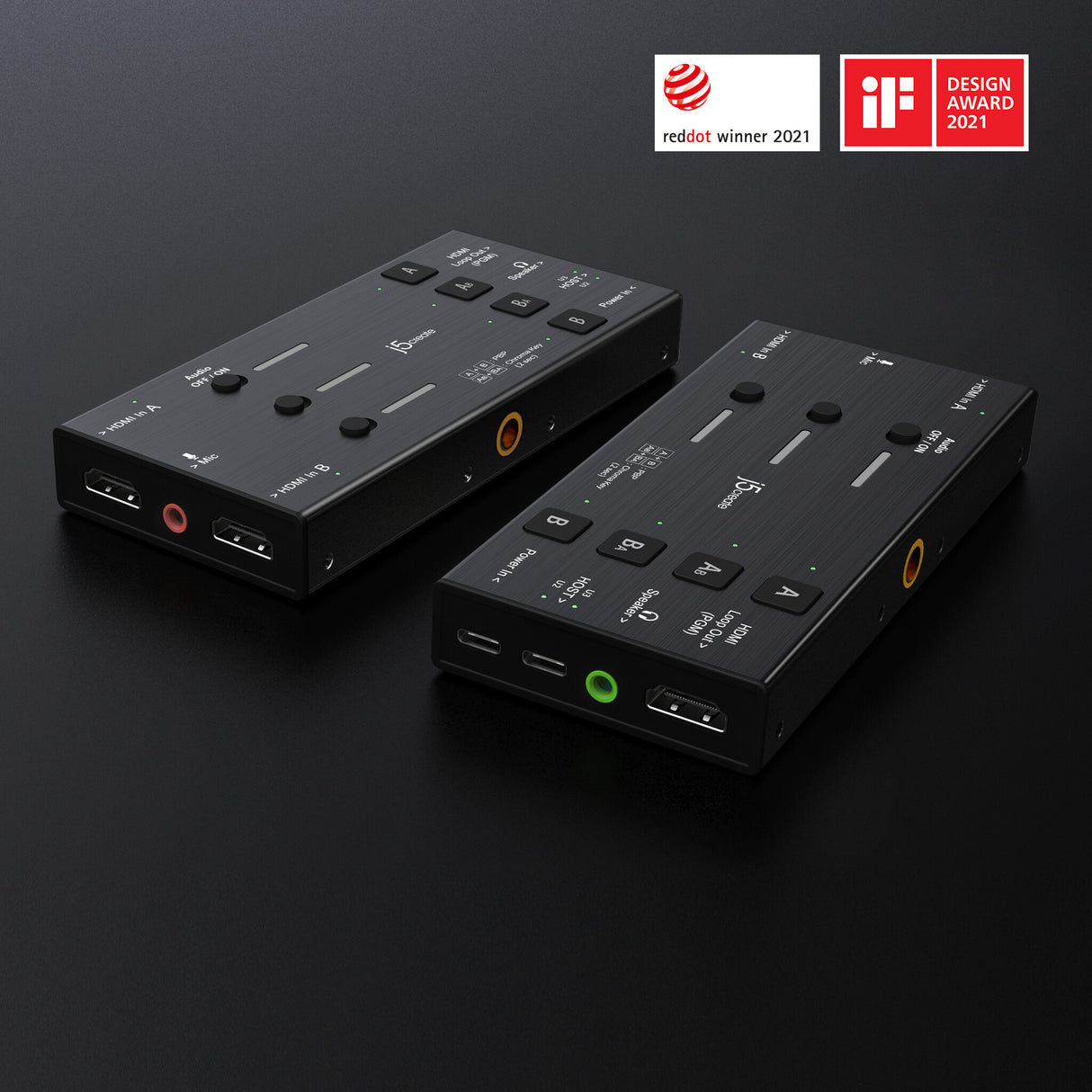

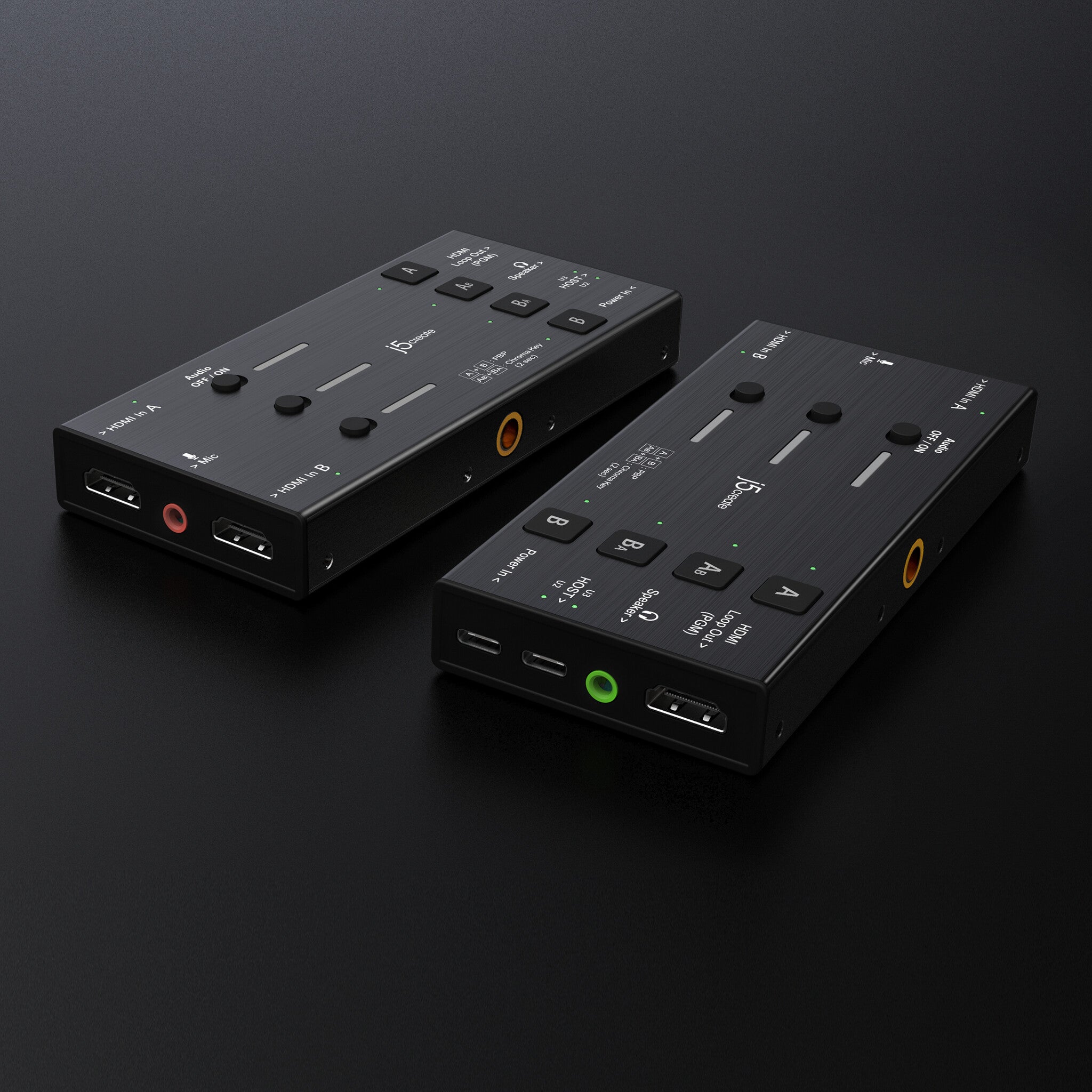

j5create JVA06 Dual HDMI™ Video Capture Card, 1920*1080 Video Capture Resolution, 3 x HDMI ports and 2 x USB ports, Black

J5CREATE  |  SKU: JVA06-N  |  Condition: Brand New  |  Código de barras: 4712795085563
£116.99
£114.99 Save £2.00 £116.99
£95.83 excluding VAT @20%
iFrame
JVA06 Dual HDMI Video Capture Card, 1920*1080 Video Capture Resolution, 3 x HDMI ports and 2 x USB ports, Black

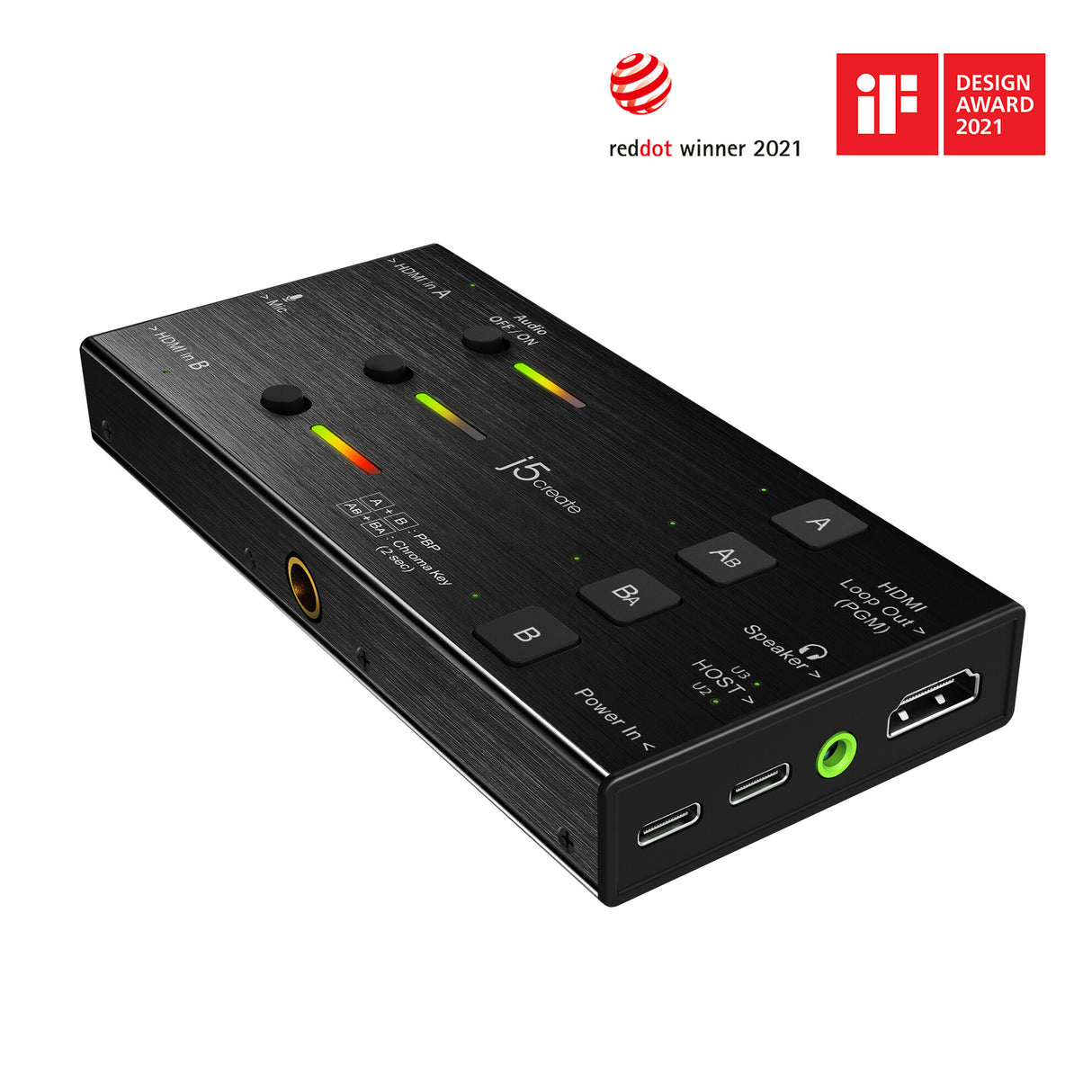

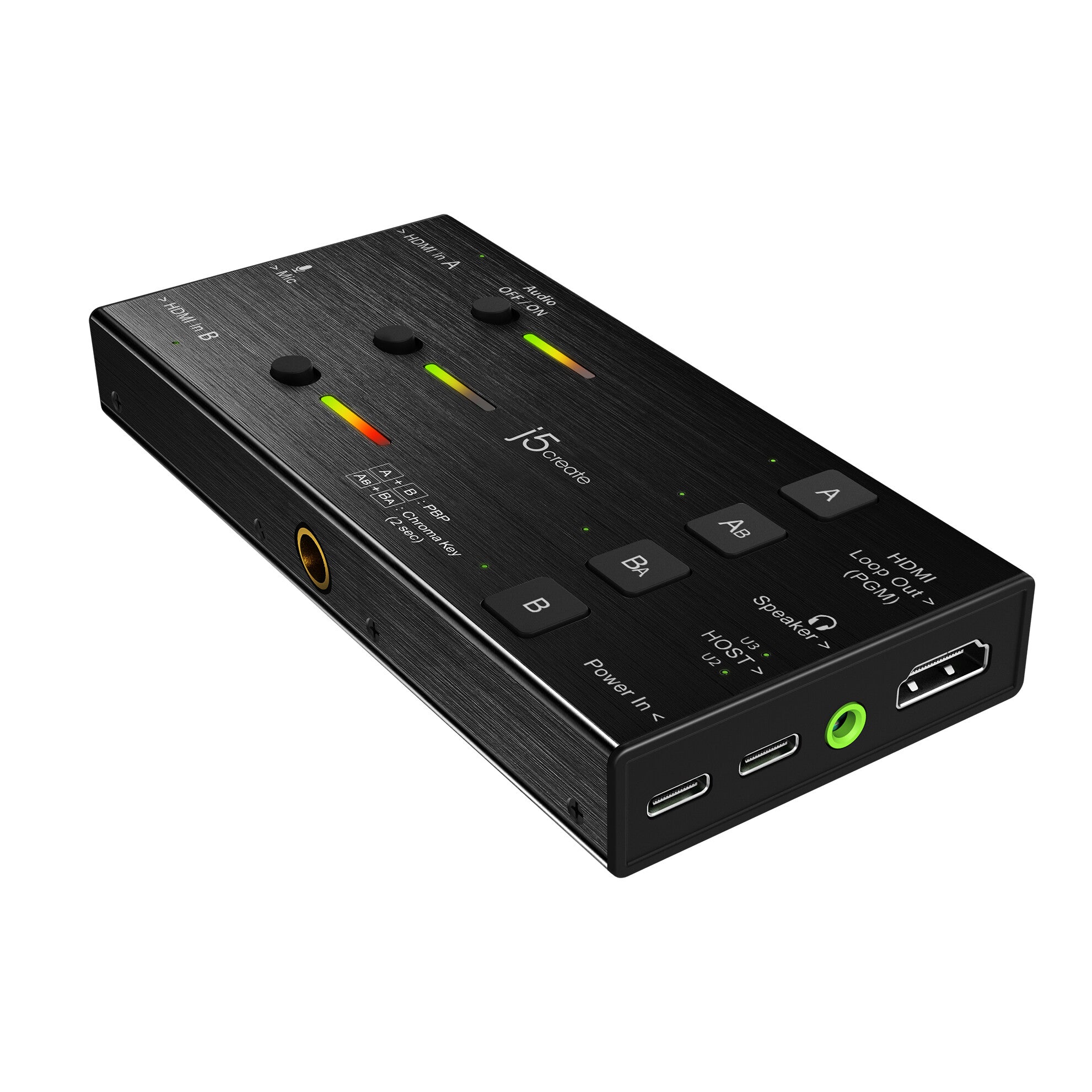

The JVA06 Dual HDMI™ Video Capture allows users to capture uncompressed 1080p video from two HDMI™ sources simultaneously and customize the content in real time. Whether you’re live streaming or recording, there are six screen mode configurations available, including PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can quickly adjust the display settings and transitions with the built-in buttons on the device. The JVA06 also features a Chroma Key application allowing users to drop in a new background image.

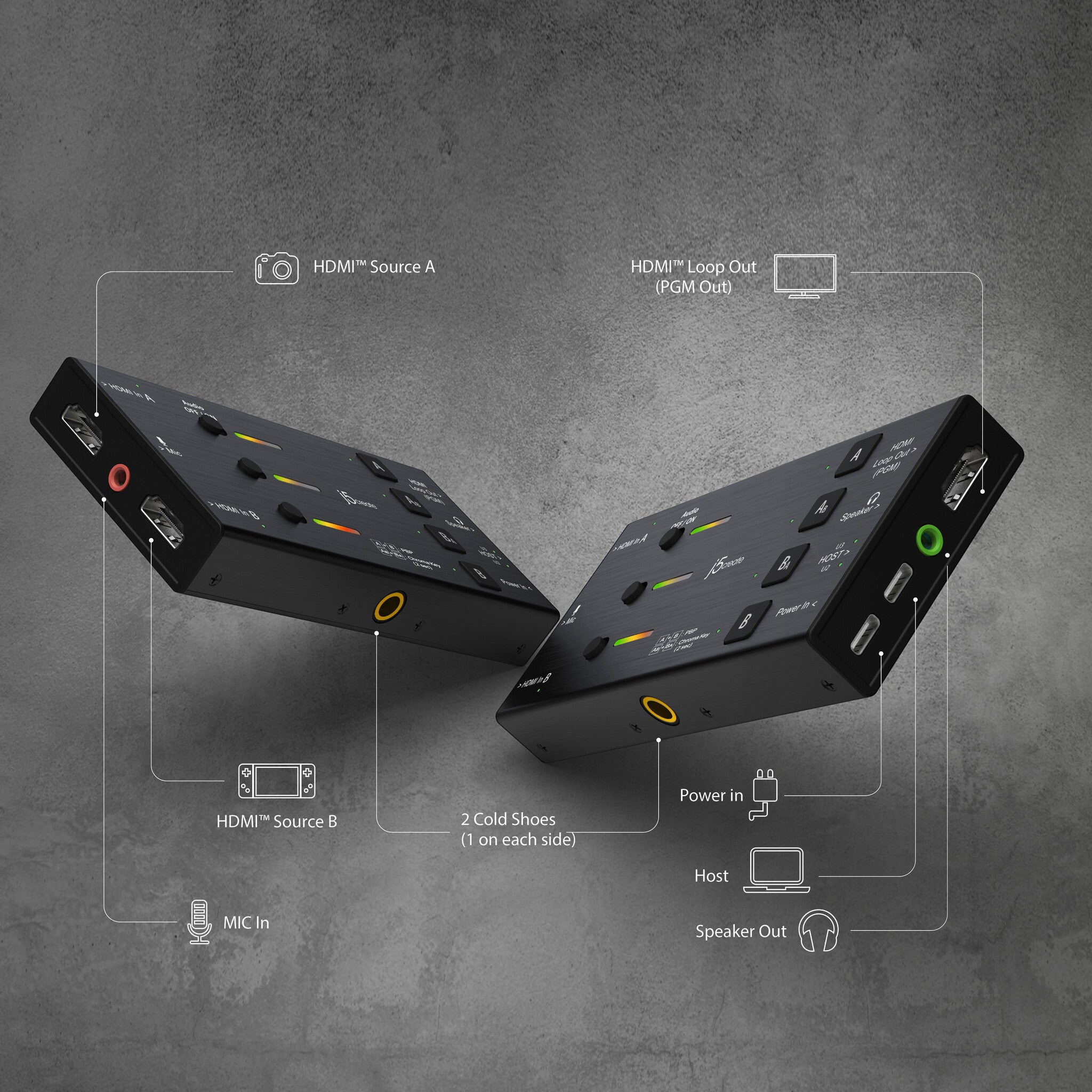

With a flexible audio connection via HDMI™ or analog 3.5 mm port, you can record audio directly from your HDMI™ sources and microphone. It has a built-in audio mixer function allowing users to toggle between four different audio settings and three audio inputs (Mic In, HDMI™ A and HDMI™ B).

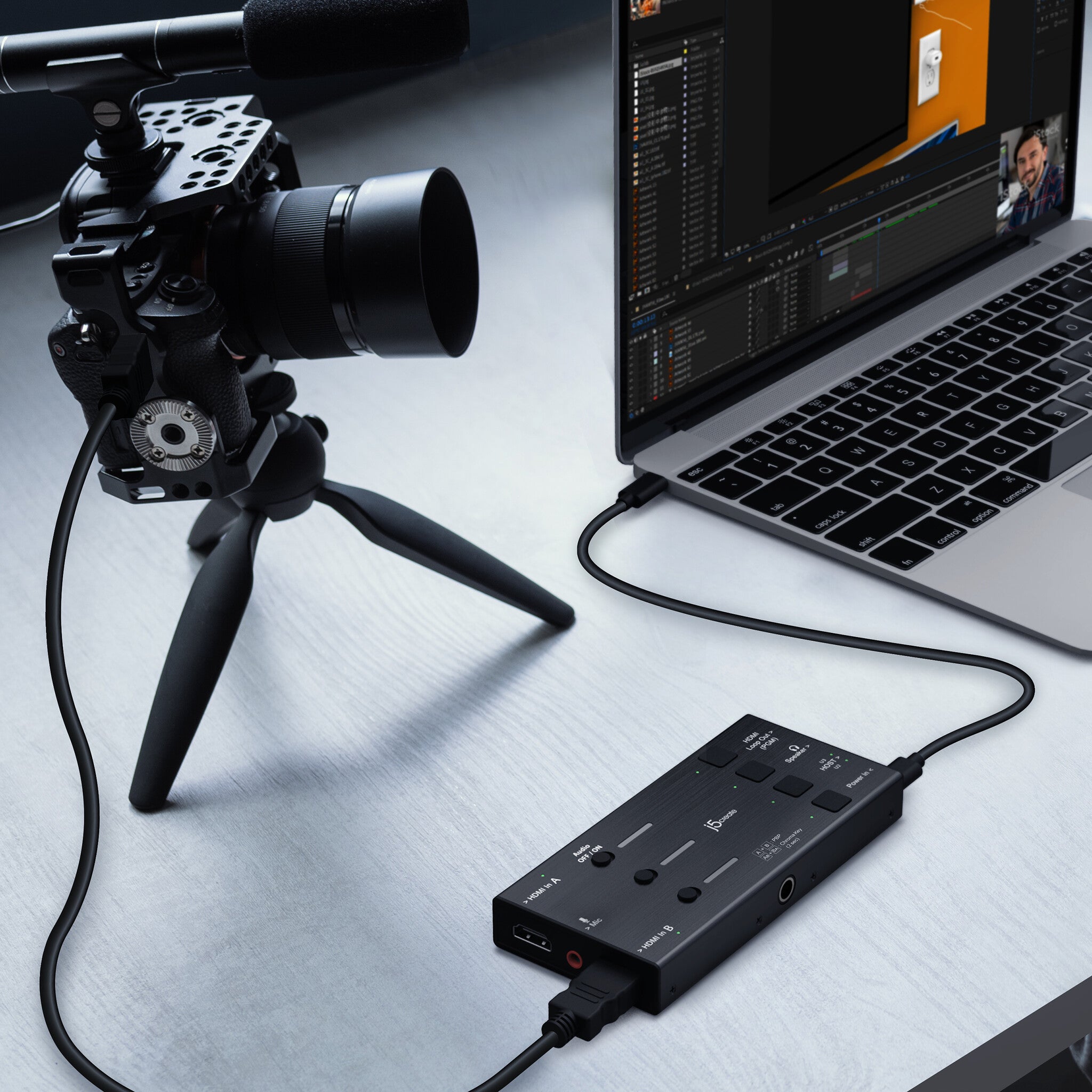

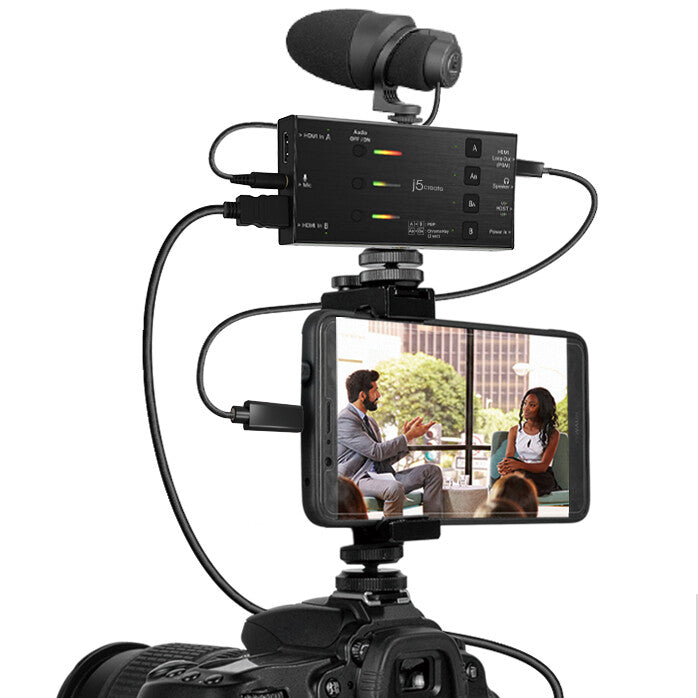

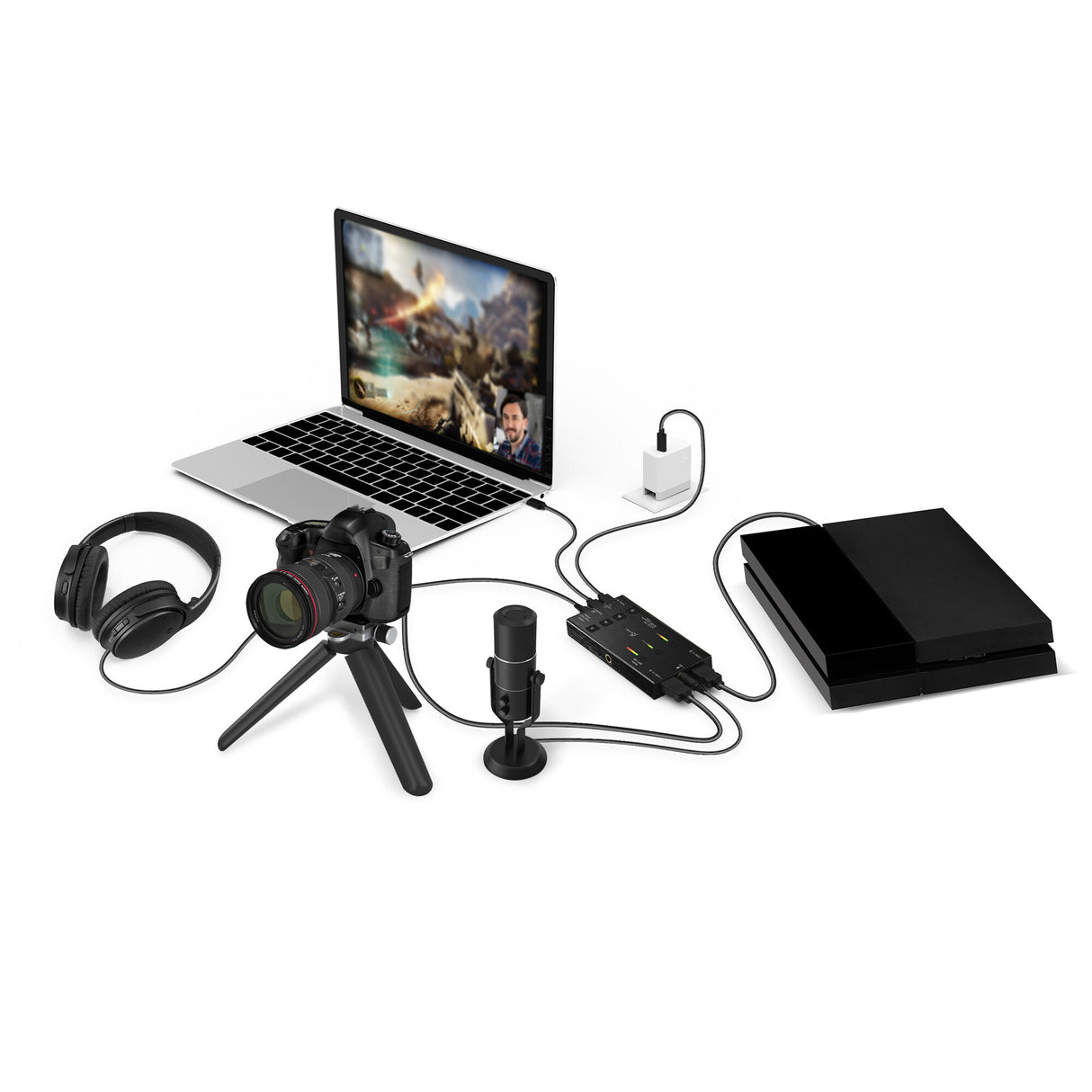

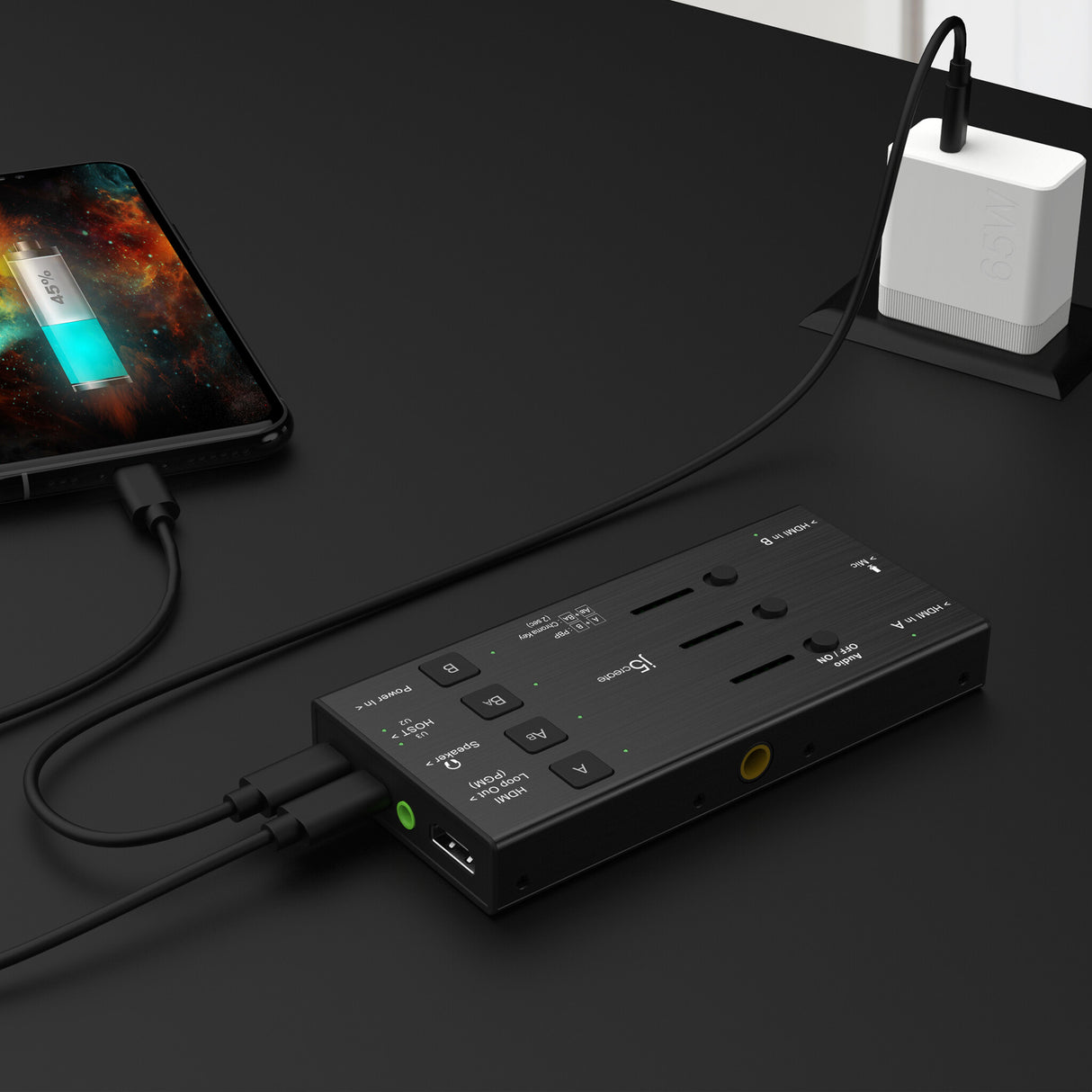

The JVA06 is perfect for content creators/producers who want to level up their content without spending a fortune and live streamers who want to simplify their setup without compromising the quality of their content. It features a USB-C® host connection with Power Delivery 3.0 and two cold shoe adapters to attach to your DSLR for the perfect combination of ease-of-use and mobility, giving you the ability to live stream without interruptions and charge your connected USB-C device at the same time.

Performance
Product colour Black
Internal No
Host interface USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max) 1920 x 1080 pixels
Cable length 0.6 m
Housing material Aluminium
Supported aspect ratios 16:9
Capturing from Digital camera, Game console, PC
LED indicators USB
Country of origin Taiwan
Video
Analog signal format system Not supported
Supported resolutions 640 x 480
720 x 480
720 x 576
800 x 600
1280 x 720
1024 x 768
1360 x 768
1280 x 800
1152 x 864
1440 x 900
1280 x 1024
1400 x 1050
1680 x 1050
1600 x 1200
1920 x 1080
Maximum frame rate 60 fps
Supported video modes 1080p
Audio
Supported audio channels 2

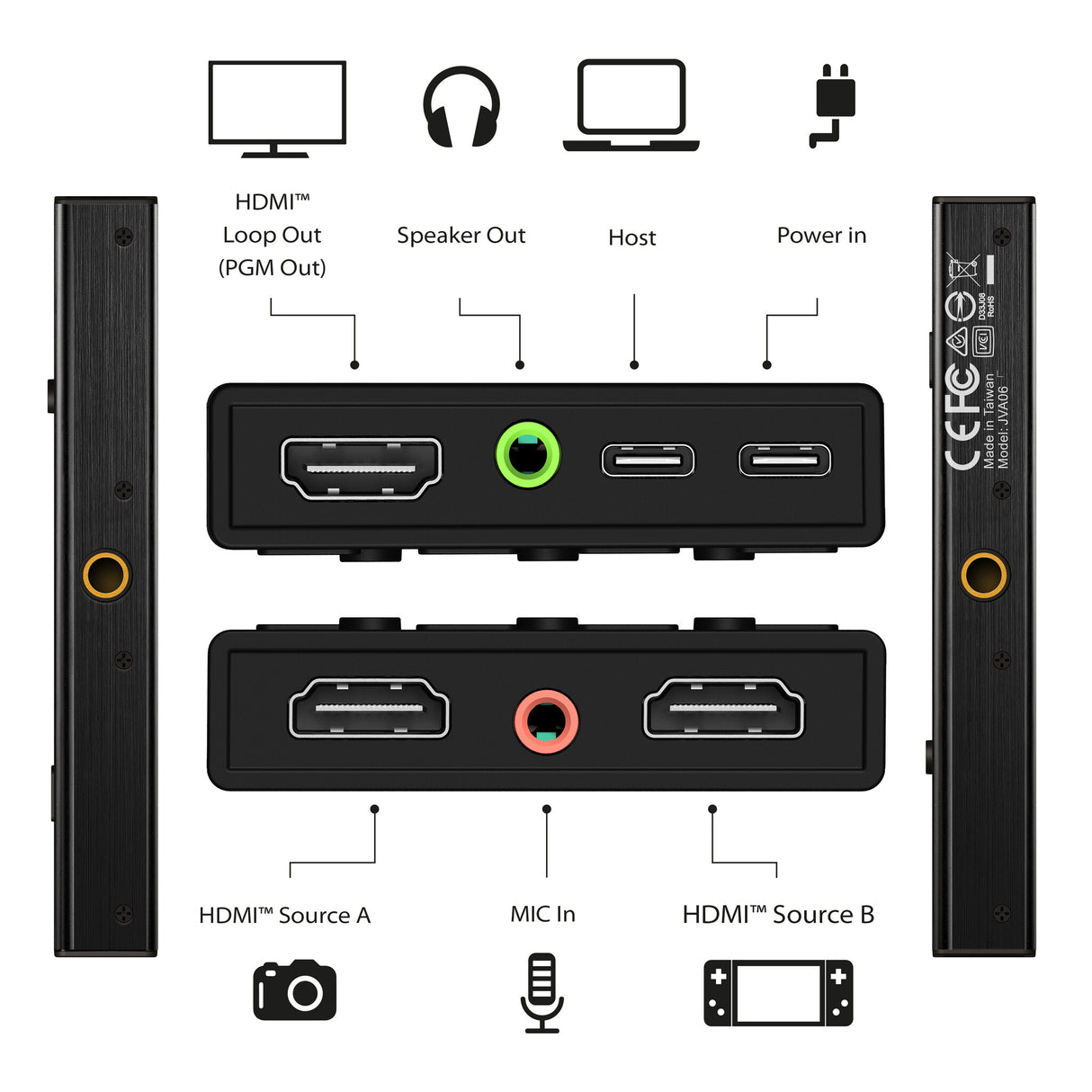

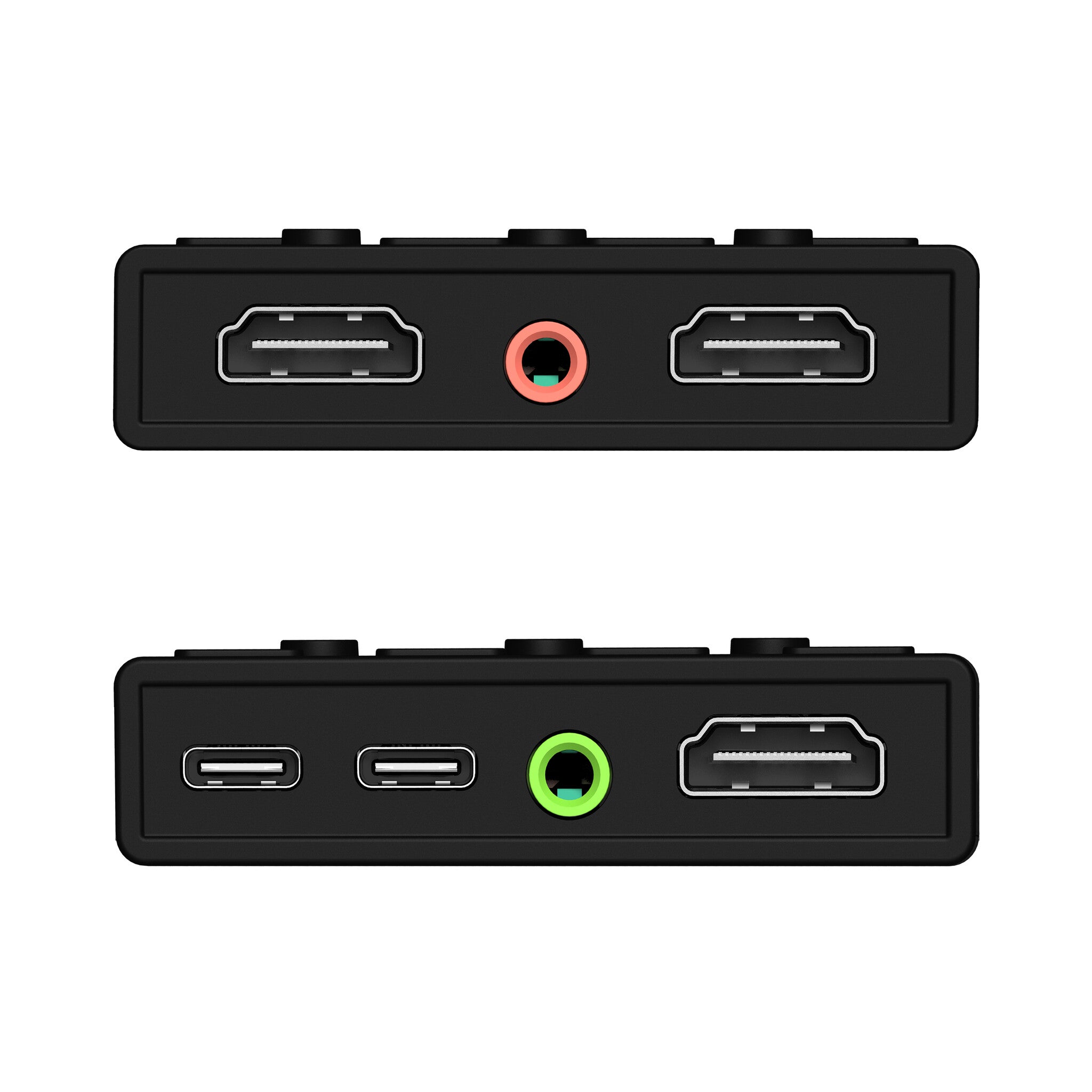

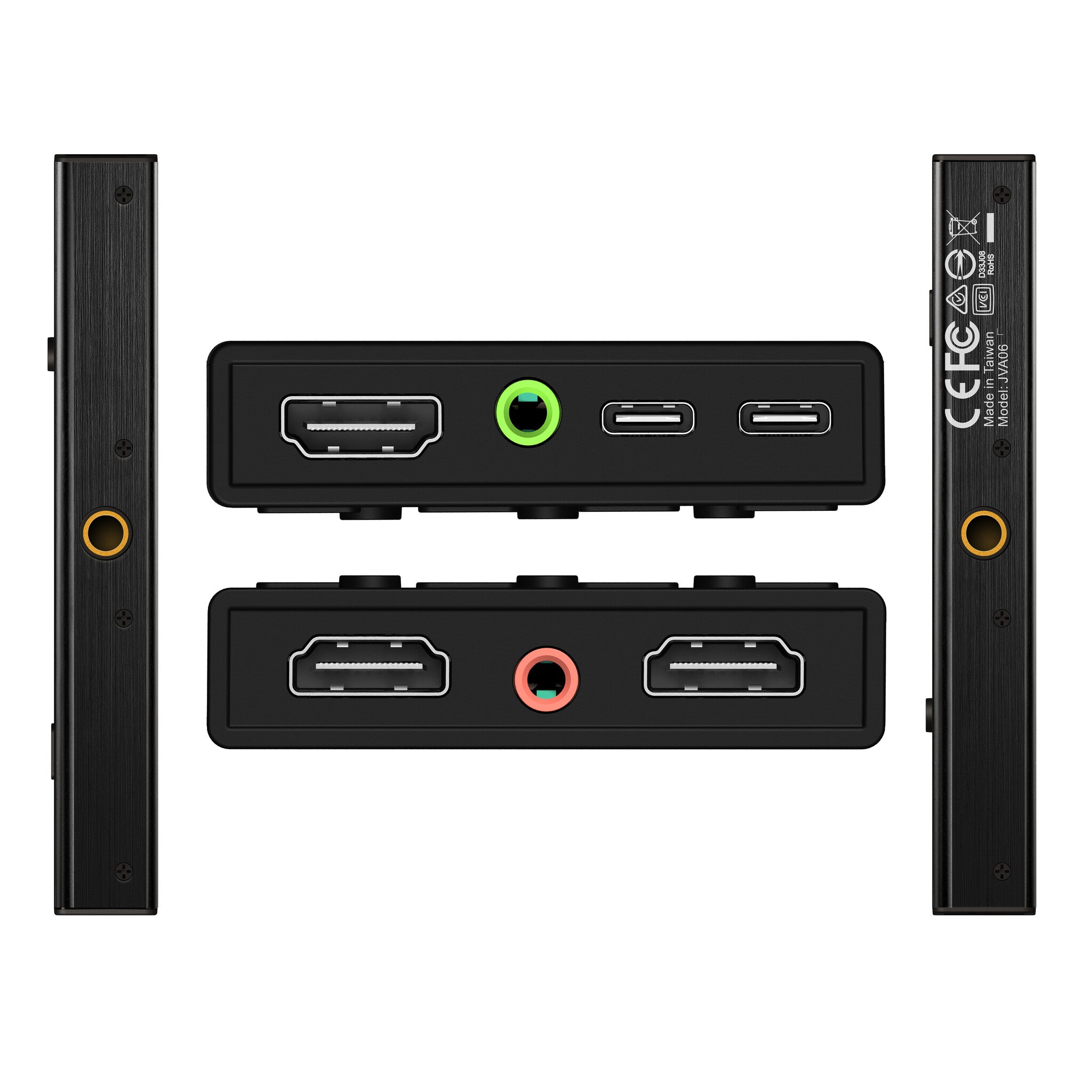

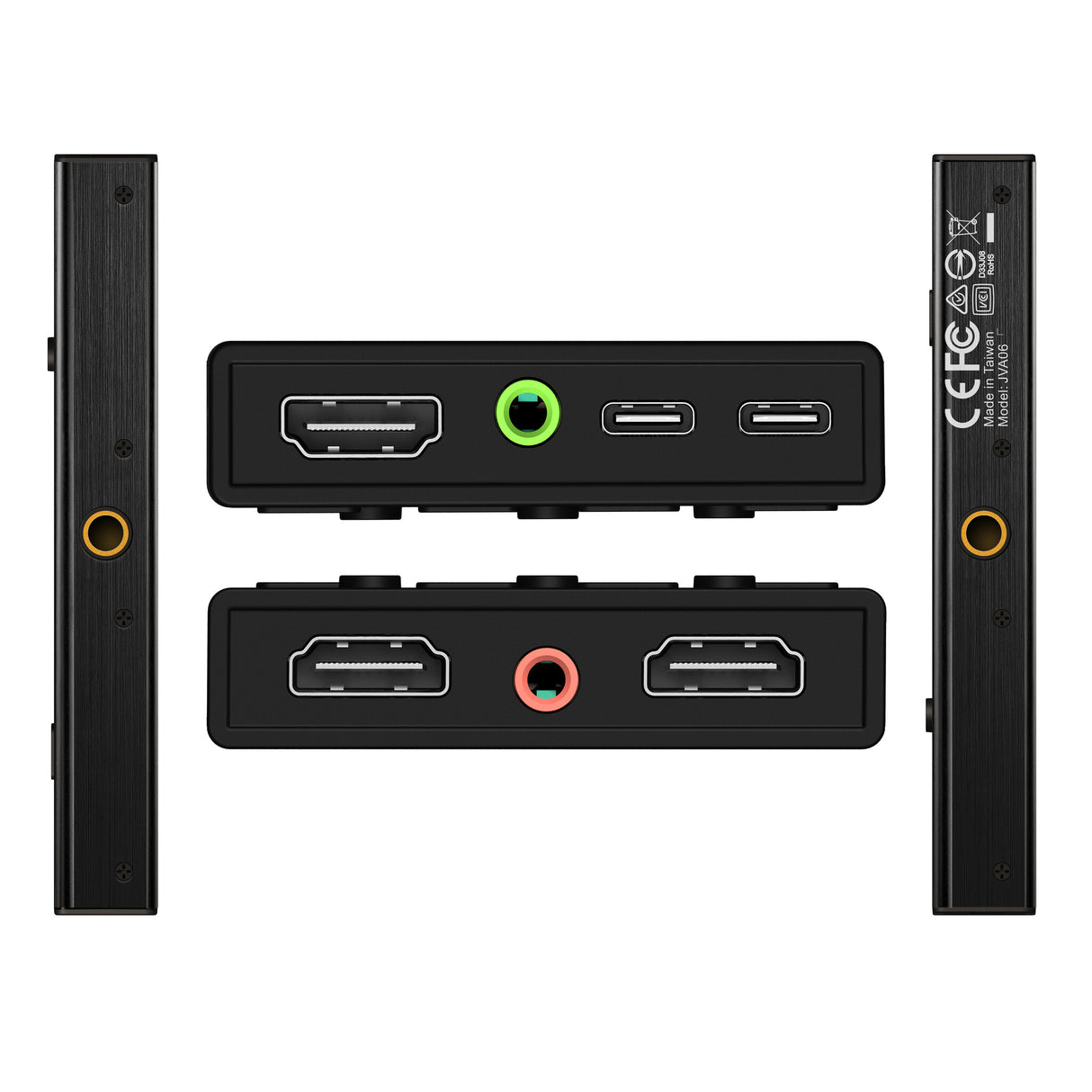

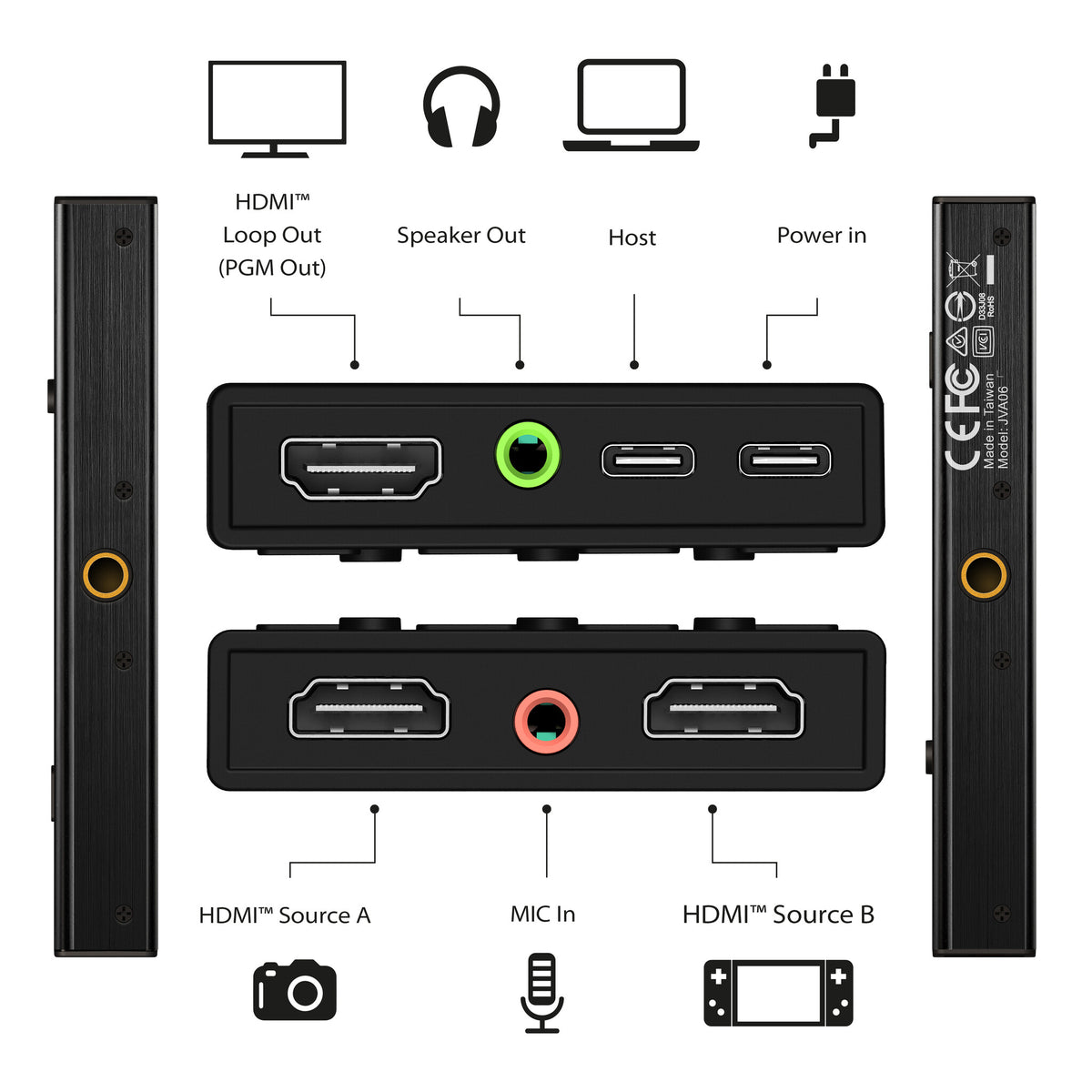

Ports & interfaces
USB port Yes
USB connector type USB Type-A, USB Type-C
USB version 2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity 2
HDMI ports quantity 3
HDMI in 2
Number of HDMI outputs 1
Power
Power supply type USB
Output current 0.9 A
Output voltage 20 V
Software
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1, Yes
Mac compatibility Yes
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes
Linux operating systems supported Yes
Bundled software Recommended software: OBS™
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 65 °C
Operating relative humidity (H-H) 0 - 80%
Storage relative humidity (H-H) 0 - 85%
Technical details
Warranty period 2 year(s)
Weight & dimensions
Width 134.6 mm
Depth 63.7 mm
Height 18.4 mm
Weight 175 g
Packaging data
Package weight 415 g
Package depth 95 mm
Package width 155 mm
Package height 70 mm
Package type Box
Packaging content
Cables included HDMI, USB Type-C, USB Type-C to USB Type-A
Quick installation guide Yes
Manual Yes
Quantity 1
Packaging content 1 x JVA06 Dual HDMI™ Video Capture, 1 x Quick Installation Guide, 1 x USBxC™ 2.0 to USBxC™ cable, 1 x USBxC™ 3.0 to USB™ TypexA cable, 1 x 39.4 in./100 cm HDMI™ cable
