Intel i3 14100 Quad Core 8 Thread 3.50GHz (4.70GHz Boost), 16GB Kingston RAM, 500GB Kingston NVMe M.2, WiFi 6 + BT, Deep Cool Micro Chassis - Pre-Built PC

Go beyond performance with the latest 14th Generation Intel Core processors, based on the Raptor-Lake Refresh Architecture with a hybrid-design incorporating a mixture of high performance P-Cores and efficient E-Cores. The i3-14100 comes in with up to 4 cores and up to 8 threads. Capable of reaching maximum clock speeds of 4.7GHz and providing incredible versatility with support for PCIe 5.0 components

MAXIMUM COOLING, TINY FOOTPRINT
Install up to six 120mm or four 140mm cooling fans, and support radiators up to 280mm on top and in front for high performance cooling.

Product Description
Intel i3 14100 Quad Core 8 Thread 3.50GHz (4.70GHz Boost), 16GB Kingston RAM, 500GB Kingston NVMe M.2, WiFi 6 + BT, Deep Cool Micro Chassis - Pre-Built PC

Processor
Intel Core i3 14100 4 Core Processor 8 Threads, 3.5GHz up to 4.7GHz Turbo Raptor Lake Refresh Socket LGA 1700 12MB Cache

Processor Cores
4

Processor Threads
8

Core Clock Speed
3.50GHz

Core Boost Speed
4.70GHz

Memory
16GB Kingston ValueRAM 8GB No Heatsink DDR4 3200MHz System Memory

Memory Configuration
2 x 8GB
2 Lanes (2 occupied)

SSD Drive
Kingston NV3 (SNV3S/500G) 500GB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 6000 MB/s, Write 2200 MB/s

Format
NVMe M.2

Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 2200MB/S

Hard Drive
N/A

Optical Drive
N/A

Graphics
On-Chip Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz

Graphics Card I/O
N/A

Operating System
N/A

Card Reader
N/A

Networking
TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2

WLAN Signal Rate:
5 GHz
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Power Supply
DeepCool PF400 80 PLUS Standard Power Supply 400W, Silent Hydraulic Bearing Fan, Reliable Protection, Flat Black Cables, 85% Efficiency
Main Power Connector 24 (20+4) Pin x 1
EPS 12V Connector 8 (4+4) Pin x 1
PCI-E (6+2) Pin x 2
SATA x 5
4 Pin Peripheral x 1

Motherboard
Gigabyte H610M S2H DDR4 Motherboard, Intel Socket 1700, 12th Gen, Micro ATX, Digital VRM Design, PCIe 4.0, Gen3 x4 M.2, Realtek Gaming LAN, HDMI/DVI/VGA Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 6

Expansion Slot
1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4 SSD support)
4 x SATA 6Gb/s connectors

Rear I/O
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI 2.0 port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Chassis

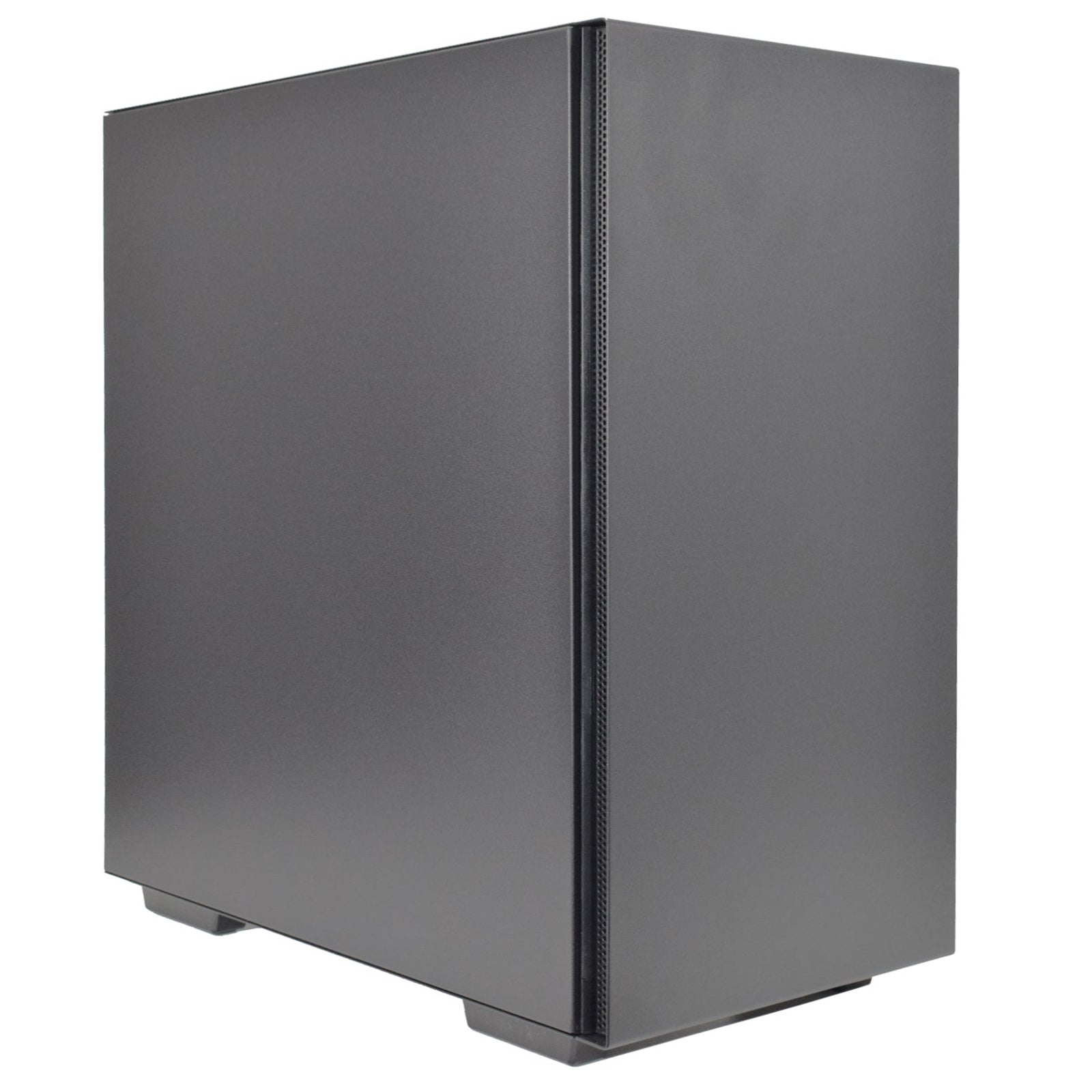

DeepCool MACUBE 110 Case, Home & Business, Black, Micro Tower, 2 x USB 3.0, Tempered Glass Side Window Panel, Micro ATX

Drive Bays
Internal 3.5": 2
Internal 2.5": 2

IO Ports
2 x USB 3.0
1 x Audio

Cooling
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm DC fan (Pre-installed)

Dimensions
400mm x 225mm x 431mm

Package Weight
6.90 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only),

• Case Style: Micro Tower
• Processor: Intel Core i3
• Processor Cores: 4
• Storage: 500GB
• Memory: 16GB
• Graphics: On-Chip
• Operating Software: No
