StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit

STARTECH  |  SKU: SV565HDIP  |  Condition: Brand New  |  Código de barras: 0065030877947

MORE INFO

£673.99
£561.66 excluding VAT @20%
iFrame
StarTech.com HDMI KVM Extender over IP - 4K 30Hz HDMI 2.0 & USB over IP LAN or CAT5e/CAT6 Ethernet (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit (SV565HDIP)

KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.

Supports UHD 4K 30Hz

The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.

Hassle-Free Installation

With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.

The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.

Versatile Configuration Options

The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.

For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).

SV565HDIP is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Ports & interfaces
DC-in jack Yes
Number of microphone inputs 2
Headphone outputs 8
Audio connections Yes
USB 2.0 Type-A hub ports quantity 2
USB hub Yes
HDMI ports quantity 2
Video port type HDMI
Mouse port type USB
Keyboard port type USB
Network
Ethernet LAN (RJ-45) ports 2
Performance
Maximum operating distance 100 m
Chipset ASPEED - AST1520
Audio channels 7.1
Daisy chain No
Video bandwidth 30 Hz
Maximum resolution 3840 x 2160 pixels
HD type 4K Ultra HD
Design
Certification CE, FCC, TAA, REACH
Mean time between failures (MTBF) 60000 h
Hot keys No
LED indicators Yes
Housing material Steel
Product colour Black
Display
On Screen Display (OSD) Yes
Built-in display No
Power
Power consumption (typical) 18 W
External power adapter Yes
Power plug type Type M
Compatible power plug types AU, EU, JP, UK
Output current 1.5 A
Output voltage 12 V
Input current 0.6 A
Input voltage 100 - 240 V
Sustainability
Compliance certificates RoHS
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -10 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 610 g
Height 28 mm
Depth 130 mm
Width 117 mm
Packaging data
Package height 235 mm
Package depth 195 mm
Package width 365 mm

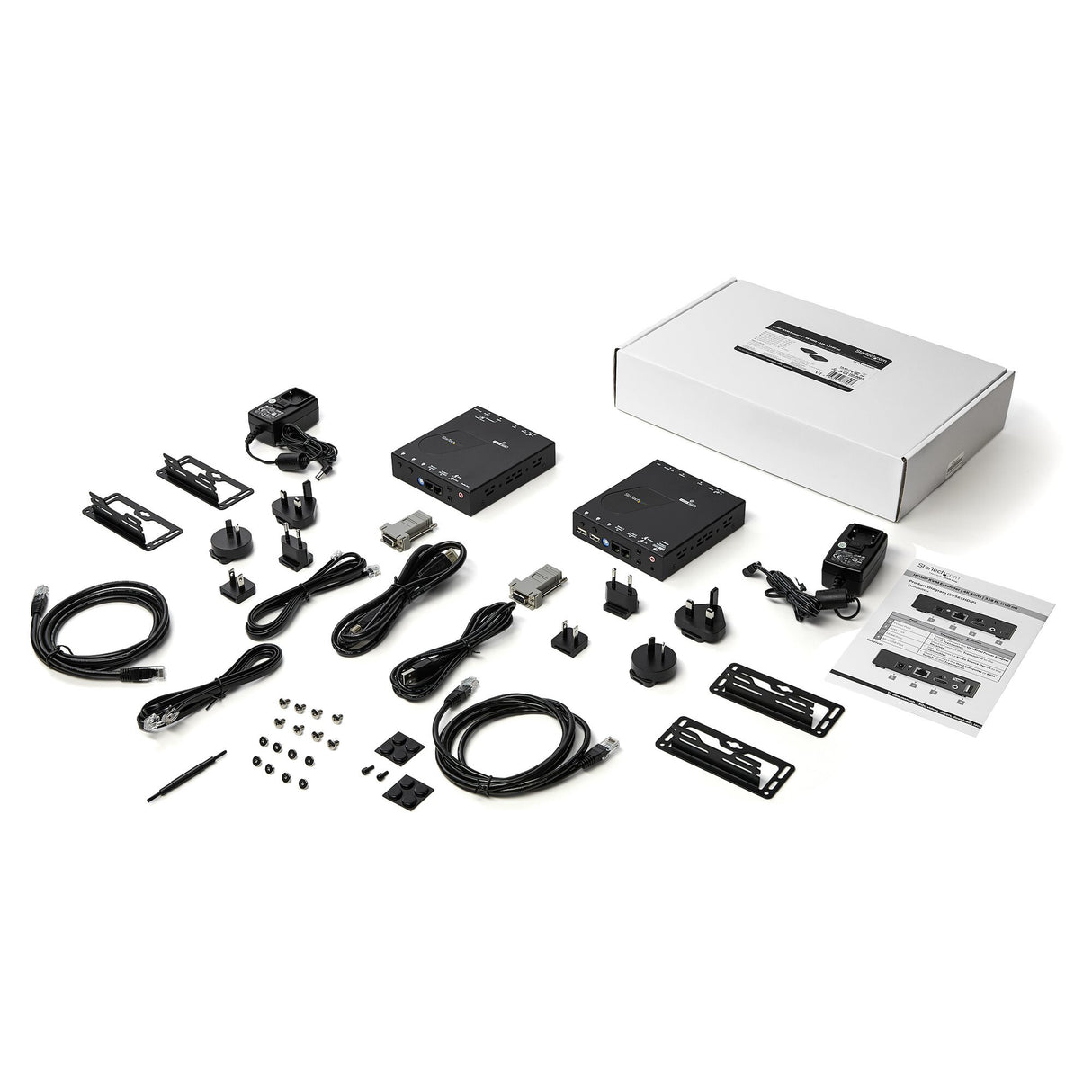

Packaging content
AC adapter included Yes
Quick installation guide Yes
Rubber feet Yes
Cables included HDMI, LAN (RJ-45), Phone (RJ-11), USB
Other features
IP control No
Logistics data
Products per master (outer) case 6 pc(s)
Master (outer) case height 265 mm
Master (outer) case length 495 mm
Master (outer) case width 385 mm
Harmonized System (HS) code 85176200
