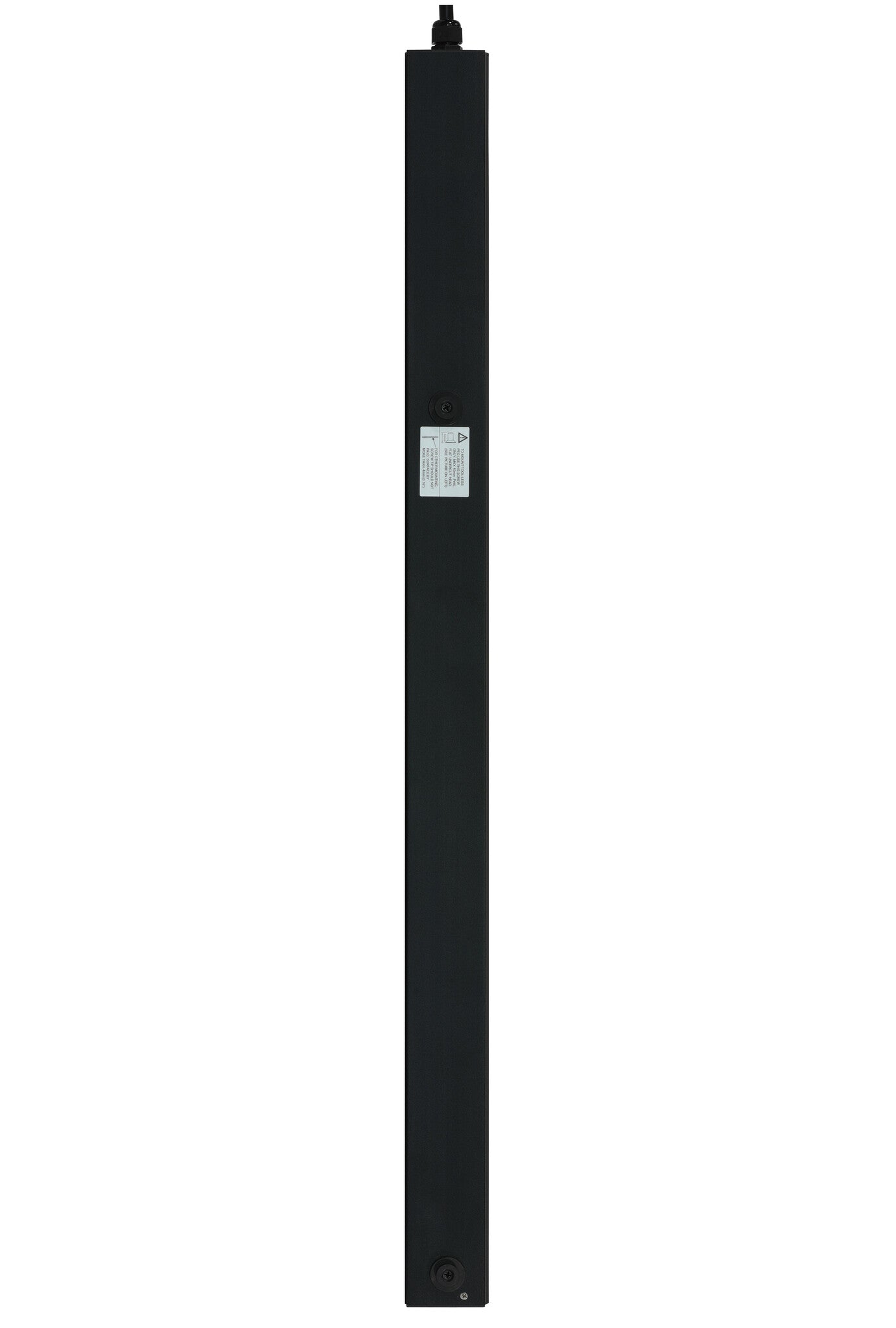

APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

APC  |  SKU: EPDU1116B  |  Condition: Brand New  |  Código de barras: 0731304405016

MORE INFO

£296.99
£292.99 Save £4.00 £296.99
£244.16 excluding VAT @20%
iFrame
Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

APC Easy Basic Rack PDU EPDU1116B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1116B has IEC 309 16A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.

Design
On/off switch No
Product colour Black
Housing material Aluminium
Mounting Vertical
Rack capacity 0U
Type Single-phase
PDU types Basic
Ports & interfaces
AC outlet types C13 coupler, C19 coupler
Power plug IEC 60309
AC outlets quantity 24 AC outlet(s)
Features
Cable length 3 m
Power
Maximum power 3680 W
Maximum input current per phase 16 A
Load capacity 3680 VA
Nominal output voltage 230 V
Maximum current 16 A
AC input frequency 50 - 60 Hz
Nominal input voltage 200/208/230 V
Weight & dimensions
Weight 2.2 kg
Height 902 mm
Depth 44 mm
Width 62 mm
Packaging data
Package height 1320 mm
Package depth 110 mm
Package width 160 mm
Package weight 2.98 kg
Packaging content
Manual Yes
Operational conditions
Non-operating altitude 0 - 9000 m
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -25 - 65 °C
Operating temperature (T-T) 0 - 45 °C
Logistics data
Total carbon footprint 55.85
