StarTech.com 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Apple, Lenovo - TAA Compliant

STARTECH  |  SKU: SV431DPUA2  |  Condition: Brand New  |  Código de barras: 0065030826372

MORE INFO

£436.99
£434.99 Save £2.00 £436.99
£362.49 excluding VAT @20%
iFrame

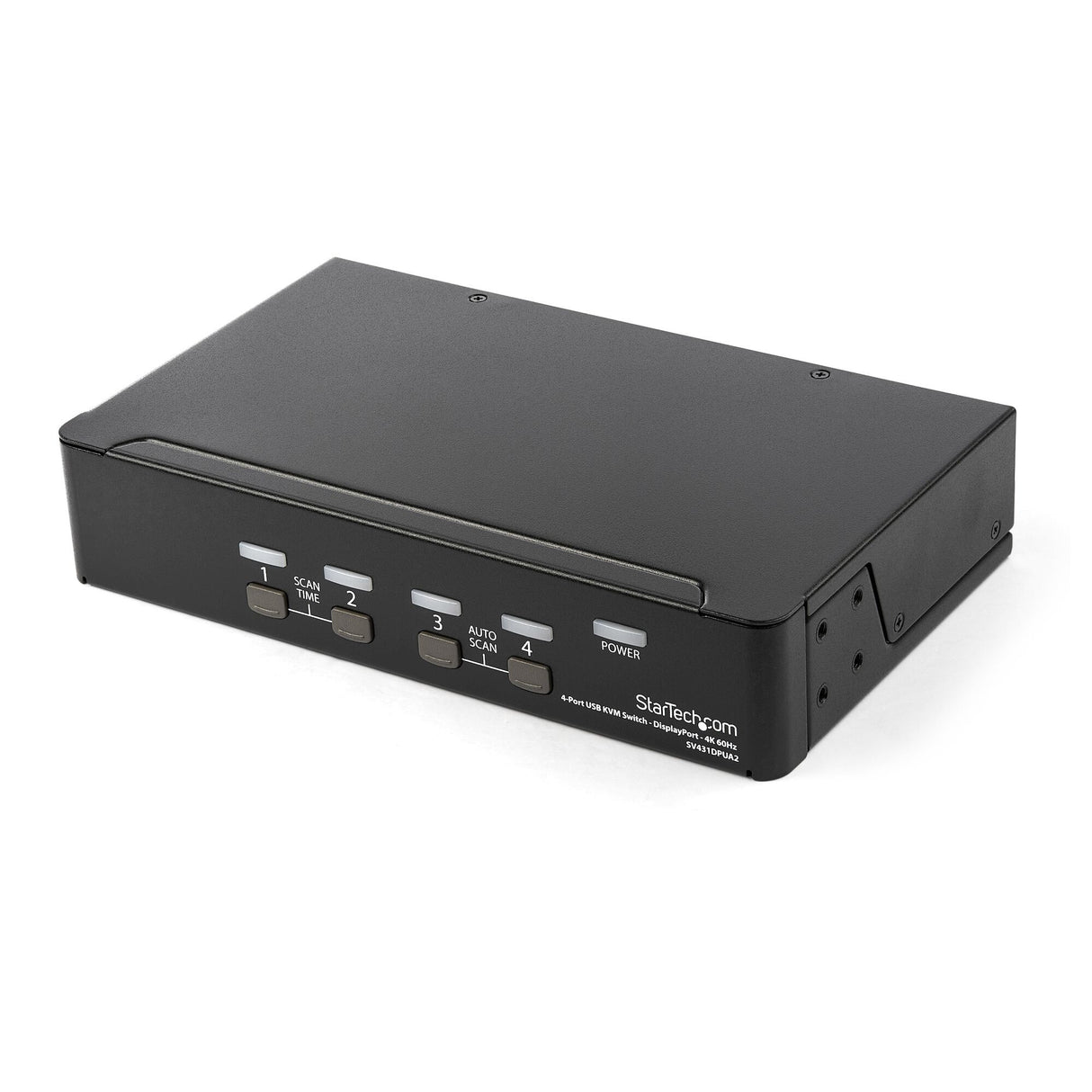

StarTech.com 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Apple, Lenovo - TAA Compliant (SV431DPUA2)

DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio

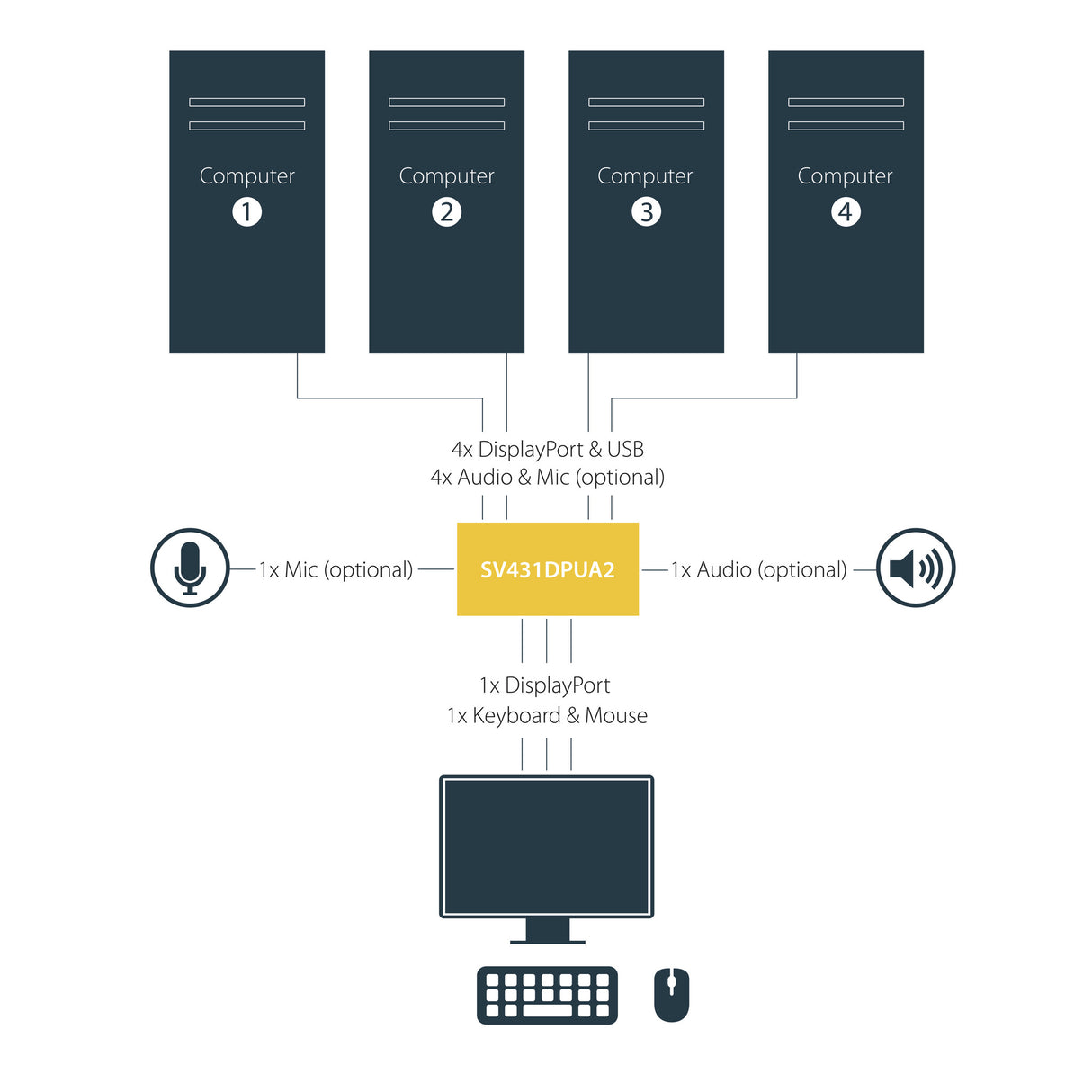

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.

4K60 Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.

PC and Mac Compatible

While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.

Simple to Operate

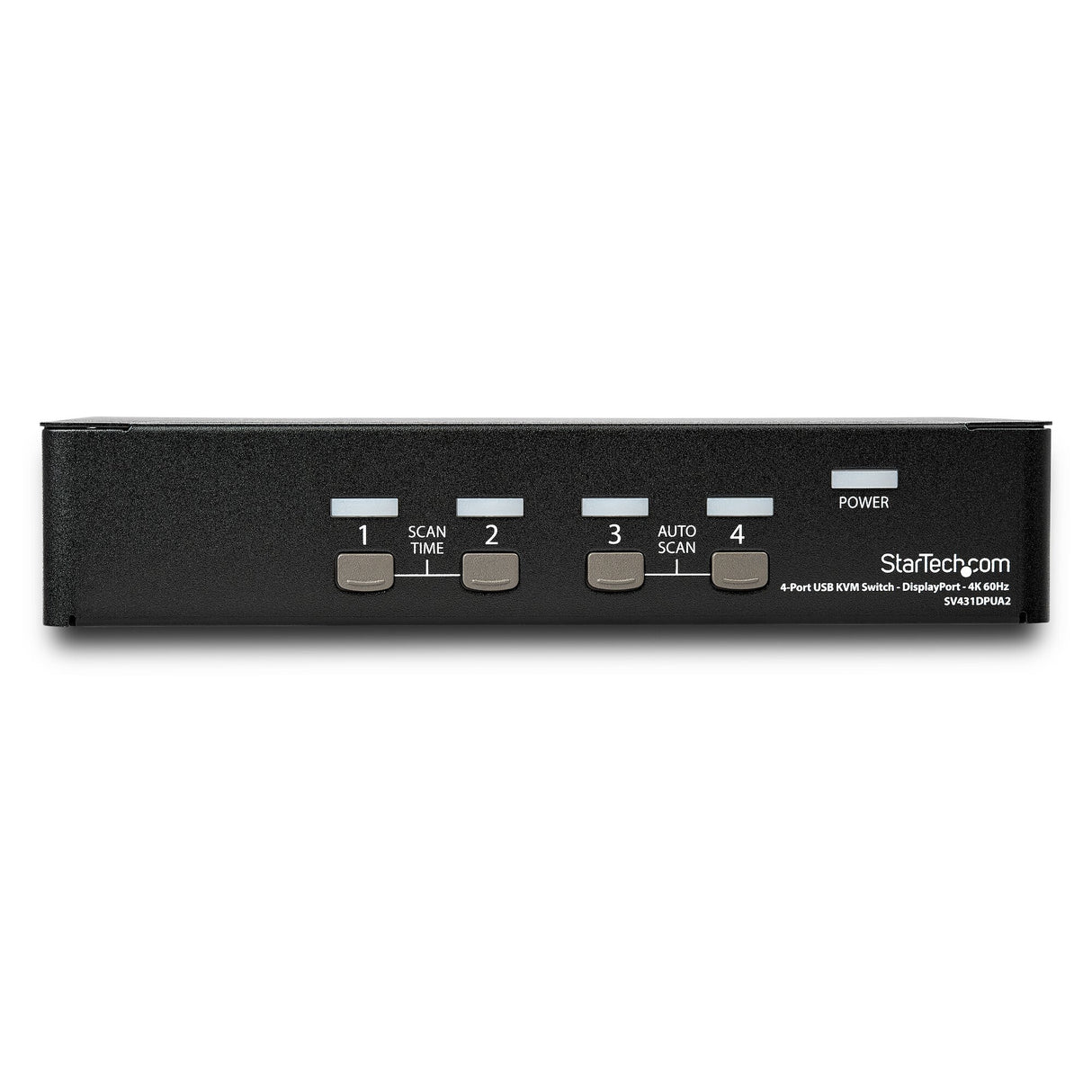

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Ports & interfaces
DC-in jack Yes
Number of microphone inputs 5
Headphone outputs 5
Audio connections Yes
Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity 4
USB 2.0 Type-B ports quantity 4
DisplayPorts quantity 5
Video port type DisplayPort
Mouse port type USB
Keyboard port type USB
Number of computers controlled 4
Network
Ethernet LAN No
Performance
Number of users 1 user(s)
Daisy chain No
Plug and Play Yes
Scan interval 3,8,15,30 s
Data transfer rate (max) 0.48 Gbit/s
Maximum resolution 3840 x 2160 pixels
HD type 4K Ultra HD
Design
Certification CE, FCC, TAA, REACH
Mean time between failures (MTBF) 138327 h
Hot keys Yes
LED indicators Yes
Housing material Steel
Product colour Black
Rack capacity 1U
Rack mounting Yes
Display
On Screen Display (OSD) Yes
Power
Power consumption (typical) 18 W
External power adapter Yes
Power plug type Type M
Compatible power plug types AU, EU, JP, UK, US
Output current 1.5 A
Output voltage 12 V
Input current 0.6 A
Input voltage 100 - 240 V
Sustainability
Compliance certificates RoHS
Operational conditions
Operating relative humidity (H-H) 0 - 40%
Storage temperature (T-T) -10 - 60 °C
Operating temperature (T-T) 0 - 40 °C

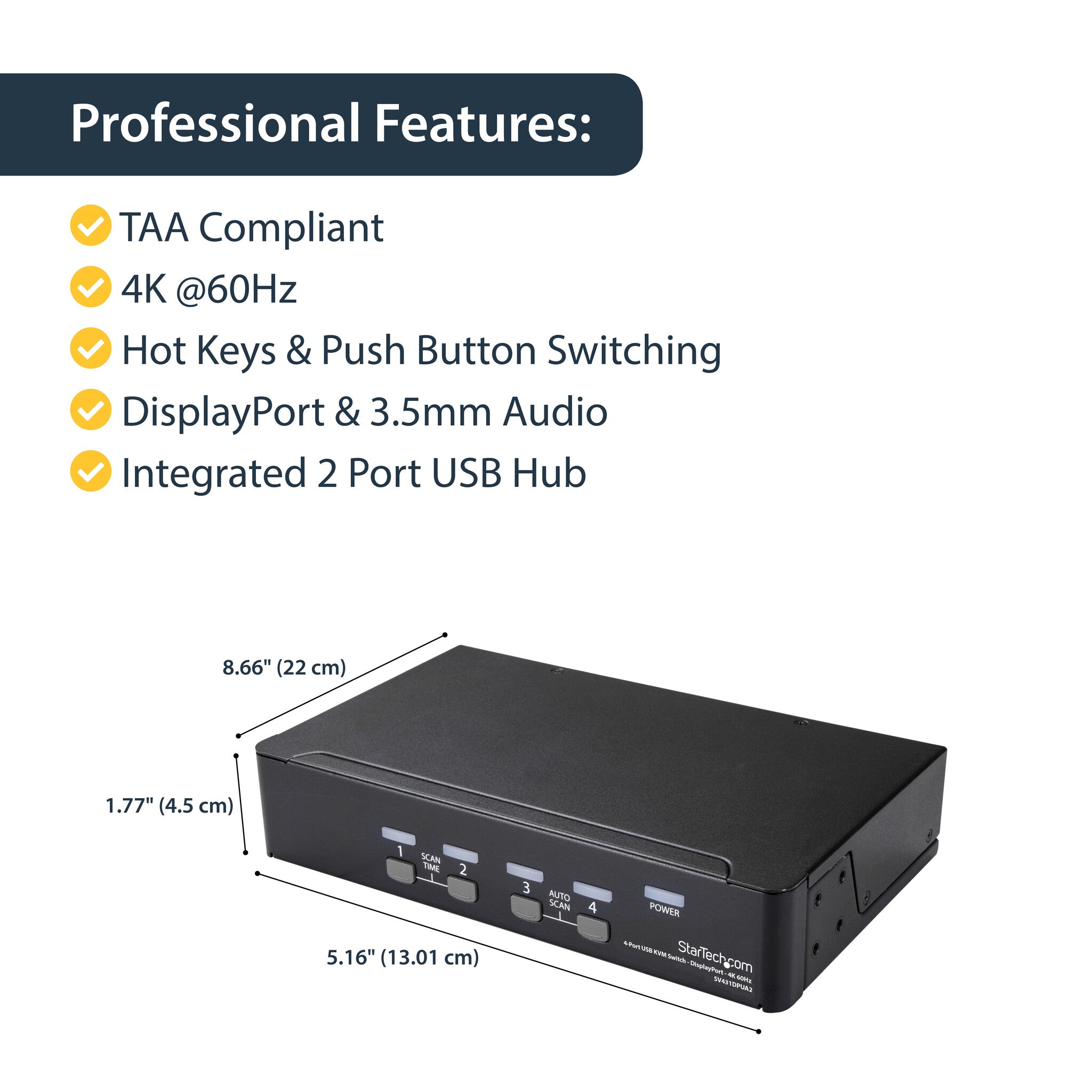

Weight & dimensions
Weight 1 kg
Height 45 mm
Depth 220 mm
Width 131 mm
Packaging data
Package weight 1.6 kg
Package height 87 mm
Package depth 409 mm
Package width 212 mm

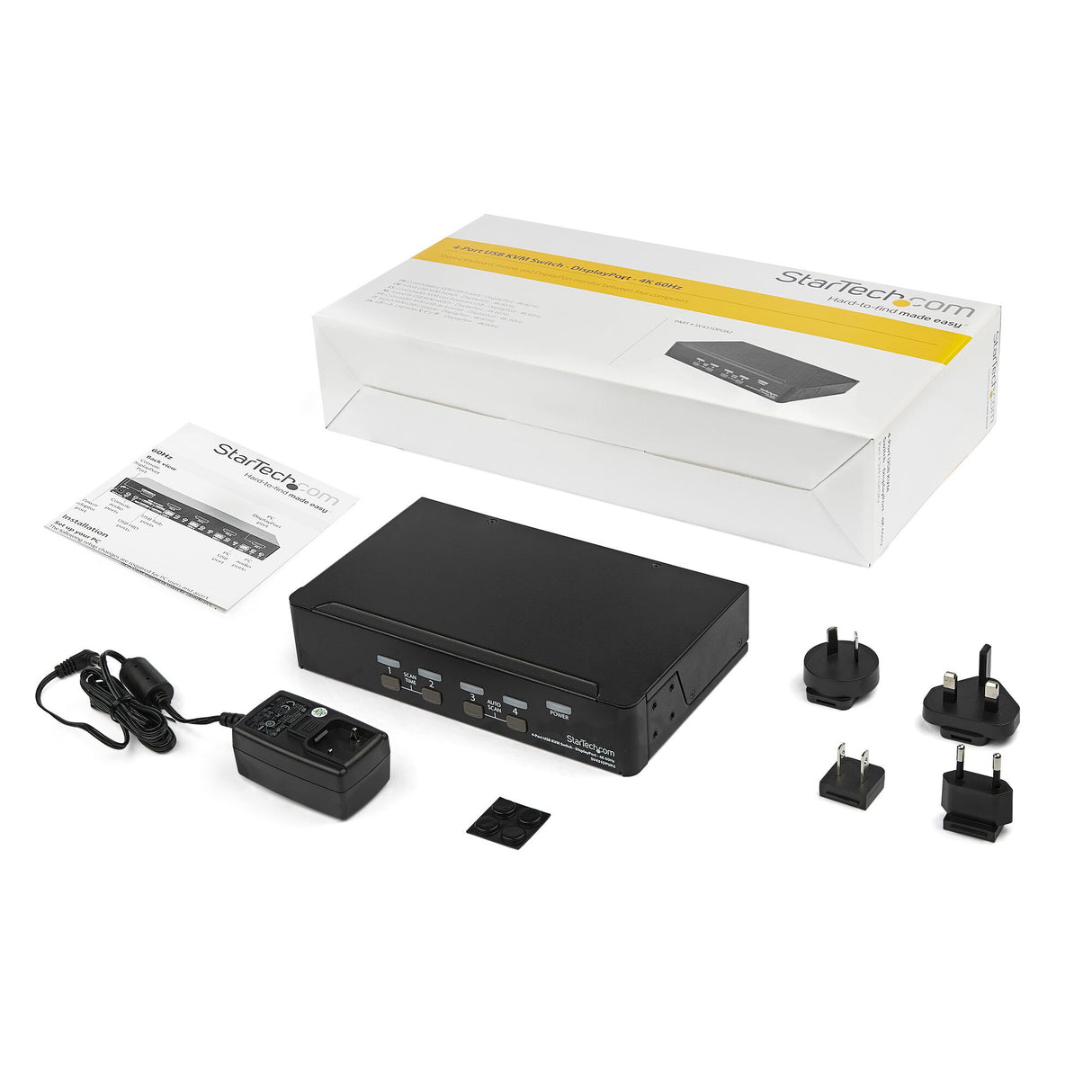

Packaging content
AC adapter included Yes
Quick installation guide Yes
Rubber feet Yes
Other features
Audio support Yes
IP control No
Logistics data
Products per master (outer) case 6 pc(s)
Master (outer) case height 258 mm
Master (outer) case length 545 mm
Master (outer) case width 433 mm
Harmonized System (HS) code 85176200
