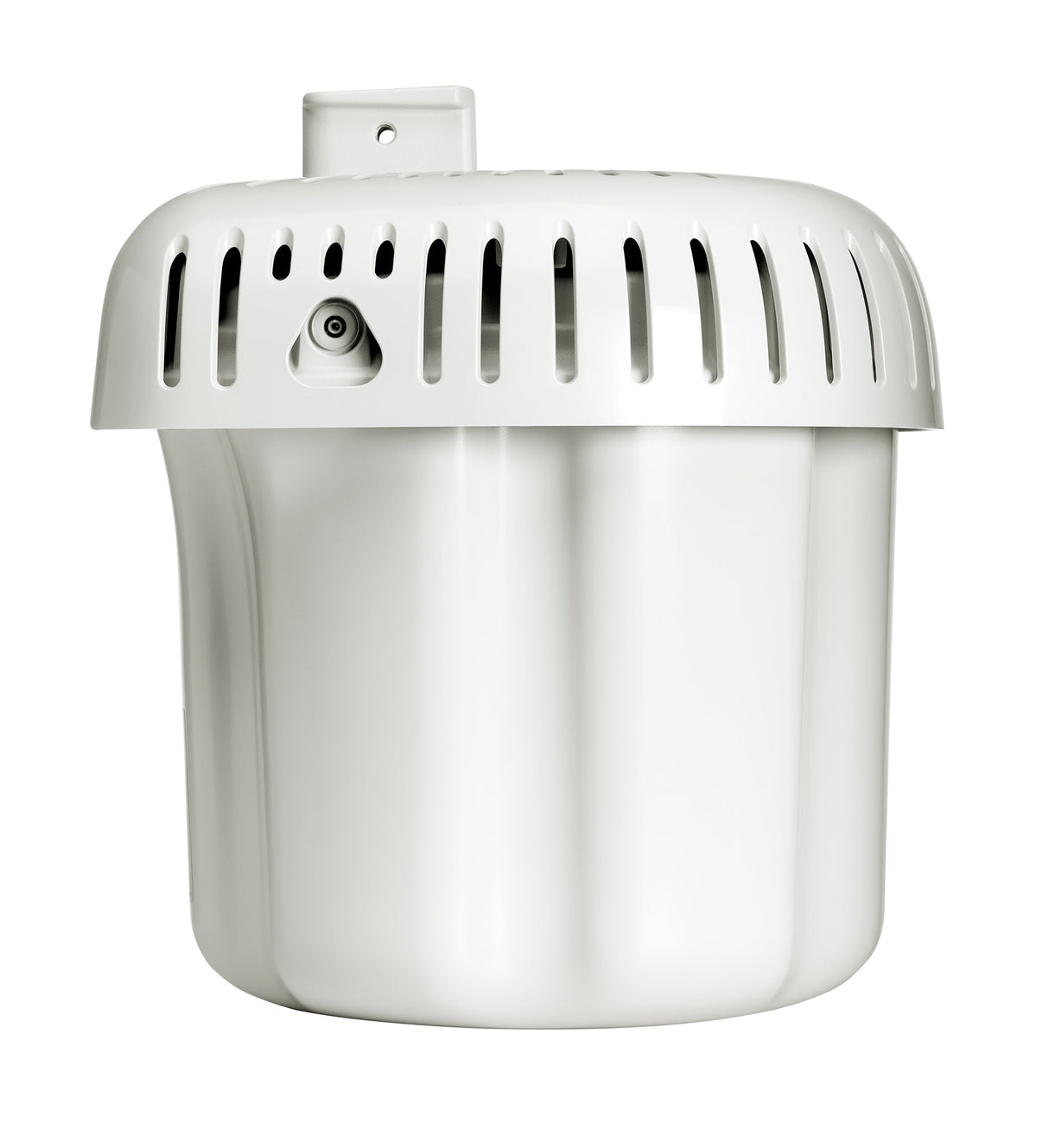

HPE Aruba Networking AP-575 (RW) 802.11ax 2x2/4x4 Dual Radio Integrated Omni Antennas Outdoor AP

HPE  |  SKU: R4H17A  |  Condition: Brand New  |  Código de barras: nan
£2,157.99
£1,798.33 excluding VAT @20%
iFrame
Aruba Networking AP-575 (RW) 802.11ax 2x2/4x4 Dual Radio Integrated Omni Antennas Outdoor AP

The HPE Aruba Networking 570 Series Outdoor Access Points provide high-performance Wi-Fi 6 wireless connectivity for harsh outdoor weather conditions such as parking lots, stadiums, and public venues. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and a maximum aggregate data rate of 2.69 Gbps, the 570 series delivers the speed and reliability needed to bring Wi-Fi 6 outdoors. These Wi-Fi 6 outdoor access points are ready to survive high wind, extreme temperatures, and moisture and can be quickly deployed using zero touch provisioning. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 570 series include a limited lifetime warranty.

What is new supporting point:
Ready for Internet of Things (IoT) with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee.
Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across networks, keeping users and devices secure.
Outdoor Wi-Fi 6 access points provide up to 2.69 Gbps maximum aggregate data rate.
Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40˚C to +65˚C).

Features
2.4 GHz Yes
5 GHz Yes
Maximum data transfer rate 5375 Mbit/s
Maximum data transfer rate (2.4 GHz) 575 Mbit/s
Maximum data transfer rate (5 GHz) 4800 Mbit/s
Ethernet LAN data rates 1000,2500,5000 Mbit/s
Frequency band 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps, maximum data rate 5.39 Gbps
Networking standards IEEE 802.11ax, IEEE 802.11mc
Bluetooth Yes
Bluetooth version 5.0
Auto MDI/MDI-X Yes
MIMO Yes
MIMO type Multi User MIMO
Spread spectrum method DSSS, OFDM, OFDMA
Modulation 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
MACsec support No
Security
Security algorithms WPA, WPA2, WPA3
Management features
Access point management On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
USB connector type USB Type-C
Power
Power over Ethernet (PoE) Yes
Power consumption (max) 32 W
Design
Placement Pole, Wall
Product colour White
Recommended usage Outdoor
Certification CB scheme safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED (tm) ac (with wave 2 features) Wi-Fi CERTIFIED Location (tm)
Antenna
Antenna type Internal
Antenna direction type Omni-directional
Antenna features Integrated antenna
Antenna gain level (max) 5 dBi
Performance
Compatible operating systems HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10
General
Product family Aruba Networking
Technical details
Compliance certificates Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width 230 mm
Depth 240 mm
Height 270 mm
Weight 2.4 kg
Other features
I/O ports E0: HPE Smart Rate port (RJ-45) E1: 100/1000BASE-T (RJ-45) USB-C console interface
Weight (imperial) 2.4 kg (5.3 lbs)
Operational conditions
Operating relative humidity (H-H) 5 - 93%
Operating temperature (T-T) -40 - 65 °C
Storage temperature (T-T) -40 - 70 °C
Operating altitude 0 - 3000 m
Logistics data
Harmonized System (HS) code 85176990
