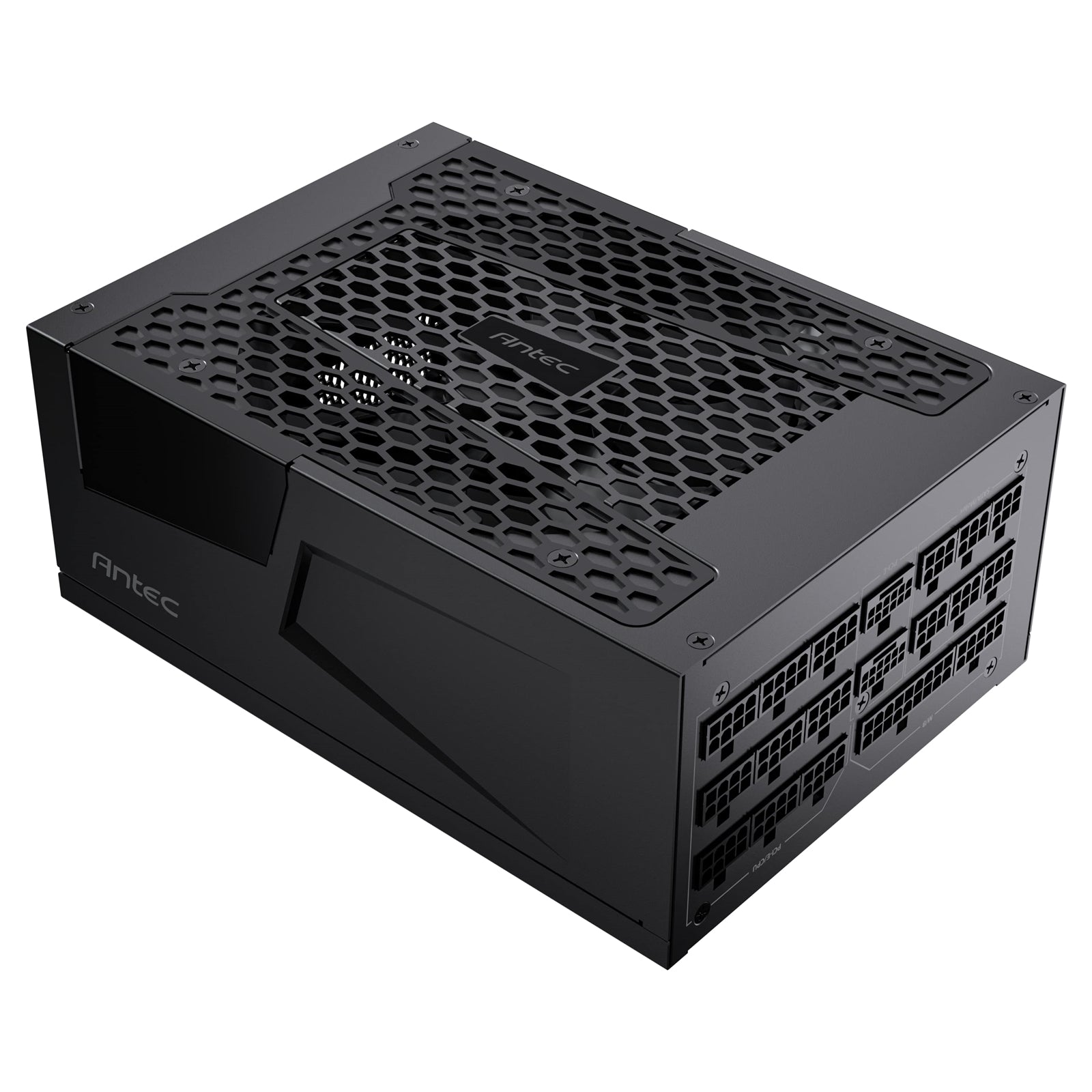

Antec Signature 2200 Platinum 2200W ATX 3.1 Power Supply – Fully Modular, 80 PLUS Platinum, PCIe 5.1 Ready, AI-Assisted Smart Fan Control, 12V-2x6 Connector

The Antec Signature 2200 Platinum ATX 3.1 Power Supply is built for uncompromising performance, offering 2200 watts of stable, efficient, and intelligent power for next-generation gaming, workstation, and AI systems. Designed for enthusiasts and professionals, it combines state-of-the-art engineering, superior materials, and advanced cooling technology to deliver extreme reliability and precision.

Featuring full ATX 3.1 and PCIe 5.1 compliance, the Signature 2200 Platinum supports the latest high-performance GPUs and CPUs with exceptional efficiency. The 80 PLUS Platinum certification ensures up to 94% efficiency, reducing energy waste and heat output for cooler and quieter operation.

With AI-Assisted Smart Fan Control, the power supply dynamically optimizes cooling based on system load, activating Zero-RPM mode at low demand for silent operation. The 135mm Fluid Dynamic Bearing fan provides smooth and quiet airflow with extended longevity.

The unit’s fully modular cable design minimizes clutter and maximizes airflow, while 100% Japanese capacitors and PhaseWave™ LLC design guarantee tight voltage regulation and low ripple. Protected by a 12-year warranty, this PSU is engineered for the long haul.

Key Features
• 2200W continuous power output for extreme performance builds
• 80 PLUS Platinum efficiency (up to 94%)
• ATX 3.1 & PCIe 5.1 ready with 12V-2x6 connectors
• AI-Assisted Smart Fan Control with Zero-RPM mode
• 12-year manufacturer warranty

Technical Specifications

Model:
Signature 2200 Platinum ATX 3.1

Type:
ATX 12V 3.1

Output Capacity:
2200W

Efficiency Certification:
80 PLUS Platinum

Input Voltage:
200–240V AC

Input Current:
15A

Input Frequency:
50–60Hz

PFC:
Active Power Factor Correction

Power Good Signal:
100–150ms

Operating Temperature:
0°C to 50°C

Cooling:
135mm Fluid Dynamic Bearing fan with Zero-RPM mode

Fan Control:
AI-Assisted Smart Fan Control

Modular Design:
Fully Modular

Dimensions:
210mm (L) × 150mm (W) × 86mm (H)

Protection Features:
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Certifications:
CE, FCC, UKCA, TUV, CB, cTUVus, 3C

Warranty:
12 Years

Connector Configuration
• 1 × 24-pin (20+4) Motherboard Connector
• 3 × 8-pin (4+4) CPU Power Connectors
• 4 × 8-pin (6+2) PCIe Connectors
• 2 × 12V-2x6 PCIe 5.1 GPU Cables
• 18 × SATA Connectors
• 3 × Molex Peripheral Connectors

Ideal For
• High-end gaming PCs
• AI and deep-learning systems
• Professional creative workstations
• Multi-GPU or overclocked builds

Experience the future of power delivery with the Antec Signature 2200 Platinum ATX 3.1 Power Supply — designed for intelligence, efficiency, and durability.,

• Wattage: 2200W
• Size/Version: ATX 3.1
• Modular: Fully
• SATA Connections: 18
• Certification: Platinum
• Colour: Black
