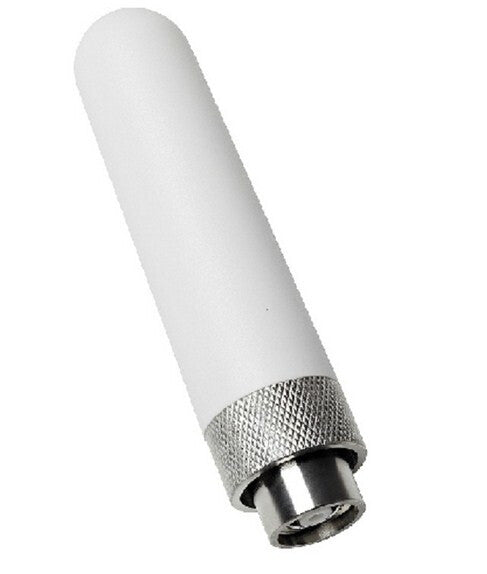

Cisco Aironet network antenna Omni-directional antenna RP-TNC 5 dBi
This document describes the Cisco Aironet AIR-ANT2535SDW-R and AIR-ANT2535SDW-RS antennas and provides electrical specifications and mounting instructions. The antenna operates over the 2.4 GHz and 5 GHz Wi-Fi bands and is designed for indoor use with the Cisco Aironet 1600, 2600, 3600, 3700, and Cisco Catalyst 9120AXE series access points. The antenna utilizes an omnidirectional radiation pattern to achieve a broad coverage area.
The AIR-ANT2535SDW-RS antenna includes circuitry to enable self-identification of the antenna by the Cisco access points. The antenna has a built-in EEPROM that can be read by the AP to automatically configure the antenna type and gain in the wireless controller.
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Performance | |
|---|---|
| Antenna gain level (max) | 5 dBi |
| Frequency band | 2.4/5 GHz |
| Antenna gain (5 GHz) | 5 dBi |
| Antenna gain (2.4 GHz) | 3 dBi |
| Impedance | 50 Ω |
| Vertical beam width (2.4 GHz) | 35° |
| Horizontal beam width (2.4 GHz) | 35° |
| Vertical beam width (5 GHz) | 35° |
| Horizontal beam width (5 GHz) | 35° |
| Features | |
|---|---|
| Antenna type | Omni-directional antenna |
| Connector gender | Male |
| Antenna connector type | RP-TNC |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Purpose | Indoor |
| Compatible products | AP1600, AP2600, AP3600, AP3700 |
| Product colour | White |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85177100 |
-
