Neomounts AV30-500BL Videobar kit 43-110" - VESA - max 10 kg -...

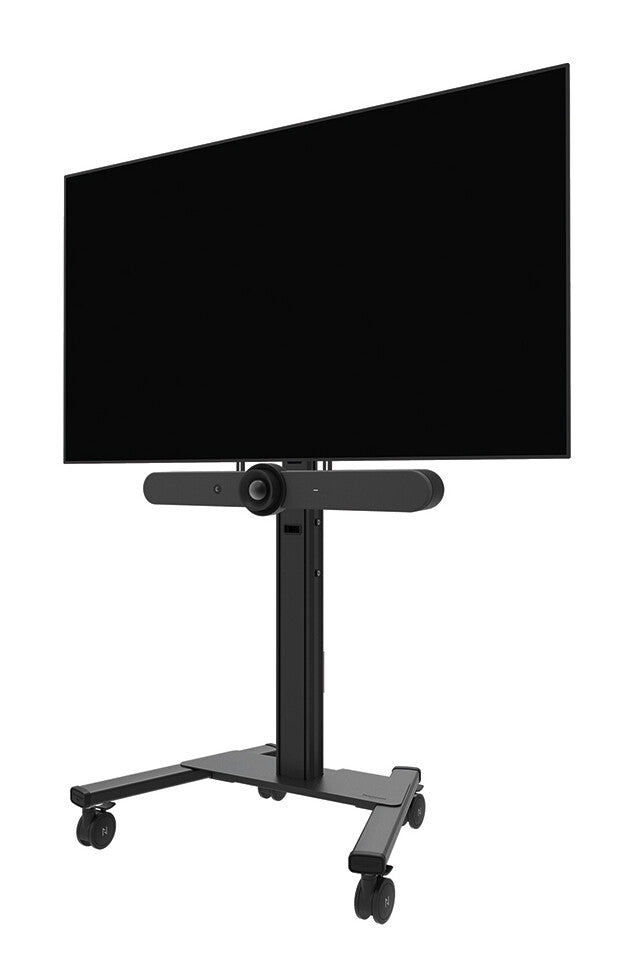

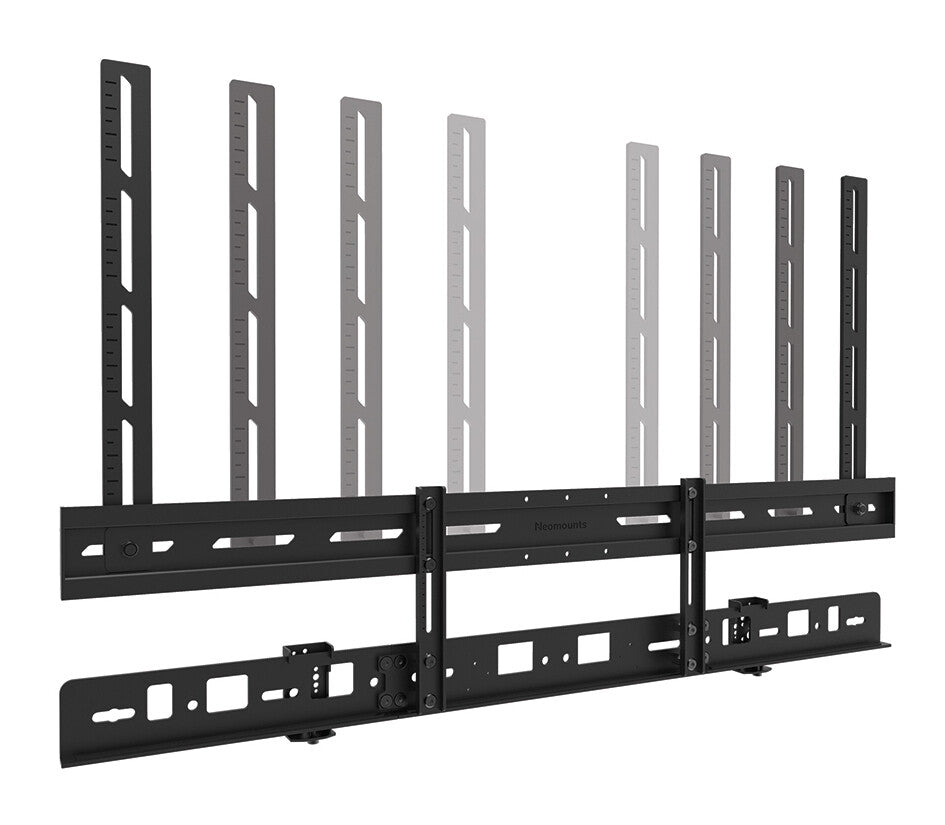

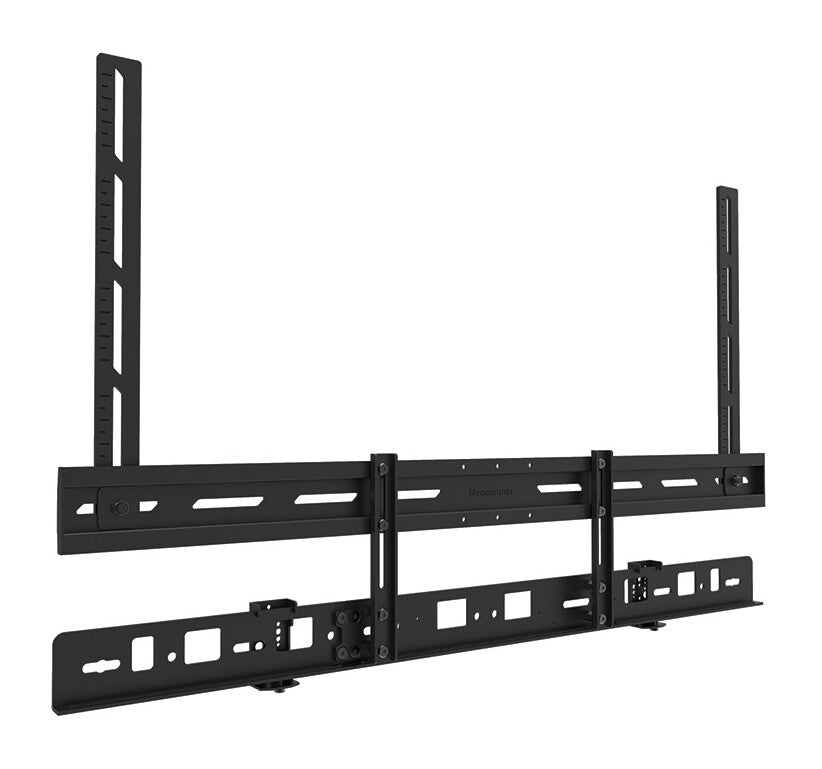

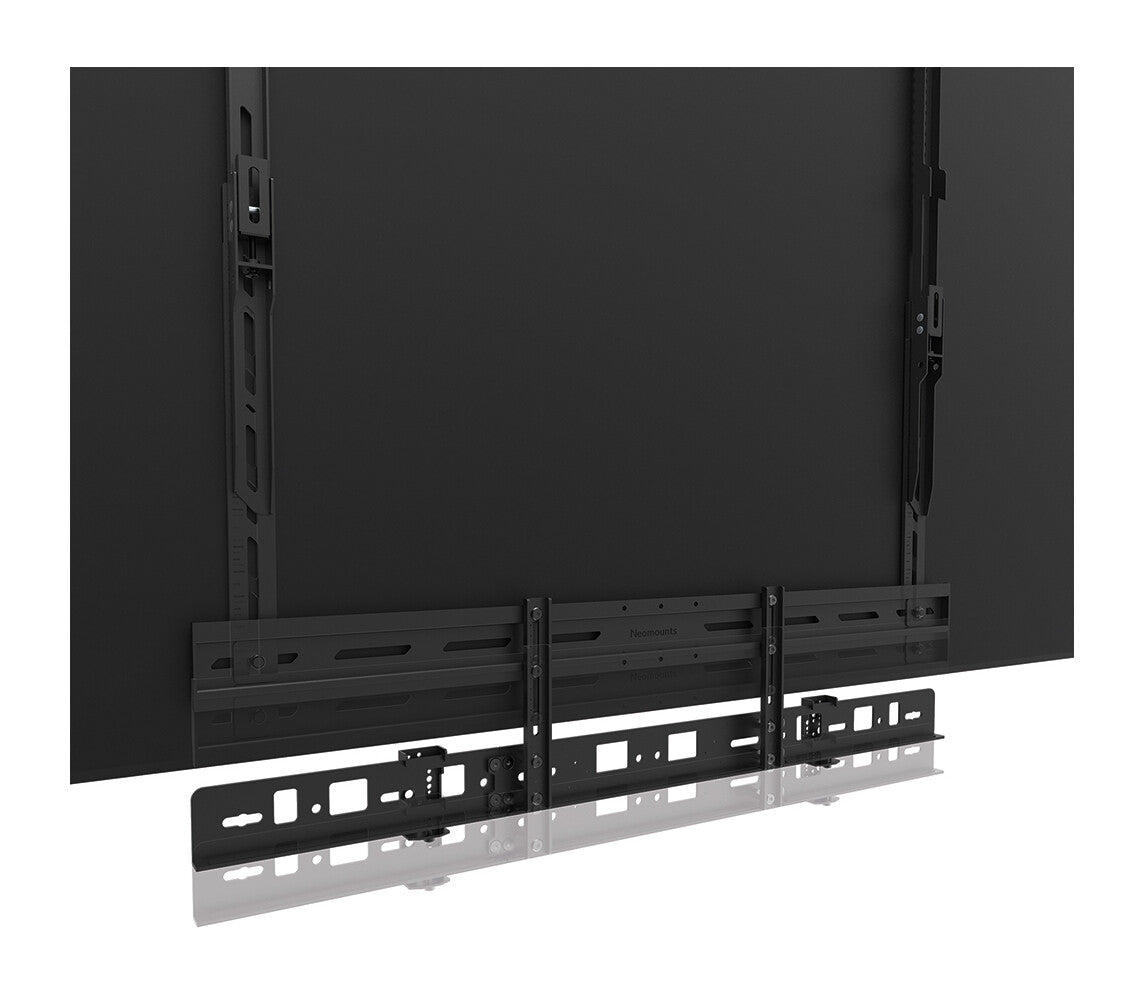

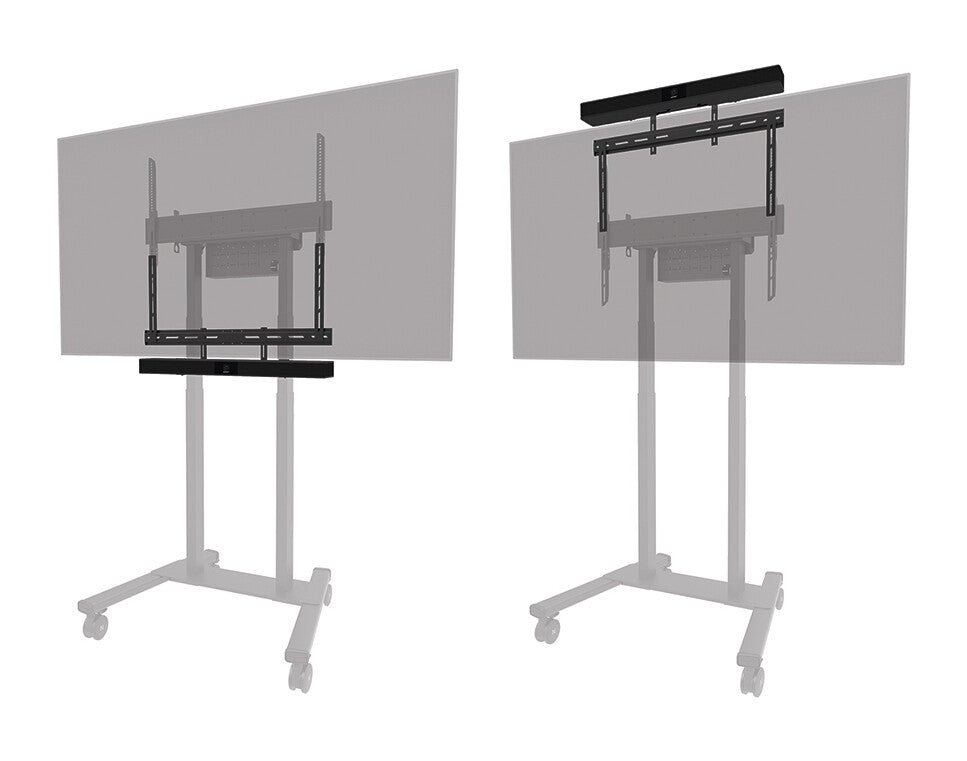

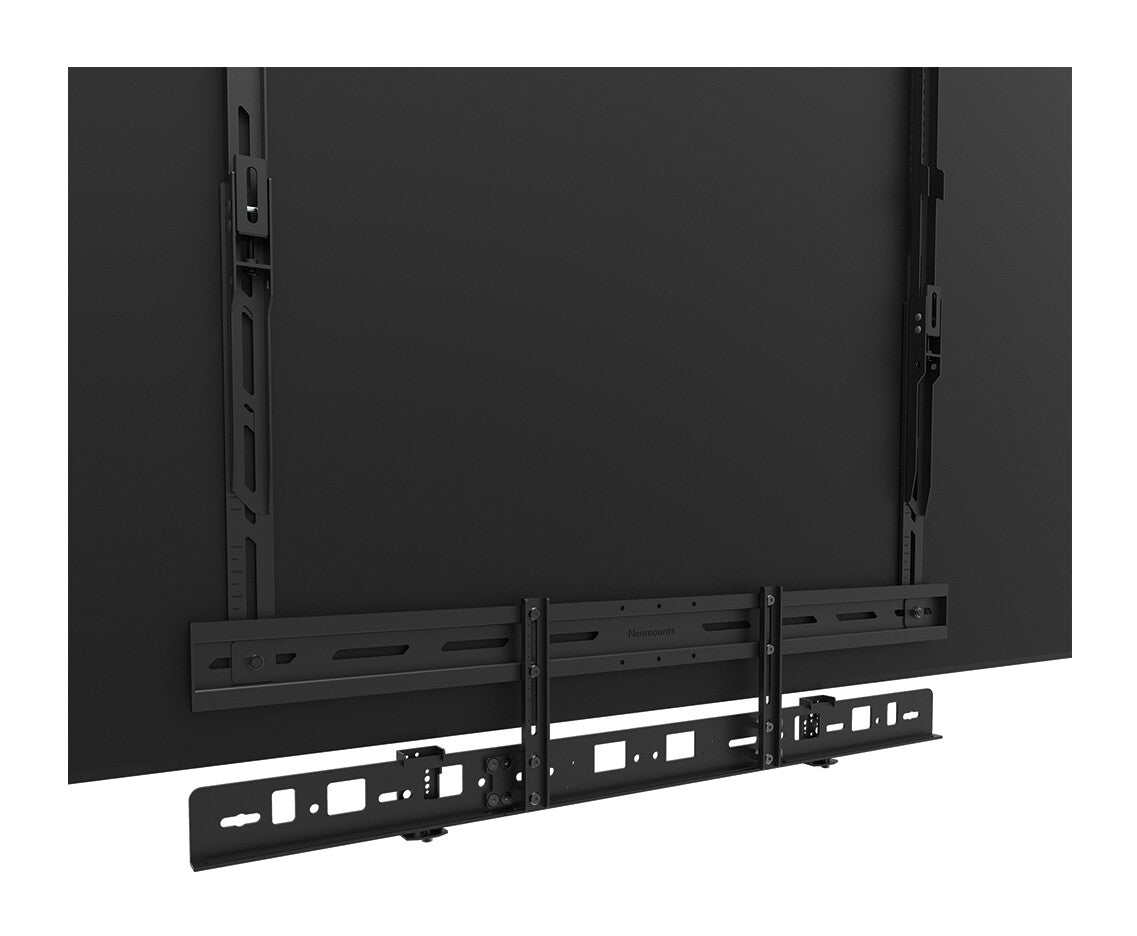

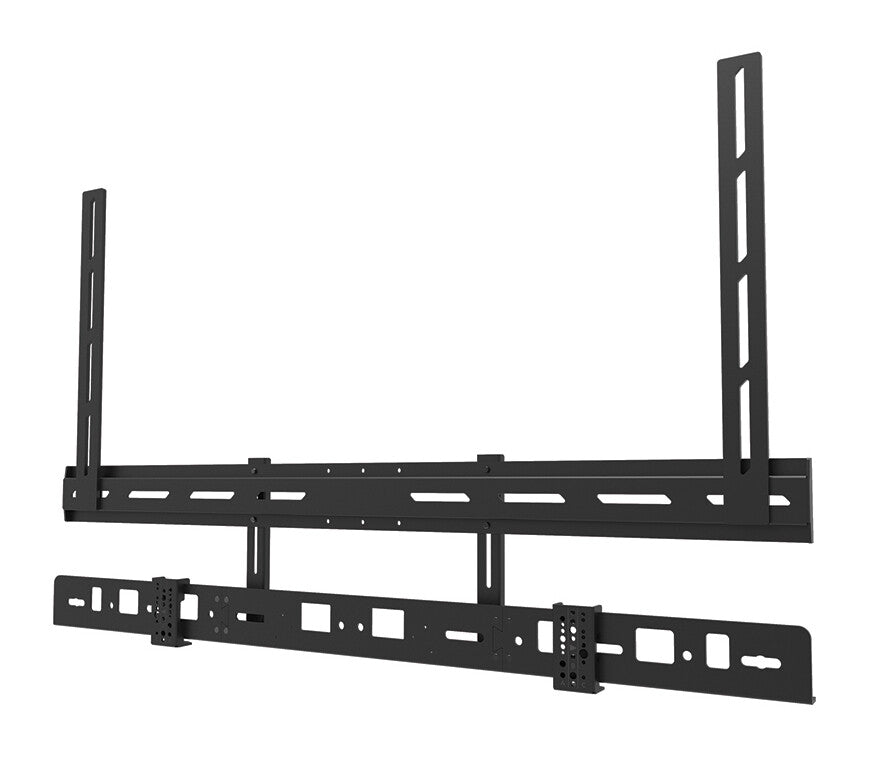

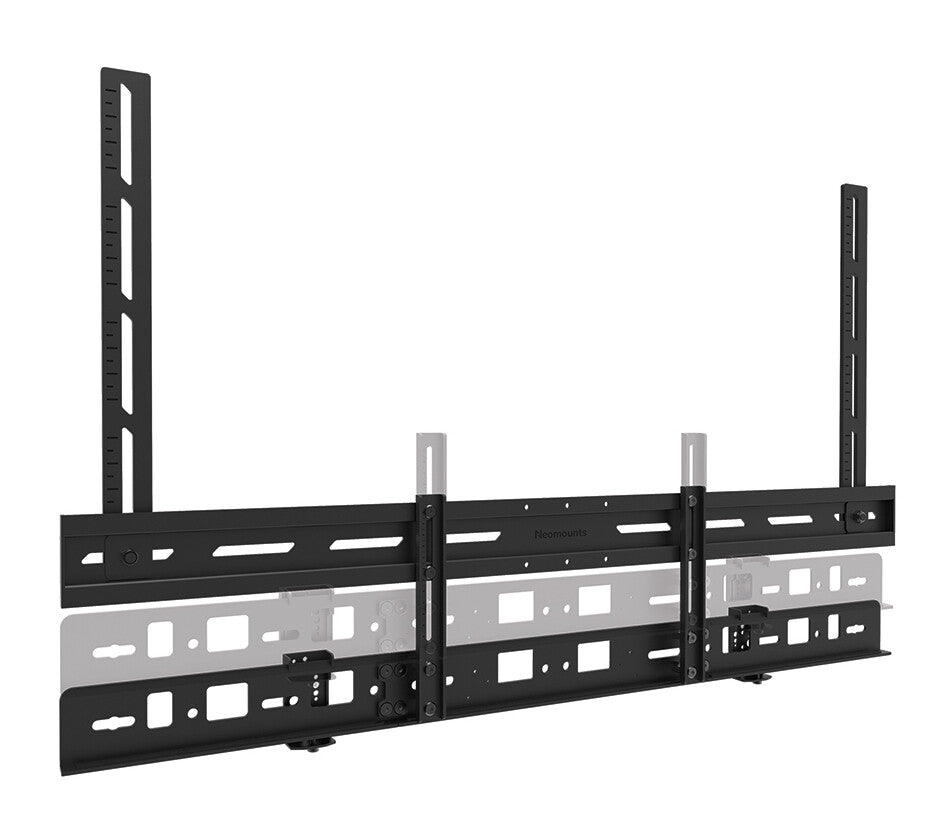

The Neomounts AV30-500BL is a universal videobar kit designed for displays from 43" and larger, with VESA hole patterns ranging from 200x200 up to 800x600 mm. Built for durability and versatility, the kit supports devices up to 10 kg and can be installed either above or below the screen. Both the videobar support and the backplate brackets are height-adjustable for maximum flexibility.

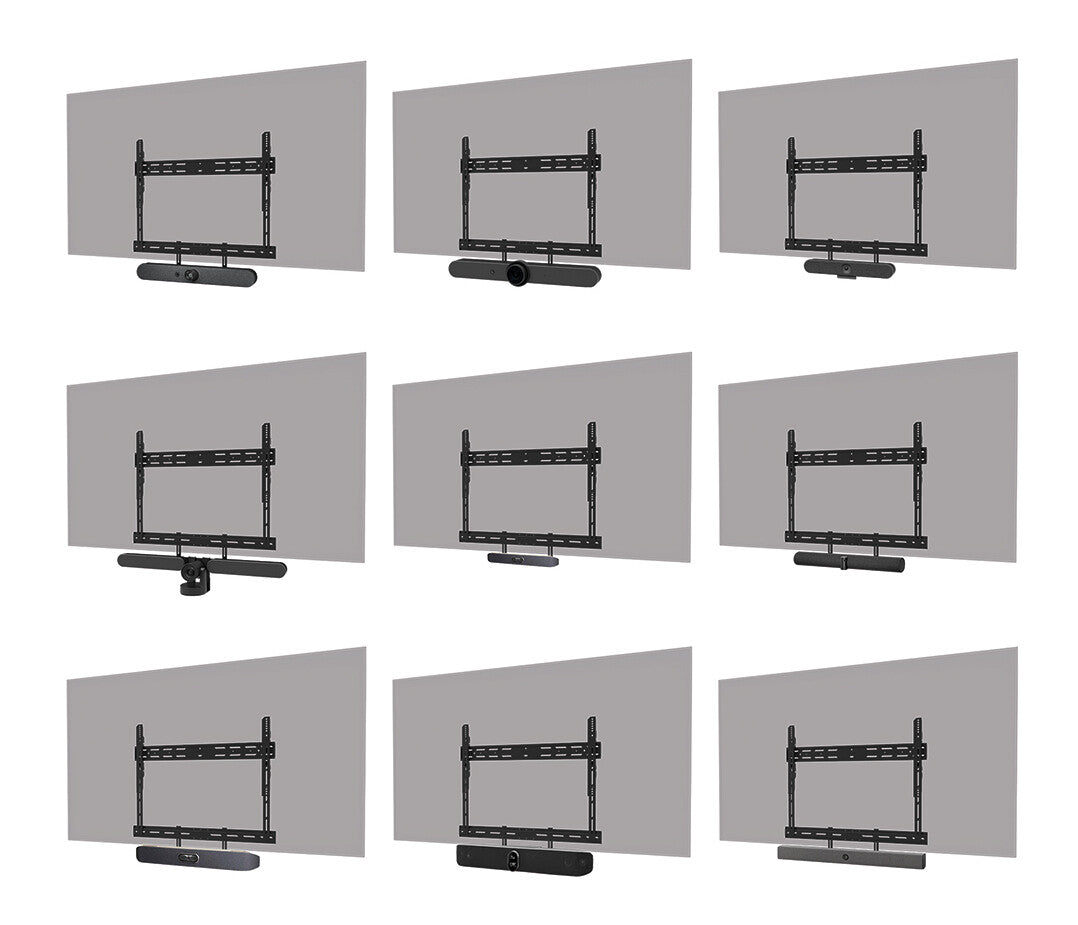

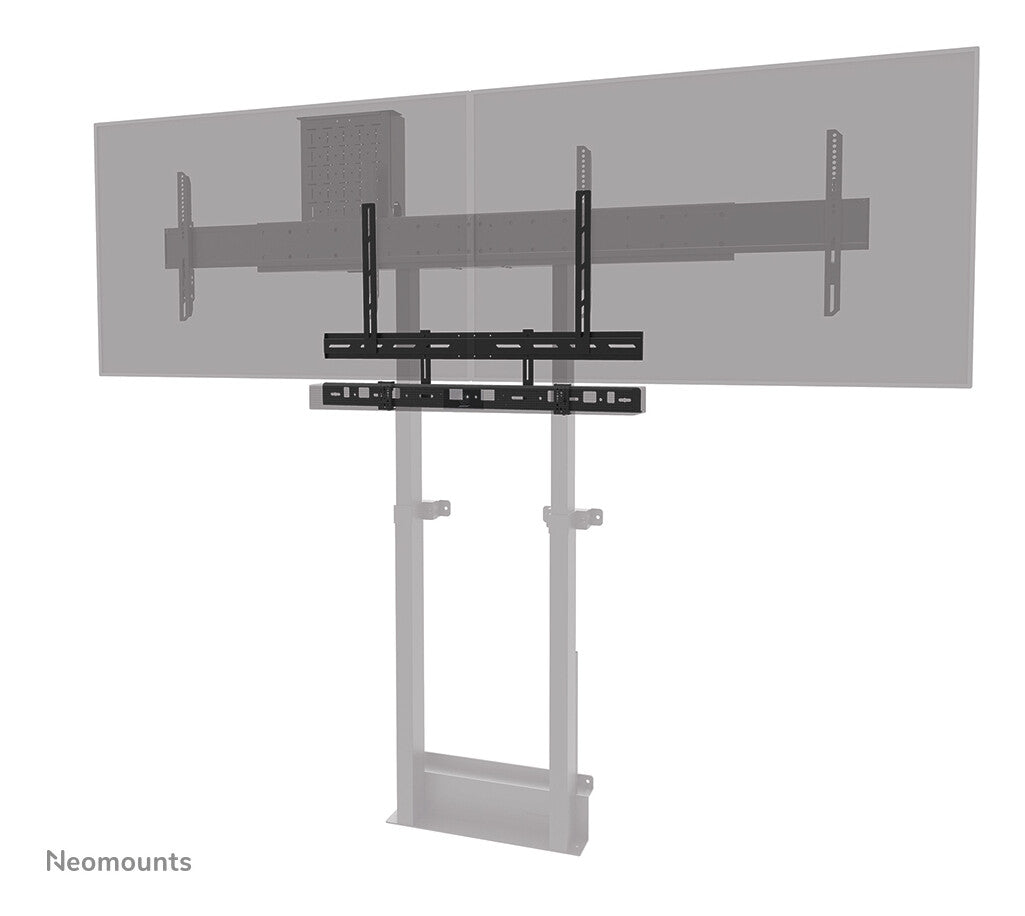

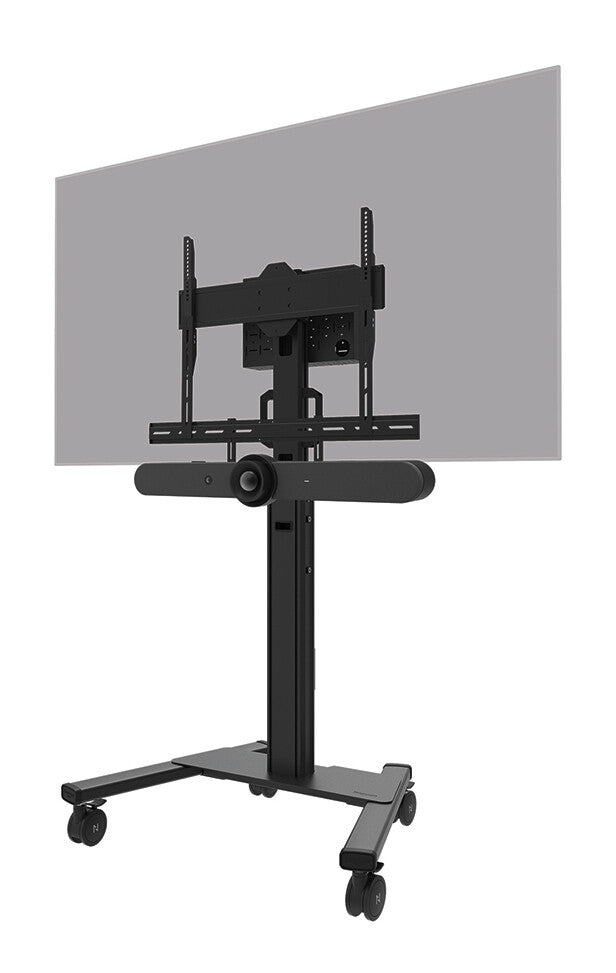

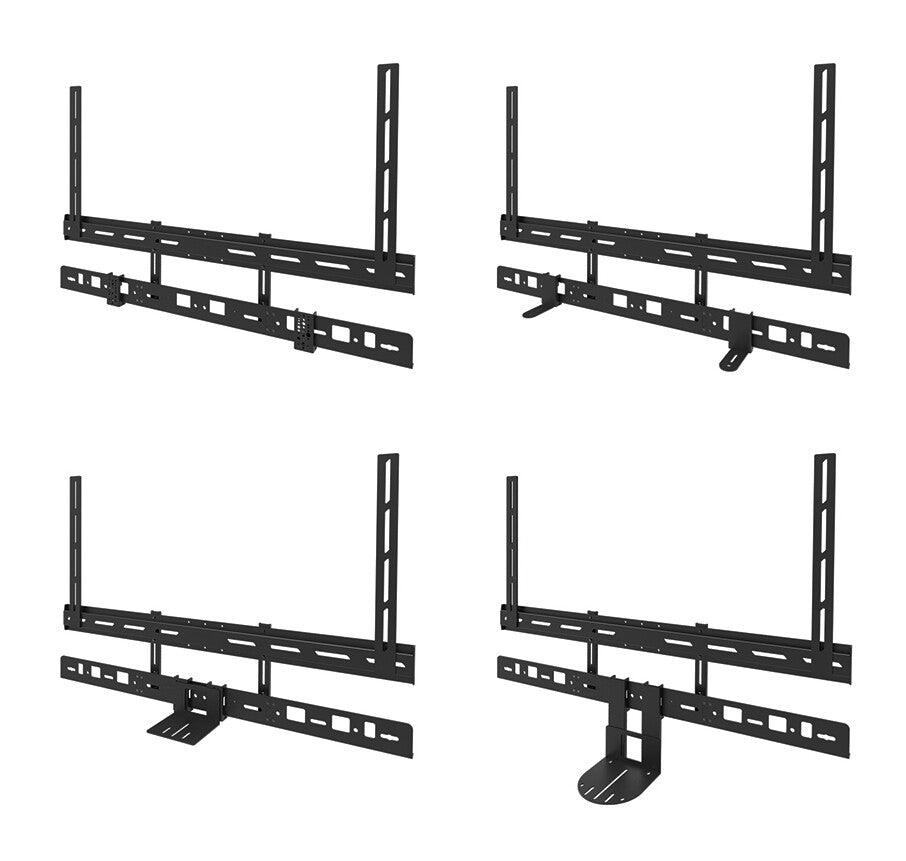

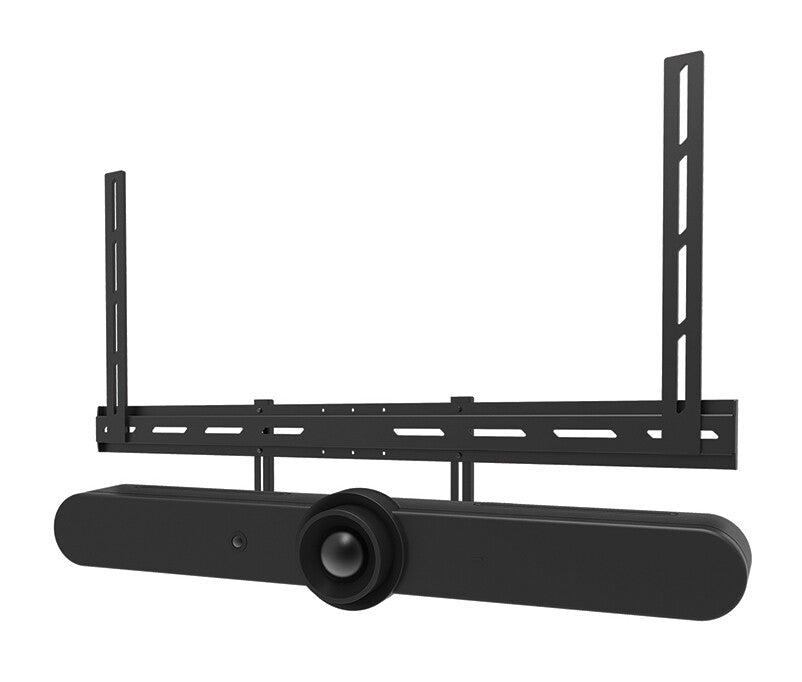

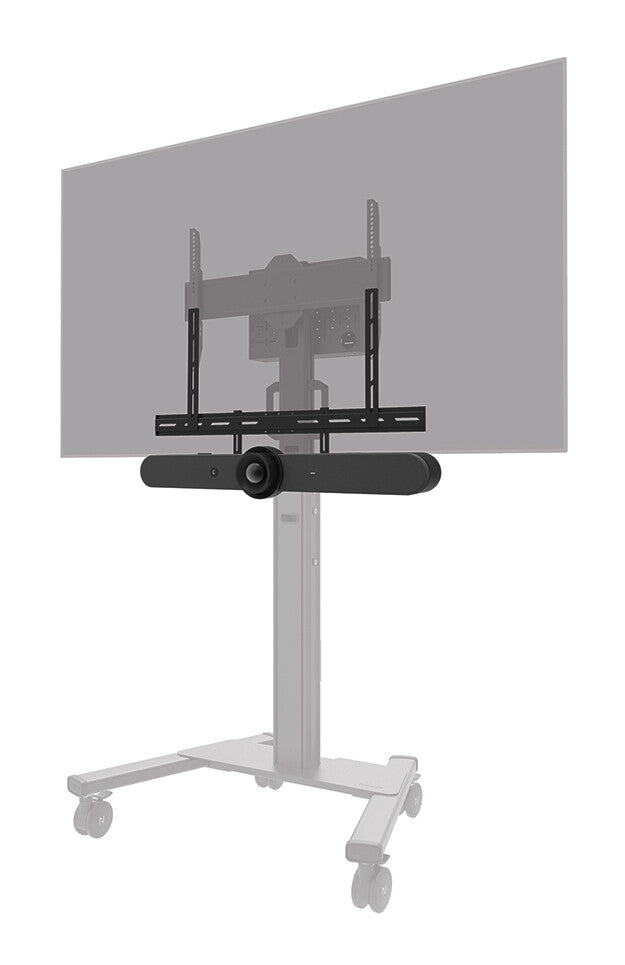

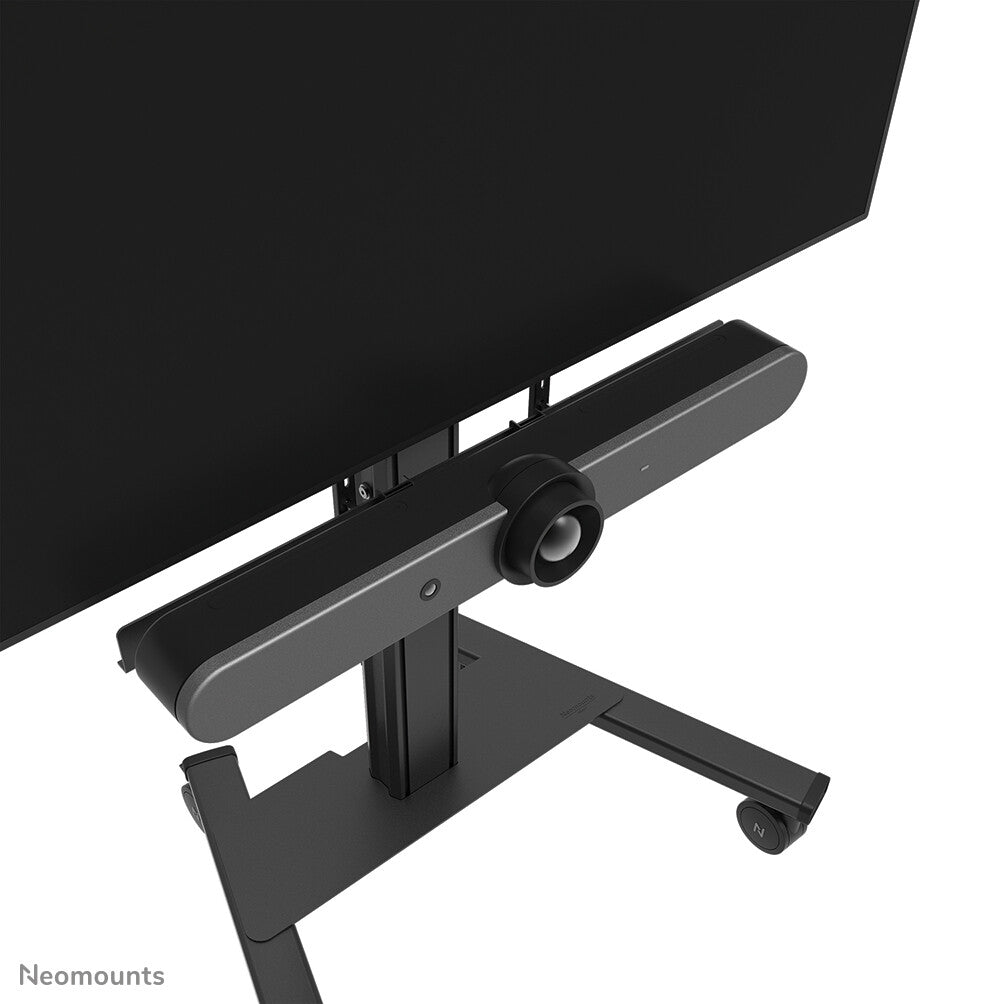

Compatible with most videobars*, PTZ cameras, and soundbars, including Logitech Rally speakers, the AV30-500BL ensures broad applicability. The mounting holes allow width and height variation, while the VESA frame adjusts in both height and width (200/400/600/800). The kit can be used on wall, floor, desk, or ceiling mounts. Despite its versatility, installation is straightforward, aided by ruler-guided alignment for a seamless fit.

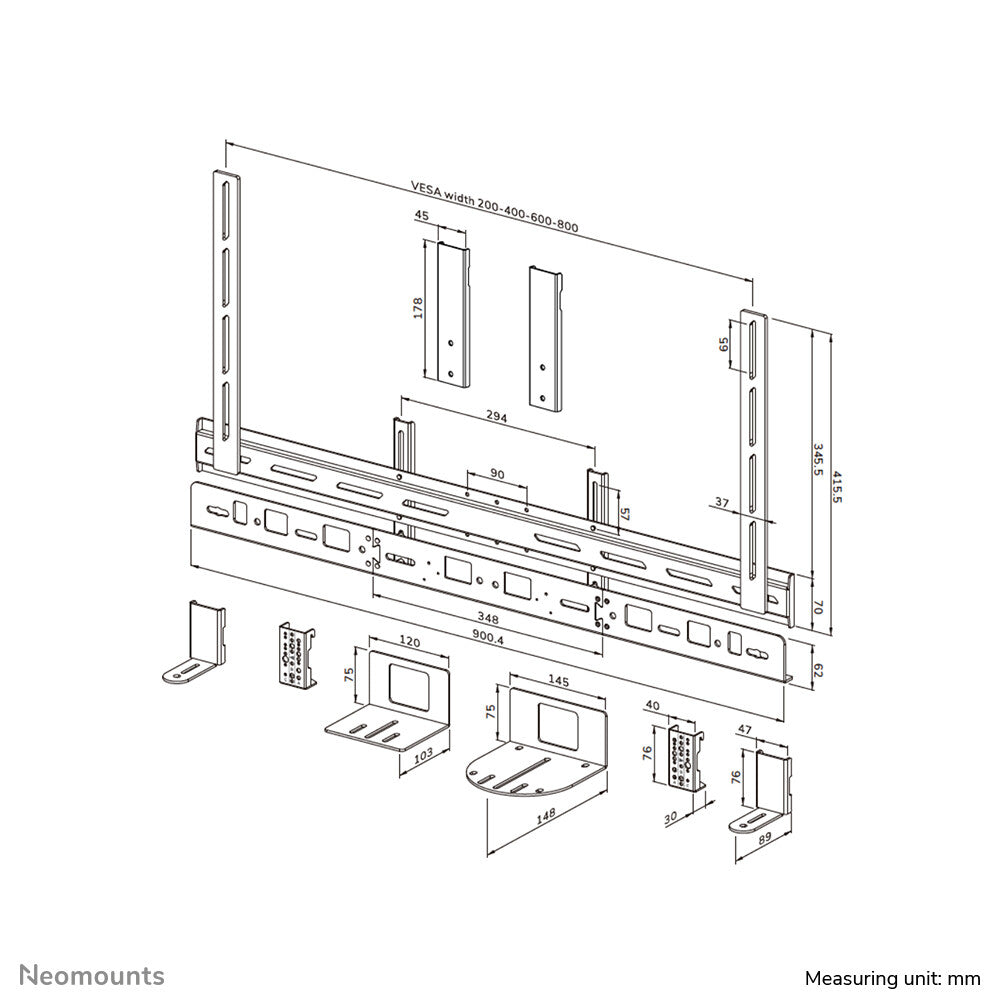

* The Neomounts AV30-500BL videobar kit is truly universal, compatible with any videobar regardless of brand or model, provided it fits within the bracket?s range (see line drawing). In addition, the kit is specially designed for the following videobars:
- Bose Professional VB1 and VB-S
- Neat Bar (gen 1, gen 2) and Bar Pro
- Poly Studio USB, Studio R30/X30/X32, Studio X50/X52/V52, Studio X70/X72/V72 and Studio V12
- Jabra Panacast 50/40
- Logitech Meetup, Meetup 2, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus
- Cisco Webex Room Kit Plus
- Yealink MSpeaker II, MeetingBar A30/A40/A50, UVC20/UVC30 Room/UVC34/UVC40 and MeetingEye 400/600
- AVer VB350 and VB370A
- Barco ClickShare Bar (Pro)
- Maxhub Xbar U50/V50/W70 and UC S05/S07/S10/S10 Pro/S15
- Predia Connect Camera
- Biamp Parlé ABC 2500(a), VBC 2500(a)/2800 and SBC 2
- Lenovo ThinkSmart One
For detailed compatibility with specific models or mounting sizes, please refer to the online manual.
| Features | |
|---|---|
| Product type | Videobar mount |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,800 x 800,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600 |
| Minimum screen size | 109.2 cm (43") |
| Maximum screen size | 2.79 m (110") |
| Maximum weight capacity | 10 kg |
| Number of displays supported | 1 |
| Height adjustment range | 0 - 55 mm |
| Product colour | Black |
| Housing material | Steel |
| Maximum VESA mount | 800 x 600 mm |
| Minimum VESA mount | 200 x 200 mm |
| Technical details | |
|---|---|
| Country of origin | China |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
|---|---|
| Width | 900 mm |
| Depth | 193 mm |
| Height | 555 mm |
| Weight | 5.7 kg |
| Packaging data | |
|---|---|
| Package width | 175 mm |
| Package depth | 958 mm |
| Package height | 86 mm |
| Package weight | 7.1 kg |
| Package type | Box |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 17.1 kg |
| Products per pallet (EU) | 48 pc(s) |
| Master (outer) case width | 276 mm |
| Master (outer) case length | 979 mm |
| Master (outer) case height | 195 mm |
| Master (outer) case gross weight | 21.9 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 7326909890 |
-
