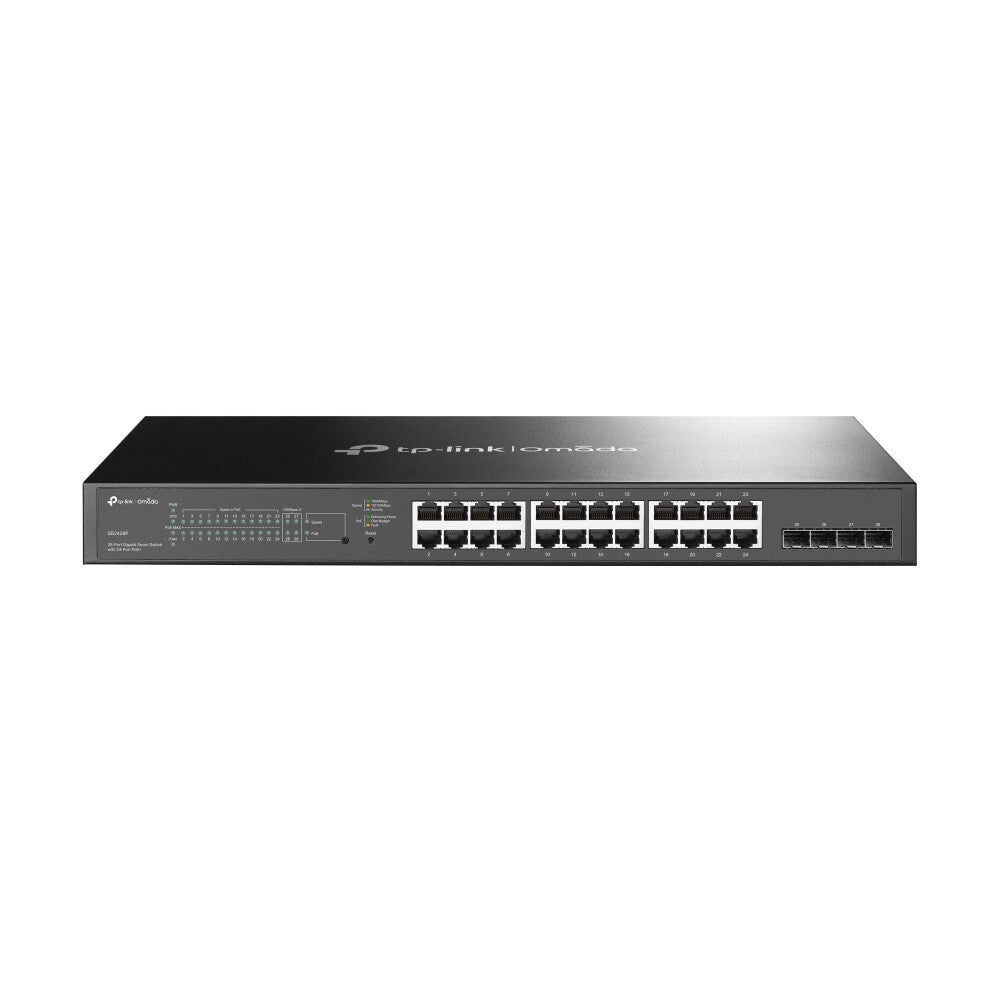

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
Key Details:
- 24× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
- 250 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Durable metal casing and rackmountable design
TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
Description
Description
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
| Management features | |
|---|---|
| MIB support | Y |
| System event log | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 4000 |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
|---|---|
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| Forwarding rate | 41.66 Mpps |
| Switching capacity | 56 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS |
| Authentication type | RADIUS |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Design | |
|---|---|
| Certification | CE, FCC, RoHS |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| General | |
|---|---|
| Product family | Omada |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Power | |
|---|---|
| Power consumption (max) | 301.1 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 250 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 1052.94 BTU/h |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 220 mm |
| Width | 440 mm |
| Packaging data | |
|---|---|
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
