StarTech.com 4-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA III SSD/HDD Docking Station, Hot-Swap Hard Drive Bay, Top-Loading
Key Details:
- HARD DRIVE DOCKING STATION: This 4-bay hard drive dock enables access to up to four 2.5/3.5" SATA hard drives for file backup, imaging or data transfer over USB 3.2 Gen 1 (5 Gbps). Tool-less design enables quick hot-swapping.

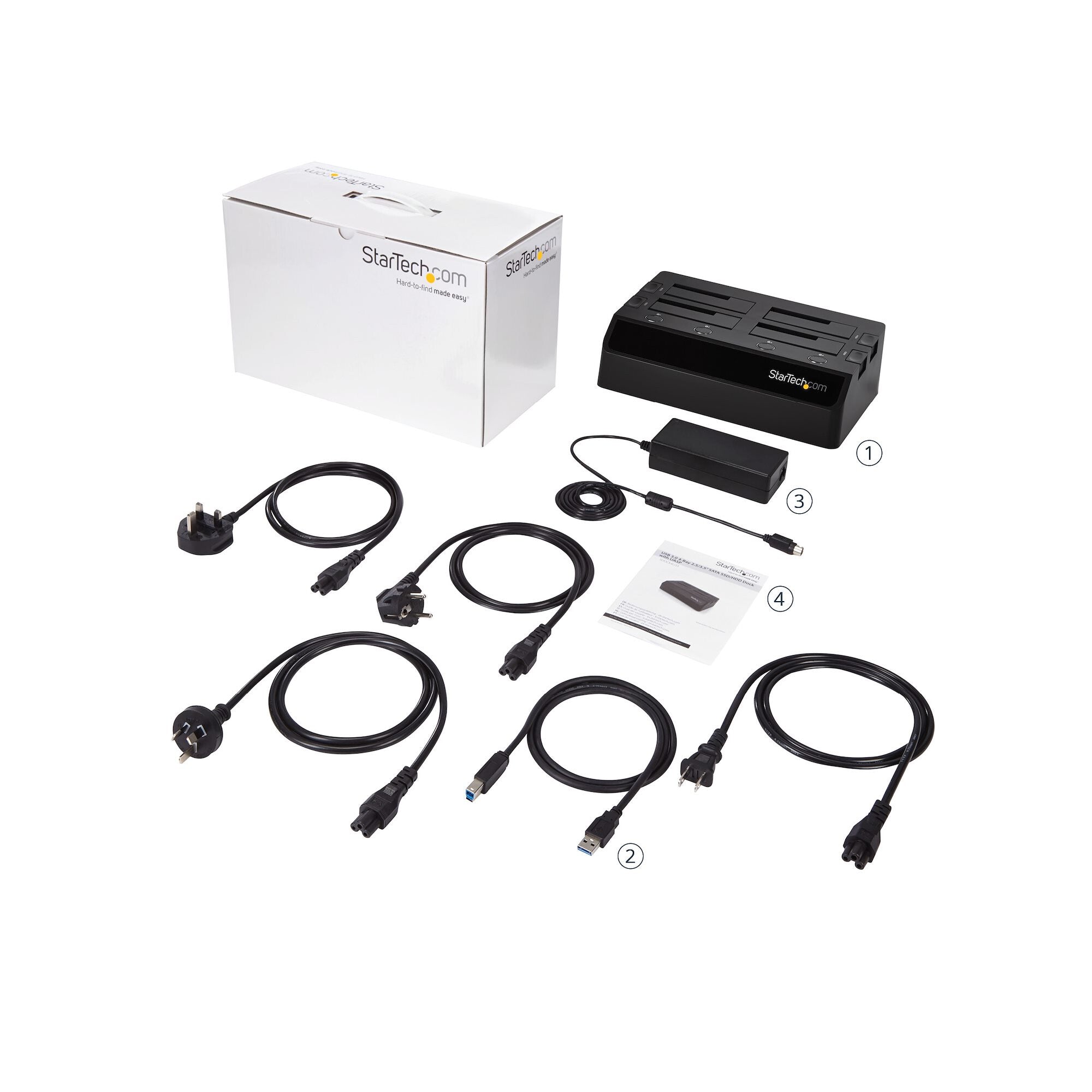

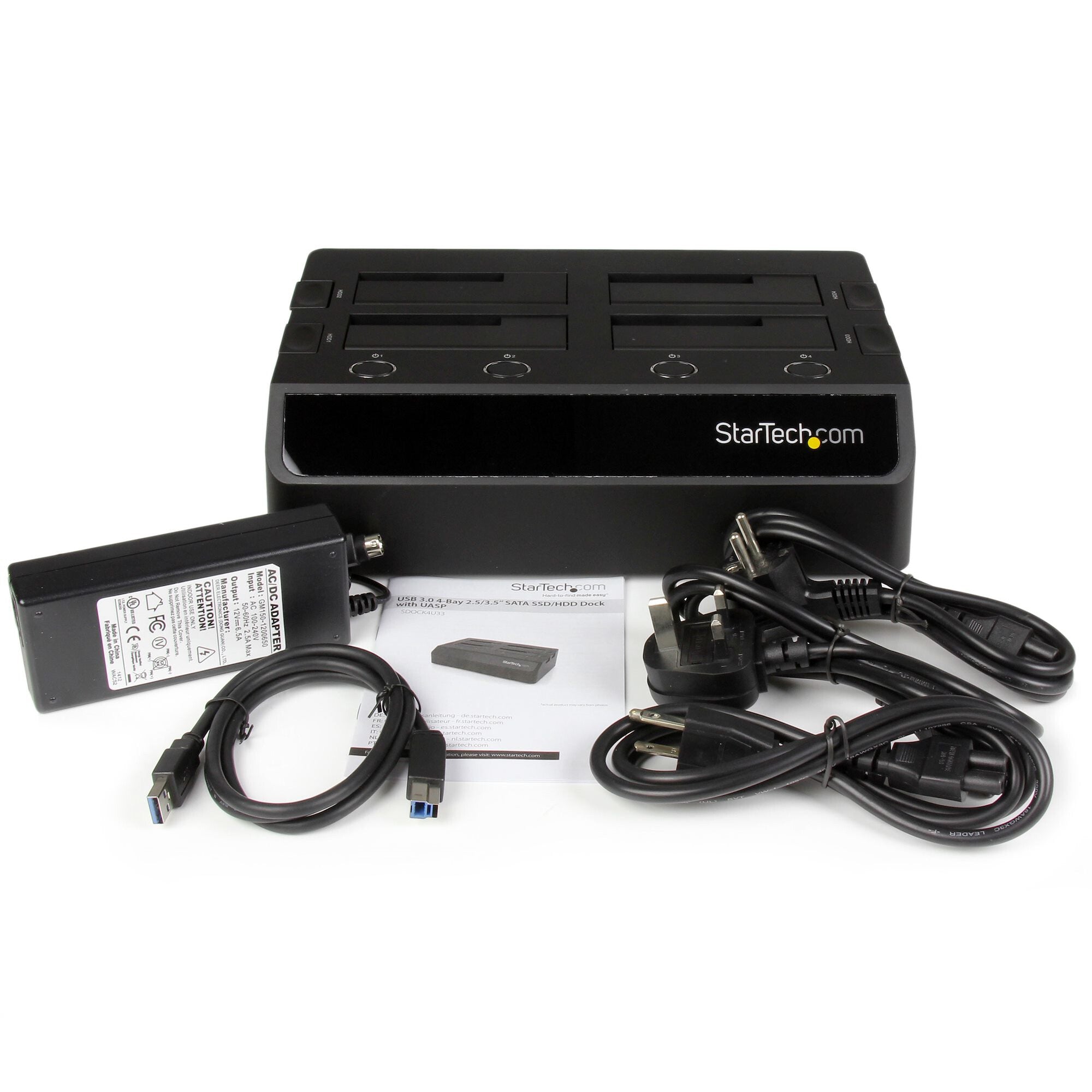

- DRIVE COMPATIBILITY: Works with 2.5/3.5" SATA HDDS and SSDs of any capacity / 4Kn Compatible / OS Independent / Backwards compatible w/ SATA I/II / Includes 3ft-A USB cables and Universal Power Adapter / IDE adapter (SAT2IDEADP) sold separately
- PERFORMANCE: Independently-powered SATA controllers enable drive hot swapping without interrupting other drive bays that are in use. Dual 40mm fans maintain optimal drive temperature for reliability and performance.
- SPECS: 4-Bay Hard Drive Dock / SATA III (6 Gbps) w/ TRIM / USB 3.2 Gen 1 (5 Gbps) Host Connection / Dual 40mm Fans / Tool-less/Tray-less Design / Hot-Swappable Drive Bays / Top-Loading/Toaster-Style with Eject Buttons / LED Activity Lights
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Quad-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance
StarTech.com 4-Bay USB 3.0 to SATA Hard Drive Docking Station, USB ...
Description
Description
External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA I/II/III

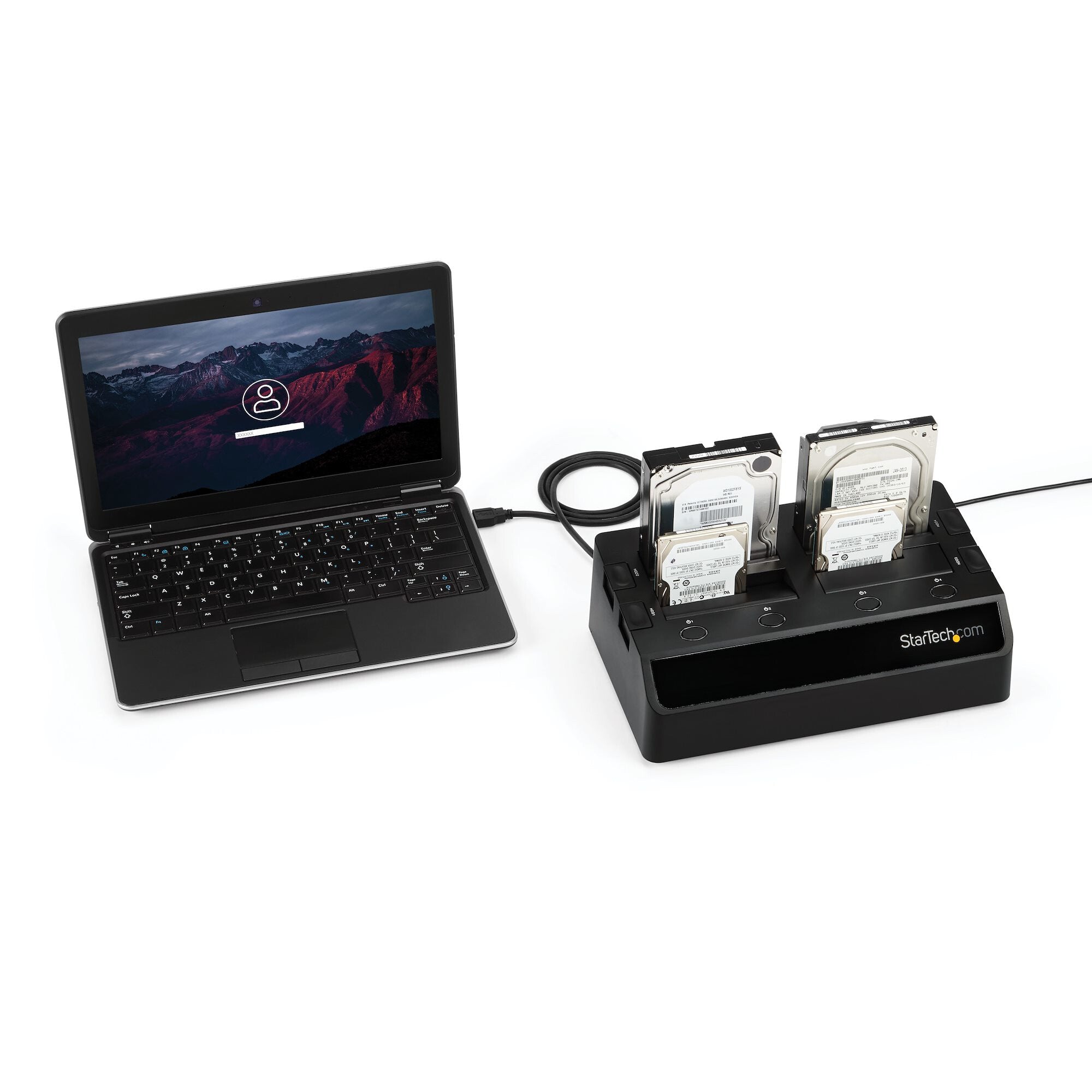

Our SDOCK4U33 Quad-Bay USB 3.0 to SATA Hard Drive Docking Station enables access to up to four 2.5/3.5" SATA drives from your desktop or laptop computer over USB 3.2 Gen 1 (5 Gbps) .
Each drive loads directly into a tray-less top slot, no additional enclosures or tools are required. This dock enables quick access to drives file transfers, troubleshooting purposes, or system configuration/deployment - ideal for technicians and IT professionals.
This hard drive dock features independently powered SATA controllers. These controllers enable the hot-swapping of idle drives, without impacting the function of active drives, saving you time and resources. Two adjustable 40mm cooling fans keep your drives operating at optimal temperatures for performance and reliability.
Extend the compatibility of this HDD/SDD docking station with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), for easy docking of legacy 2.5 or 3.5in. IDE hard drives.
Compatible with Any Capacity or File Format

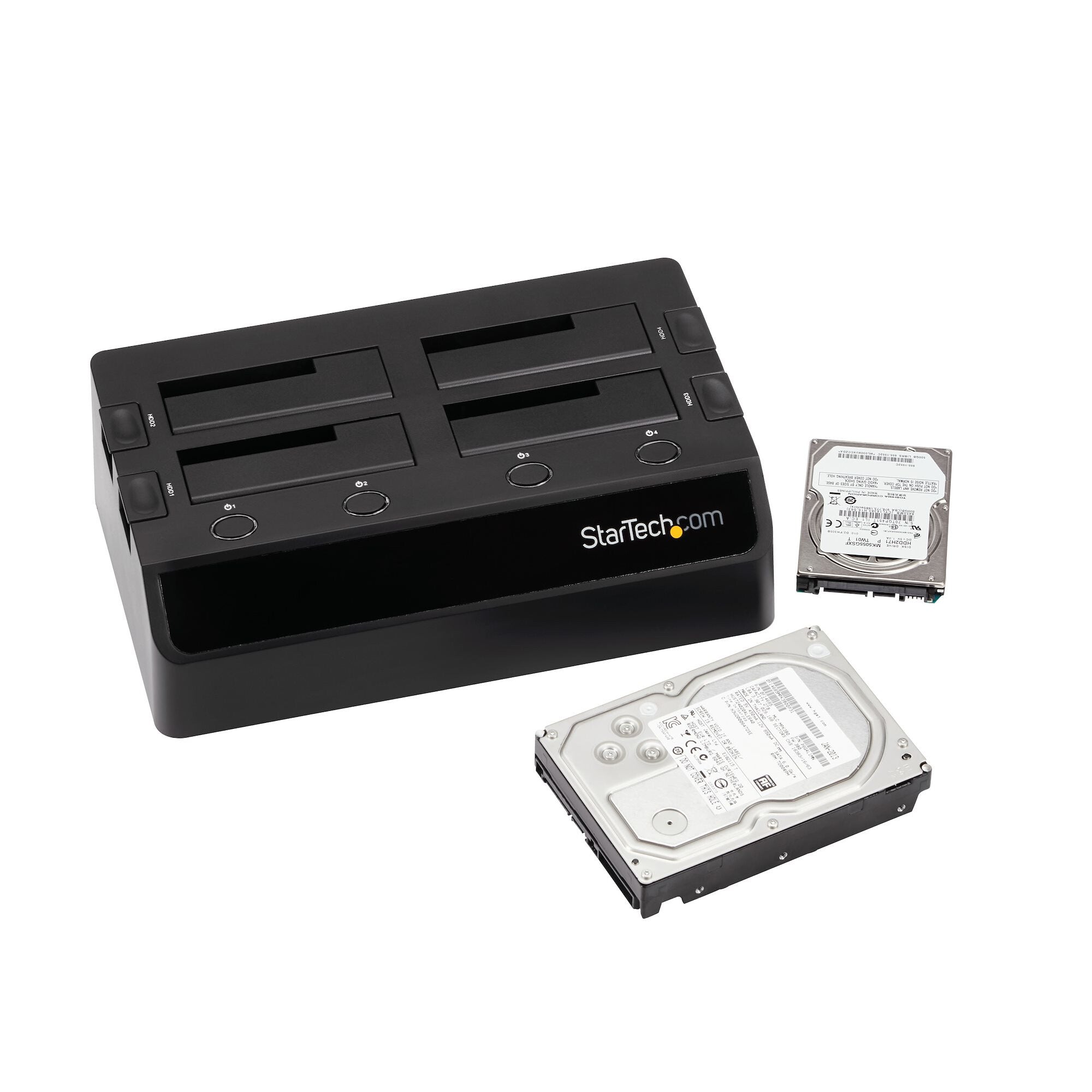

Compatible with 2.5" and/or 3.5" SATA HDDs and SSDs of any capacity and file format recognized by your host system. This dock works with any Operating System. Drivers and software are not required.
SDOCK4U33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Hard drive | |
|---|---|
| Maximum storage capacity | 8 TB |
| Number of storage drives supported | 4 |
| Storage drive sizes supported | 2.5,3.5" |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage media type | HDD, SSD |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Features | |
|---|---|
| Certification | CE, FCC |
| Chipset | VL812+ASM1053E |
| LED indicators | Activity, Power |
| UASP support | Yes |
| Material | Plastic |
| Product colour | Black |
| Maximum data transfer rate | 6 Gbit/s |
| Cooling | |
|---|---|
| Fan diameter | 4 cm |
| Number of fans | 2 fan(s) |
| Built-in fan | Yes |
| Power | |
|---|---|
| Output current | 6.5 A |
| Output voltage | 12 V |
| Input current | 2.5 A |
| AC input voltage | 100-240 V |
| Weight & dimensions | |
|---|---|
| Weight | 1.03 kg |
| Height | 85 mm |
| Depth | 285 mm |
| Width | 171.2 mm |
| Packaging content | |
|---|---|
| Included power plug types | AU, EU, NA, UK |
| Manual | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Other features | |
|---|---|
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Packaging data | |
|---|---|
| Package weight | 2.18 kg |
| Package height | 170 mm |
| Package depth | 341 mm |
| Package width | 214 mm |
| Package dimensions (WxDxH) | 168 x 340 x 213 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case height | 357 mm |
| Master (outer) case length | 473 mm |
| Master (outer) case width | 361 mm |
| Harmonized System (HS) code | 84733080 |
