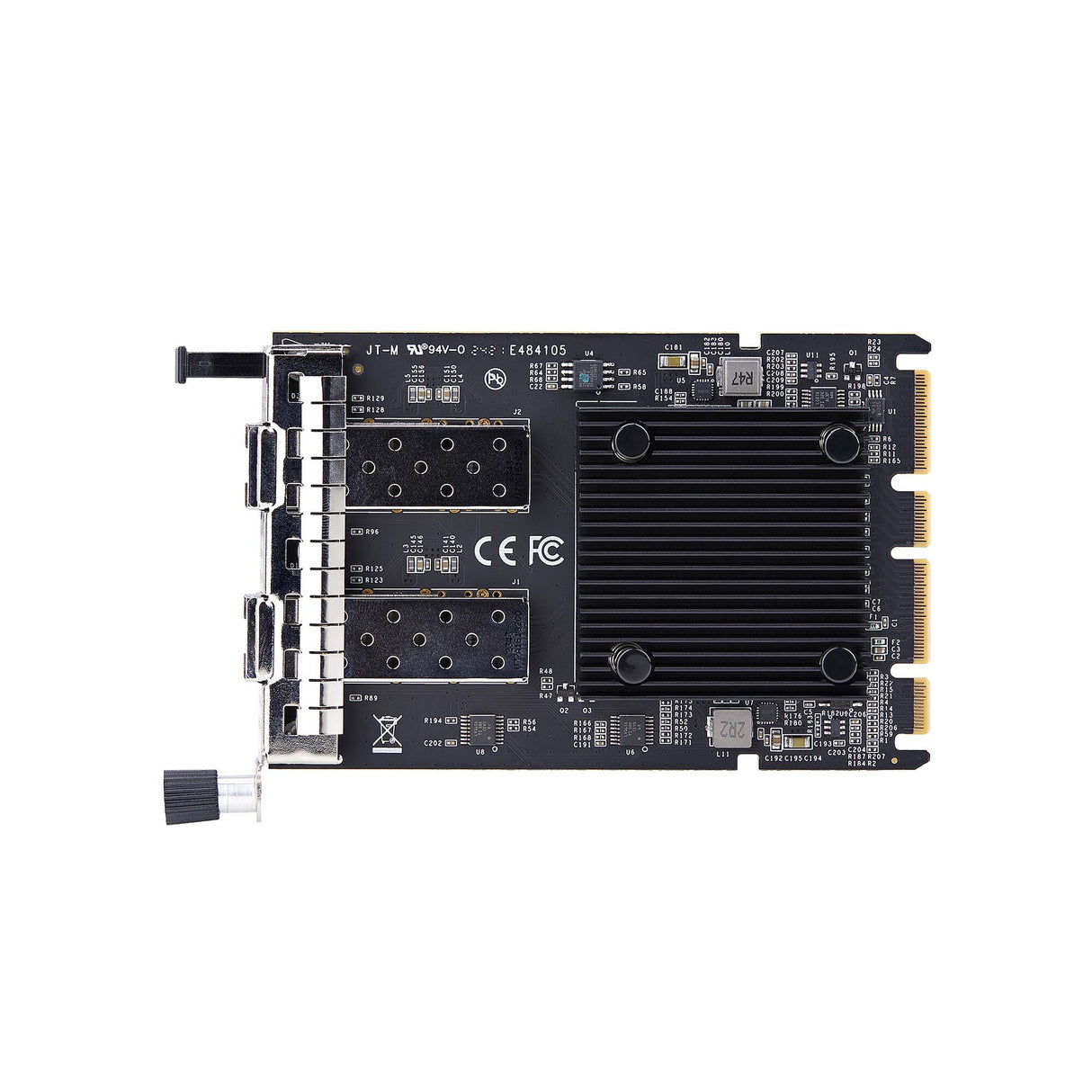

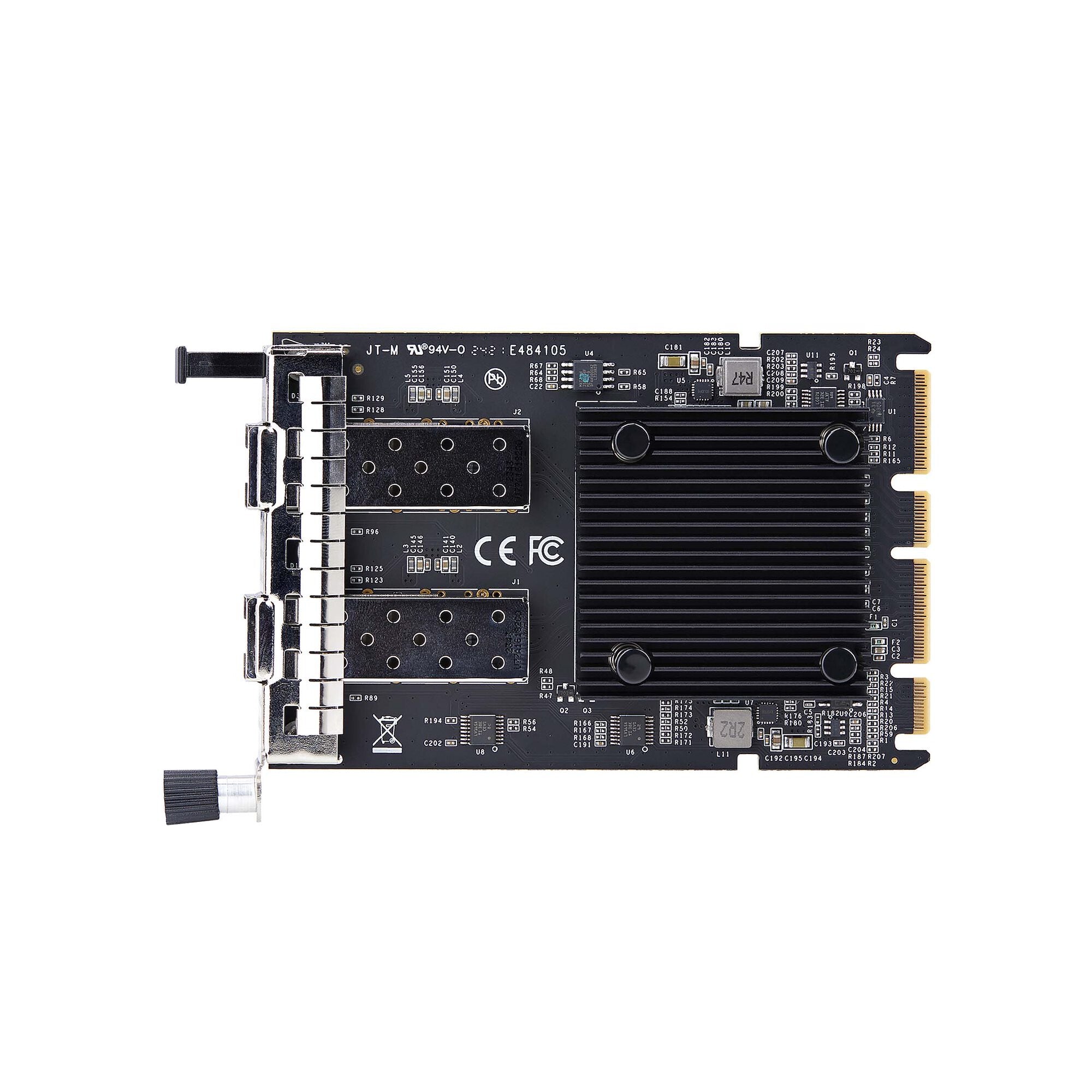

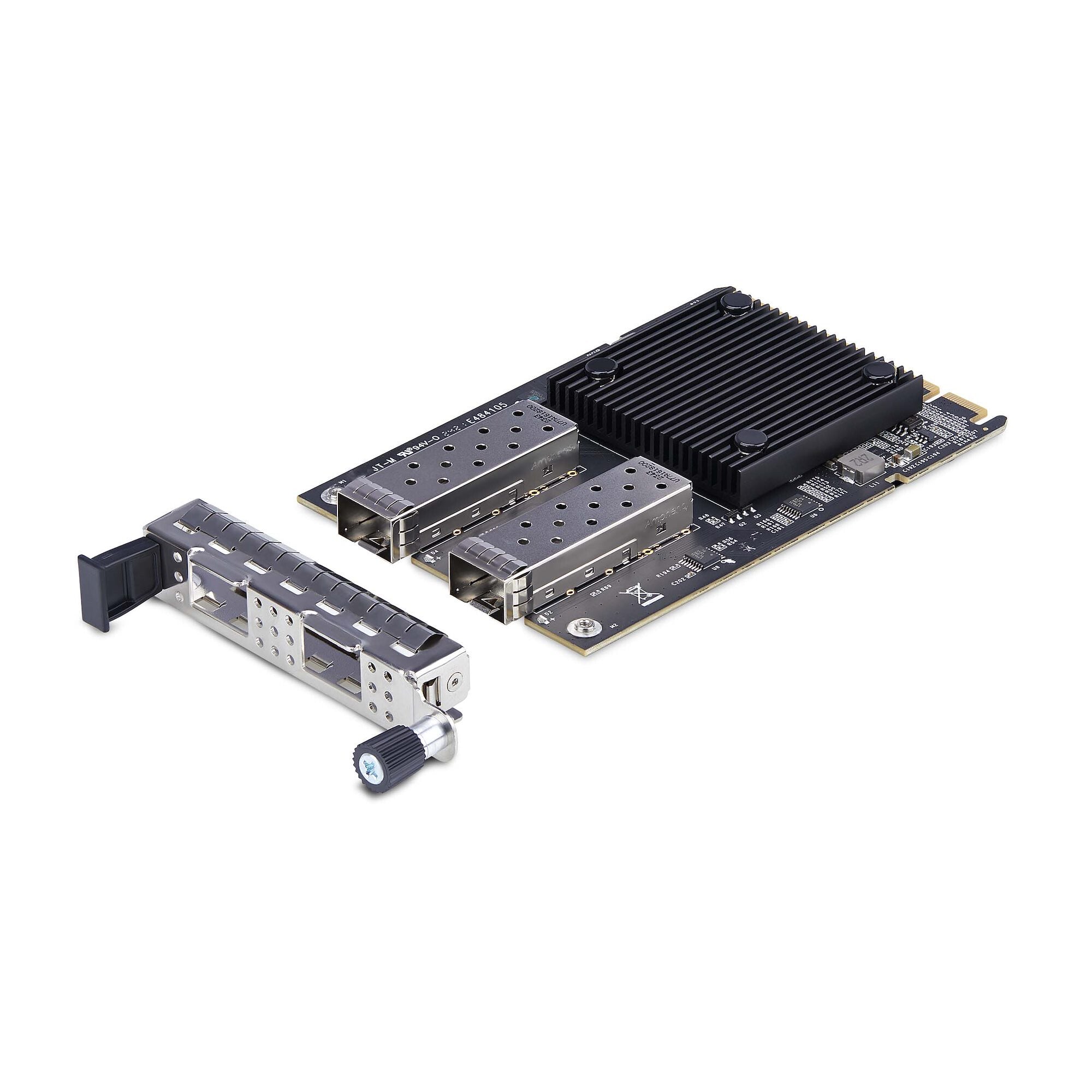

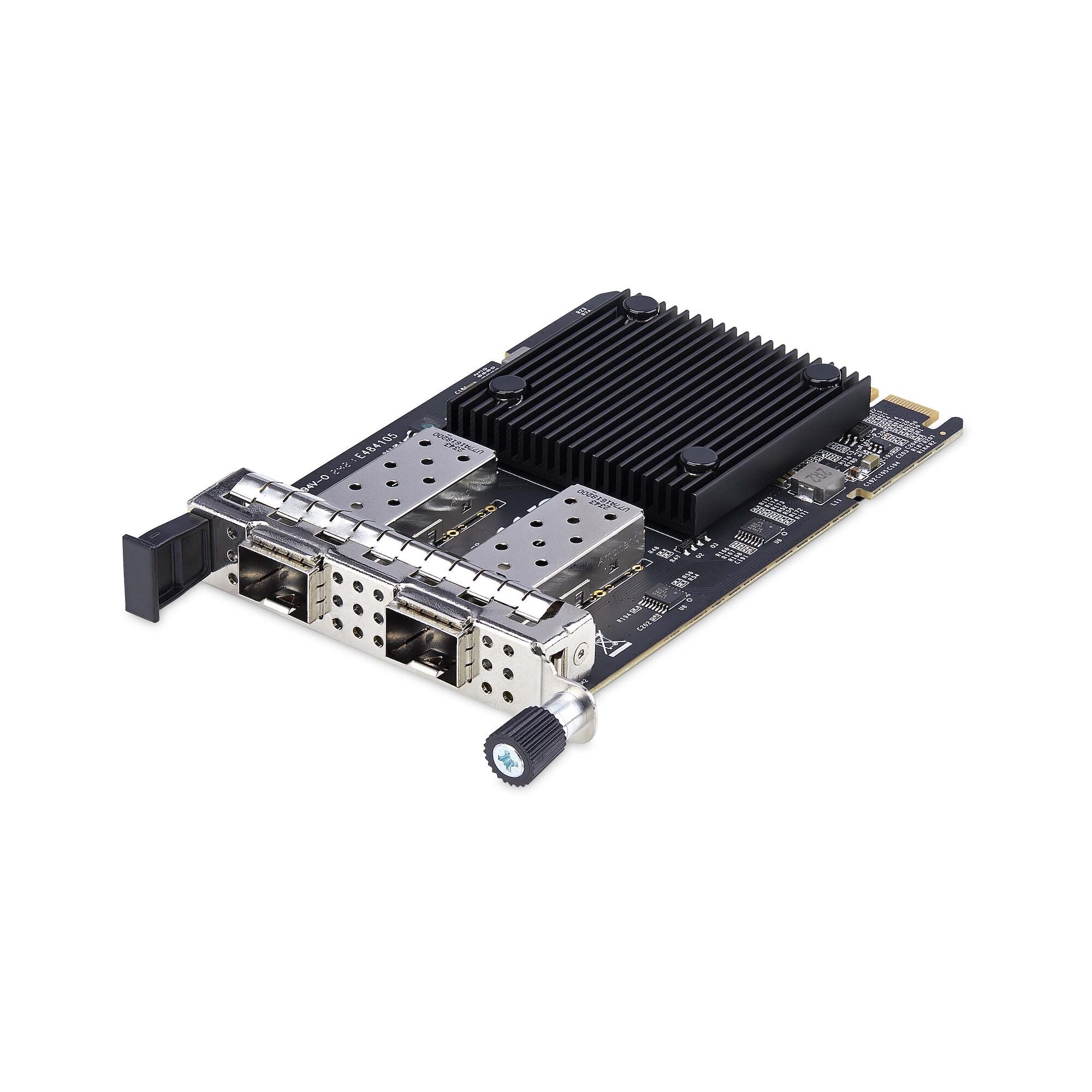

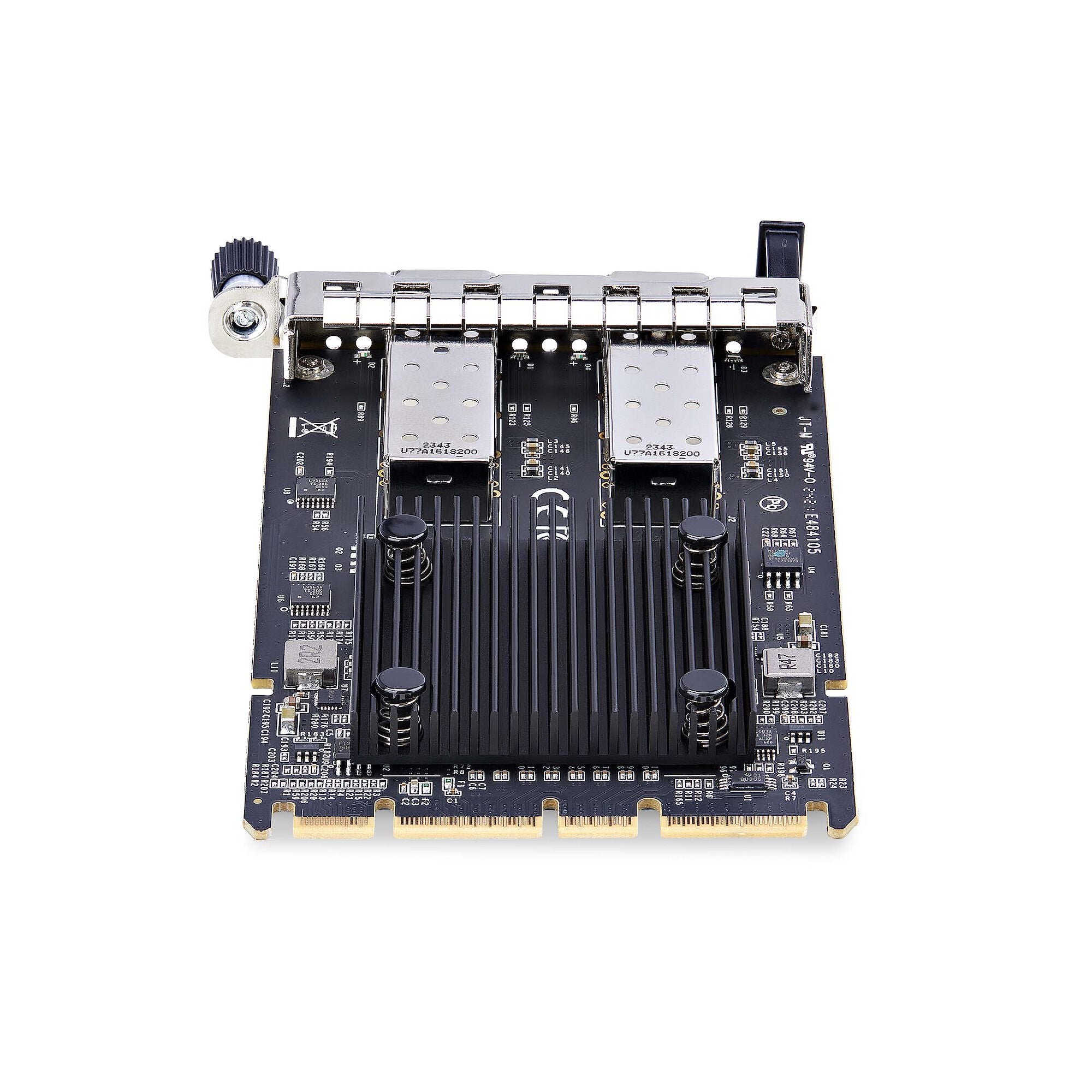

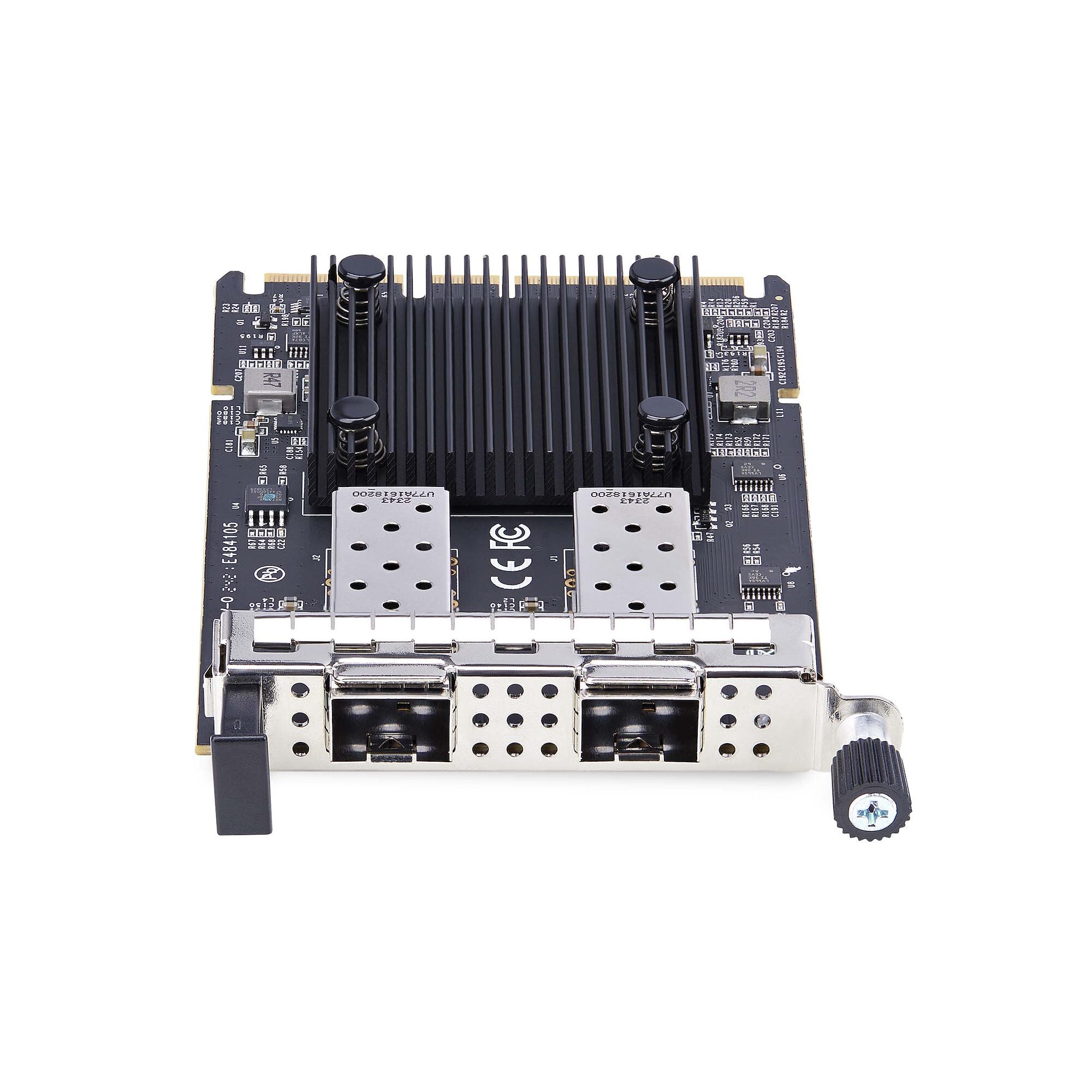

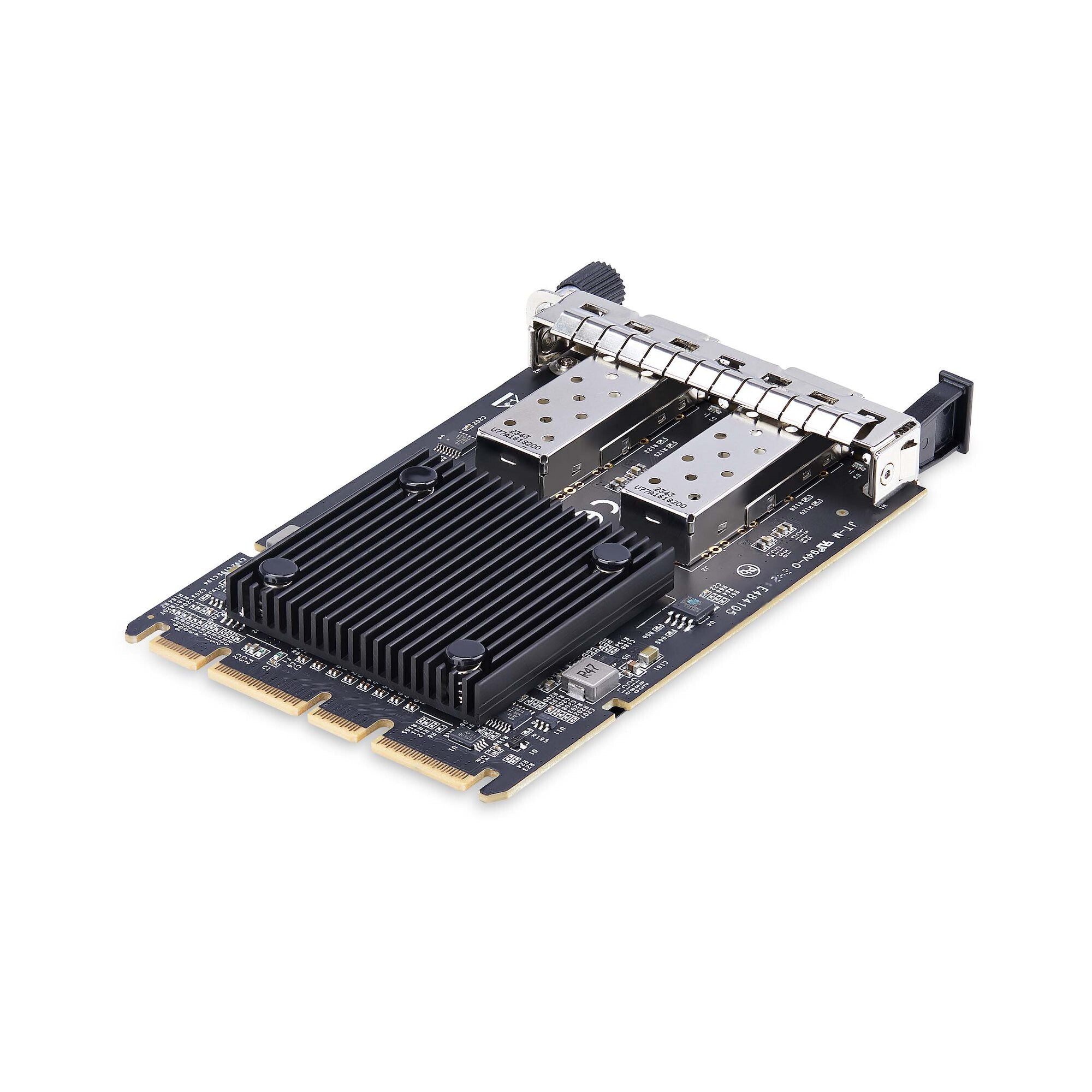

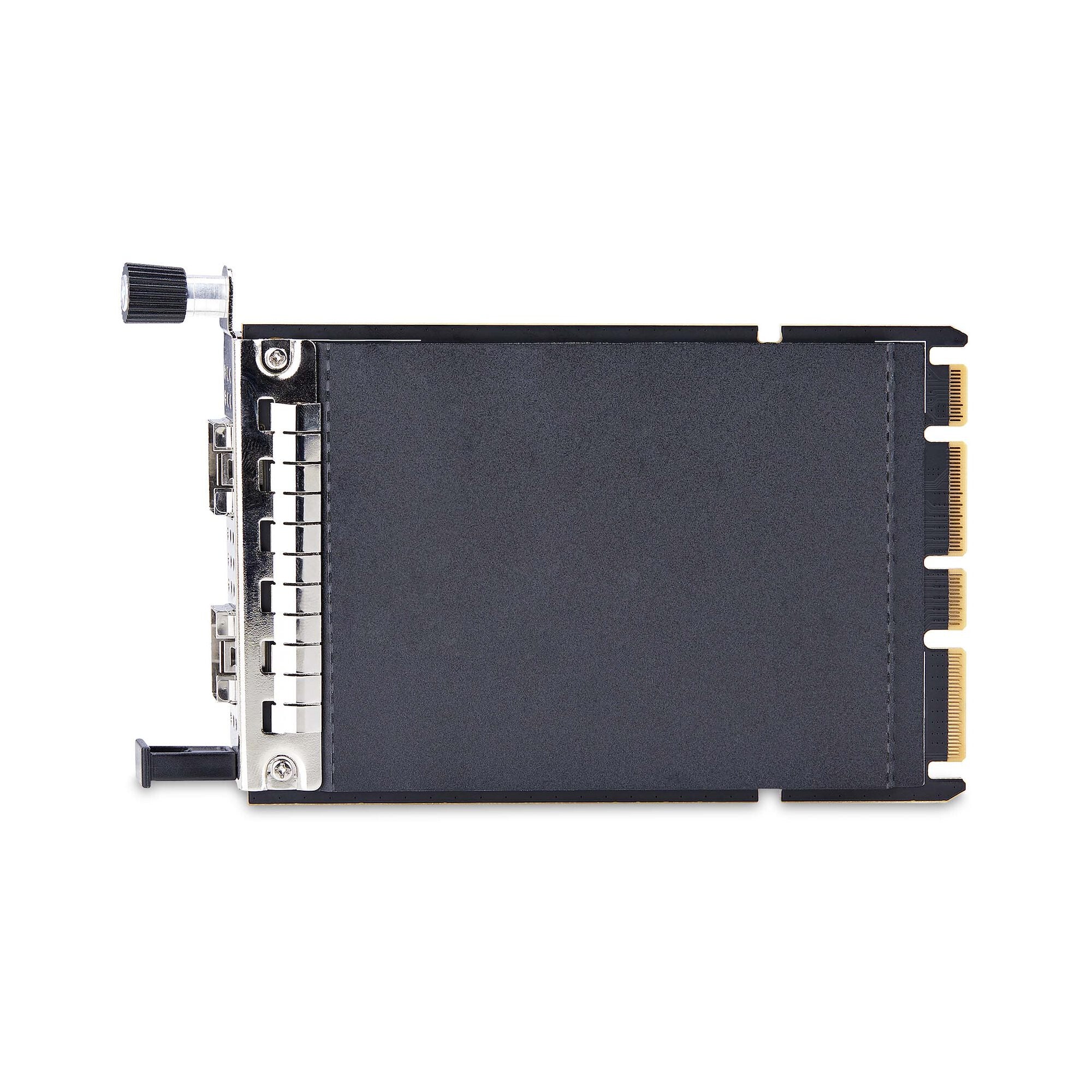

StarTech.com 2-Port 10Gbps SFP+ OCP 3.0 Server Network Card with Intel X710, SFF 4C+ Compatible, Dual-Port OCP NIC, Works with Windows & Linux

STARTECH.COM  |  SKU : O1210I-NETWORK-CARD  |  Condition: Brand New  |  Code-barres: 65030900645

MORE INFO

£384.99
£377.99 Save £7.00 £384.99
£314.99 excluding VAT @20%
iFrame
StarTech 2-Port 10Gbps SFP+ OCP 3.0 Server Network Card, Intel X710, SFF 4C+ Compatible, Dual-Port OCP NIC, Windows/Linux

Enhance a server or workstation's capabilities with dual 10 Gigabit fiber or copper connectivity using the SFP transceivers of your choice

The 2-port 10Gbps OCP network interface card with the Intel X710-BM2 controller adds two open SFP+ slots to a server, increasing connectivity options and network performance.

OCP (Open Compute Project) Interface

The network adapter card uses the Open Compute Project (OCP) 3.0 (168-pin 4C+) connector, which was designed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades. The PCI Express Network Card is compatible with PCIe versions 3.0, 2.1, and 2.0.

10GbE and 1GbE SFP Support

This card supports 1000Base-T/SX/LX/EX and 10GBase-SR/LR/CR for various network configurations and distances. This is ideal for high-speed, low-latency connections such as those used in virtualization, data centers, and cloud computing. It works with any single-mode or multimode MSA-compliant or branded SFP or SFP+ module, active optical cable (AOC), or direct attach copper cable (DAC). Optical fiber allows longer cable runs than copper cabling while eliminating EMI.

Note: 10Gbps Copper SFP+ modules are not supported

Advanced Features

Network virtualization offloads reduce CPU overhead, increasing the efficiency of the virtualized network. PXE boot enables centralized OS deployment and updates. The card also supports 9K jumbo frames for reduced packet overhead and VLAN support for efficient network management. The card is compatible with Windows Server, Windows, and Linux.

Ports & interfaces
Fiber ports quantity 2
Fiber optic connector SFP+
Interface Fiber
Host interface OCP 3.0
Connectivity technology Wired
Network
Fiber mode structure Multi-mode, Single-mode
Jumbo frames support Yes
Jumbo frames 9000
Full duplex Yes
Wake-on-LAN ready Yes
Networking standards IEEE 1588, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae
Maximum data transfer rate 10000 Mbit/s
Design
LED indicators Activity, Link
Chipset Intel® X710-BM2
Product colour Black
Component for PC/Server
Internal Yes
System requirements
Server operating systems supported Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Linux operating systems supported Yes
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Operational conditions
Operating relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -10 - 70 °C
Operating temperature (T-T) 0 - 60 °C
Weight & dimensions
Weight 104 g
Height 15 mm
Depth 132 mm
Width 85 mm
Packaging data
Package weight 170 g
Package height 35 mm
Package depth 215 mm
Package width 145 mm
Packaging content
Quick installation guide Yes
Technical details
Compliance certificates RoHS
Logistics data
Products per master (outer) case 80 pc(s)
Master (outer) case height 305 mm
Master (outer) case length 325 mm
Master (outer) case width 605 mm
