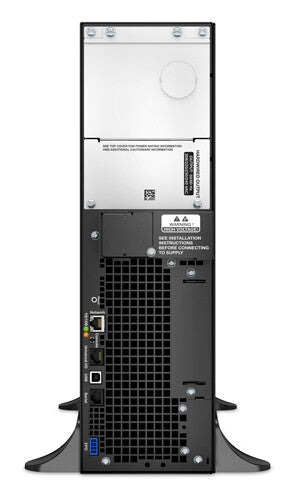

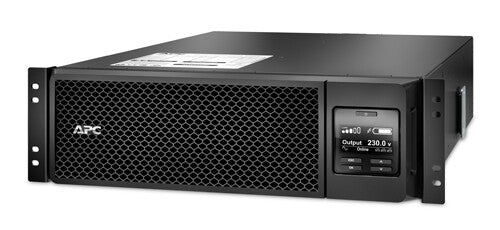

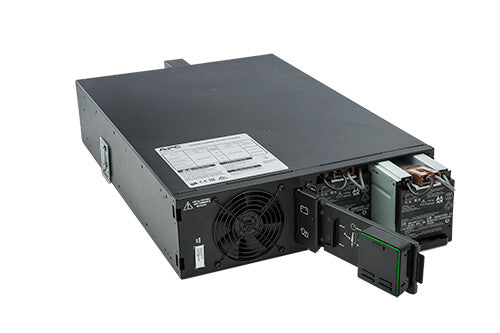

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 208V/230V, Hard wire 3-wire(2PH+G)+3-wire(H+N+E)+3-wire(H+N+G) outlets, Network Card+SmartSlot, W/ rail kit

APC  |  SKU : SRT5KRMXLW-HW  |  Condition: Brand New  |  Code-barres: 0731304301516

MORE INFO

£5,677.99
£5,514.99 Save £163.00 £5,677.99
£4,595.83 excluding VAT @20%
iFrame
Smart-UPS On-Line, 5kVA, Rackmount 3U, 208V/230V, Hard wire 3-wire(2PH+G)+3-wire(H+N+E)+3-wire(H+N+G) outlets, Network Card+SmartSlot, W/ rail kit

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) and 3-wire (1P+N+E) inputs, hard wire 3-wire (H+N+E), 3-wire (H+N+G) and 3-wire (2PH+G) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Features
Auto-restart Yes
Audible alarm(s) Yes
Surge protection Yes
Noise level 55 dB
Emergency Power Off (EPO) Yes
Crest factor 3:1
Efficiency 93.8%
Surge energy rating 480 J
Output frequency regulation 50/60 Hz
Output operation voltage (max) 240 V
Output operation voltage (min) 220 V
Input frequency 40 - 70 Hz
Input operation voltage (max) 275 V
Input operation voltage (min) 100 V
Waveform Sine
Output power 4500 W
Output power capacity 5 kVA
UPS topology Double-conversion (Online)
Ports & interfaces
SmartSlot Yes
Serial interface type RJ-45
Serial interface Yes
USB port Yes
Power plug Hardwire
AC outlet types Hard Wire 3-wire (2PH + G)
Battery
Cold start Yes
Automatic battery test Yes

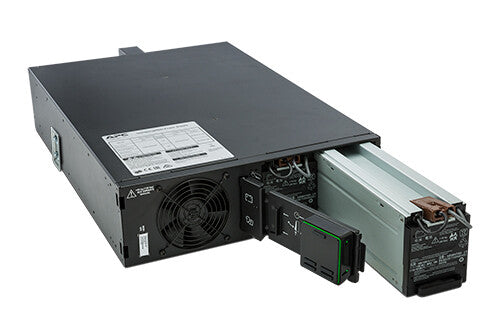

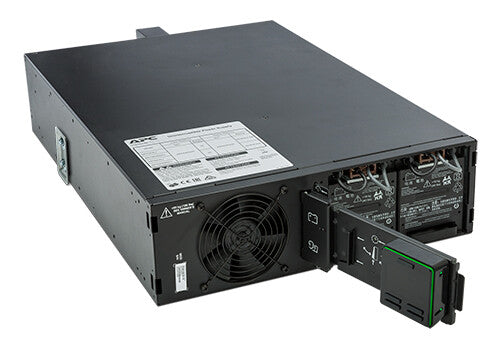

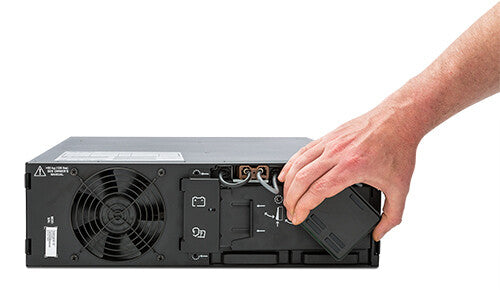

Hot-swap battery Yes
Battery recharge time 1.5 h
Battery life (max) 5 year(s)

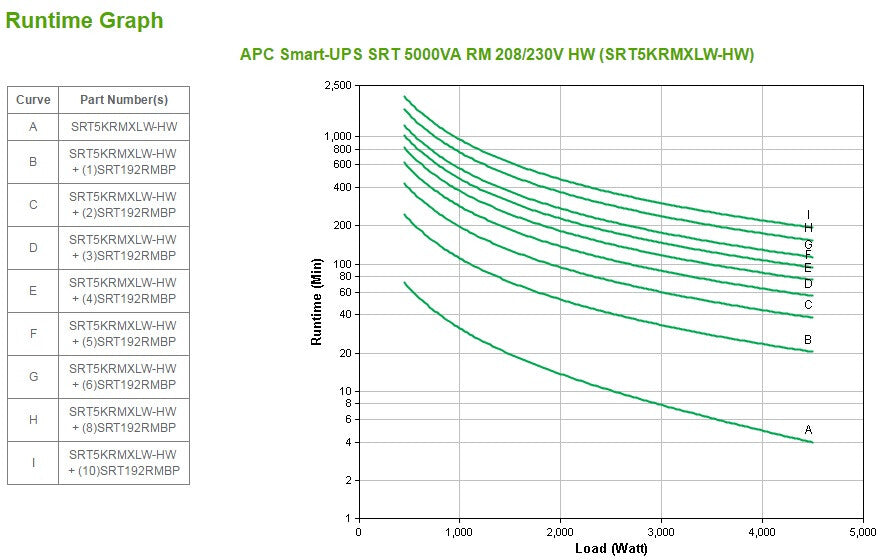

Typical backup time at half load 11.8 min
Typical backup time at full load 4 min
Number of batteries supported 1
Battery capacity 845 VAh
Battery technology Sealed Lead Acid (VRLA)
Design
Certification REACH, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IRAM, NOM, RCM, UL
International Protection (IP) code IP20
LED indicators Status

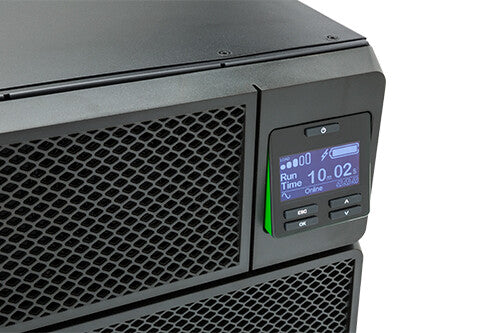

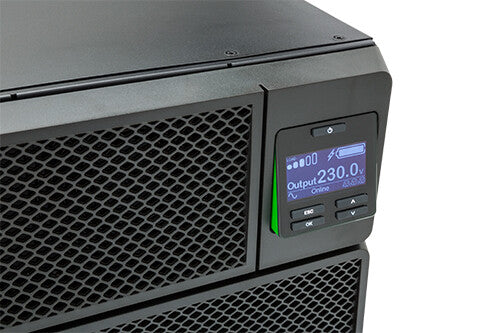

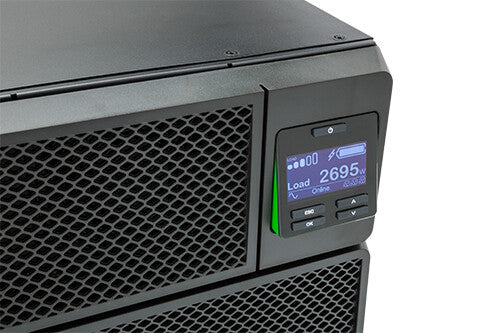

Display type LCD
Rack capacity 3U
Product colour Black
Form factor Rackmount
Operational conditions
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -15 - 45 °C
Operating temperature (T-T) 0 - 40 °C
Technical details
Total carbon footprint 8442.38
Sustainability certificates ENERGY STAR
Compliance certificates RoHS
Weight & dimensions
Package weight 68 kg
Package height 330 mm
Package depth 960 mm
Package width 610 mm
Weight 55.8 kg
Height 130 mm
Depth 719 mm
Width 432 mm
Logistics data
Harmonized System (HS) code 85078000
Products per pallet 6 pc(s)
Other features
Output connections 1x Hard Wire 3-wire (2PH + G)1x Hard Wire 3-wire (H N + G)
Battery type APCRBC140
Number of phases 3
