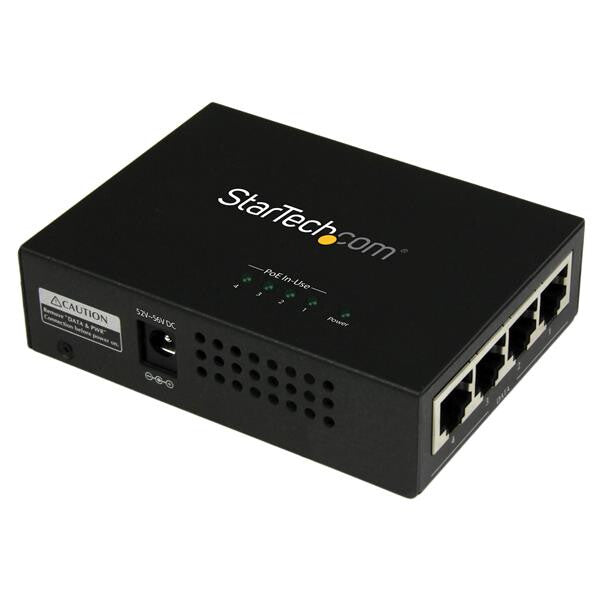

StarTech.com 4-Port Gigabit Midspan - PoE+ Injector - 802.3at/af

STARTECH  |  SKU : POEINJ4G  |  Condition: Brand New  |  Code-barres: 0065030859752

MORE INFO

£149.99
£124.99 excluding VAT @20%
iFrame
StarTech.com 4 Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-mountable Power over Ethernet Midspan

This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices — such as IP cameras — using standard Ethernet cable.

More power, with less cost and hassle

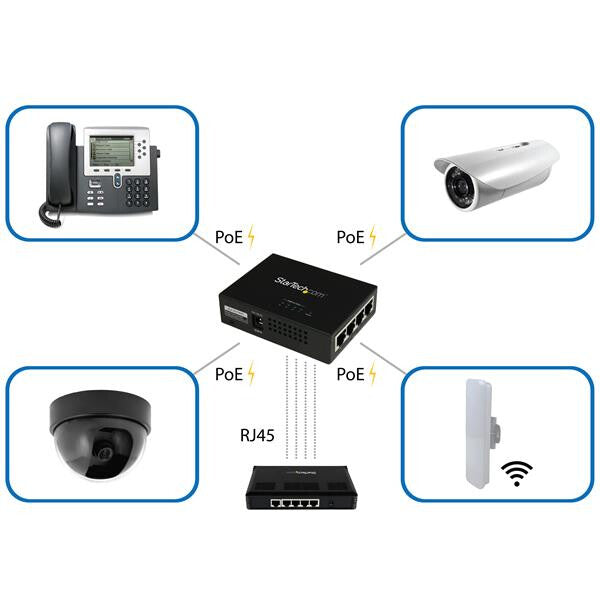

This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power — up to 30.8W — from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.

Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.

Easy to set up in mixed environments
This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.

With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Convenient, protected connections
Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices.

With integrated circuit protection between each port, your devices are also protected from power interference.

The POEINJ4G is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Performance
Mean time between failures (MTBF) 50000 h
Plug and Play Yes
Auto-negotiation Yes
Auto MDIX IEEE Yes
Duplex system Full
Data transfer rate 2000 Mbit/s
Maximum transfer distance 100 m
Type Network transmitter
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Cabling technology 10/100/1000Base-T(X)
Ports & interfaces
DC-in jack Yes
Power over Ethernet (PoE) ports quantity 4
Ethernet LAN (RJ-45) ports 8
Design
Certification CE, FCC
LED indicators PoE, Power
Housing material Steel
Product colour Black
Power
Power plug type Type M
Power over Ethernet (PoE) Yes
Output current 2.31 A
Output voltage 52 V
Power consumption (max) 120 W
AC input voltage 100 - 240 V
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -10 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 204 g
Height 26 mm
Depth 94 mm
Width 70 mm
Technical details
Compliance certificates RoHS
Packaging content
AC adapter included Yes
Manual Yes
Cables included AC
Packaging data
Package weight 1.63 kg
Package height 90 mm
Package depth 305 mm
Package width 180 mm
Logistics data
Harmonized System (HS) code 85176990
