Kolink Unity Nexus Midi Tower Black

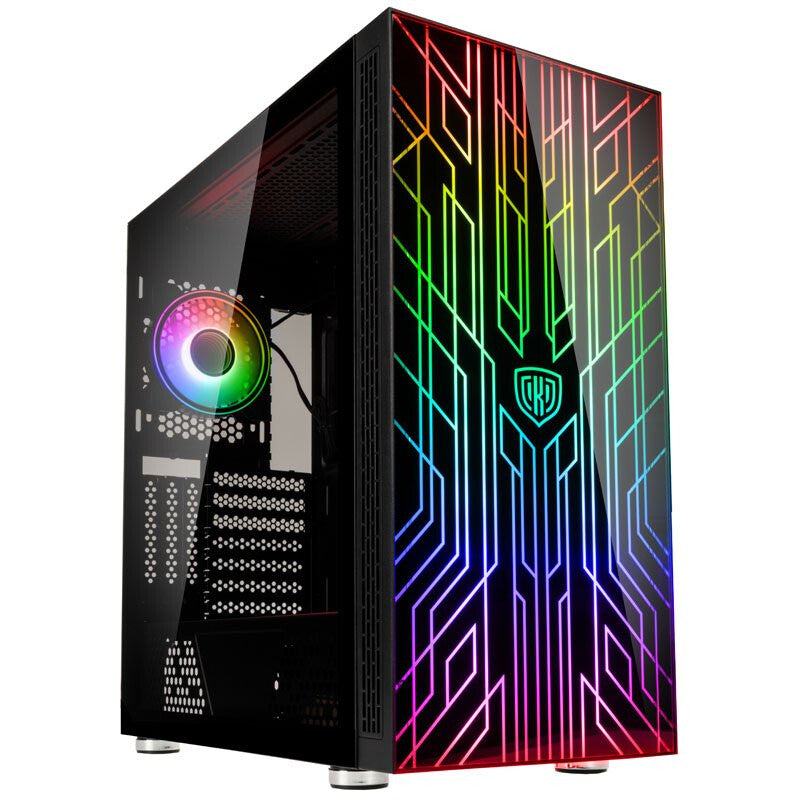

The Kolink Unity Nexus represents an exciting new chapter in the Kolink story. This mid-tower case’s features a full ARGB front panel that can be swapped out to another attractive design if desired. The Kolink Unity Nexus also includes a wealth of premium features and functions throughout.

A New Era in Quality

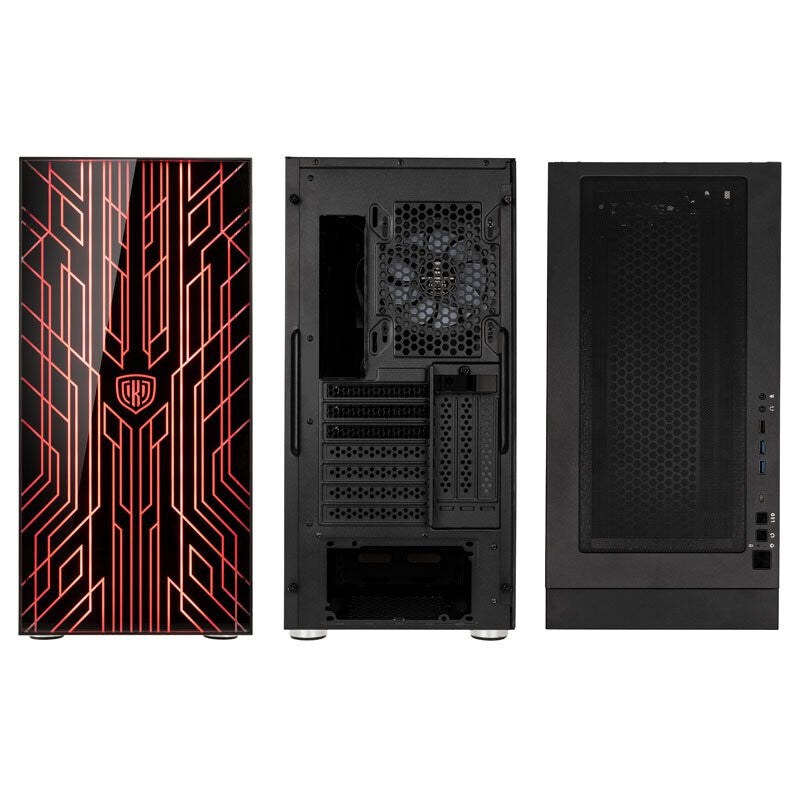

The Kolink Unity Nexus is the first model in the Kolink range to offer the option of replacing the front panel design entirely, giving the user more choice of customisation. Several panels are available to purchase separately; the Kolink Unity Nexus Landscape panel, the Kolink Unity Nexus Radial panel, and the Kolink Unity Nexus Vector panel. Plus, more will be added over time. Each design was created with the addressable RGB lighting in mind, providing an attractive result no matter which you choose.

Adding to the addressable RGB on the front panel, the Kolink Unity Nexus also features a Kolink Umbra Void 120 mm ARGB PWM fan at the rear, alongside a Kolink Classic 120 mm PWM fan at the front. As well as the pre-installed fans, users are also free to install a further two 120 mm or three 140 mm fans on the front panel, plus three 120/140 mm fans in the roof. A 140 mm fan can also be installed at the rear if preferred. There is support for up to a 420 mm radiator on the front panel, 360 mm on the top panel and 120/140 mm radiator support at the rear.

Enthusiast-Grade

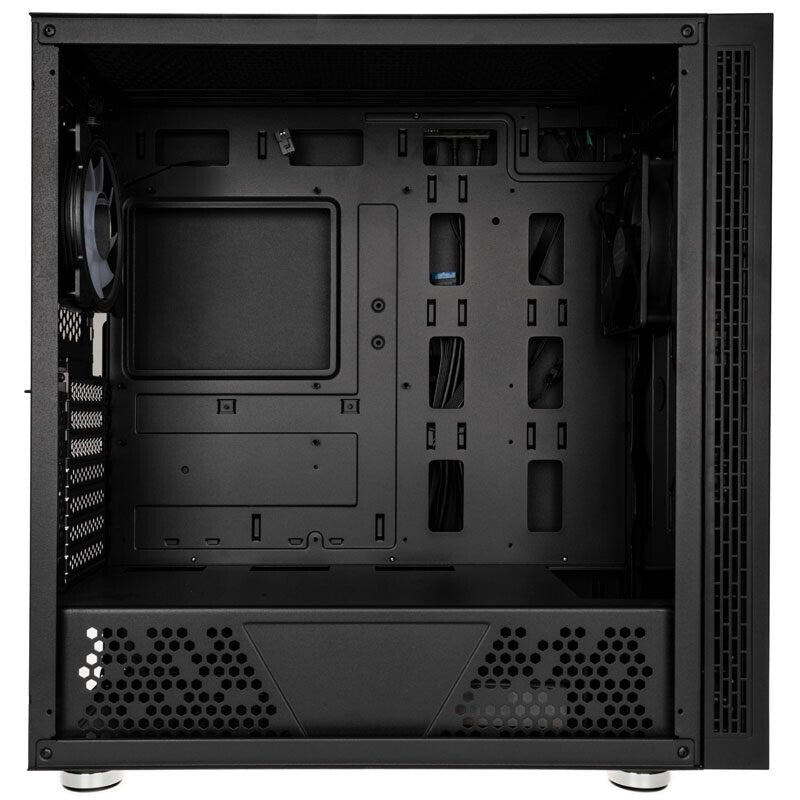

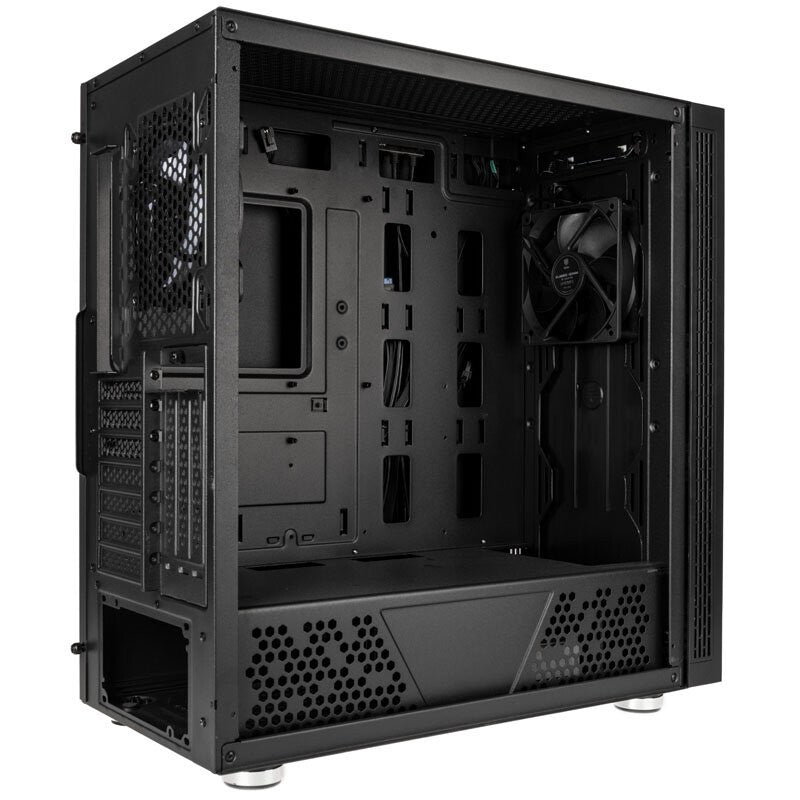

The interior of the Kolink Unity Nexus comes entirely in black, with a PSU shroud that adds to the sleek and unobtrusive look. Behind the shroud is where you’ll find space for a pair of 3.5" HDD’s. Alternatively, 2.5" SSDs can be installed here. There is also space for a pair of 2.5” drives on the back of the motherboard plate, using the removable brackets provided. Underneath the case is a removable dust filter suitable for an ATX PSU up to 250 mm. A full, quick release, tempered glass side panel shows off your system build in style.

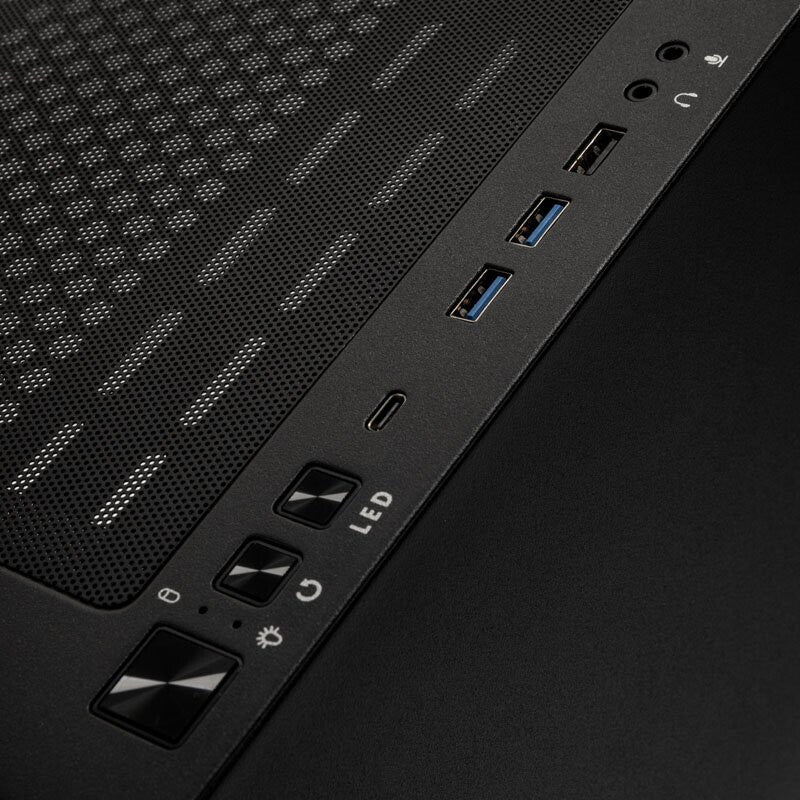

Graphics cards can be up to 415 mm long, or 345 mm if using 45 mm and 25 mm fans. CPU coolers up to 180 mm tall are also supported. Up to triple-slot GPUs can be also installed vertically, using the supplied mount and a compatible Kolink PCI-E riser cable sold separately. Additionally, the side mounted I/O panel located at the front possesses 1 x USB 3.2 Type-C, 2 x USB 2.0 ports as well as 1 x USB 3.0 Type-A port and HD-Audio connectors. These feed directly behind the motherboard plate for easier cable management.
