MSI Cubi NUC 13MQG Intel Core i5 1345U vPRO Desktop PC, NUC, SFF, Mini Computer, HTPC, (8GB RAM, 512GB Storage, Windows 11 PRO), vPRO/Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
Powered by Autify Digital Ltd
MSI Cubi NUC 13MQG Intel Core i5 1345U vPRO Desktop PC, NUC, SFF, Mini Computer, HTPC, (8GB RAM, 512GB Storage, Windows 11 PRO), vPRO/Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
MSI Cubi NUC 13MQG Intel Core i5 1345U vPRO Desktop PC, NUC, SFF, M...
"Cubi NUC 13MQG: The Sustainable & Energy Efficient Mini-PC

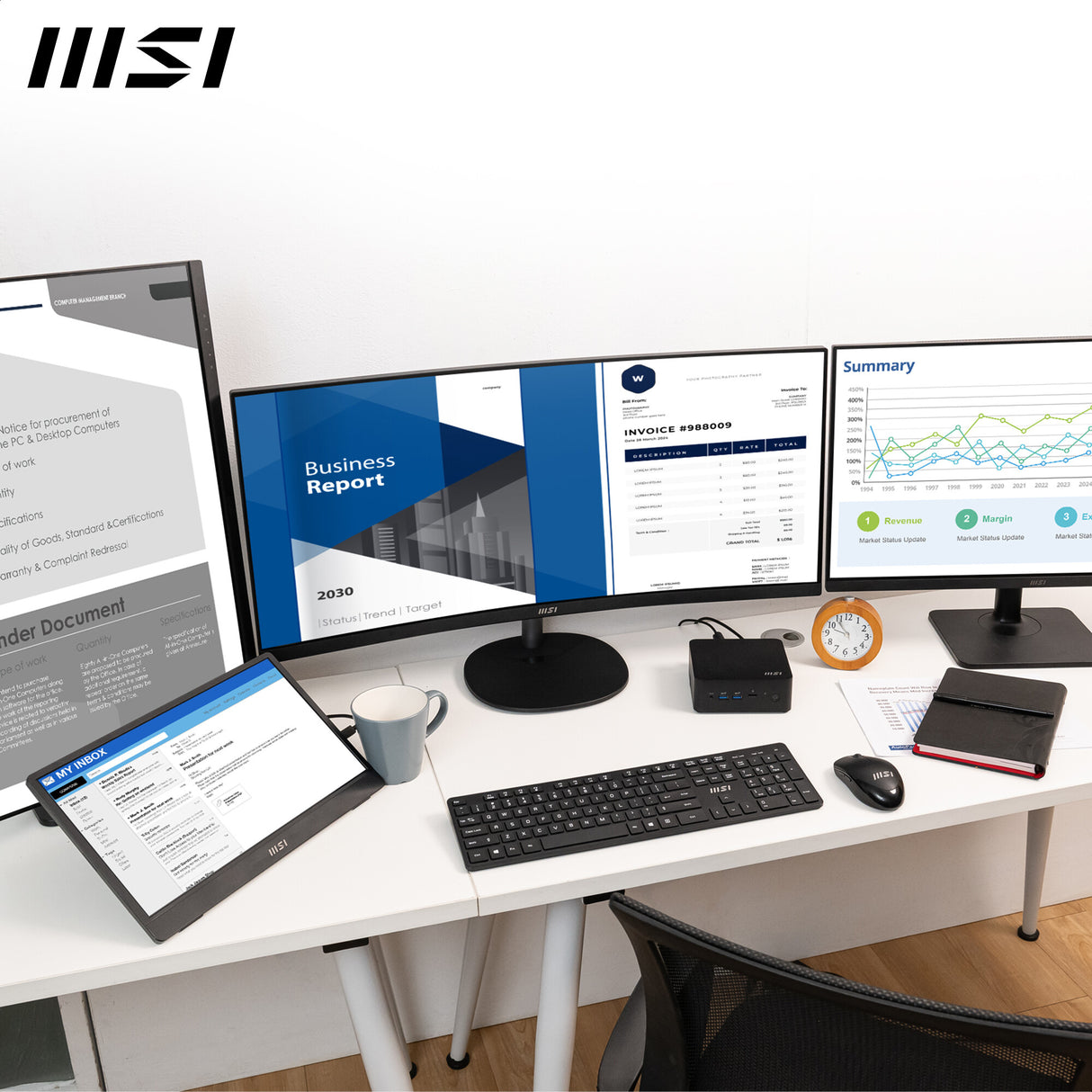

The MSI Cubi NUC 13MQG is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).
The Cubi NUC 13MQG i5 1345U FS 8GB 512GB VPRO W11P configuration is a Pre-configured system equipped with an Intel® Core i5 processor 1345U, 8GB DDR5 memory, 512GB M.2 SSD storage and Windows 11 PRO software. Features Intel® vPro®, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity.

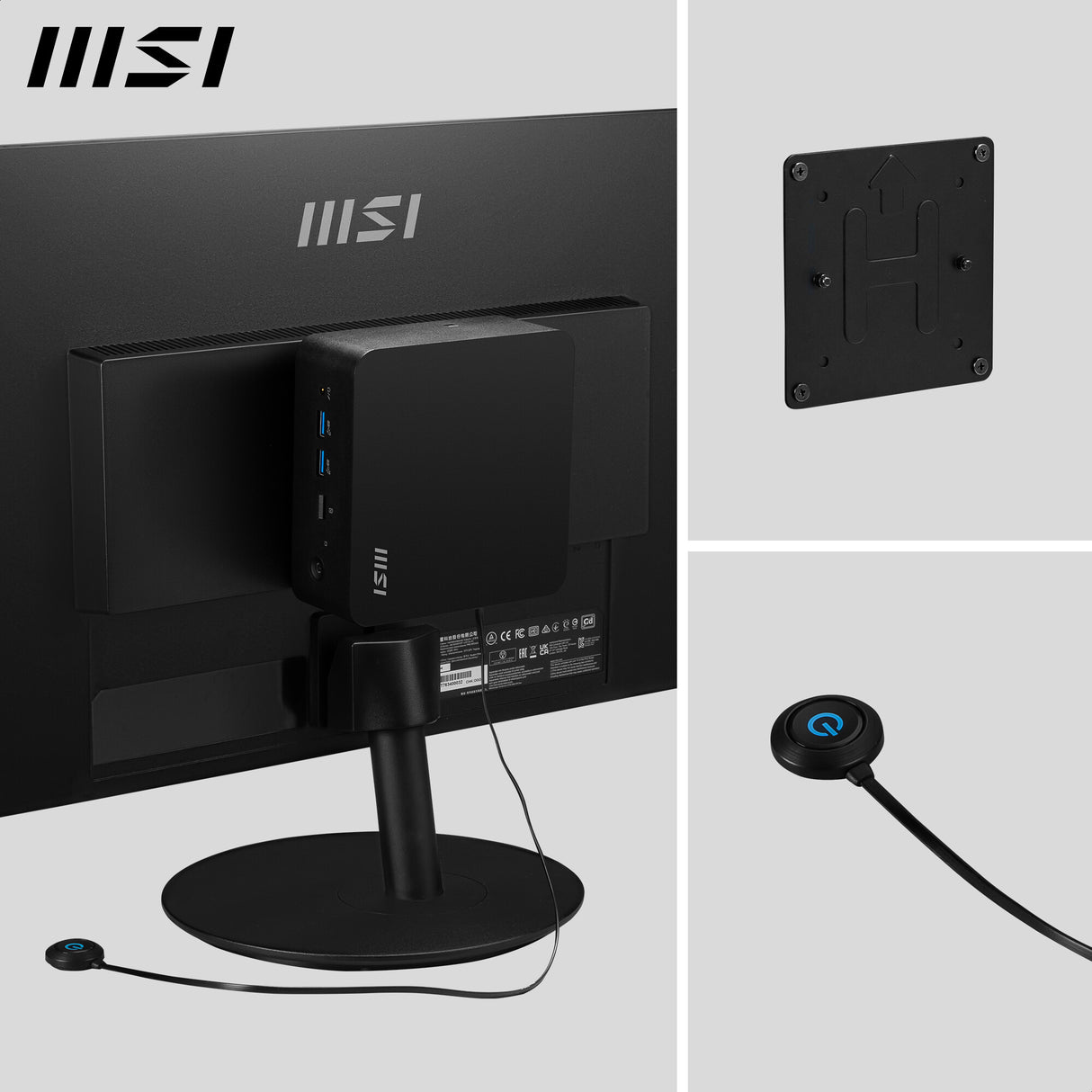

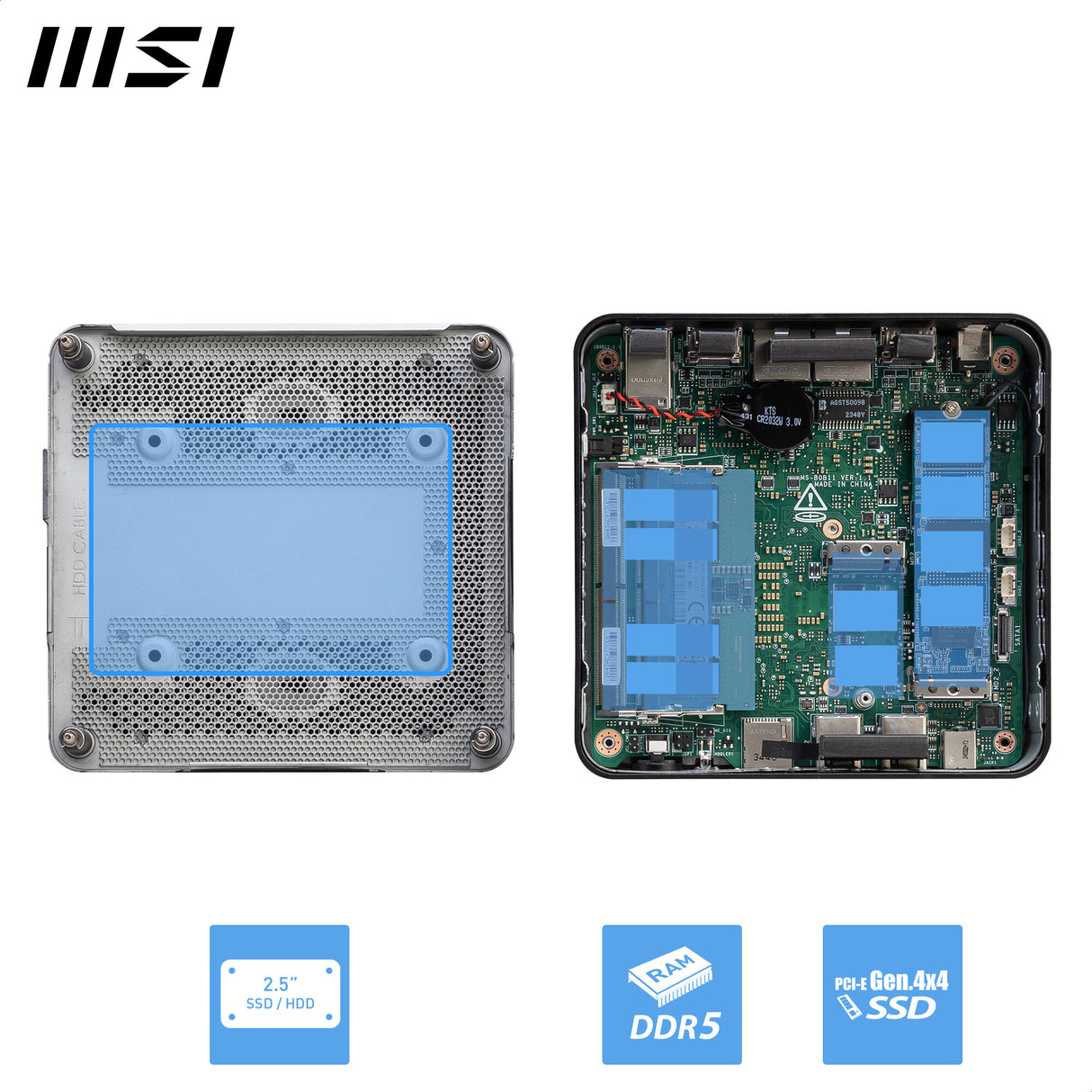

The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

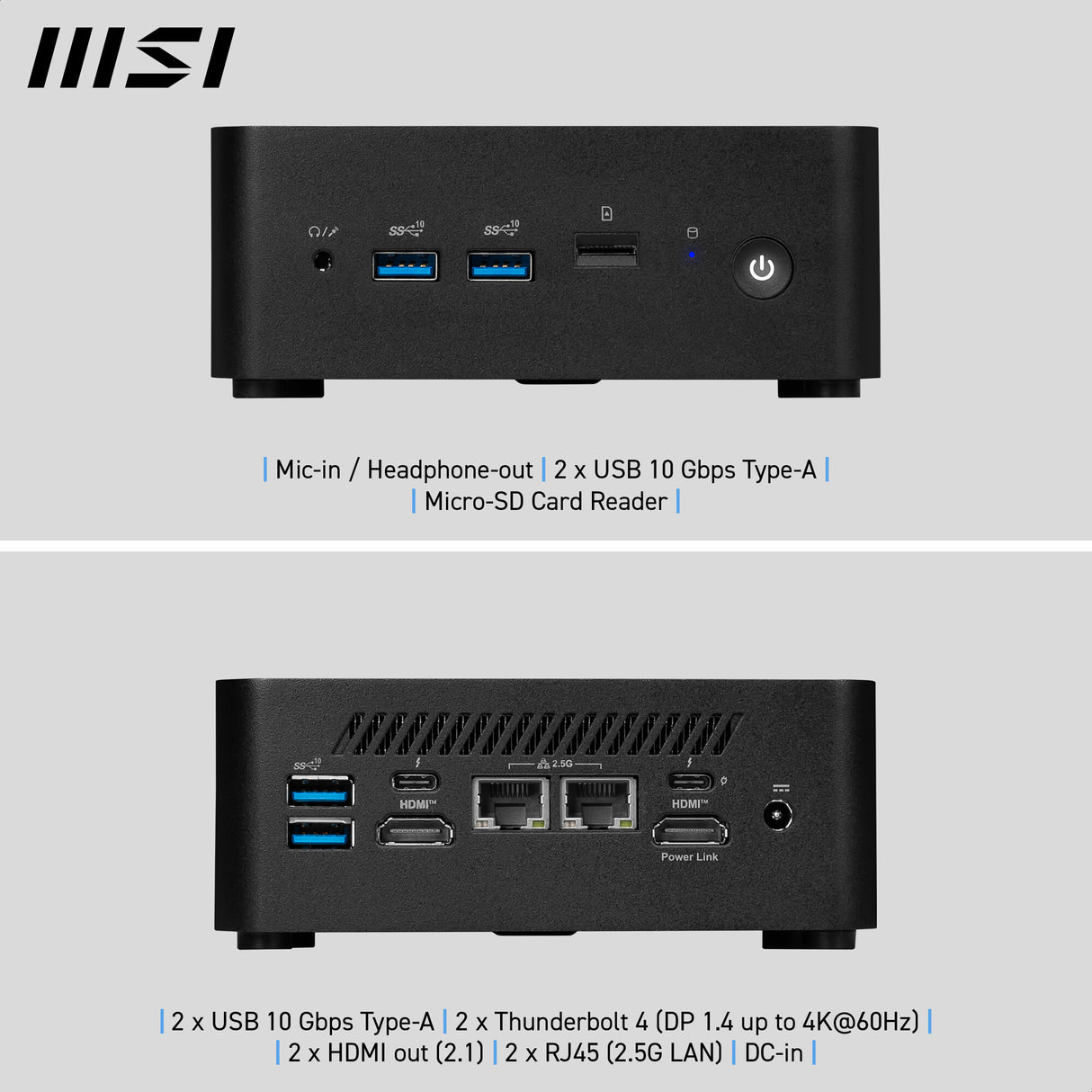

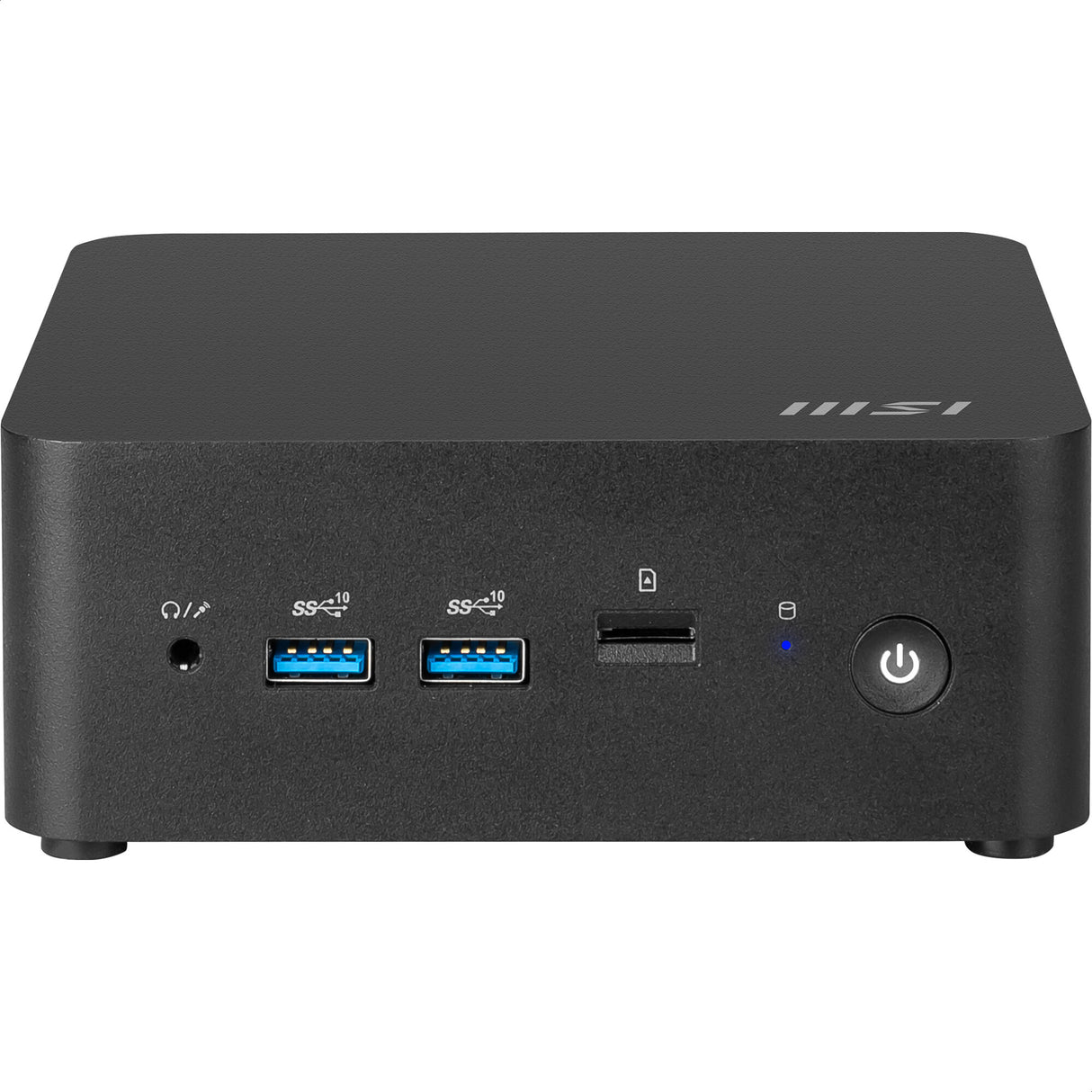

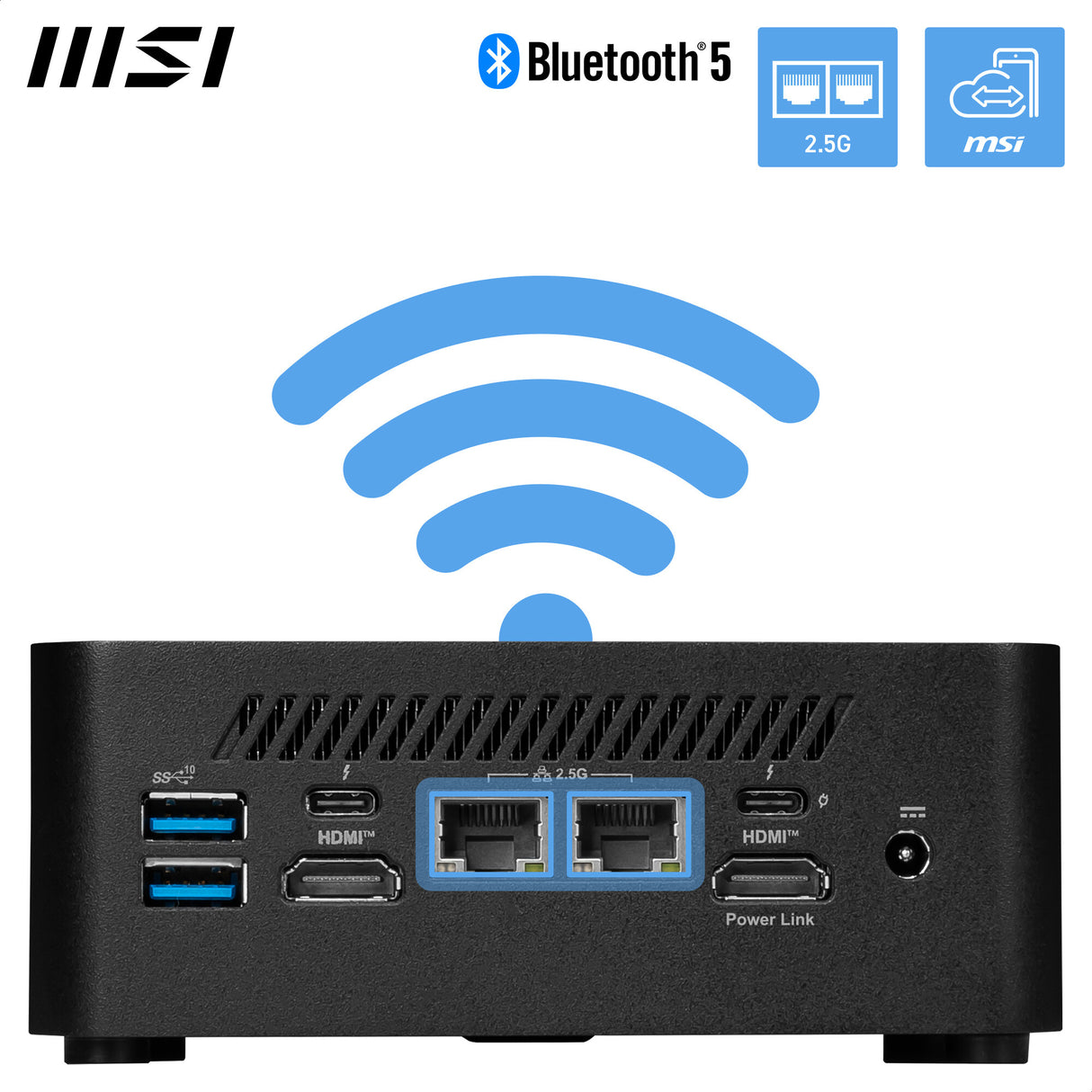

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"
| Processor | |
|---|---|
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Number of processors installed | 1 |
| Processor threads | 12 |
| Processor cache type | L2 & L3 |
| Processor cache | 12 MB |
| Processor boost frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Processor frequency | 3.5 GHz |
| Efficient cores | 8 |
| Performance cores | 2 |
| Processor cores | 10 |
| Processor model | i5-1345U |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory clock speed | 5200 MHz |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 64 GB |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| SSD form factor | M.2 |
| SSD interface | M.2 |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| HDD size | 2.5" |
| Number of storage drives supported | 3 |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Graphics |
| On-board graphics card family | Intel Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Network | |
|---|---|
| Wake-on-LAN ready | Yes |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| LAN controller | Intel I226-V |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Number of rear USB ports | 4 |
| Number of front USB ports | 2 |
| Number of front audio ports | 1 |
| DC-in jack | Yes |
| S/PDIF out port | No |
| Combo headphone/mic port | Yes |
| Line-out | No |
| Line-in | No |
| Microphone in | No |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI version | 1.4/2.1 |
| HDMI ports quantity | 2 |
| DVI port | No |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| PowerShare | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Design | |
|---|---|
| Country of origin | China |
| Housing material | Plastic |
| RGB memory lighting | No |
| Viewing window | No |
| Introduction year | 2024 |
| Introduction month | October |
| Product colour | Black |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| VESA mounting | Yes |
| Placement supported | Horizontal |
| Volume | 0.84 L |
| Colour name | Black |
| Chassis type | Mini PC |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Motherboard form factor | NUC |
| Motherboard chipset | Intel SoC |
| Powered by | MSI |
| Market positioning | Business |
| Product type | Mini PC |
| Software | |
|---|---|
| Operating system installed | Windows 11 Pro |
| Power | |
|---|---|
| Power supply input frequency | 50-60 Hz |
| Power supply input voltage | 100-240 V |
| Power supply | 120 W |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic |
| Weight & dimensions | |
|---|---|
| Package weight | 1.45 kg |
| Package height | 94 mm |
| Package depth | 220 mm |
| Package width | 205 mm |
| Weight | 625 g |

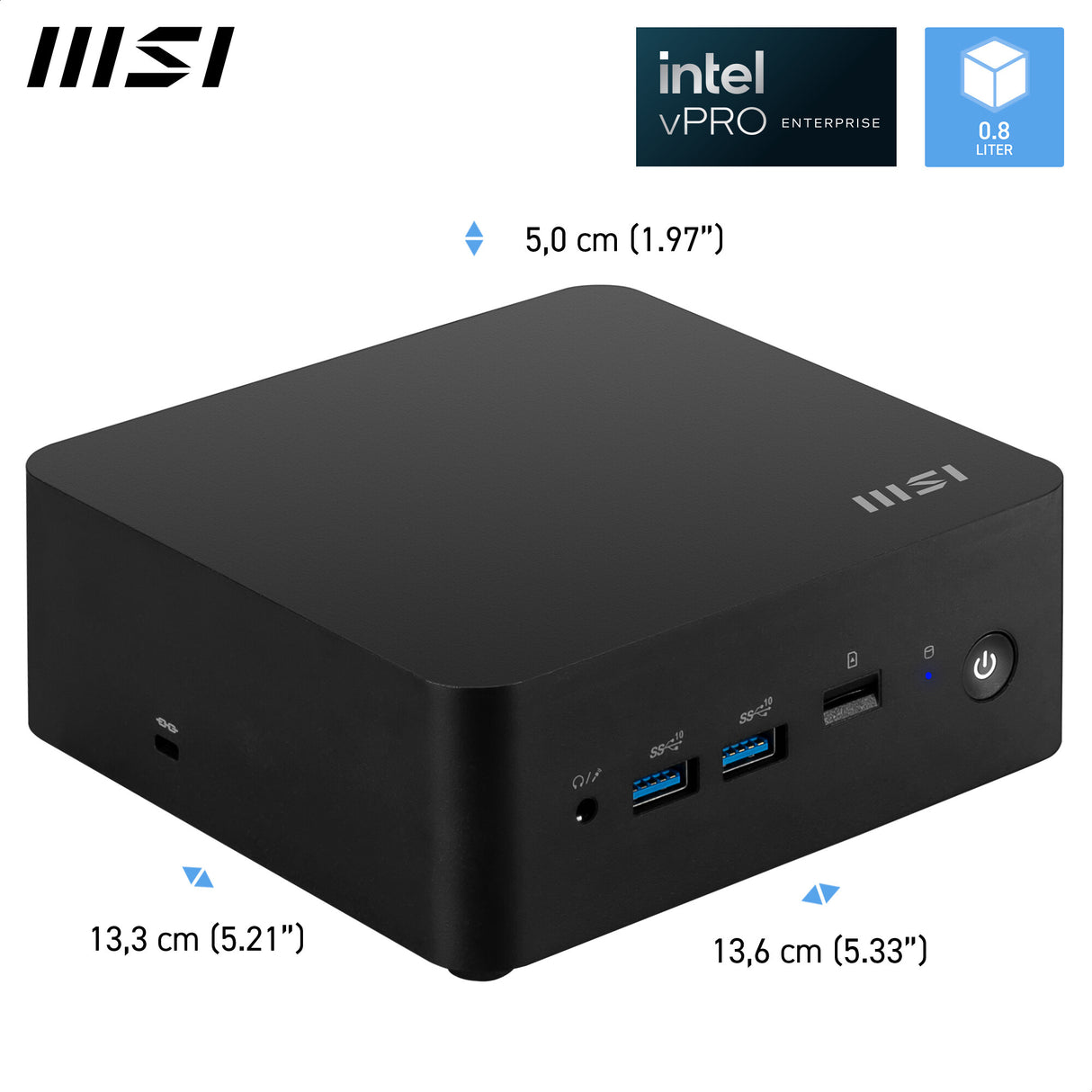

| Height | 50.1 mm |
| Depth | 135.6 mm |
| Width | 132.5 mm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| VESA mount included | Yes |
| Cables included | AC, Power |
| Keyboard included | No |
| Mouse included | No |
| Display included | No |
| General | |
|---|---|
| Product family | Cubi |
| Other features | |
|---|---|
| Warranty period | 3 year(s) |
| Special features | vPRO |
| Locale | English |
-
