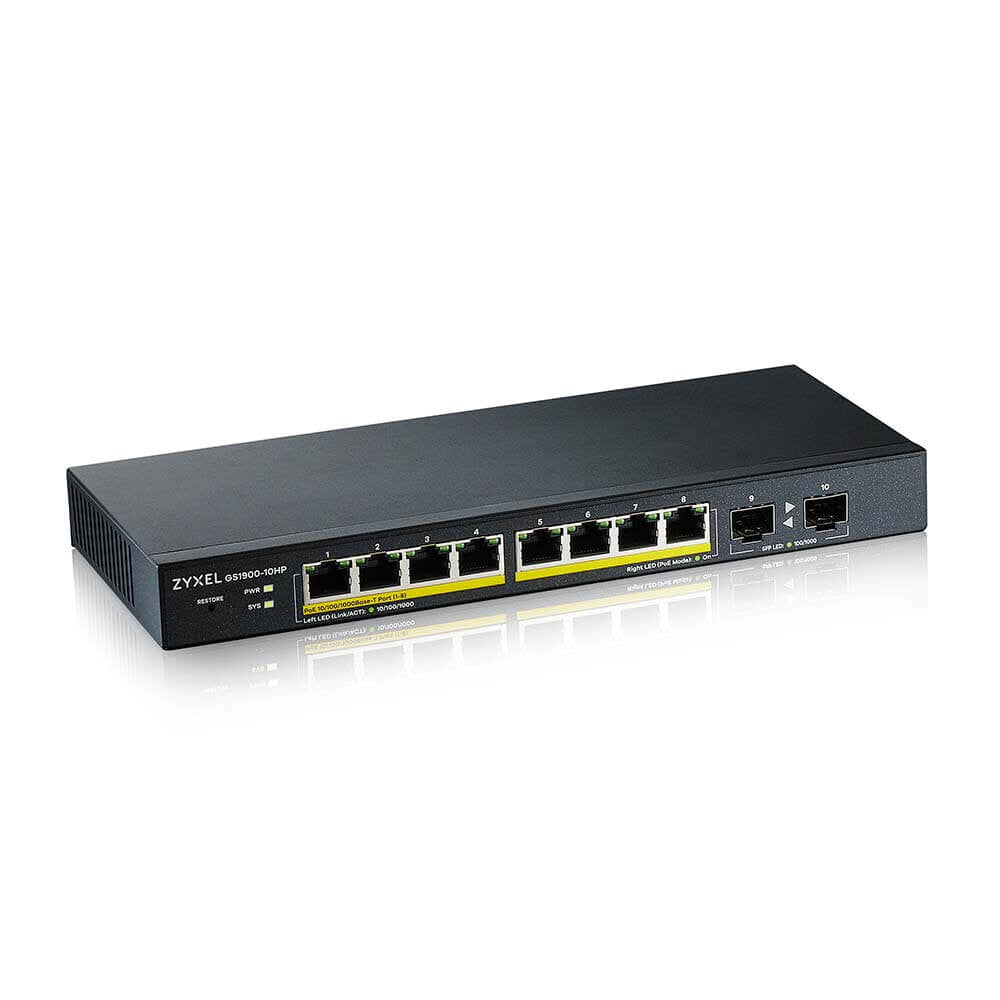

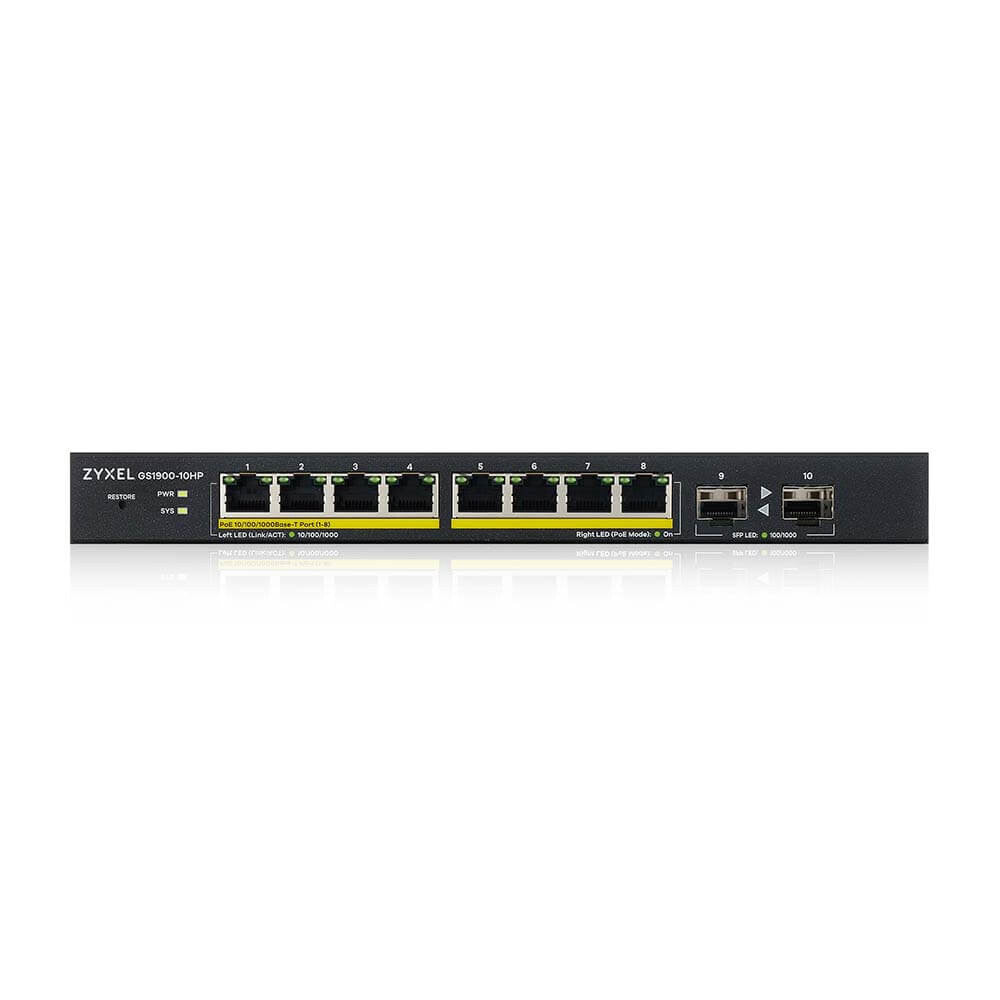

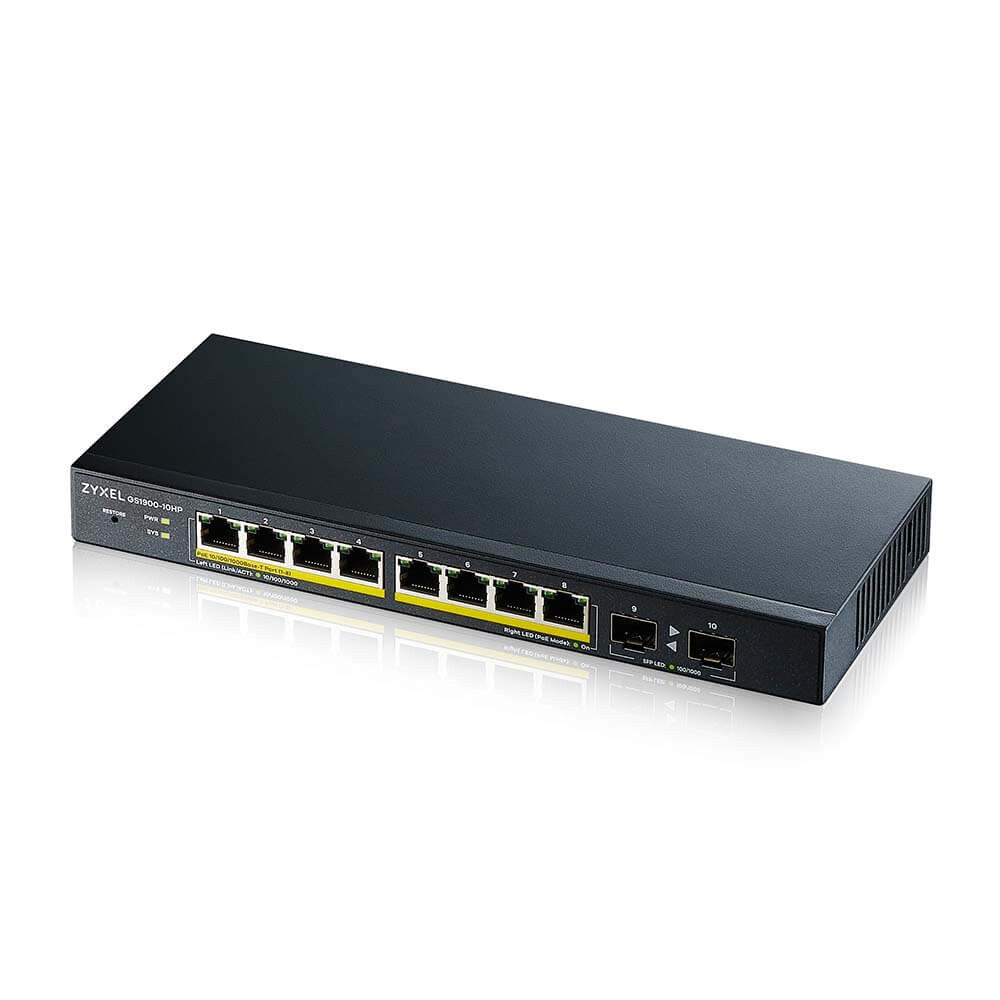

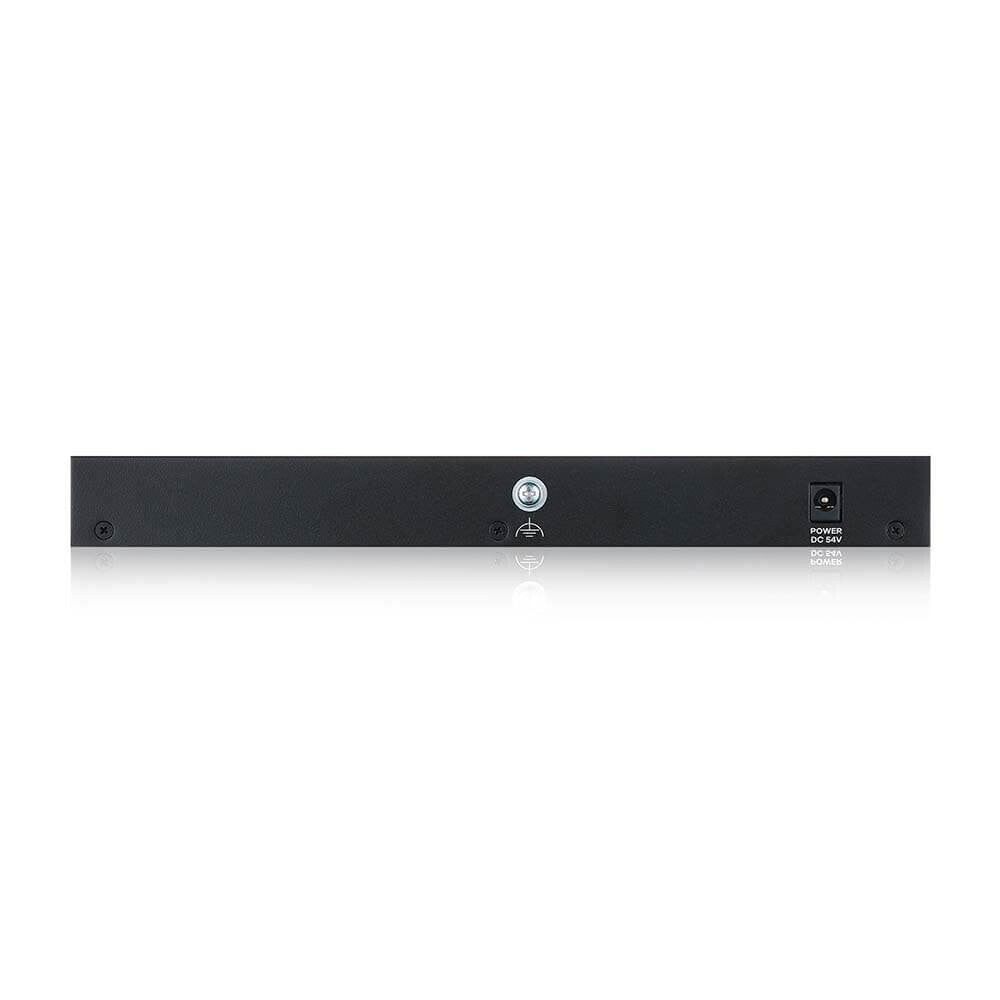

Zyxel GS1900-10HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

ZYXEL  |  SKU : GS1900-10HP-GB0102F  |  Condition: Brand New  |  Code-barres: 4718937621217

MORE INFO

£138.99
£115.83 excluding VAT @20%
iFrame
8-port, GbE, Managed, PoE, GbE Uplink, Switching capacity (Gbps) 20, SFP 100/1000 Mbps x 2, GB

Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.

Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.

Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.

Management features
MIB support RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215 generic traps, RFC 1493 bridge
System event log Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
Console port RJ-45
SFP module slots quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
Virtual LAN features Voice VLAN
VLAN support Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T
10G support No
Networking standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Data transmission
Jumbo frames 9000
Throughput 14.88 Mpps
Switching capacity 20 Gbit/s
MAC address table 8000 entries
Security
MAC address filtering Yes
Security algorithms 802.1x RADIUS, SSL/TLS
IGMP snooping Yes
DHCP features DHCP client
Protocols
Management protocols SNMP, RMON, ICMP, Syslog
Design
Certification CE, FCC, RCM, Class A, BSMI CNS 13438, LVD EN 62368-1, BSMI CNS 14336-1
Wall mountable Yes
LED indicators Yes
Product colour Black
Rack mounting No
Performance
Mean time between failures (MTBF) 800259 h
Power
Power consumption (max) 95.3 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 77 W
Power over Ethernet (PoE) ports quantity 8
Power over Ethernet (PoE) Yes
Operational conditions
Storage relative humidity (H-H) 10 - 95%
Operating relative humidity (H-H) 10 - 95%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 720 g
Height 27 mm
Depth 104 mm
Width 250 mm
Packaging data
Cables included AC
