StarTech.com Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex

STARTECH  |  SKU : MCMGBSCMM055  |  Condition: Brand New  |  Code-barres: 0065030878227

MORE INFO

£78.99
£76.99 Save £2.00 £78.99
£64.16 excluding VAT @20%
iFrame
StarTech.com Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex (MCMGBSCMM055)

Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)

Features
Housing material Steel
Network
Duplex system Full
Store-and-forward Yes
Auto MDI/MDI-X Yes
Flow control support Yes
Jumbo frames 9000
Jumbo frames support Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Networking standards IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Converter output interface 1000Base-SX
Converter input interface 100Base-TX, 1000Base-T
Maximum data transfer rate 1000 Mbit/s
Ports & interfaces
Fiber optic connector SC
Fiber ports quantity 1
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired
Performance
Mean time between failures (MTBF) 50000 h
Fiber mode structure Multi-mode
Wavelength-division multiplexing (WDM) No
Wavelength 850 nm
Maximum transfer distance 550 m
Design
Certification CE, FCC, REACH

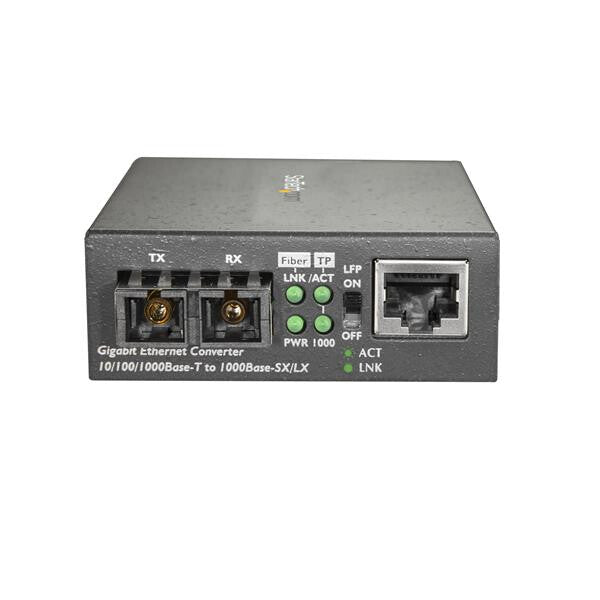

LED indicators Activity, Link, Power
Product colour Black
Internal No
Power
Power plug type Type N

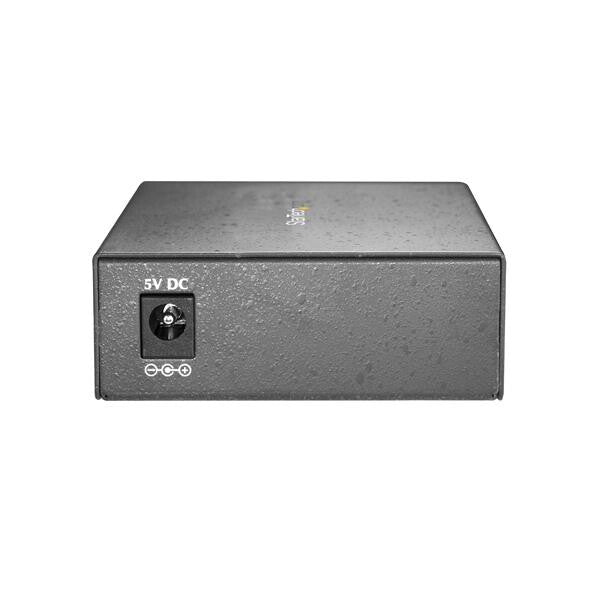

External power adapter Yes
Power consumption (typical) 5 W
Output current 2.6 A
Output voltage 5 V
Input current 0.5 A
Input voltage 100 - 240 V
Certificates
Compliance certificates RoHS
Weight & dimensions
Weight 200 g
Height 26 mm
Depth 70 mm
Width 97 mm
Operational conditions
Operating relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -10 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Packaging data
Package weight 564 g
Package height 66 mm
Package depth 133 mm
Package width 280 mm
Packaging content
Quick installation guide Yes

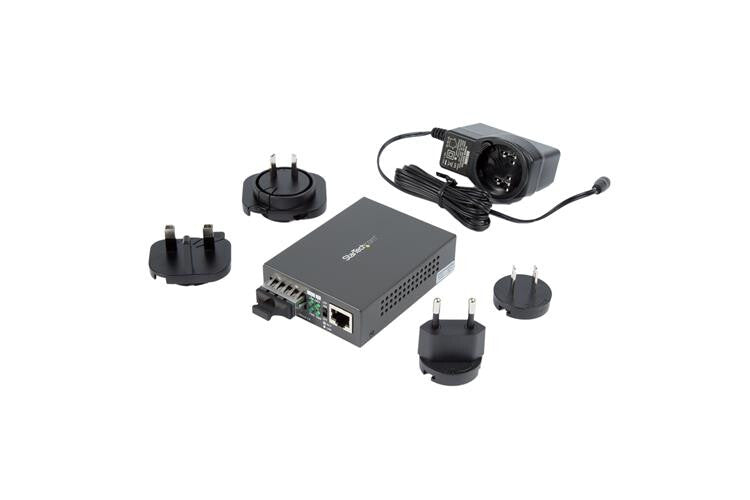

AC adapter included Yes
Logistics data
Products per master (outer) case 20 pc(s)
Master (outer) case height 320 mm
Master (outer) case length 375 mm
Master (outer) case width 595 mm
Harmonized System (HS) code 85176990
