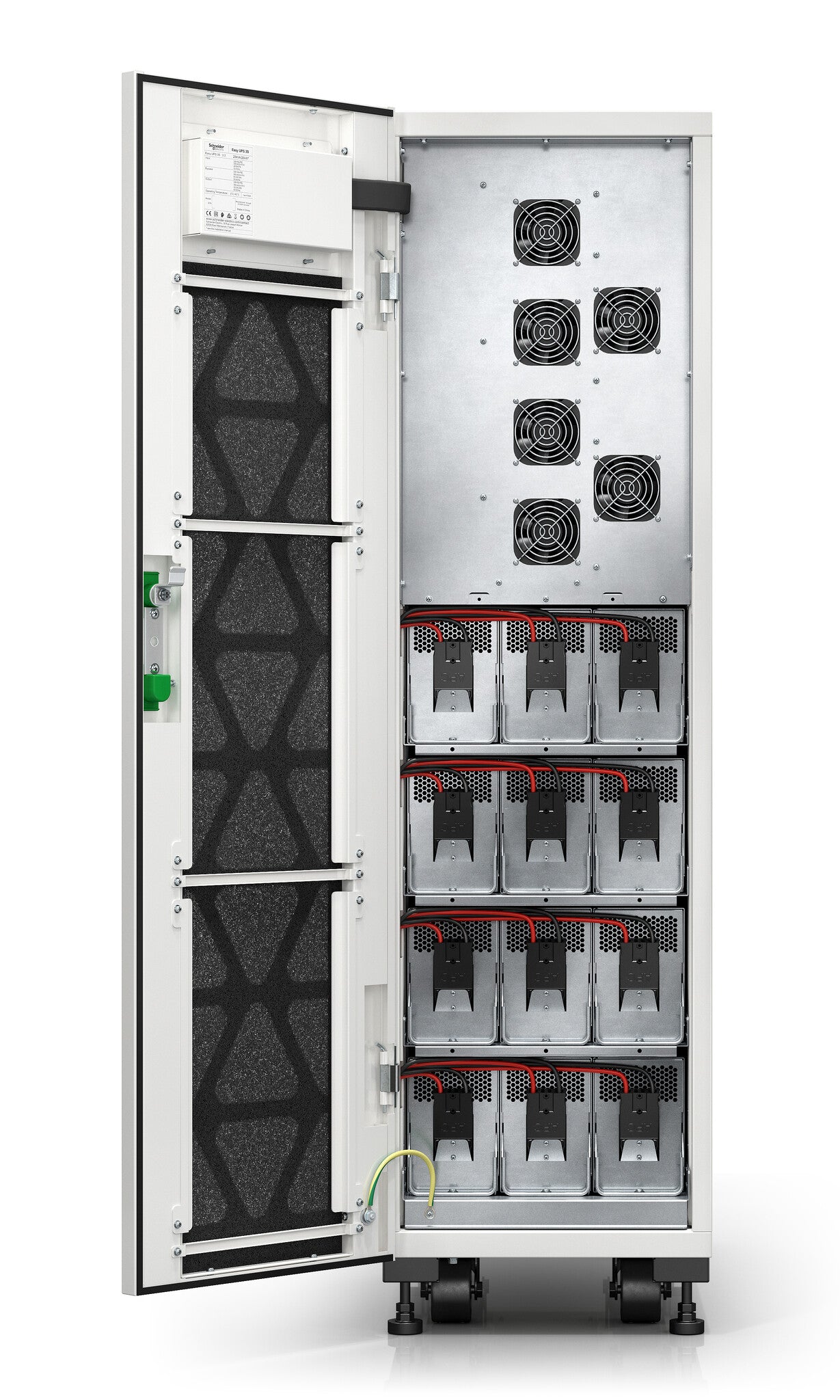

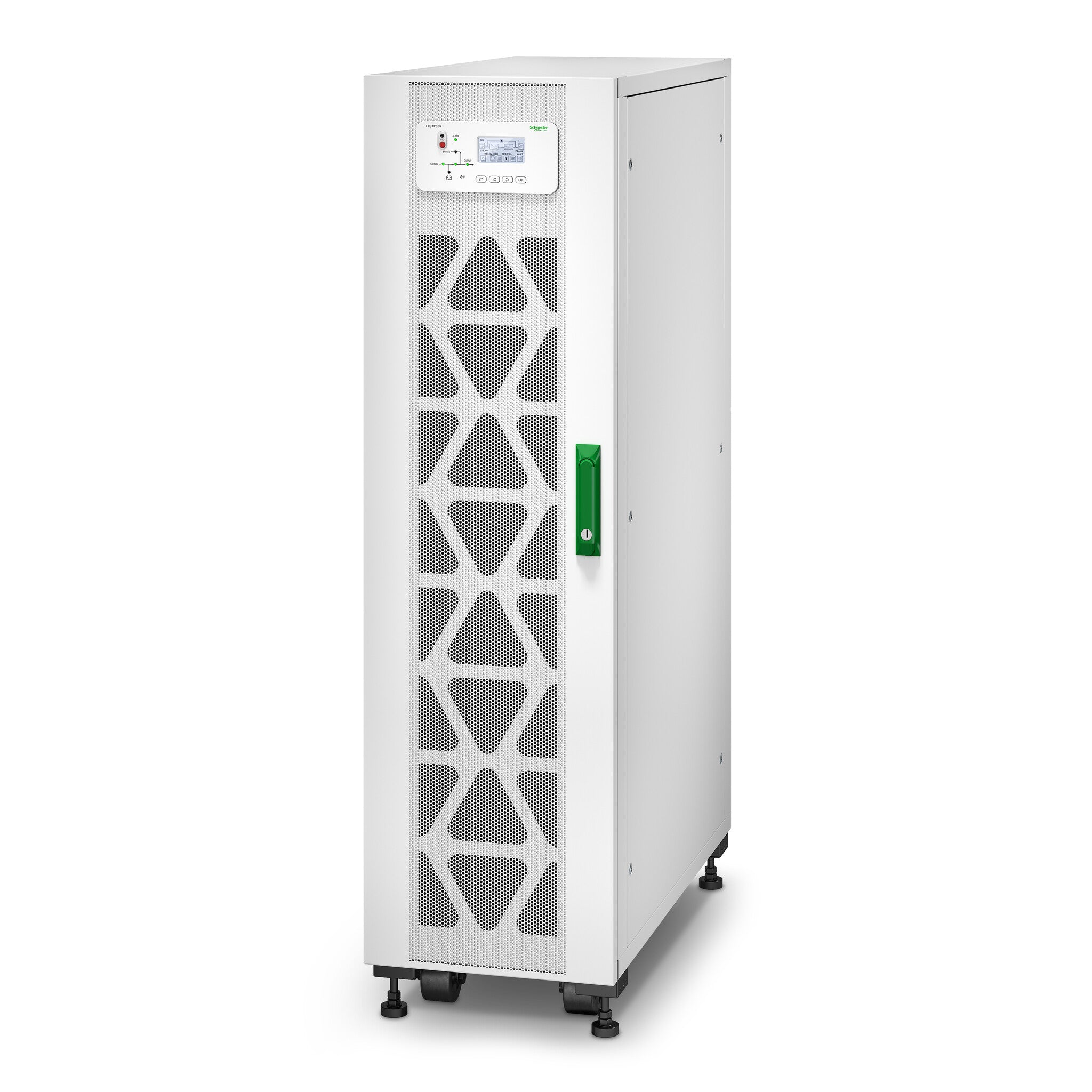

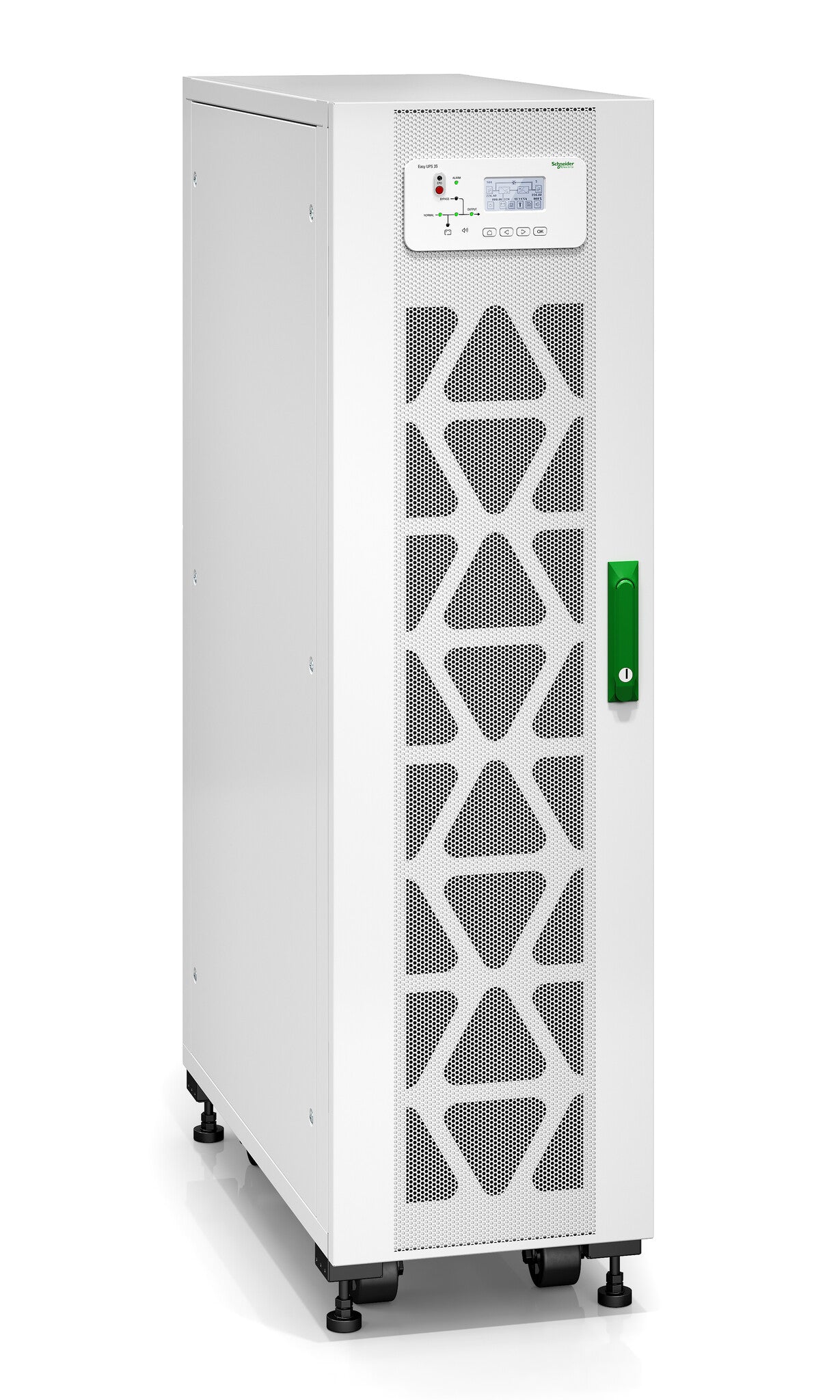

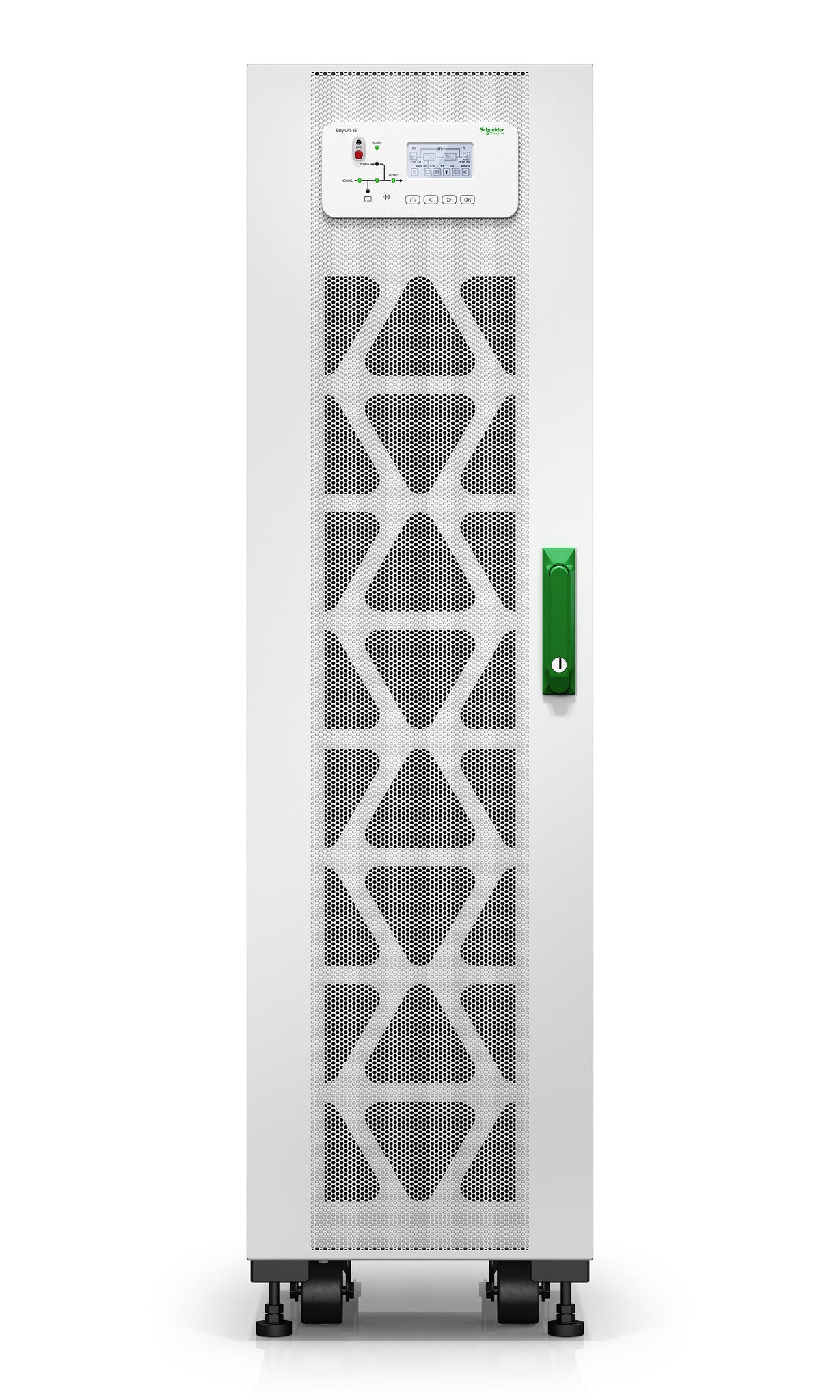

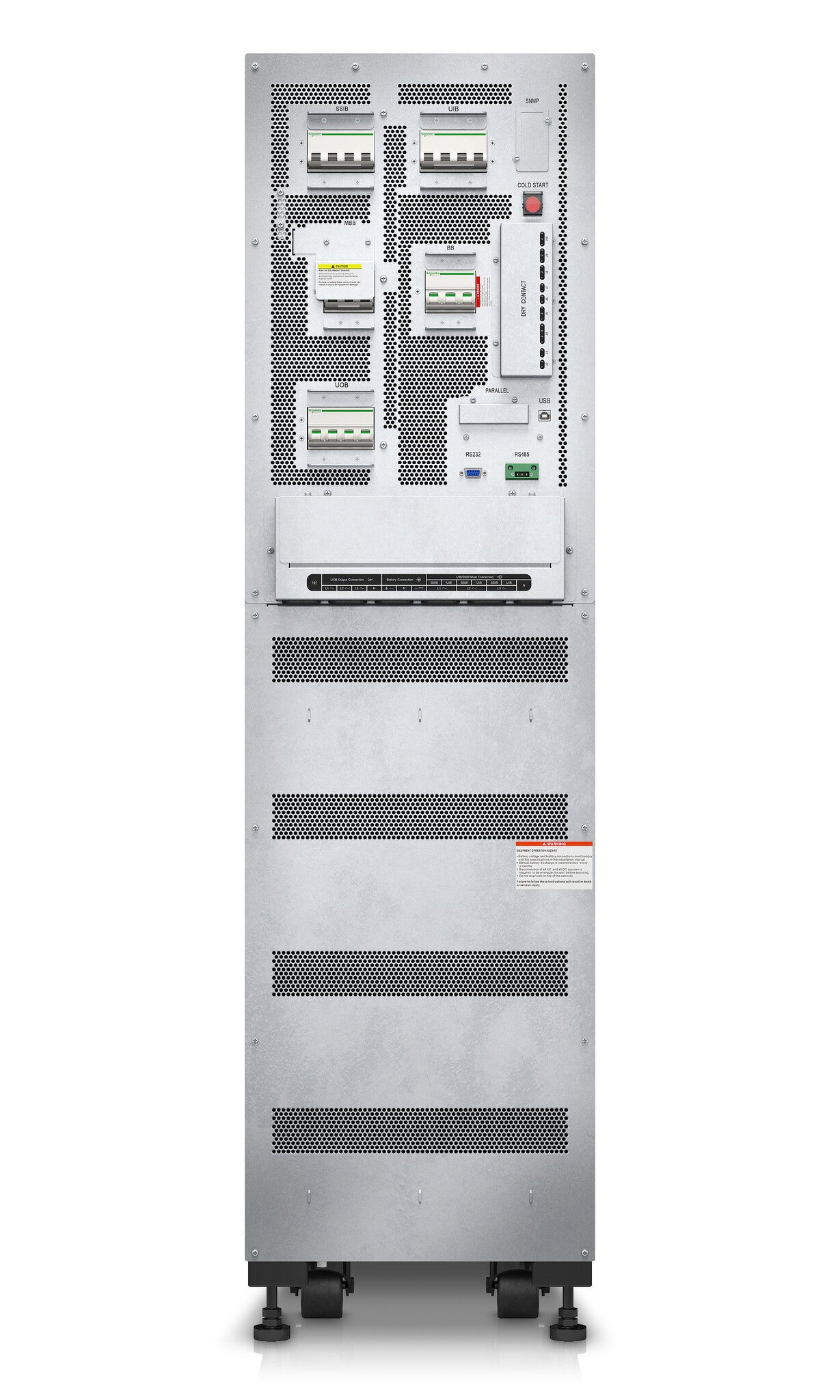

APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
APC Easy 3S uninterruptible power supply (UPS) Double-conversion (O...
| Features | |
|---|---|
| Input current Total Harmonic Distortion (THD) | 3% |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input power factor | 0.99 |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Maximum current | 37 A |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 415 V |
| Output operation voltage (min) | 380 V |
| Input frequency | 45/65 Hz |
| Input operation voltage (max) | 477 V |
| Input operation voltage (min) | 304 V |
| Waveform | Pure sine |
| Output power | 20000 W |
| Output power capacity | 20 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| SmartConnect port | No |
| SmartSlot | Yes |
| Battery | |
|---|---|
| Number of batteries supported | 3 |
| Battery voltage | 220 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
| International Protection (IP) code | IP20 |
| Display type | LED |
| Product colour | White |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 999.9 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Package weight | 158 kg |
| Package height | 1640 mm |
| Package depth | 1014 mm |
| Package width | 563 mm |
| Weight | 122 kg |
| Height | 1400 mm |
| Depth | 928 mm |
| Width | 380 mm |
| Packaging data | |
|---|---|
| Quick installation guide | Yes |
| Management card included | No |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Other features | |
|---|---|
| Output voltage | 400 V |
-
