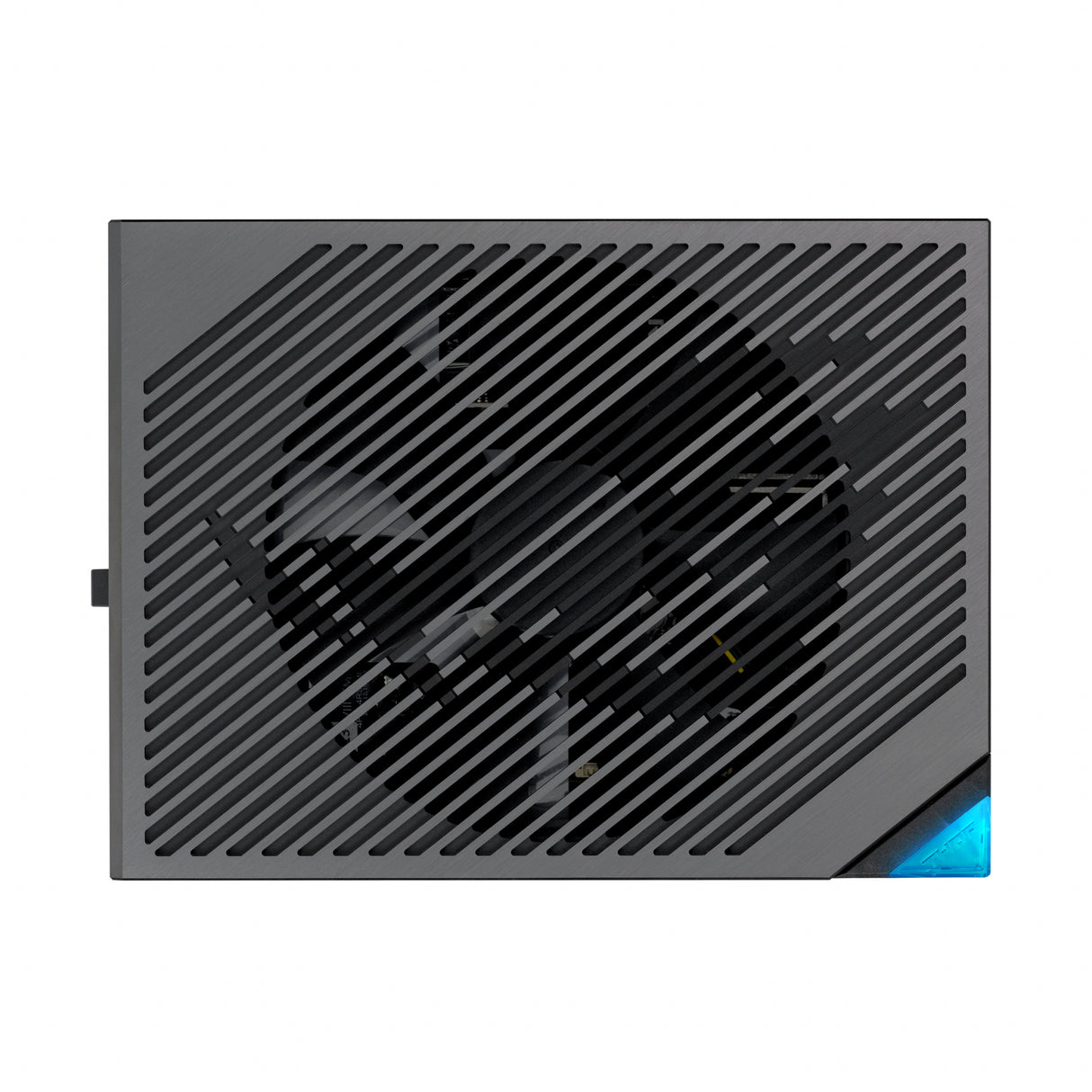

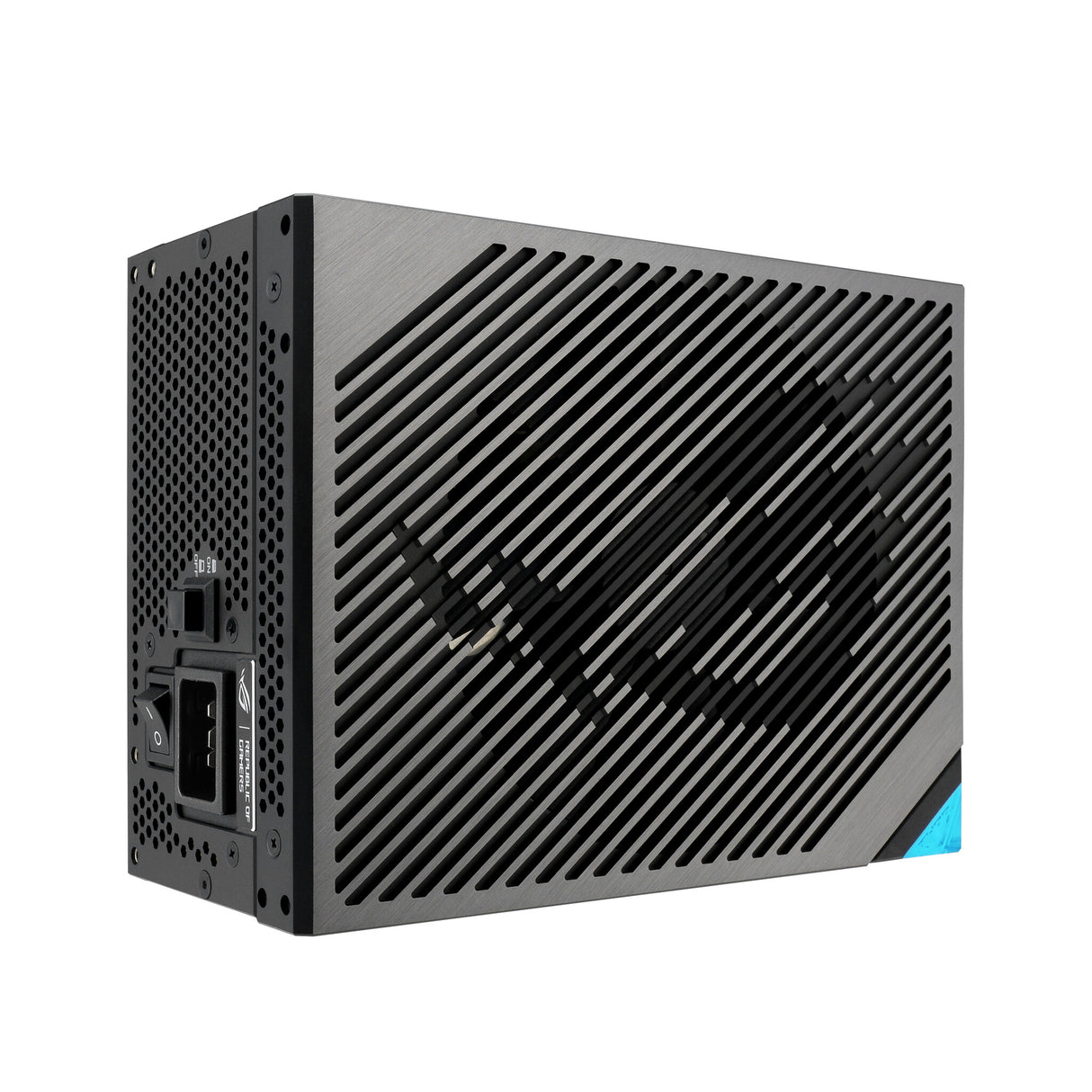

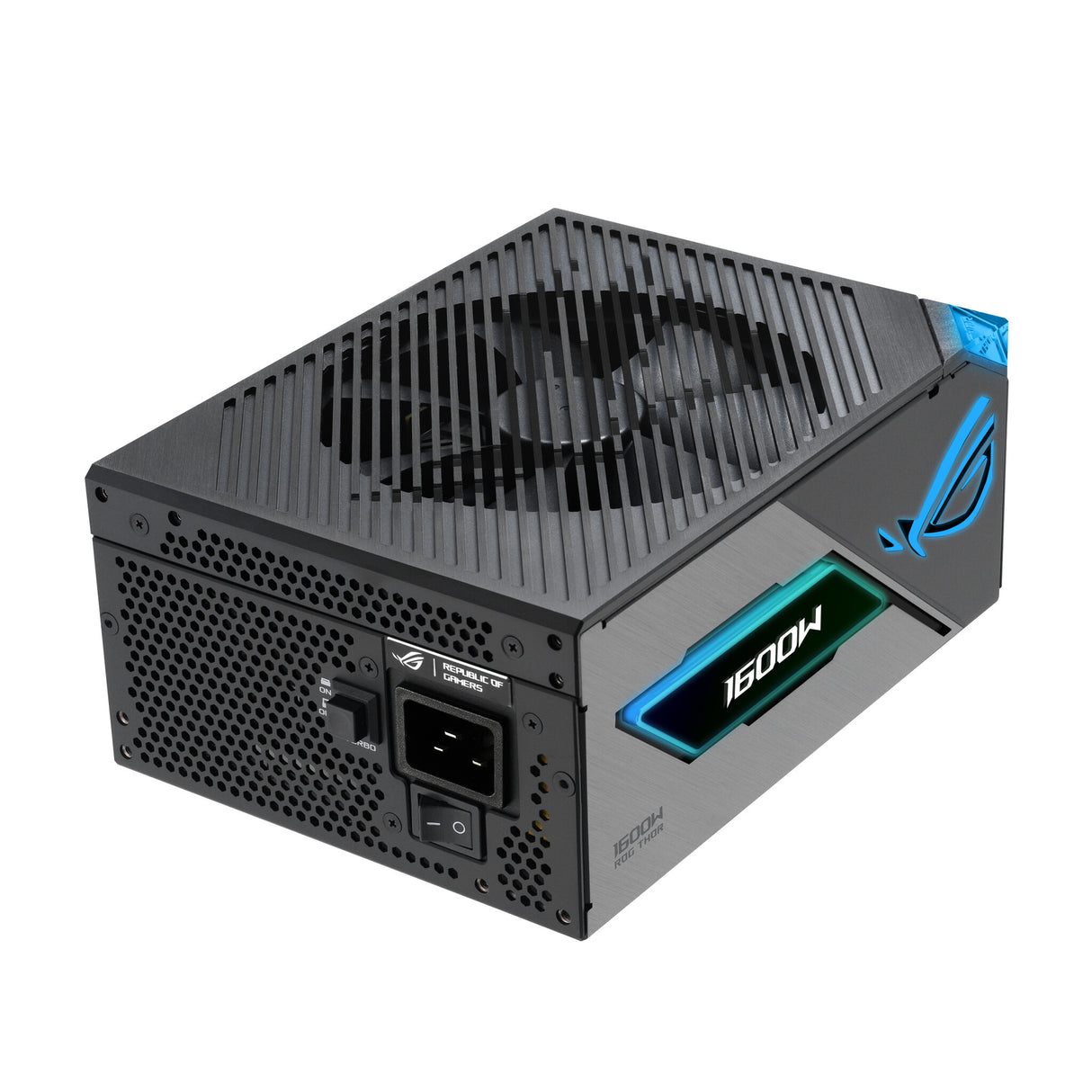

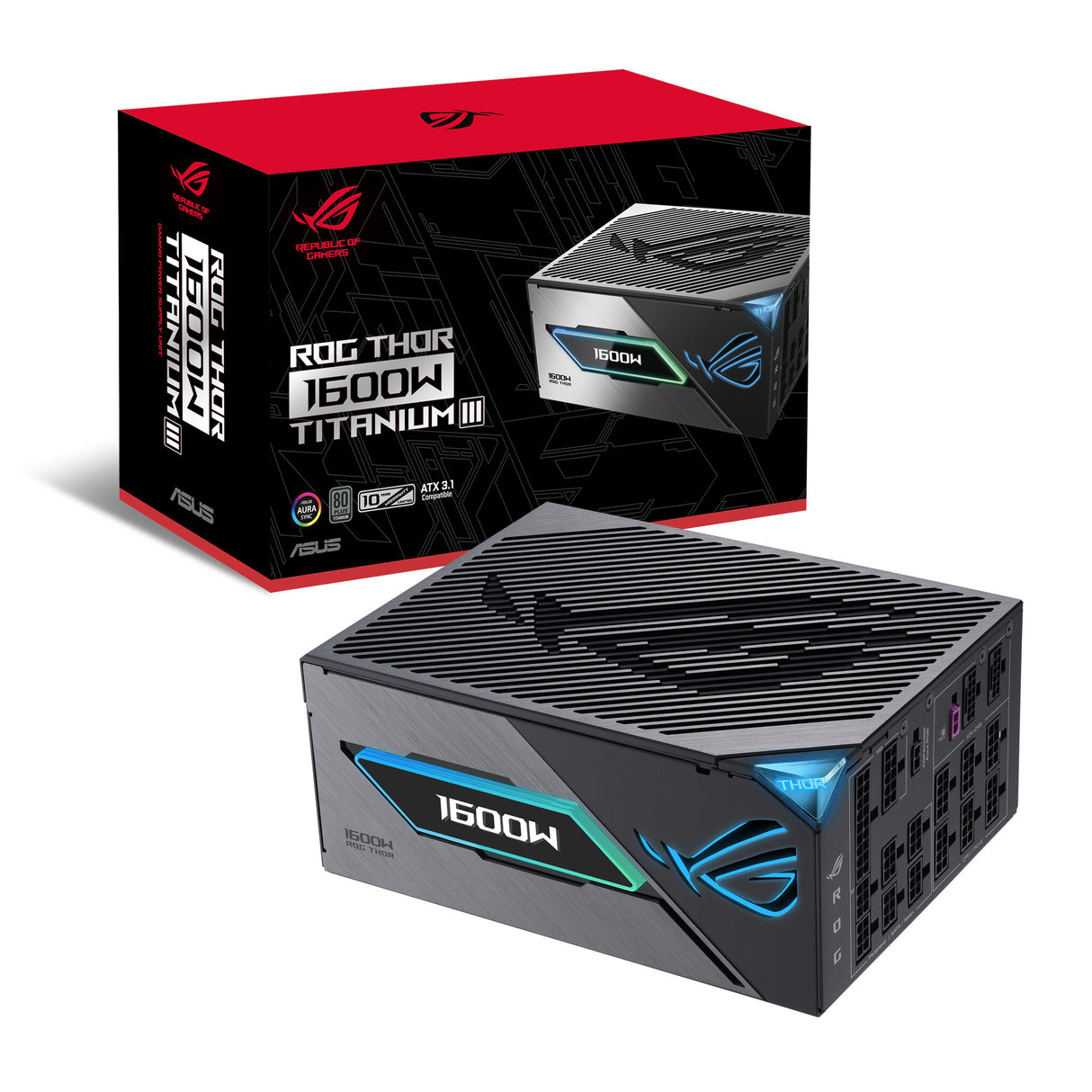

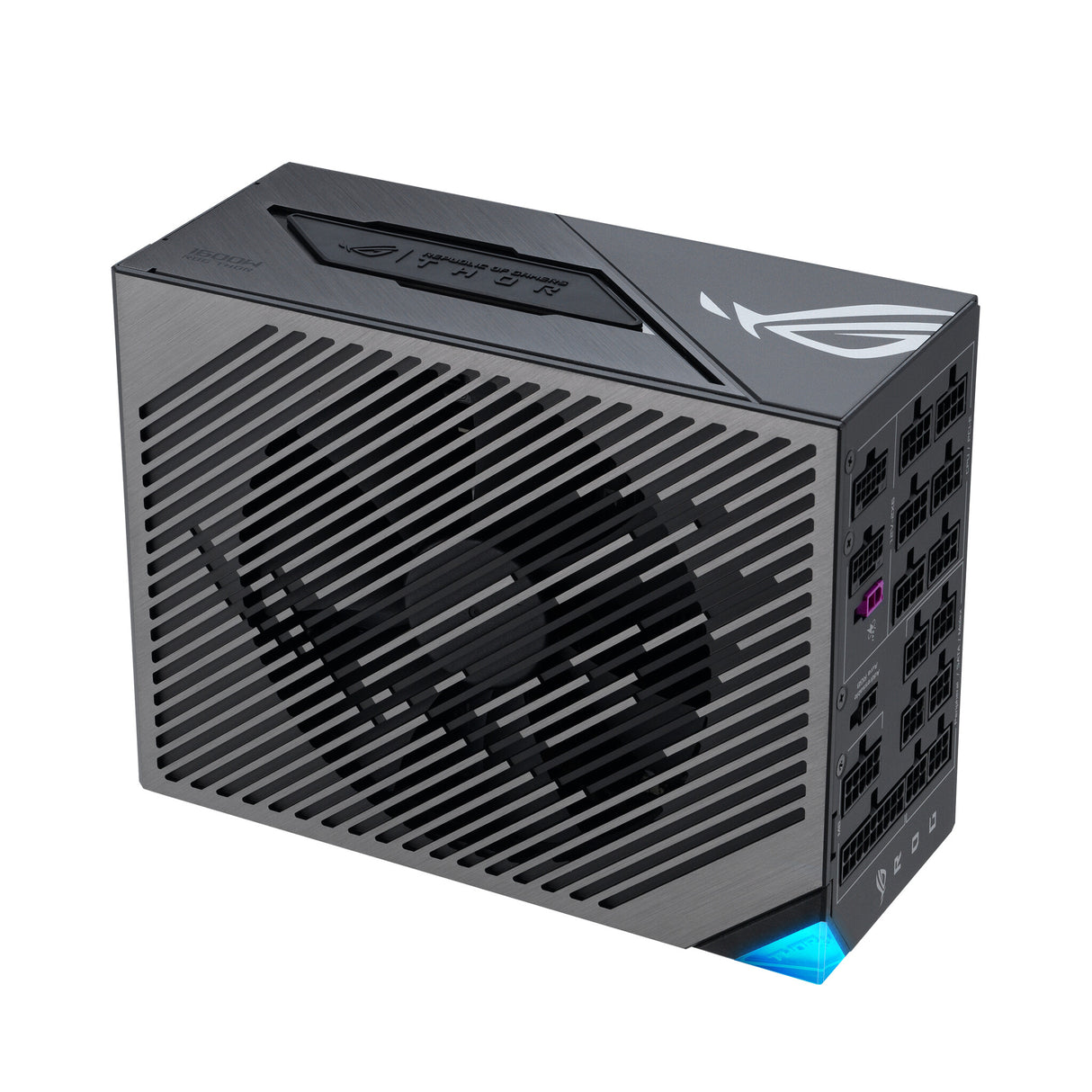

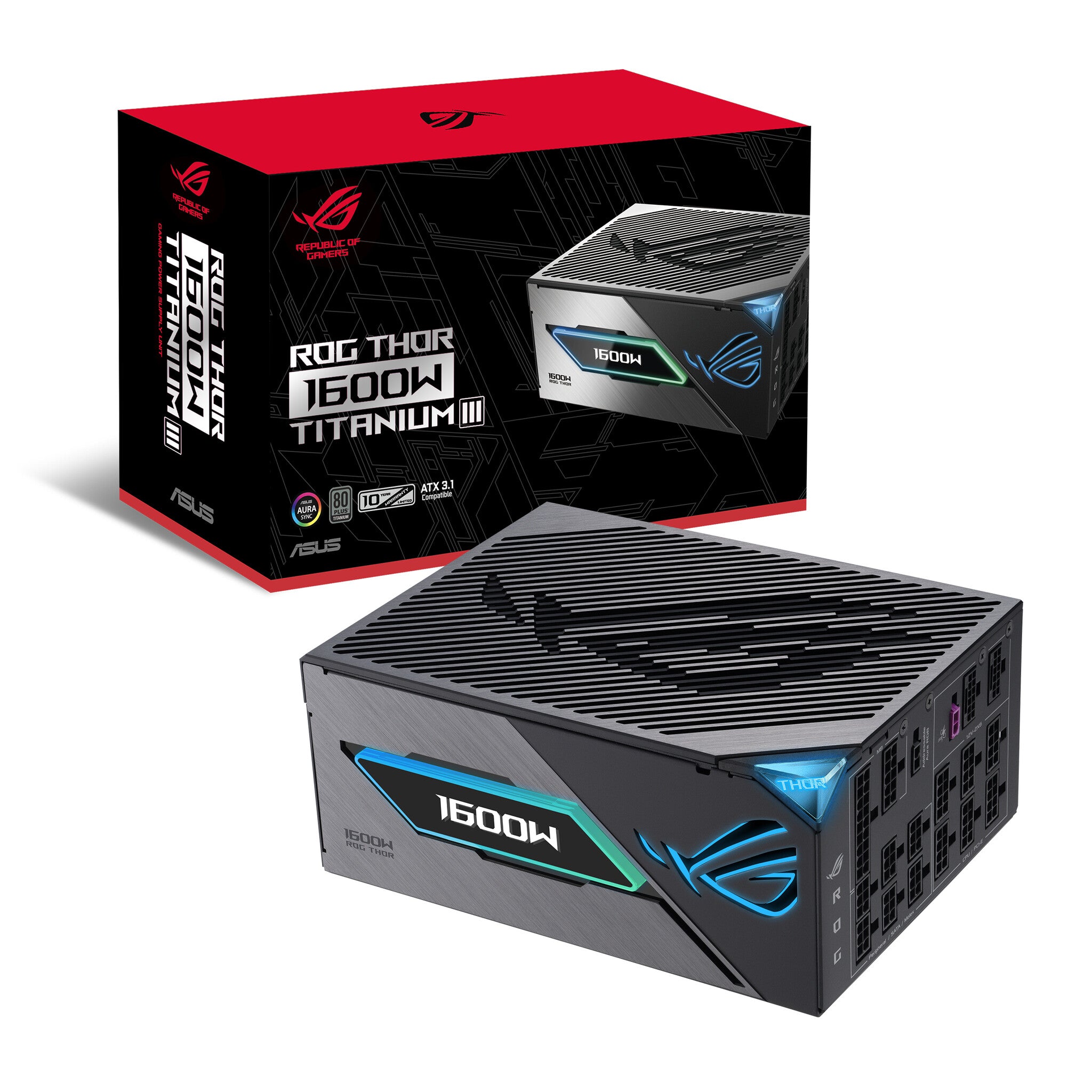

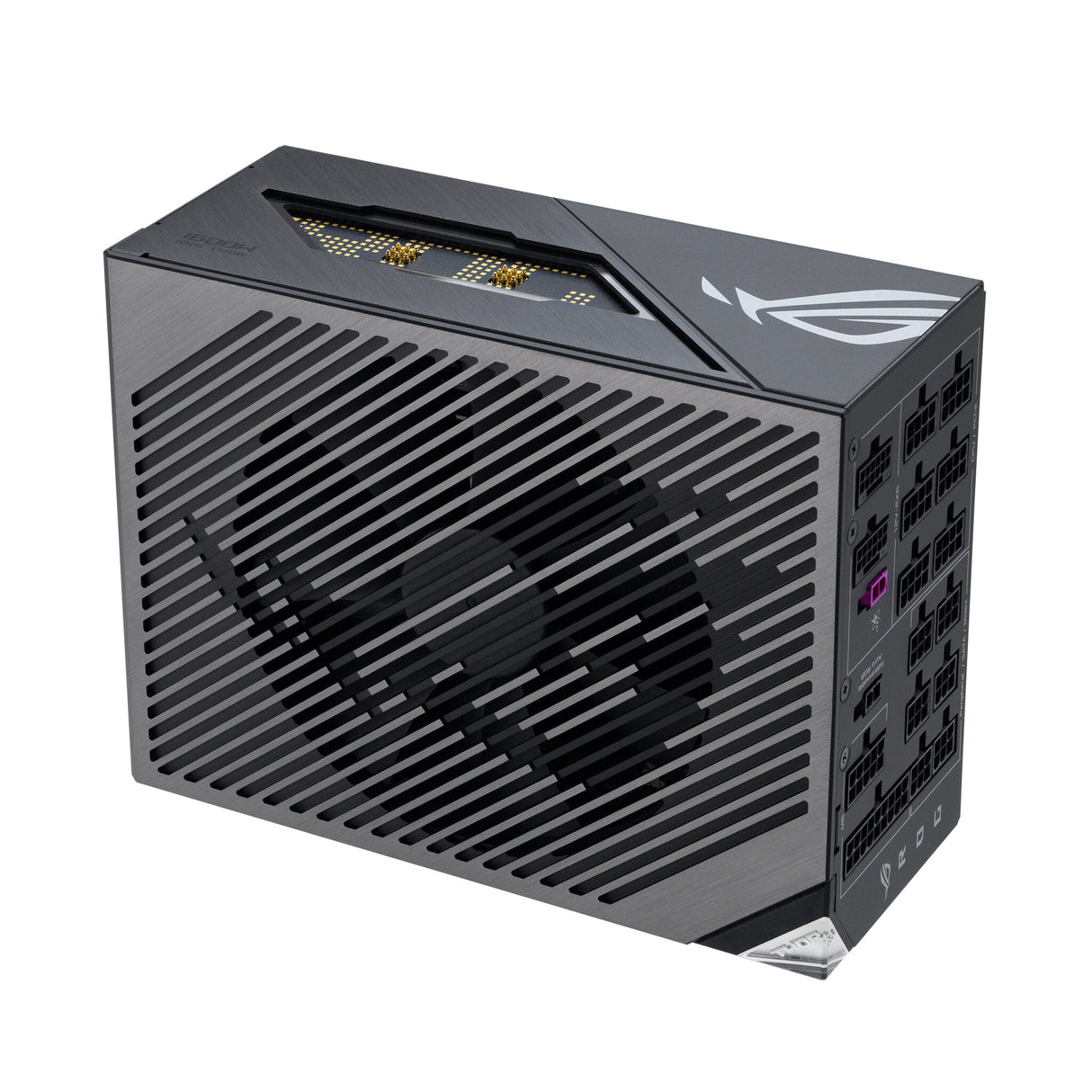

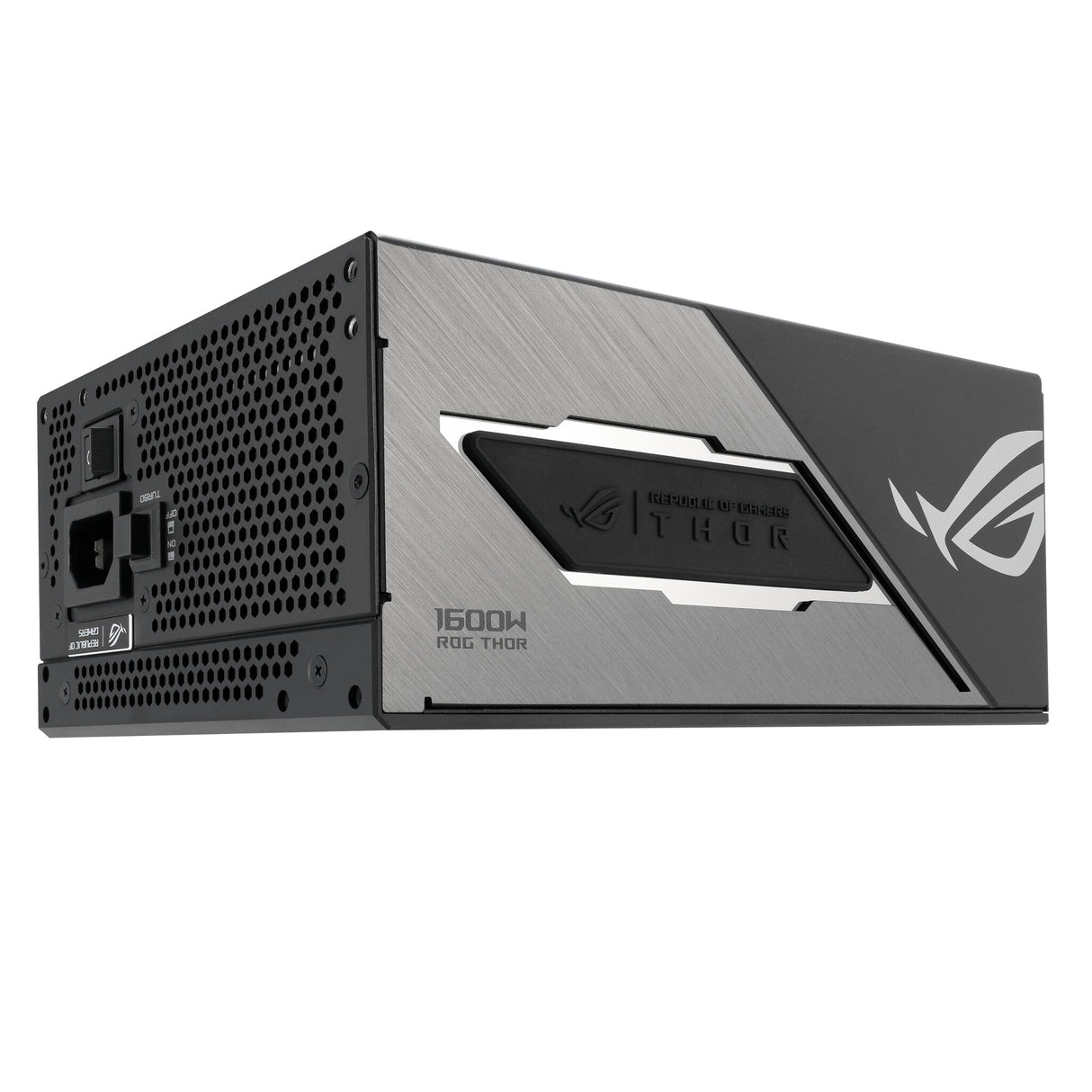

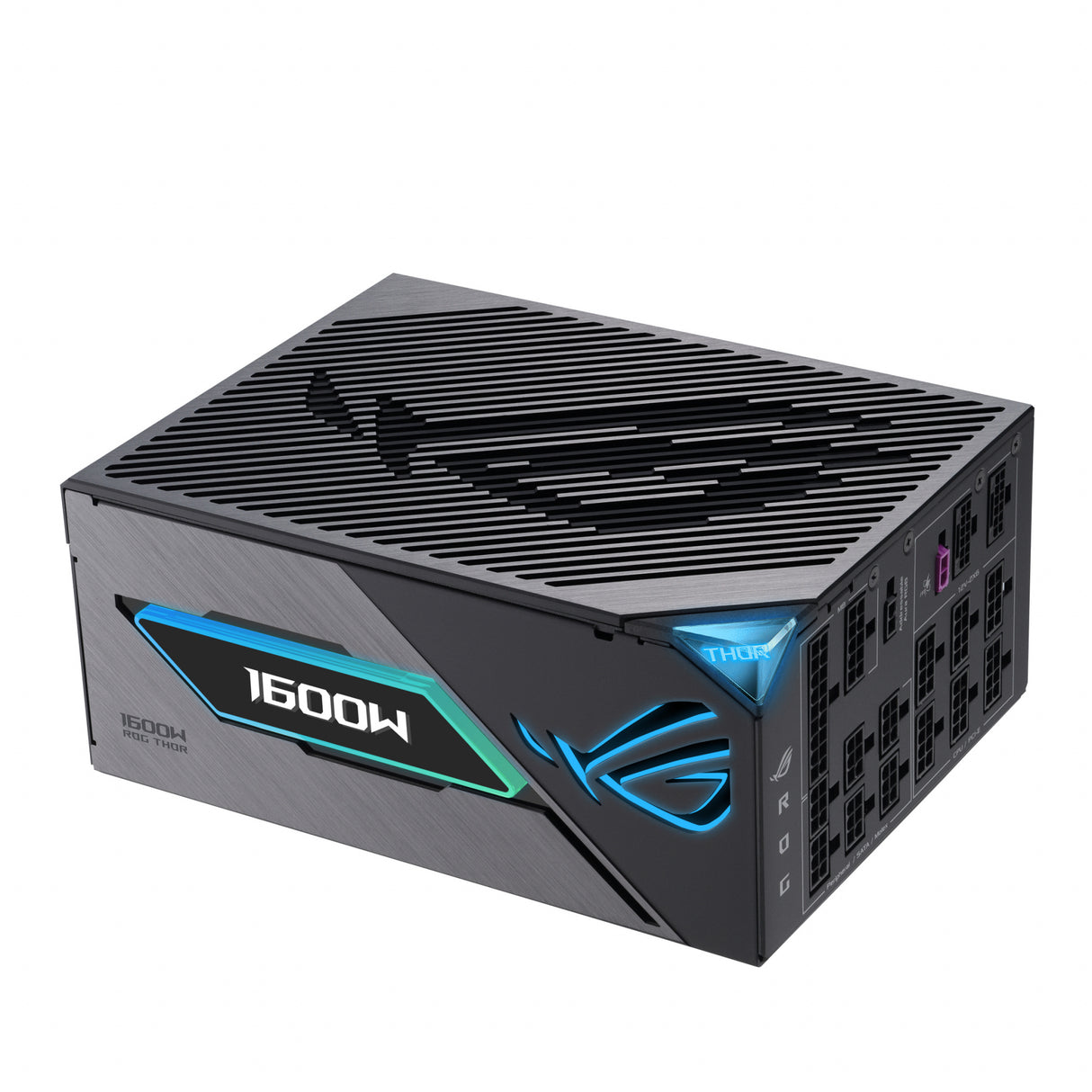

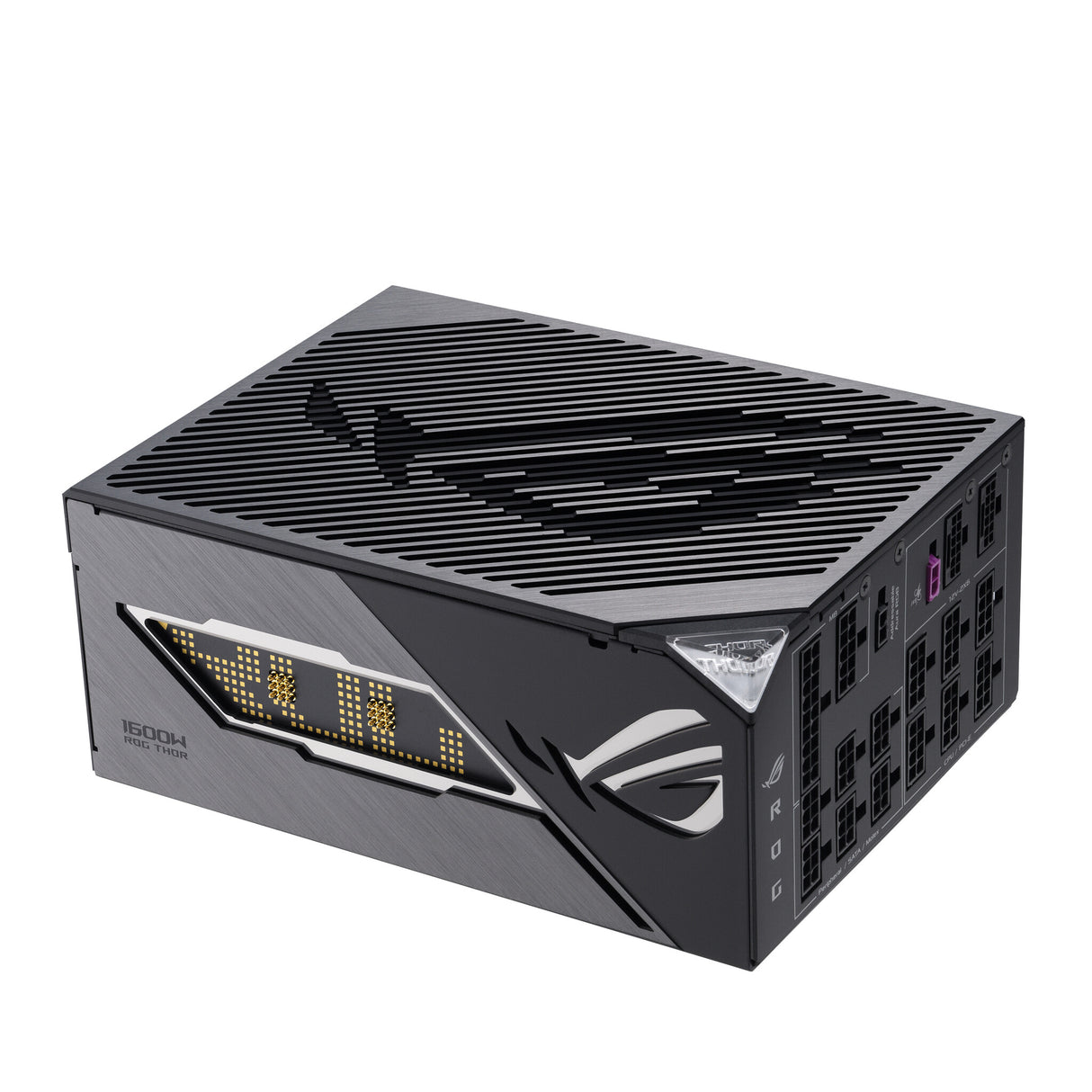

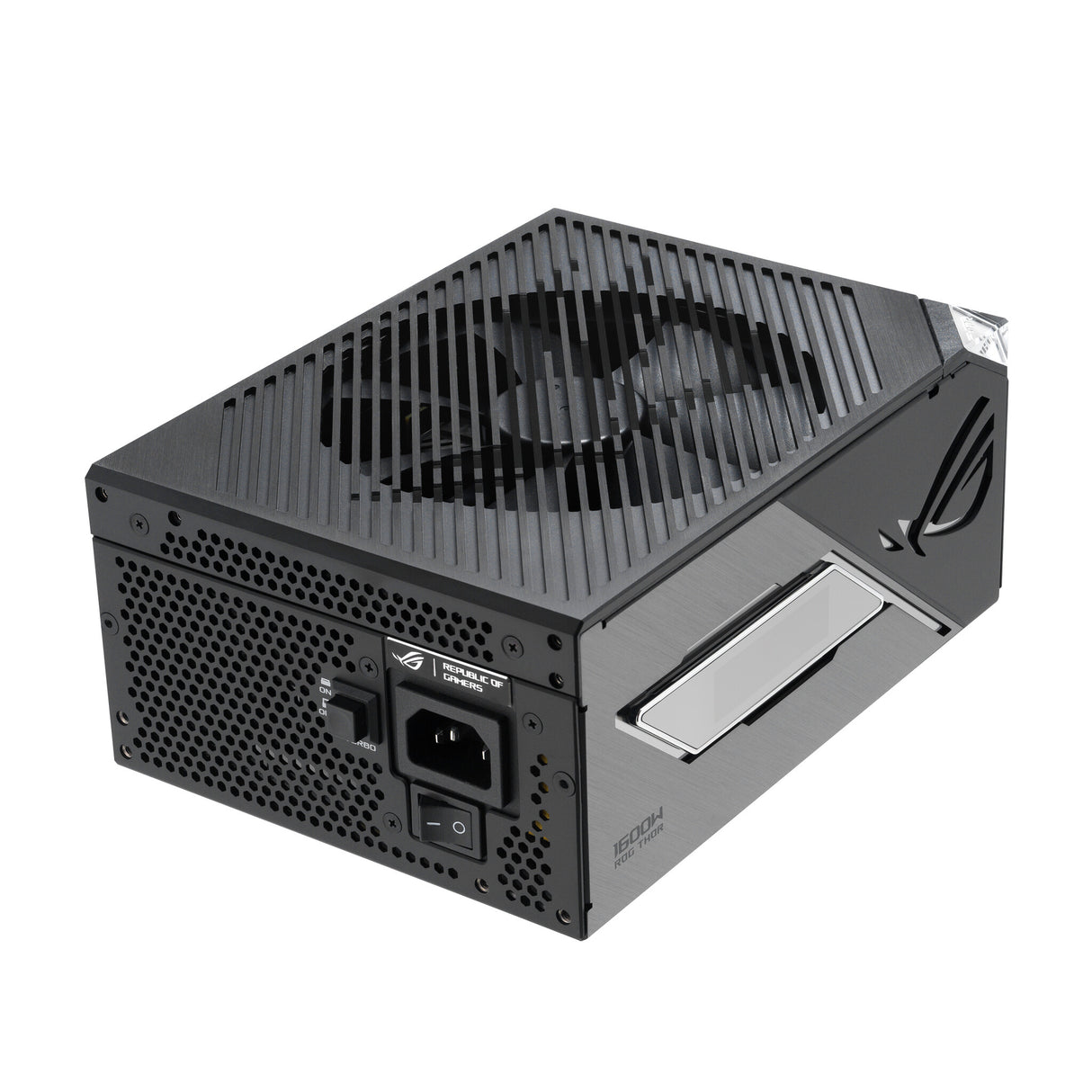

ASUS ROG -THOR-1600T3-GAMING power supply unit 1600 W 20+4 pin ATX ATX Grey

ASUS  |  SKU : 90YE00V1-B0NA00  |  Condition: Brand New  |  Code-barres: 4711387610299

MORE INFO

£826.99
£752.99 Save £74.00 £826.99
£627.49 excluding VAT @20%
iFrame
ROG THOR 1600W Titanium III, GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display

ULTIMATE POWER. UNMATCHED STABILITY.

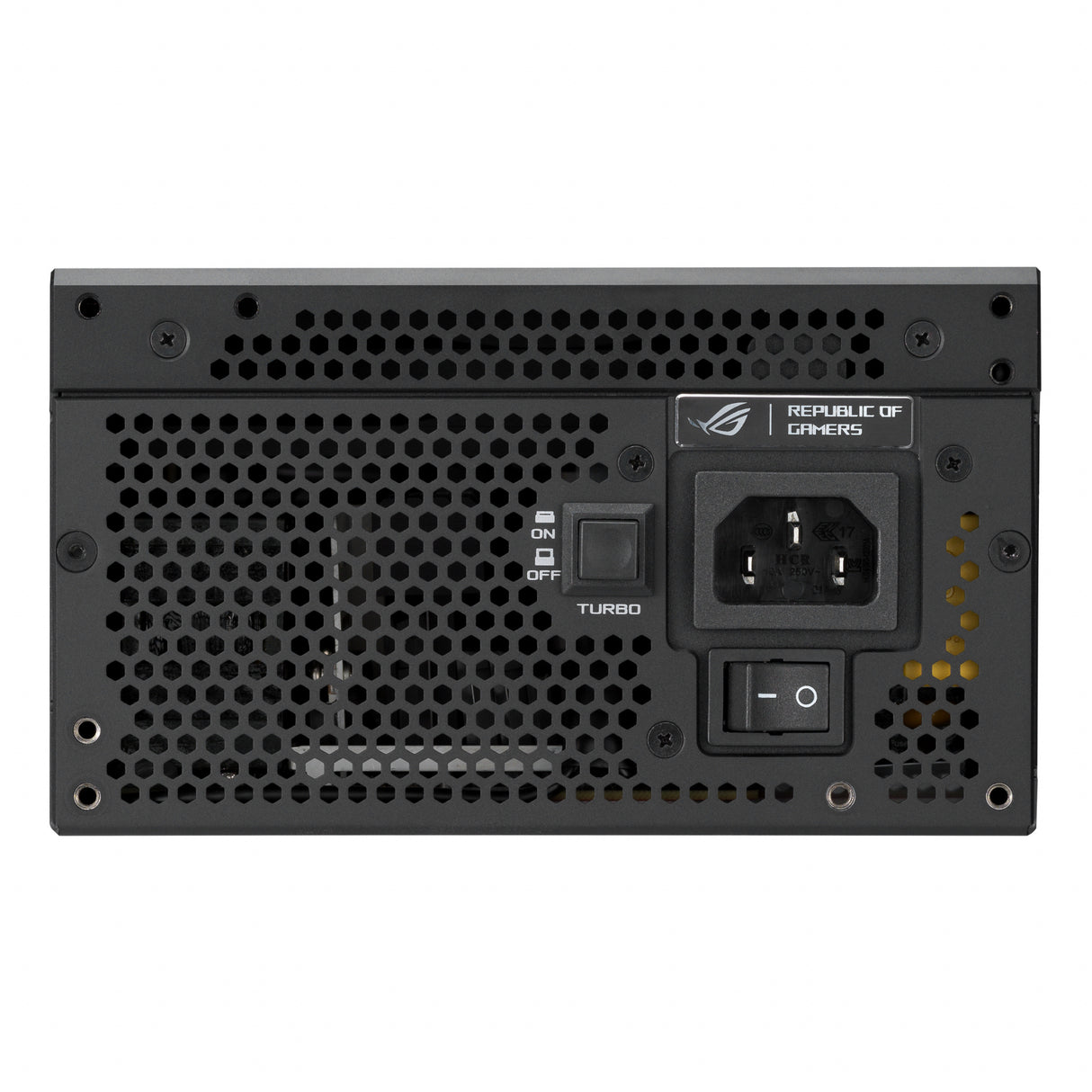

The ROG Thor 1600W Titanium III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

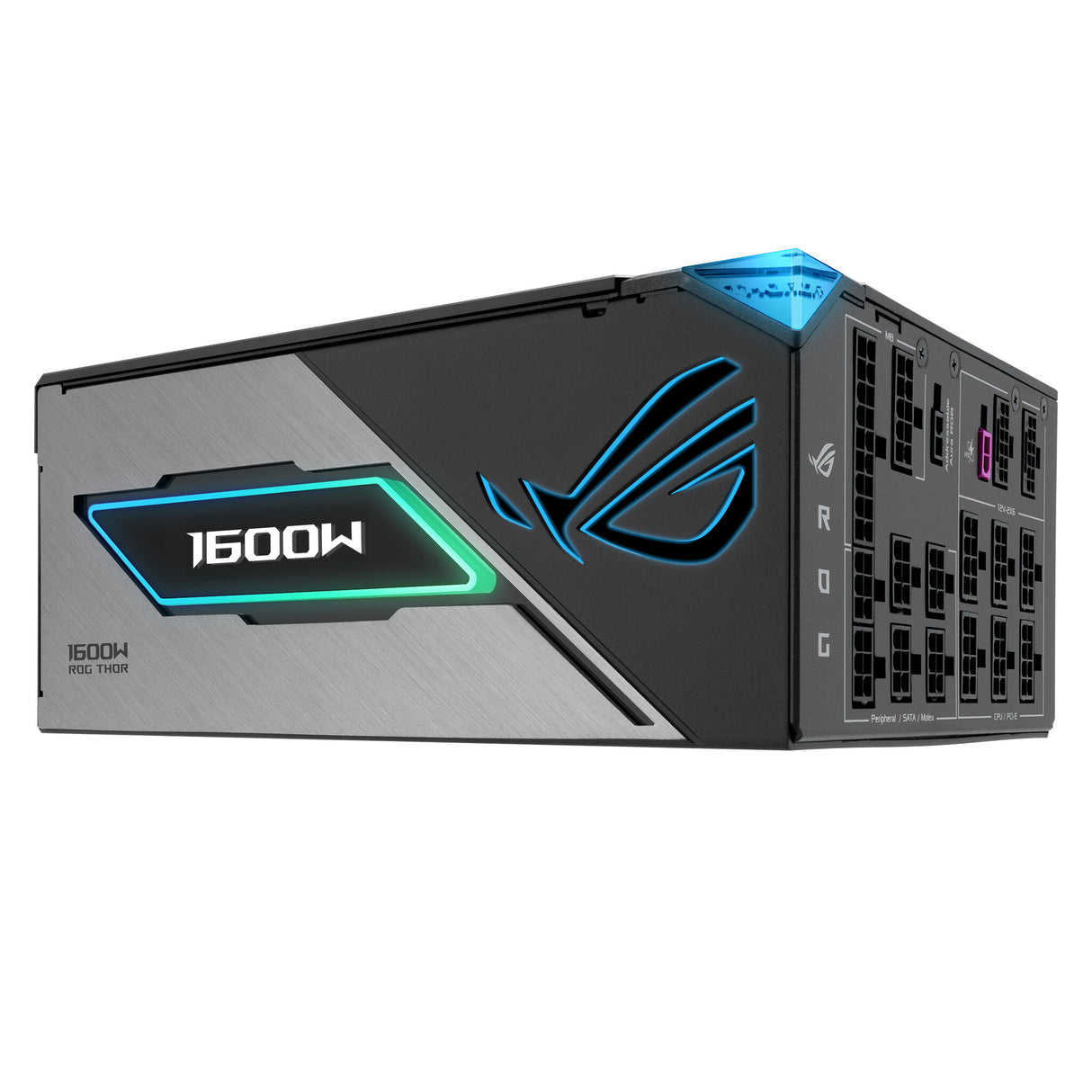

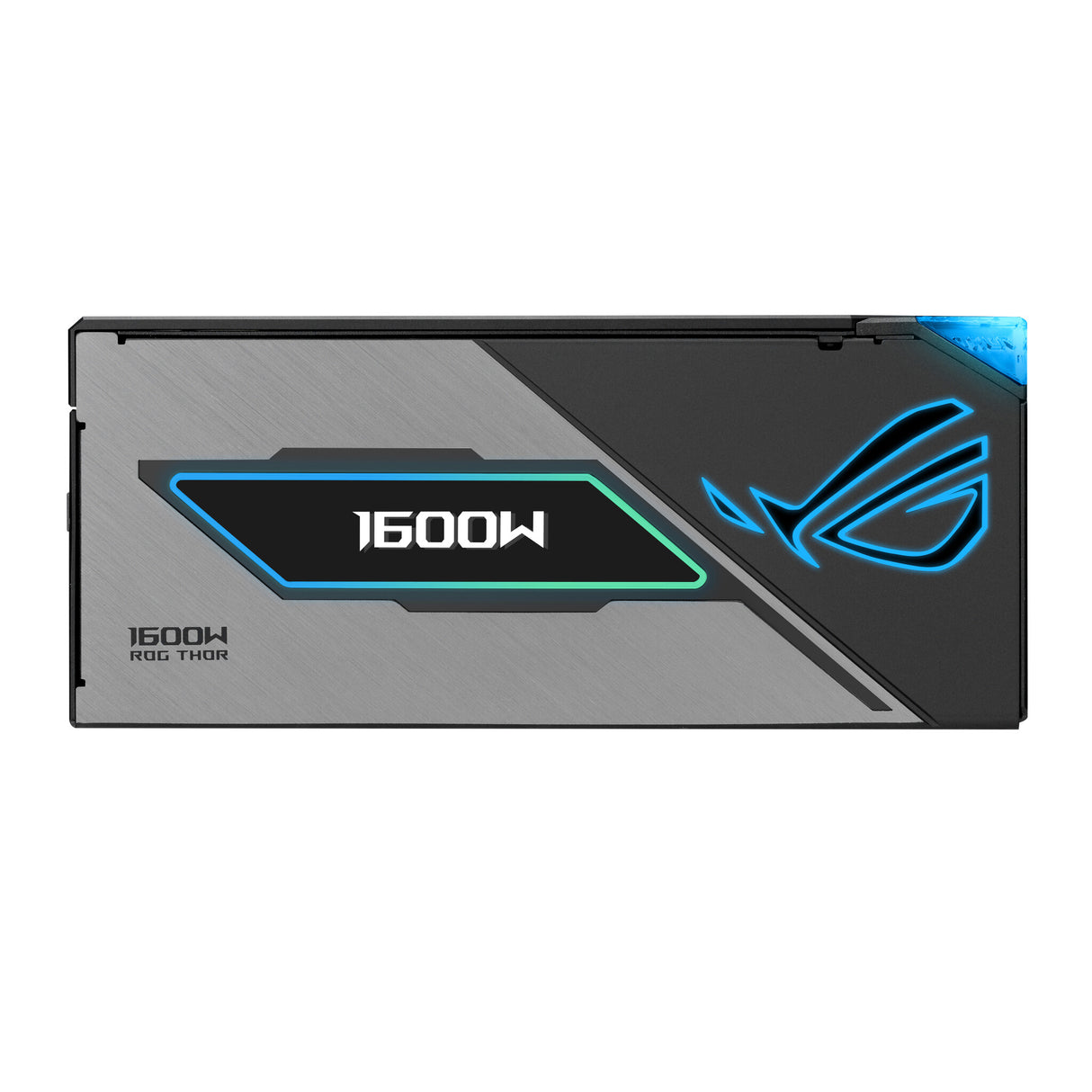

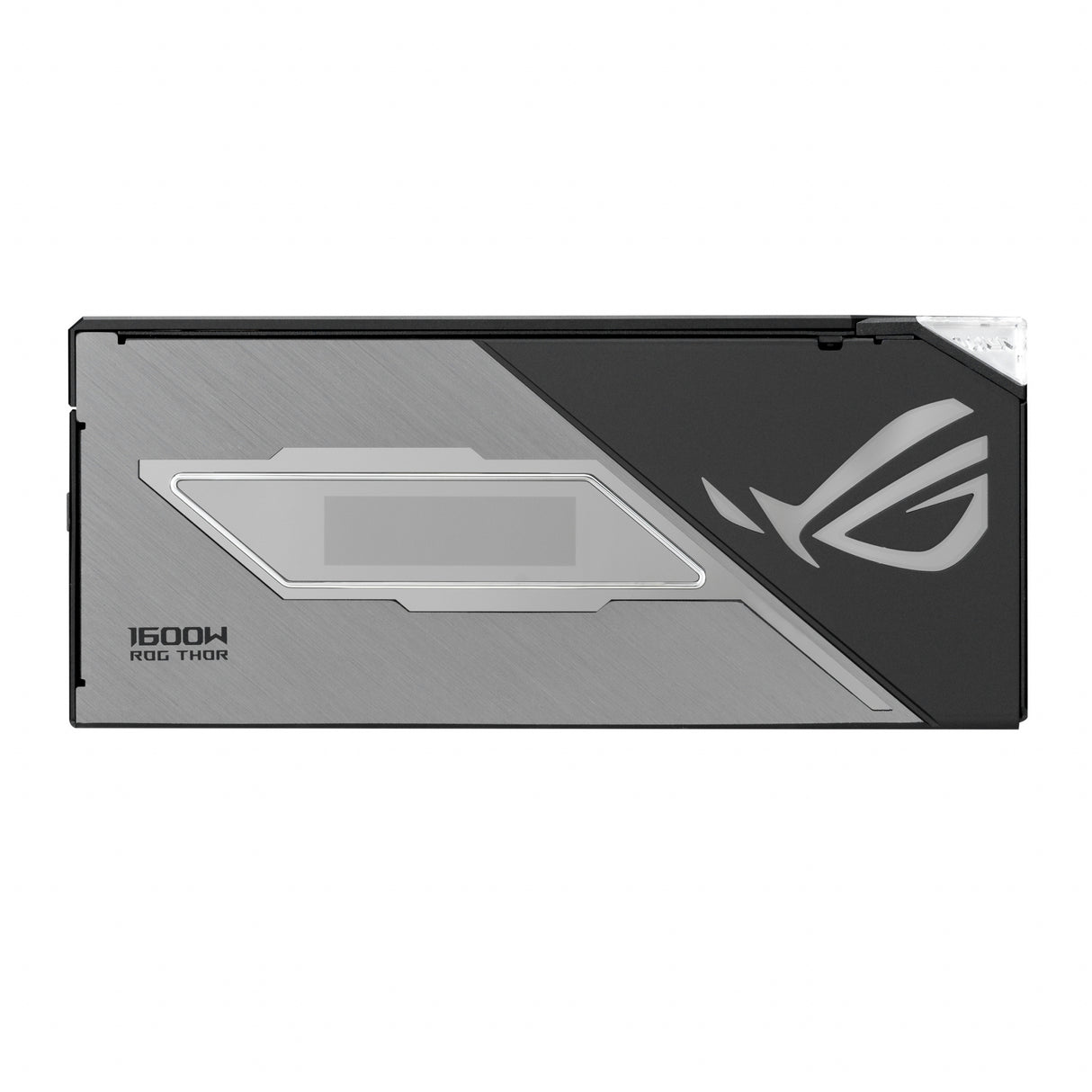

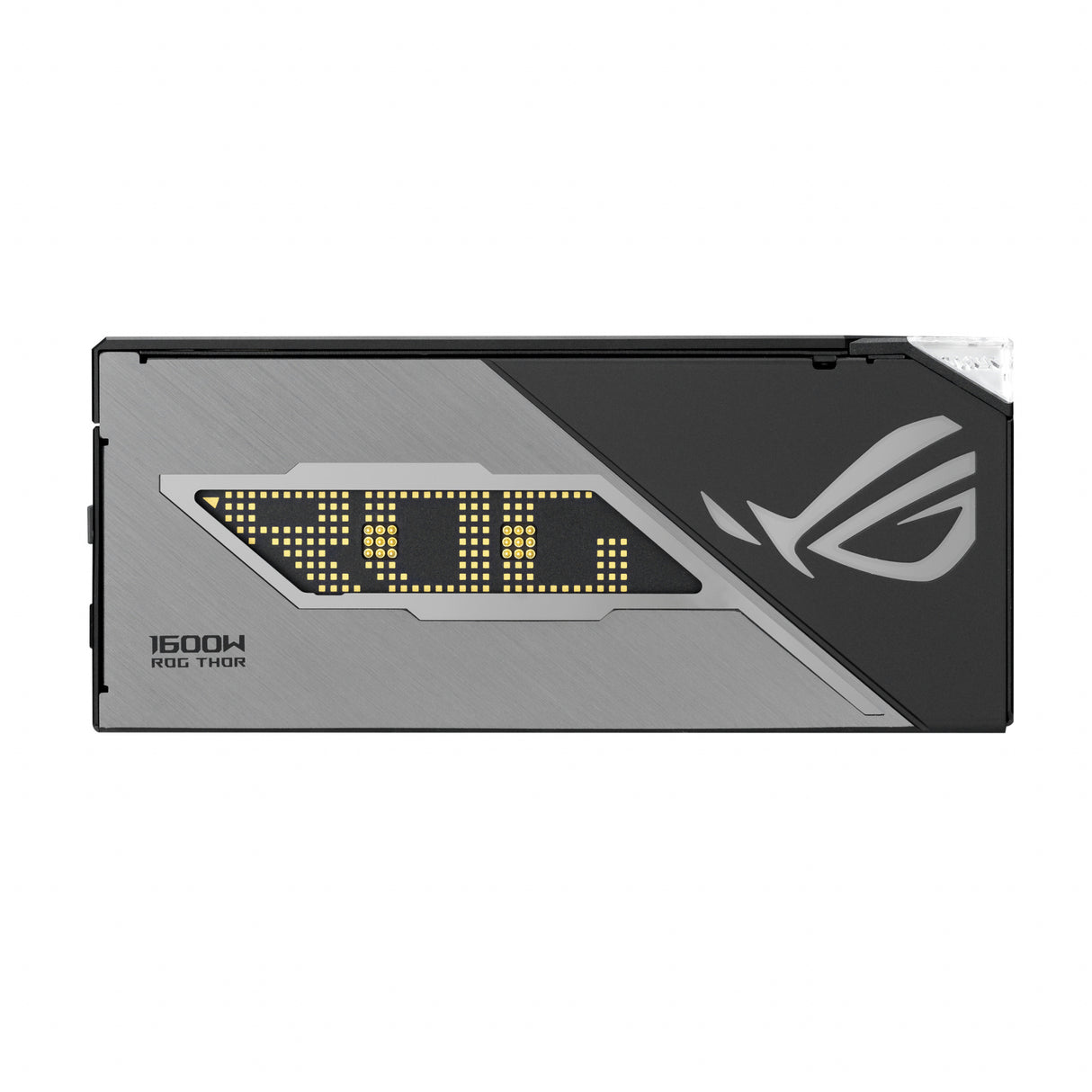

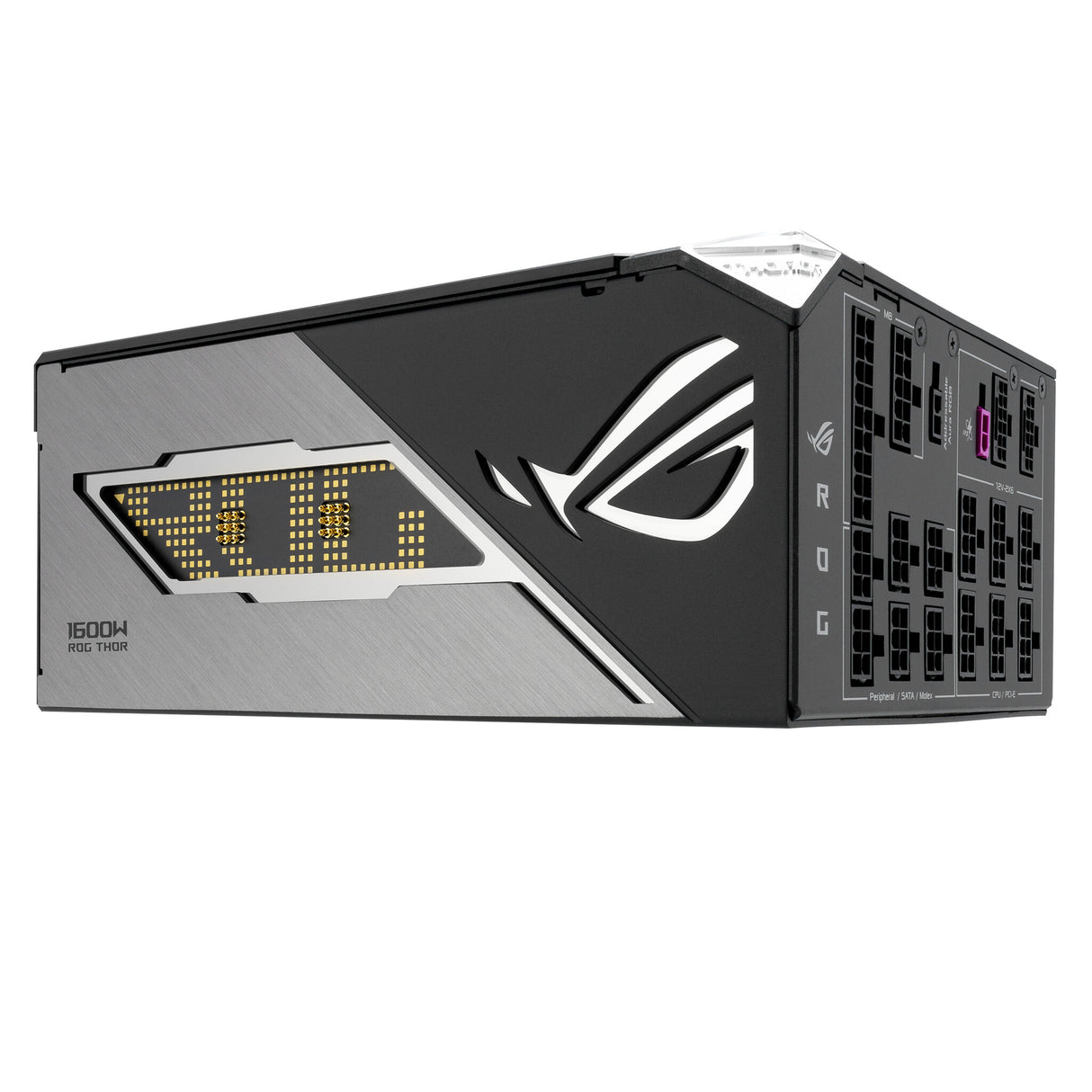

The ROG Thor 1600W Titanium III also features the signature Thor OLED display, now upgraded for easy magnetic attachment - it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

Power
Total power 1600 W
AC input voltage 100 - 240 V
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 125 W
Combined power (+12V) 1600 W
Combined power (+5V) 125 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 30 A
Max output current (+12V) 133.3 A
Max output current (+5V) 25 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

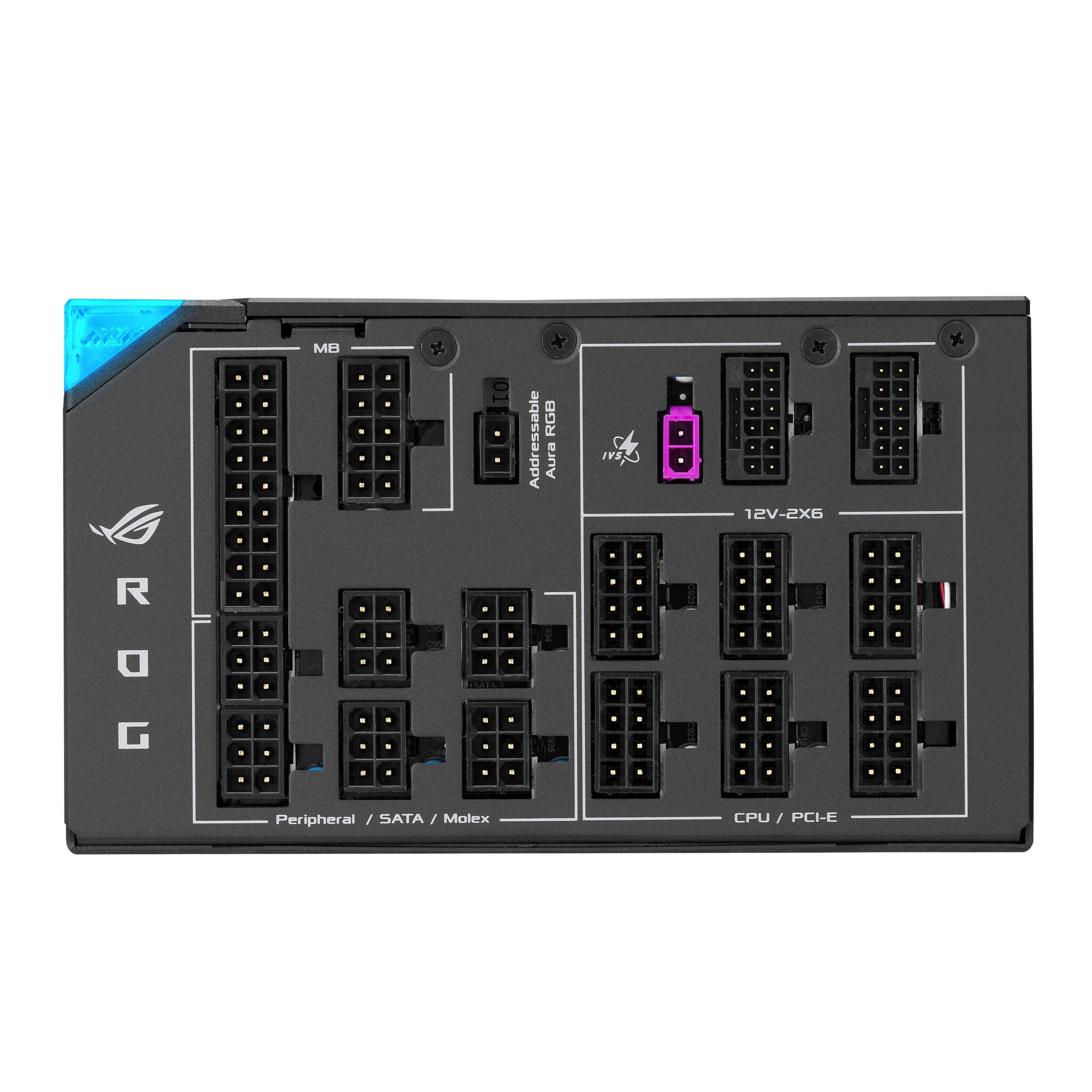

Ports & interfaces
Motherboard power connector 20+4 pin ATX
Motherboard power cable length 61 cm
Number of SATA power connectors 10
SATA power cable length 120,400 mm
Peripheral (Molex) power connectors (4-pin) 9
Peripheral (Molex) power cable length 150,400 mm
PCI Express power connectors (6+2 pin) 4
PCI Express power connectors (16-pin) 2
PCI Express power cable length 75 cm
CPU power connector (4+4 pin) Yes
CPU power cable length 100 cm
PCI Express connector Yes
Cabling type Fully-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Titanium
ATX version 3.1
Silent mode Yes
Bearing technology DBB
Mean time between failures (MTBF) 120000 h
Design
Product colour Grey
Cooling type Active
Number of fans 1 fan(s)
Built-in display Yes
Illumination Yes
Display type OLED
On/off switch Yes
General
Product family ROG
Packaging content
Cables included CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included Yes
Weight & dimensions
Width 200 mm
Depth 150 mm
Height 86 mm
Weight 2.8 kg
Packaging data
Package width 390 mm
Package depth 251 mm
Package height 159 mm
Package weight 6.3 kg
Package type Box
