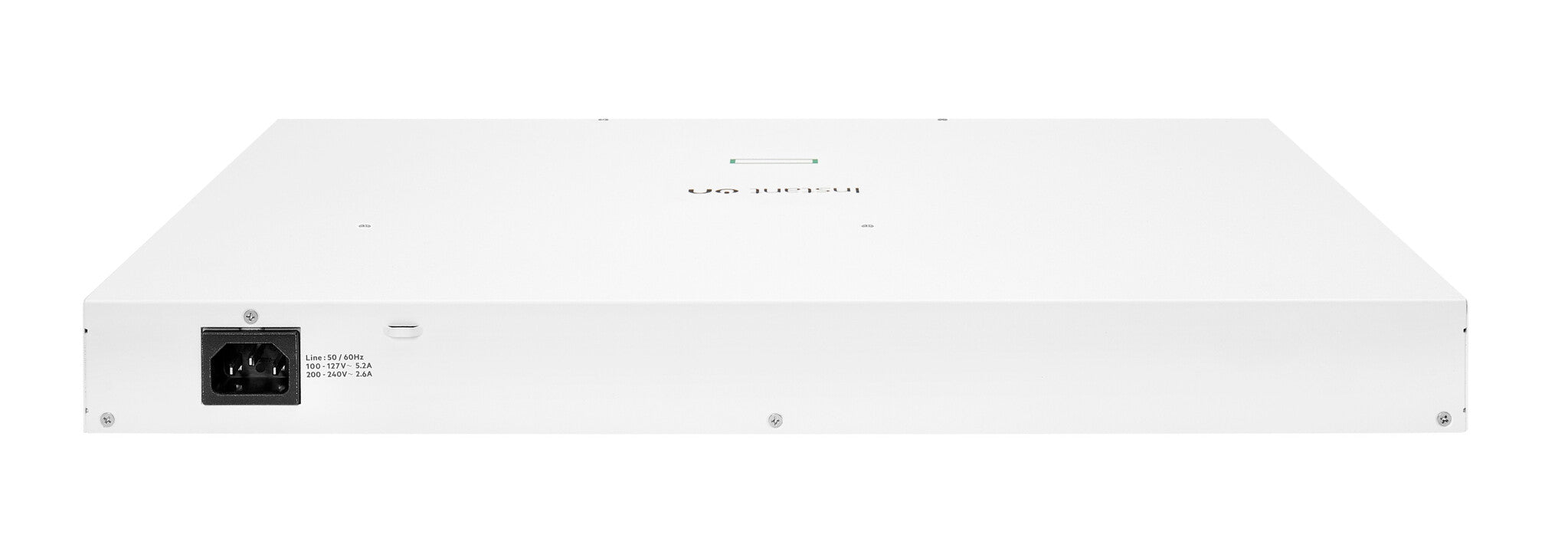

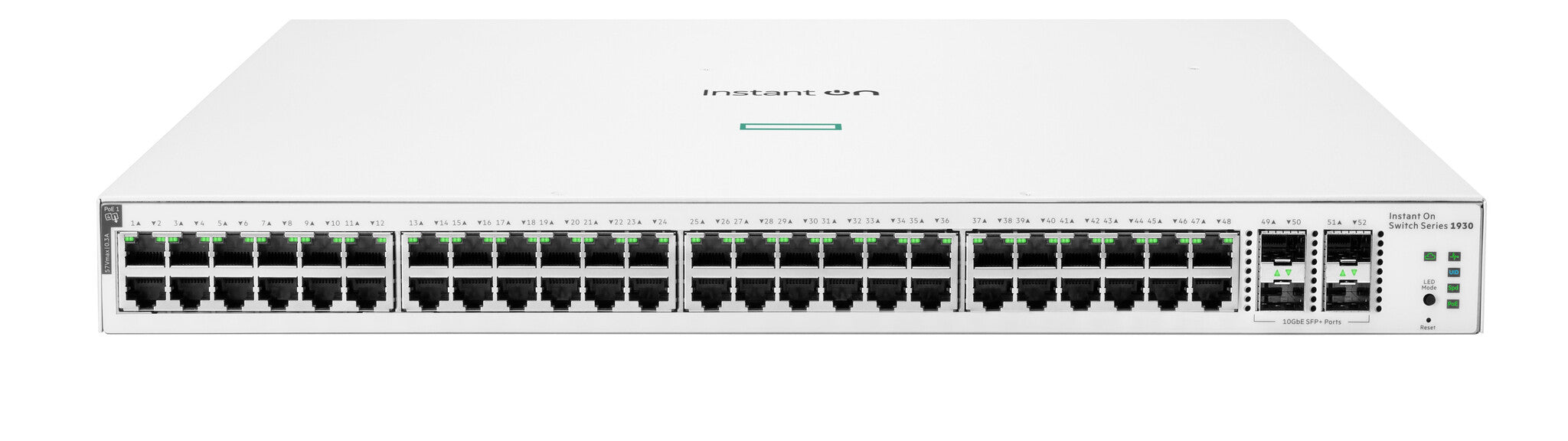

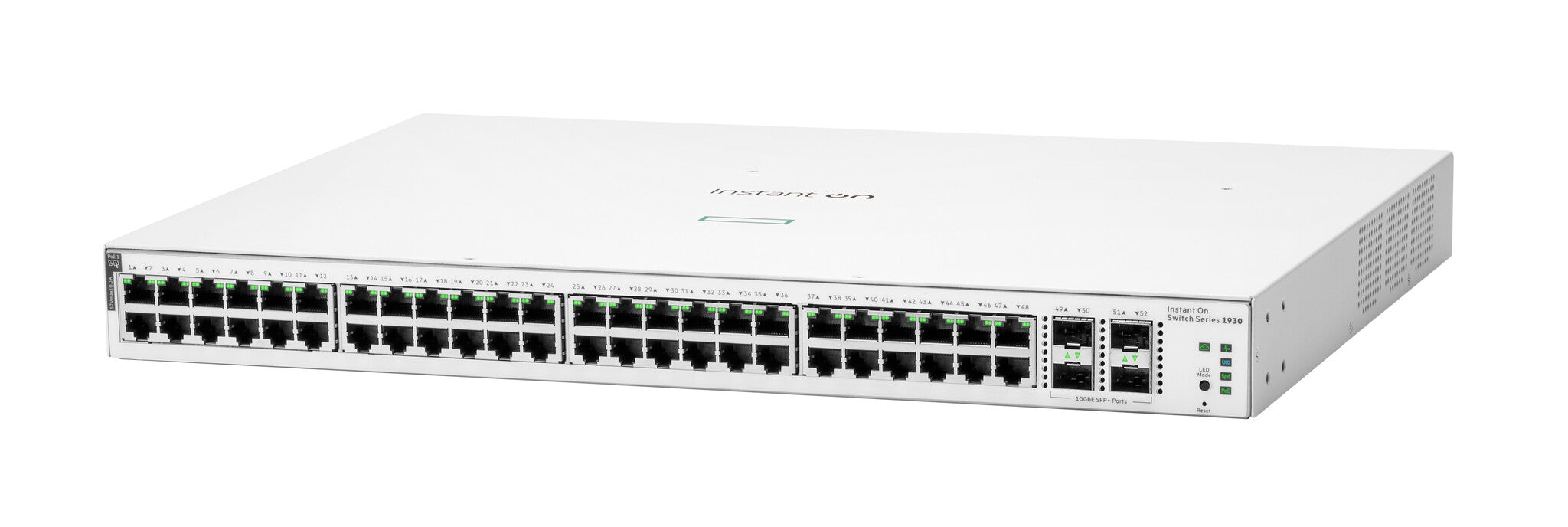

HPE Aruba Networking Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W 1930

HPE  |  SKU : JL686B  |  Condition: Brand New  |  Code-barres: nan
£616.99
£601.99 Save £15.00 £616.99
£501.66 excluding VAT @20%
iFrame
Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W 1930

The HPE Networking Instant On Switch 1930 series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.

What is new supporting point:
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Option to manage your switches through local web GUI.
1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.

Management features
Switch layer L2/L3/L4
ARP inspection Yes
System event log Yes
Data transmission
Switching capacity 176 Gbit/s
Throughput 130.95 Mpps
Jumbo frames 9216
Packet buffer memory 1.5 MB
Performance
Built-in processor Yes
Processor frequency 800 MHz
Internal memory 512 MB
Flash memory 256 MB
General
Product family Aruba Networking
Power
Power source AC
AC input voltage 200 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (max) 520 W
Power consumption note 520W maximum, 50W idle
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Total Power over Ethernet (PoE) budget 370 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating altitude 0 - 3000 m
Weight & dimensions
Width 43.9 mm
Depth 442.5 mm
Height 322.6 mm
Weight 4.59 kg
Other features
Performance management Instant On Portal, Web browser, SNMP Manager
Memory and processor ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
Weight (imperial) 4.59 kg (10.1 lbs)
I/O ports 48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10B ASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10 GbE ports
Dimensions (W x D x H) (imperial) 43.9 x 442.5 x 322.6 mm (1.73 x 17.4 x 12.7")
