HPE Aruba Networking Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 370W 1930

HPE  |  SKU : JL684B  |  Condition: Brand New  |  Code-barres: nan

MORE INFO

£639.99
£445.99 Save £194.00 £639.99
£371.66 excluding VAT @20%
iFrame

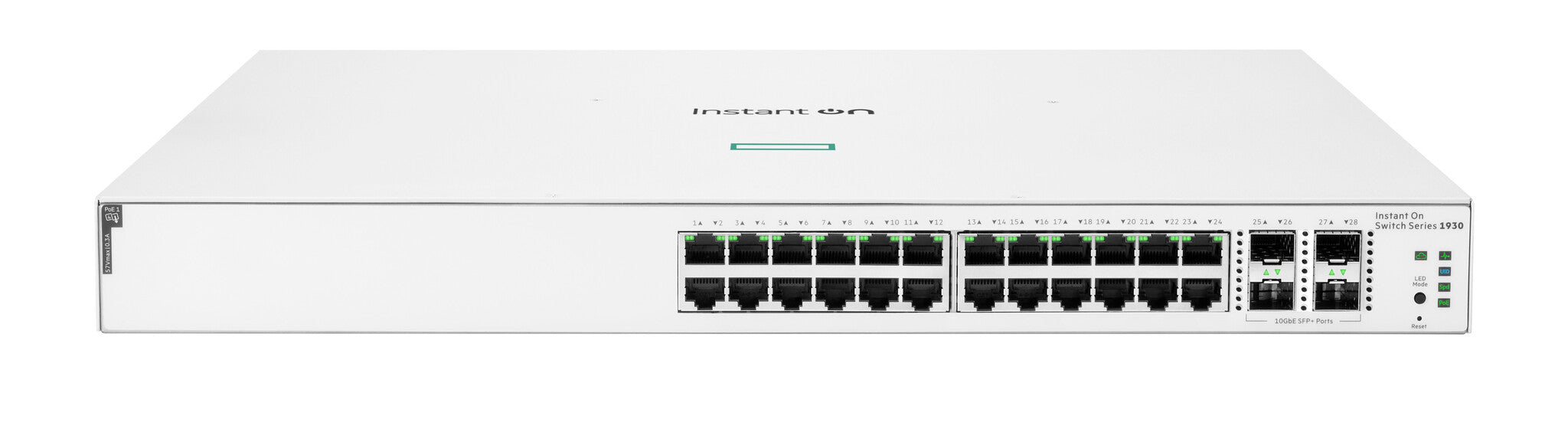

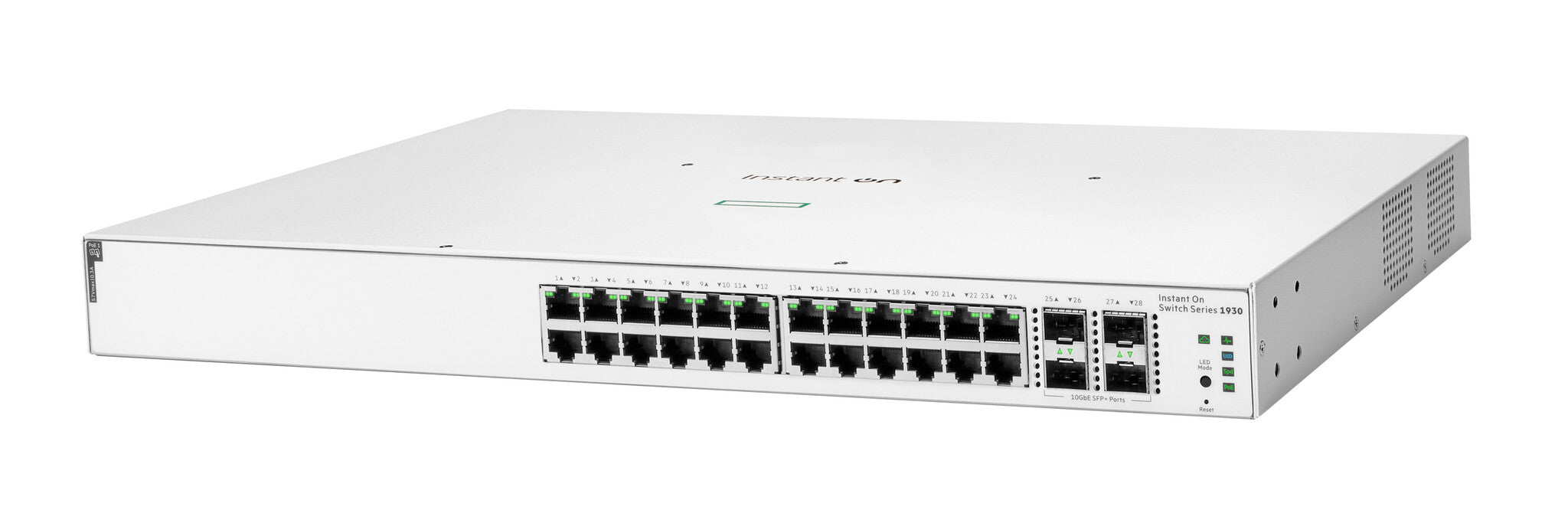

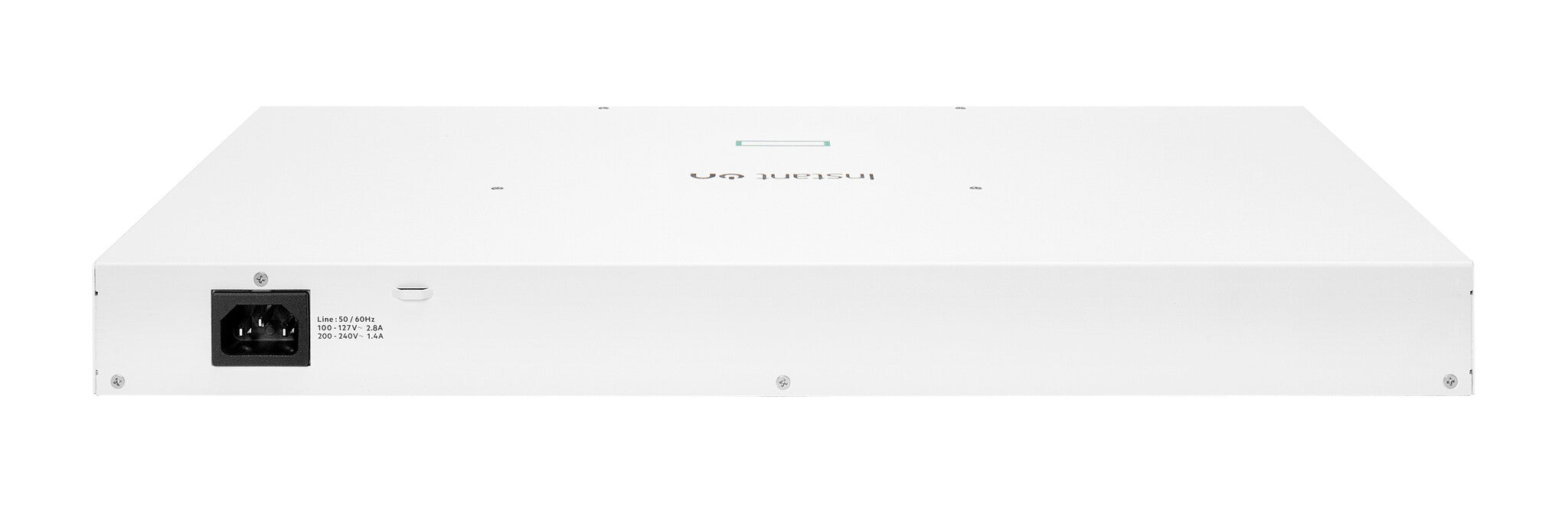

Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 370W 1930

The HPE Networking Instant On Switch 1930 series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.

What is new supporting point:
1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Option to manage your switches through local web GUI.
Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.

Management features
Switch type Managed
Switch layer L2/L3/L4
Quality of Service (QoS) support Yes
Cloud-managed Yes
Web-based management Yes
ARP inspection Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support Yes
Port mirroring Yes
Full duplex Yes
Auto-sensing Yes
Auto MDI/MDI-X Yes
Spanning tree protocol Yes
Rate limiting Yes
Link aggregation Yes
Flow control support Yes
VLAN support Yes
Data transmission
MAC address table 16000 entries
Switching capacity 128 Gbit/s
Throughput 95.23 Mpps
Latency (10-100 Mbps) 4.7 µs
Latency (1 Gbps) 2.4 µs
Latency (10 Gbps) 1.3 µs
Jumbo frames support Yes
Jumbo frames 9216
Packet buffer memory 1.5 MB
Security
DHCP features DHCP client
Access Control List (ACL) Yes
IGMP snooping Yes
SSH/SSL support Yes
Design
Rack mounting Yes
Stackable No
Form factor 1U
Product colour White
Performance
Built-in processor Yes
Processor model ARM Cortex-A9
Processor frequency 800 MHz
Memory type SDRAM / Flash
Internal memory 512 MB
Flash memory 256 MB
General
Product family Aruba Networking
Power
Power source AC
Power supply included Yes
AC input voltage 200 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (max) 490 W
Power consumption note 490W maximum, 30W idle
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Total Power over Ethernet (PoE) budget 370 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 15 - 95%
Storage relative humidity (H-H) 15 - 95%
Operating altitude 0 - 3048 m
Weight & dimensions
Width 43.9 mm
Depth 442.5 mm
Height 264.7 mm
Weight 3.73 kg
Other features
Performance management Instant On Portal, Web browser, SNMP Manager
Memory and processor ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
Weight (imperial) 3.73 kg (8.23 lbs)
I/O ports 24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10 GbE ports
Dimensions (W x D x H) (imperial) 43.9 x 442.5 x 264.7 mm (1.73 x 17.4 x 10.4")
