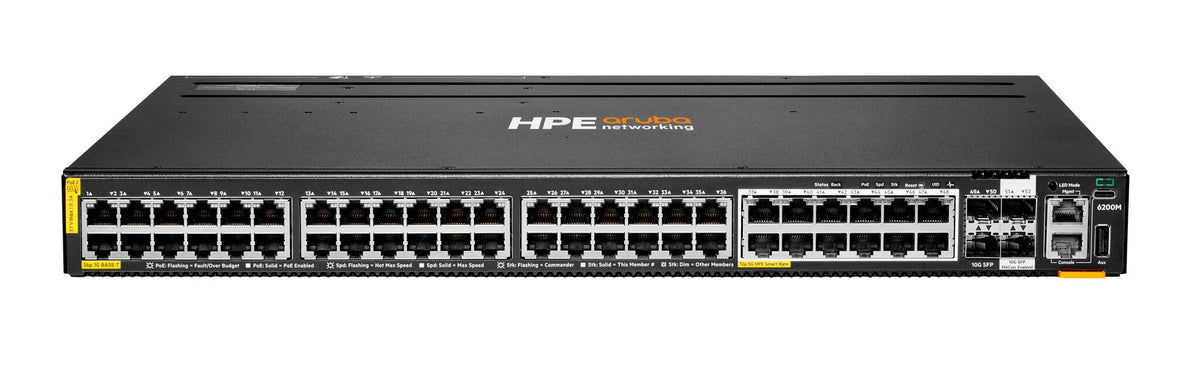

HPE Aruba Networking CX 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch
HPE Aruba Networking CX 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
HPE Aruba Networking CX 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch
The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.
What is new supporting point:
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing

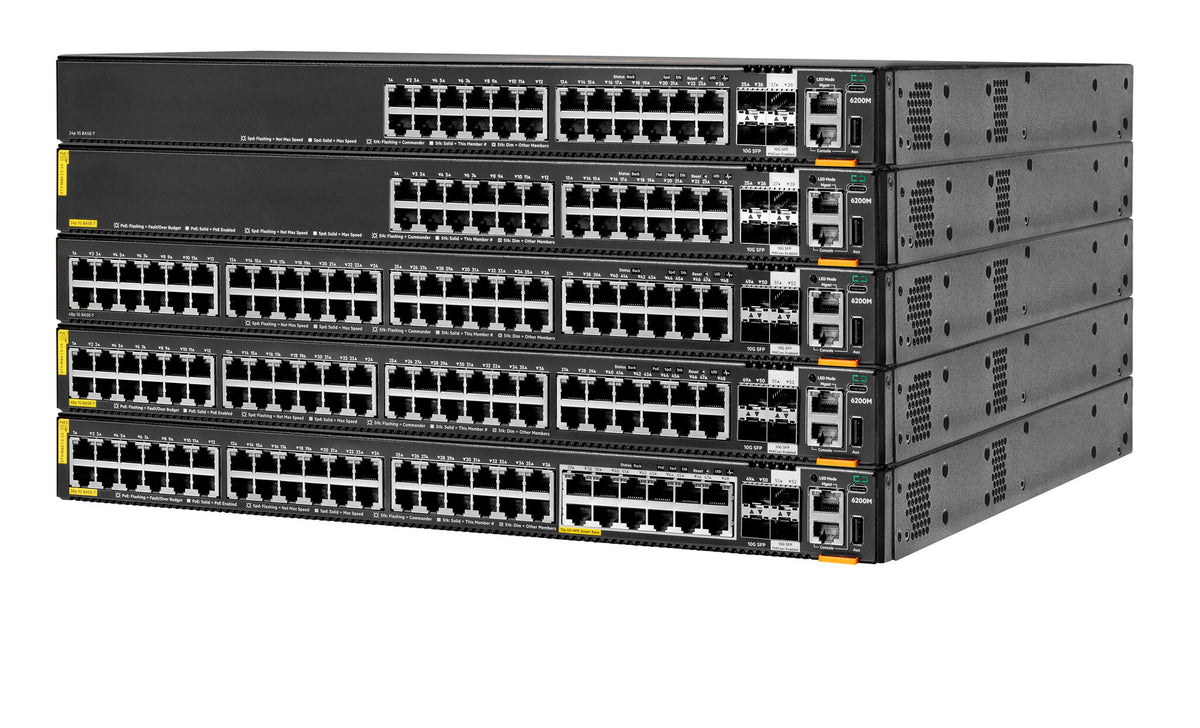

Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Console port | RJ-45/USB Type-C |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 272 Gbit/s |
| Throughput | 130.9 Mpps |
| Packet buffer memory | 8 MB |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Performance | |
|---|---|
| Physical stacking (units) | 8 |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16000 MB |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 200 - 240 V |
| Power consumption (typical) | 76 W |
| Power consumption note | 76W at 230 VAC |

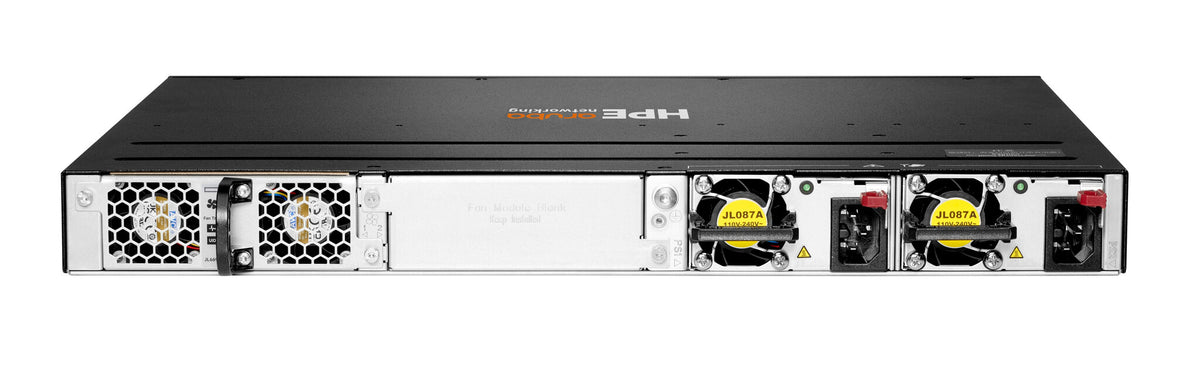

| Power supply note | 2 field-replaceable, hotswappable power supply slots 1 minimum power supply required (ordered separately) Supported PSUs JL086A JL087A Max PoE Power: 1440W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 1440 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 383.8 mm |
| Weight | 6.01 kg |
| Other features | |
|---|---|
| Latency | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Fan | Fixed fans |
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Memory and processor | CPU: Quad-core Arm Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC |
| Weight (imperial) | 6.01 kg (13.2 lbs) |
| I/O ports | 36 x 10/100/1000BASE-T Class 6 PoE ports, supporting up to 60W per port 12 x HPE Smart Rate 1/2.5/5G BaseT Class 6 PoE ports supporting up to 60W per port 4 x 1/10G SFP ports (2 x LRM; 2 x LRM/MACSec 256) Supports PoE standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port |
| Dimensions (W x D x H) (imperial) | 43.9 x 442.5 x 383.8 mm (1.73 x 17.4 x 15.1") |
-
