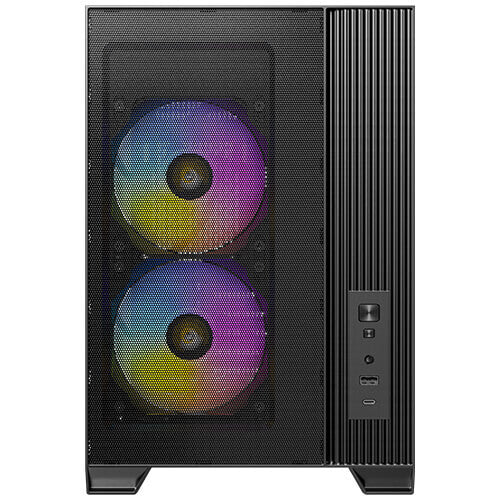

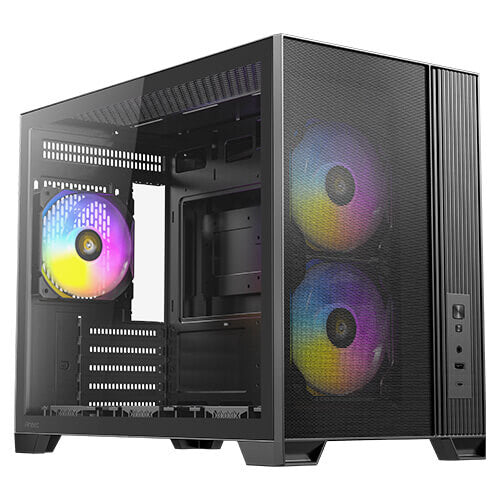

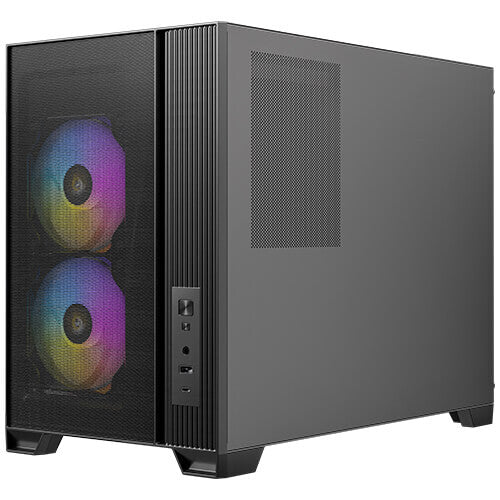

Antec FLUX M Micro Tower Black
Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.
Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the front and bottom, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.
Multi-Directional Vent Design
Pre-Installed 6 x High-Performance PWM Fans
Flux Vertical Cooling
A large bottom mesh panel boosts airflow, enhancing cooling efficiency around the graphics card.
Flux Horizontal Cooling
Air intake via the front mesh provides a smooth venting channel throughout the case.
Supports 360mm water cooling at the top
Bottom air intake optimization
The large bottom intake increases airflow, with about 20mm clearance between the bottom fans and the GPU, allowing reverse fans to efficiently and directly cool the GPU.
Built-in GPU Bracket
Includes a support bracket compatible with high-performance graphics cards.
TOOL-FREE PANEL DESIGN
Front-Mounted PSU Chamber & 13A extension cable
The front-mounted PSU chamber improves airflow by freeing up internal space, while the included 13A extension cable ensures stable power delivery for high-wattage PSUs.

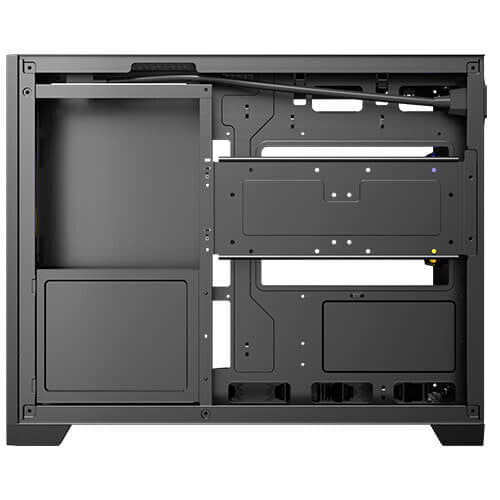

Cable management space behind the motherboard provides up to 59mm at the front and 49mm at the rear.
CABLE MANAGEMENT
I/O Panel
Dust plugs included.
| Design | |
|---|---|
| Form factor | Micro Tower |
| Type | PC |
| Material | Plastic, Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ITX, micro ATX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 5 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 40.5 cm |
| Maximum PSU length | 16 cm |
| Power supply | |
|---|---|
| Power supply included | No |
| Power supply location | Side |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Cooling | |
|---|---|
| Front fans installed | 2x 120 mm |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120 mm |
| Bottom fans installed | 3x 120 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,240,360 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| SSD form factor | 2.5" |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Width | 247 mm |
| Depth | 459 mm |
| Height | 365 mm |
| Weight | 6.35 kg |
| Packaging data | |
|---|---|
| Package weight | 7.41 kg |
-
