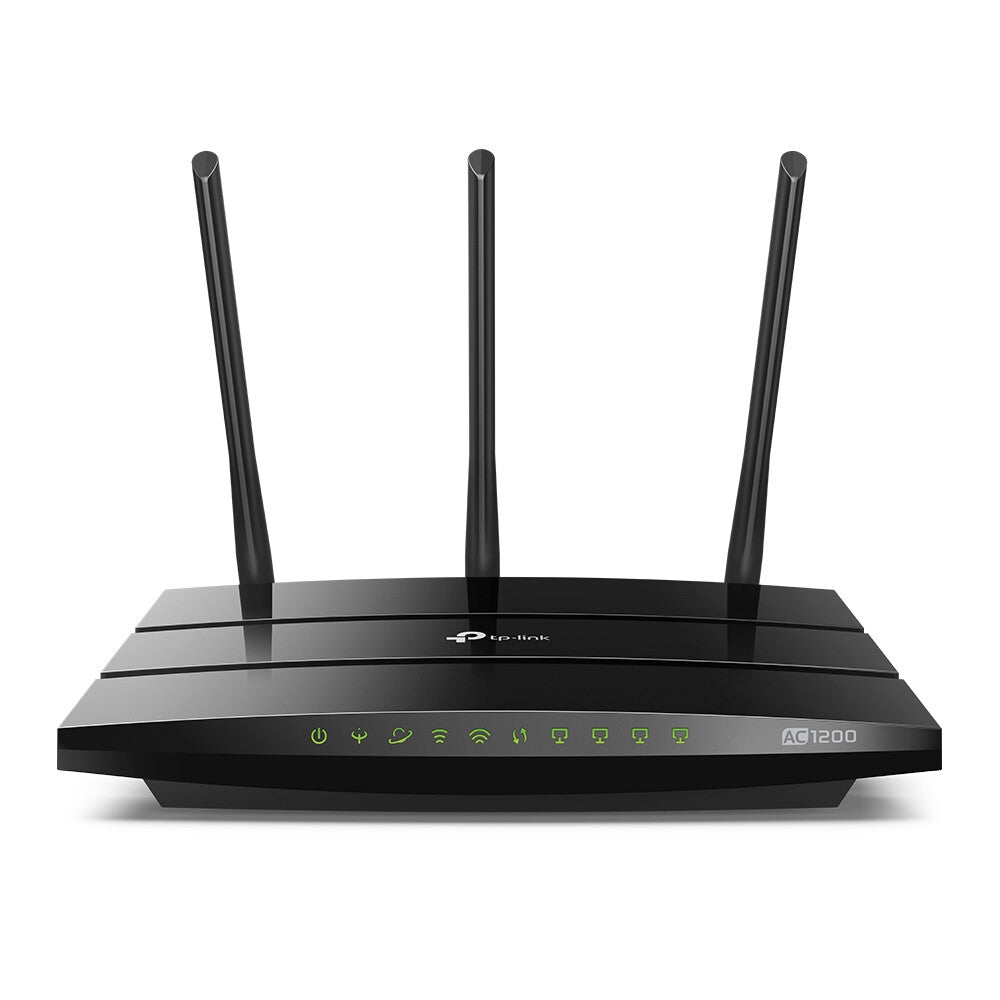

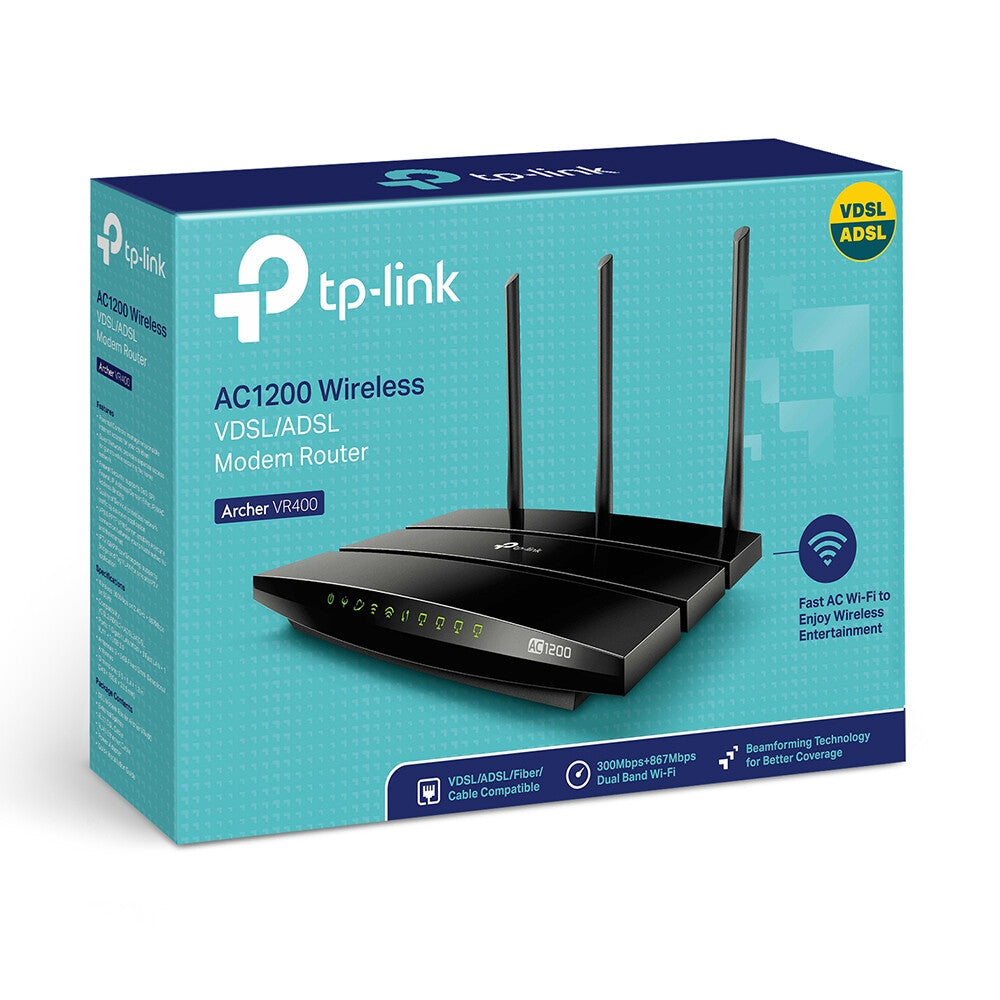

TP-Link AC1200 Wireless VDSL/ADSL Modem Router
Superfast Wi-Fi - Up to 1.2Gbps
The Archer VR400 unlocks the full potential of your internet connection by providing combined dual band Wi-Fi speeds of up to 1.2Gbps, including 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, eliminating lag and buffering from your online experience.
Two dedicated Wi-Fi networks support more devices and reduce wireless interference to create stable connections.
Superfast VDSL Broadband
The latest VDSL2 technology allows the Archer VR400 to deliver impressive VDSL broadband speeds of up to 100Mbps, which is almost five times faster than ADSL2+. The Archer VR400 serves as a DSL modem and wireless router, combining two devices in one. The integrated DSL port supports all standard DSL connections, including VDSL2, ADSL2+, ADSL2, and ADSL.
Versatile Backup Connectivity
With multiple inputs, the Archer VR400 provides you with a variety of options when connecting to the Internet. As a backup, the EWAN port allows the Archer VR400 to accept connections from cable and fiber modems via Ethernet cable. Additionally, the USB port supports 3G/4G dongle connections.
Superior Range and Stability
Three high-performance external antennas help the Archer VR400 create an expansive home network. Advanced Beamforming technology* automatically locates wireless devices and forms targeted, highly efficient wireless connections.
*Archer VR400 only supports Beamforming Technology at 5GHz band.
Blazing Fast Wired Performance
To help your wired devices achieve peak performance, the router’s Gigabit Ethernet ports operate 10x faster than standard Ethernet. Connecting an external drive to the USB 2.0 port allows you to share files, photos, music, and video with any device on the network.
Easy Setup and Use
Set up the Archer VR400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and media sharing.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | Yes |
| SIM card slot | No |
| DSL WAN | Yes |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (second band) | 867 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| VPN support | PTP, L2TP, IPSec Passthrough |
| VPN Passthrough | Yes |
| VPN tunnels quantity | 10 |
| Static route | Yes |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| DSL features | |
|---|---|
| VDSL2 | Yes |
| ADSL2+ | Yes |
| ADSL2 | Yes |
| ADSL | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Memory card slot(s) | No |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| Management features | |
|---|---|
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Security | |
|---|---|
| DMZ support | Yes |
| MAC address filtering | Yes |
| Filtering | Yes |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| Firewall | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6 |
| Management protocols | SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | LAN, Power, WLAN |
| Indication light | Yes |
| Wall mountable | Yes |
| Product colour | Black |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Antenna | |
|---|---|
| Detachable antenna(s) | Yes |
| Antennas quantity | 3 |
| Antenna design | External |
| Features | |
|---|---|
| Certification | CE, RoHS |
| Power | |
|---|---|
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power source type | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
|---|---|
| Width | 215.6 mm |
| Depth | 124.6 mm |
| Height | 31.6 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 850 g |
| Package height | 82 mm |
| Package depth | 240 mm |
| Package width | 350 mm |
-
