StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant

STARTECH  |  SKU : P10Q4C-USB-CARD-LP  |  Condition: Brand New  |  Code-barres: 65030920292
£258.99
£252.99 Save £6.00 £258.99
£210.83 excluding VAT @20%
iFrame

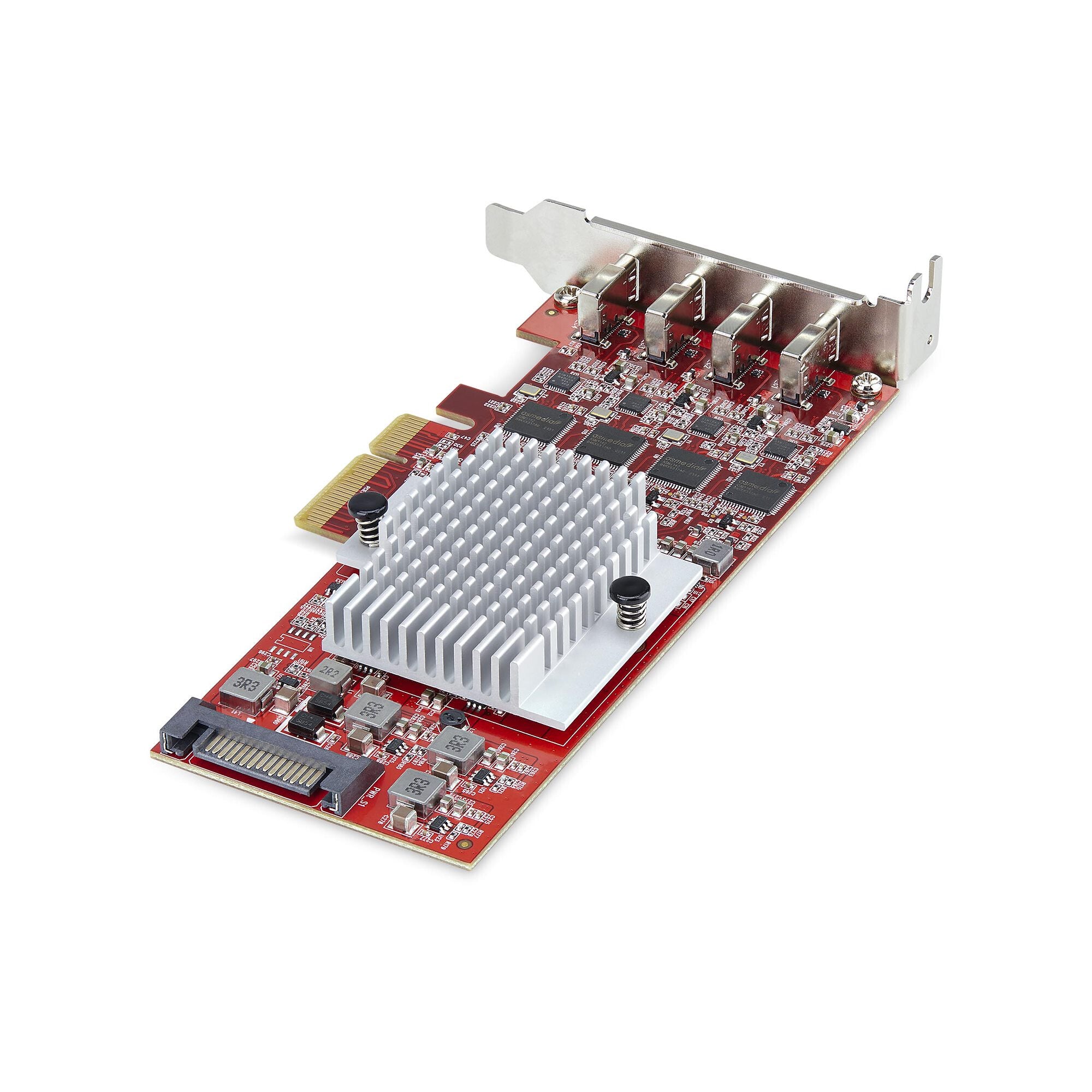

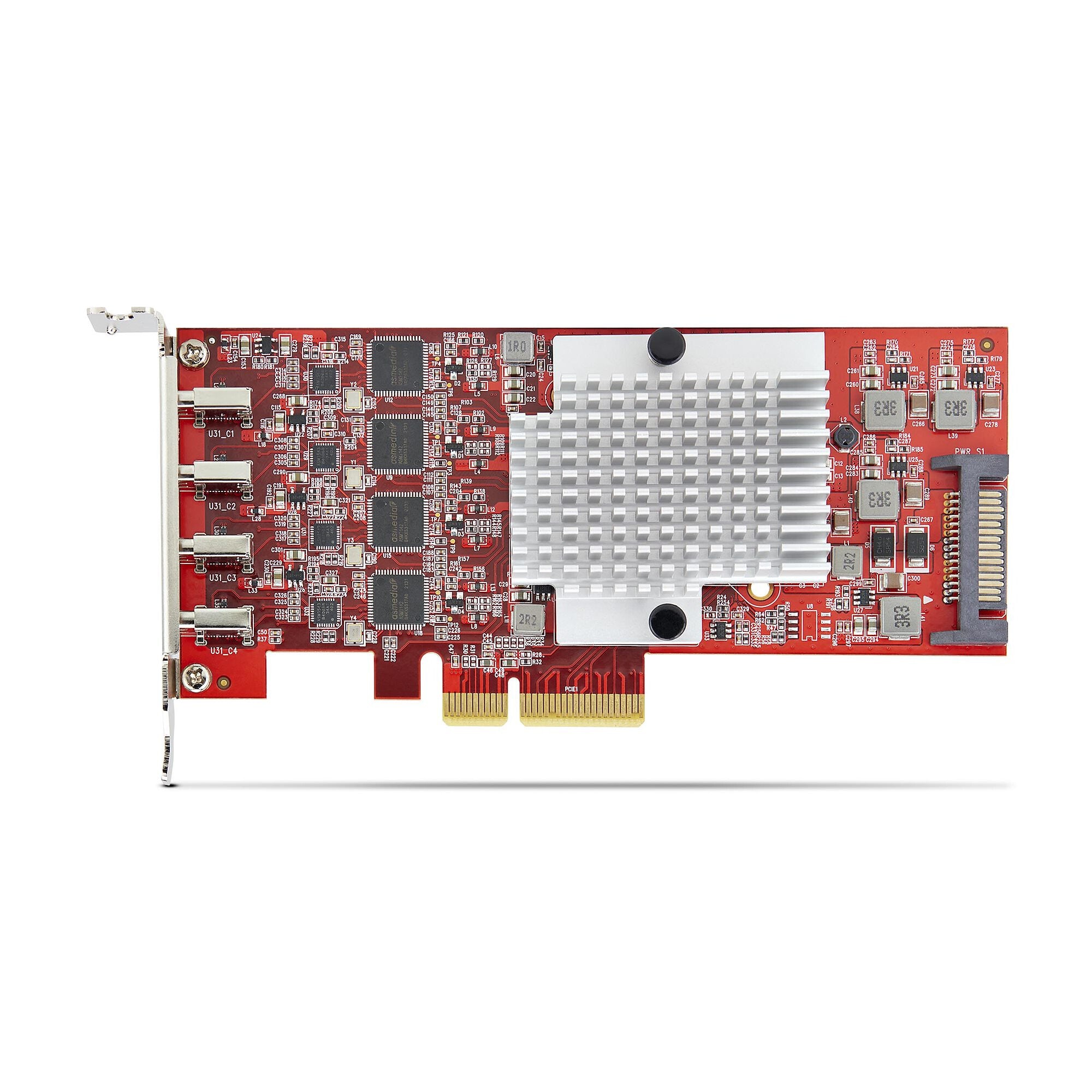

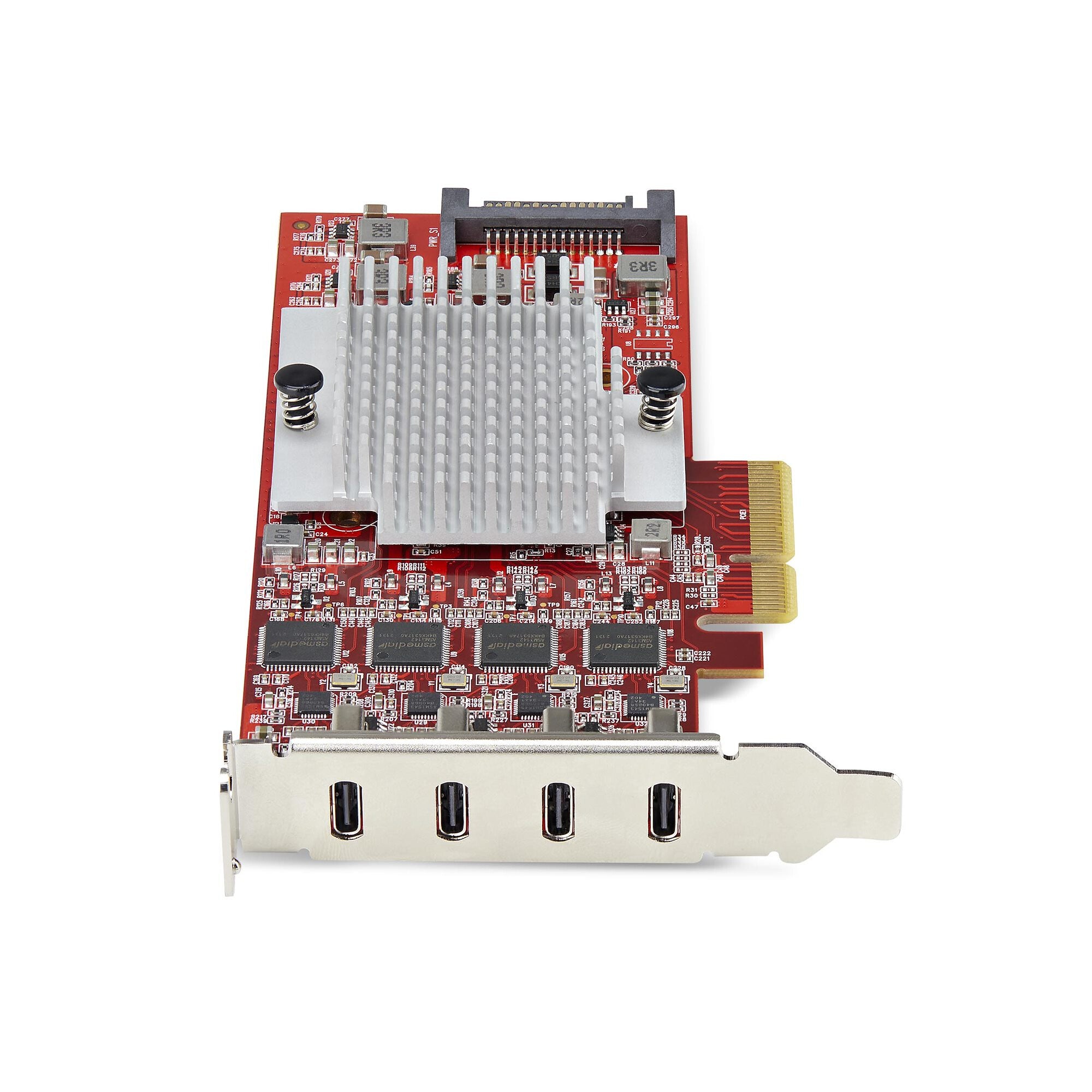

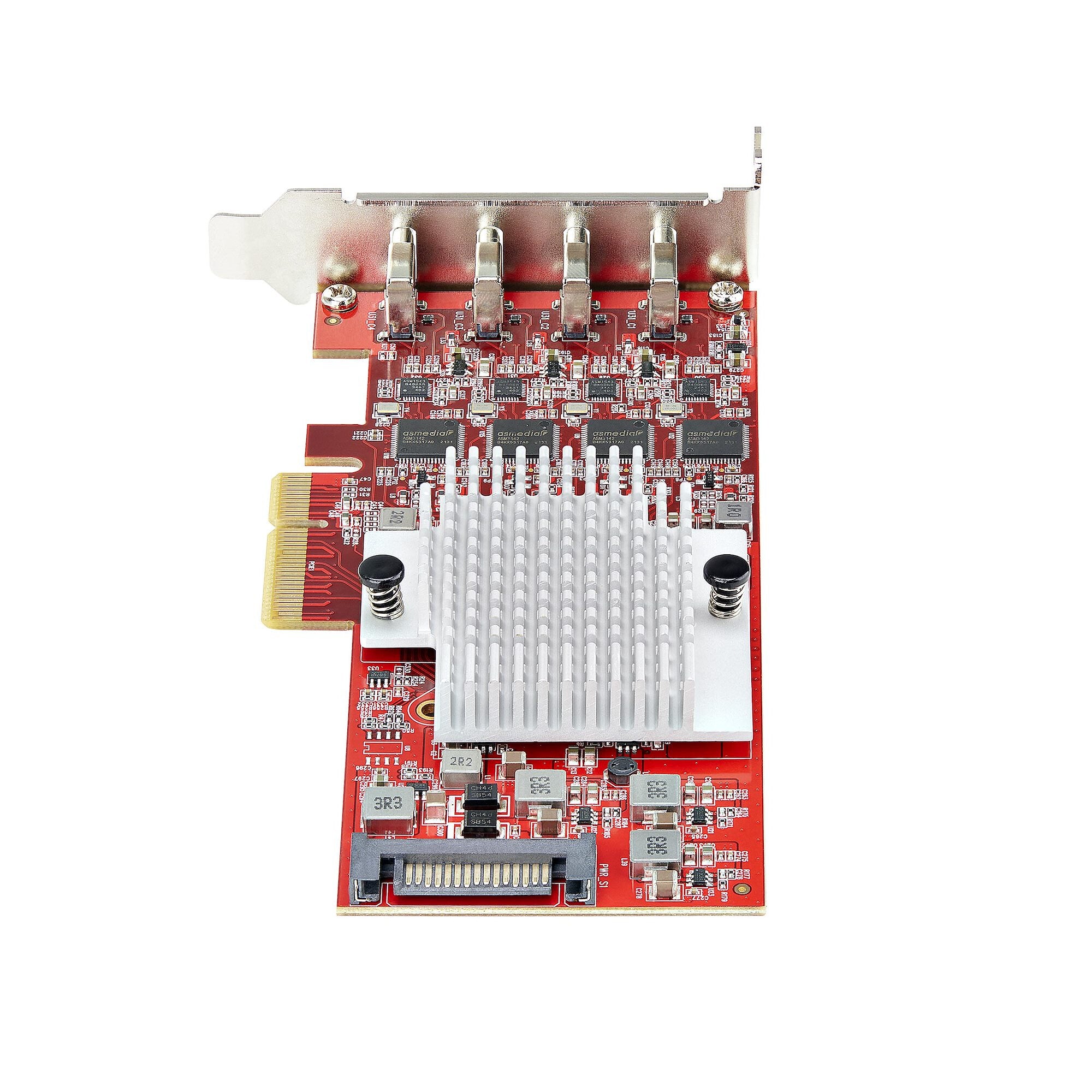

StarTech 4-Port USB-C 10Gbps PCIe Card, 4x Independent USB 3.2 Controllers, PCI Express 3.0, Low Profile, TAA

Add four 10Gbps USB Type-C ports to a server or desktop computer through PCI Express

Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.

Dedicated USB Controllers

Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.

USB 3.2 Gen 2 (10Gbps) Performance

The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.

Charge and Sync USB Devices

This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.

Compatibility

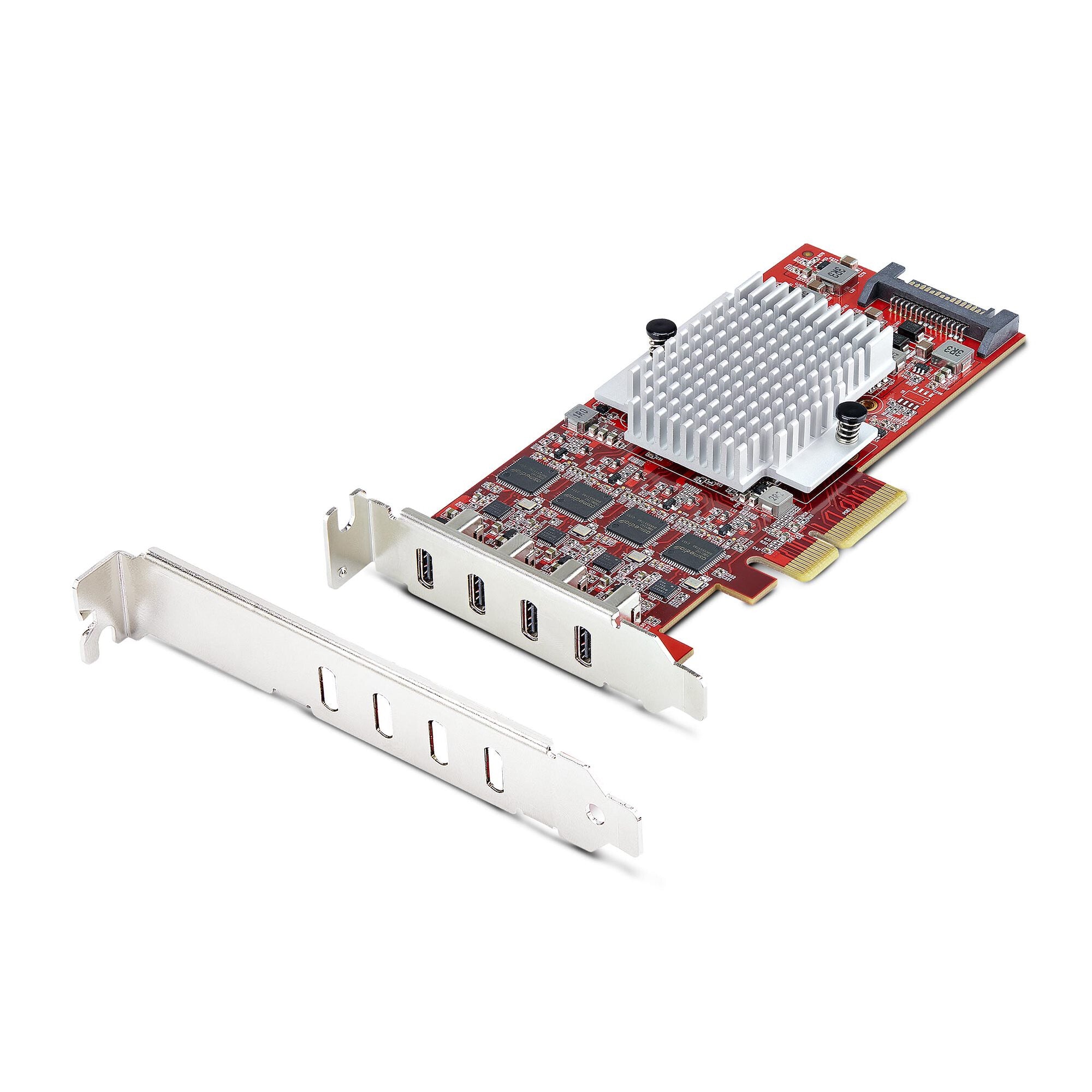

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed low-profile bracket and includes a standard profile bracket for maximum compatibility.

Ports & interfaces
Host interface PCIe
Output interface USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard PCI 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 4
Internal SATA ports quantity 1
SATA power connector type SATA 15-pin
Design
Internal Yes
Product colour Red
Features
Chipset ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X
Data transfer rate (max) 10 Gbit/s
Plug and Play Yes
Operational conditions
Operating temperature (T-T) 0 - 85 °C
Storage temperature (T-T) -25 - 85 °C
Operating relative humidity (H-H) 20 - 80%
Technical details
Compliance certificates Trade Agreements Act (TAA)
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported Yes
Server operating systems supported Windows Server 2019, Windows Server 2022
Weight & dimensions
Width 56.2 mm
Depth 140 mm
Height 79.2 mm
Weight 100 g
Packaging data
Mounting brackets included Yes
Quick installation guide Yes
Package width 142 mm
Package depth 170 mm
Package height 30 mm
Package weight 160 g
Logistics data
Products per master (outer) case 60 pc(s)
Master (outer) case width 380 mm
Master (outer) case length 310 mm
Master (outer) case height 500 mm
