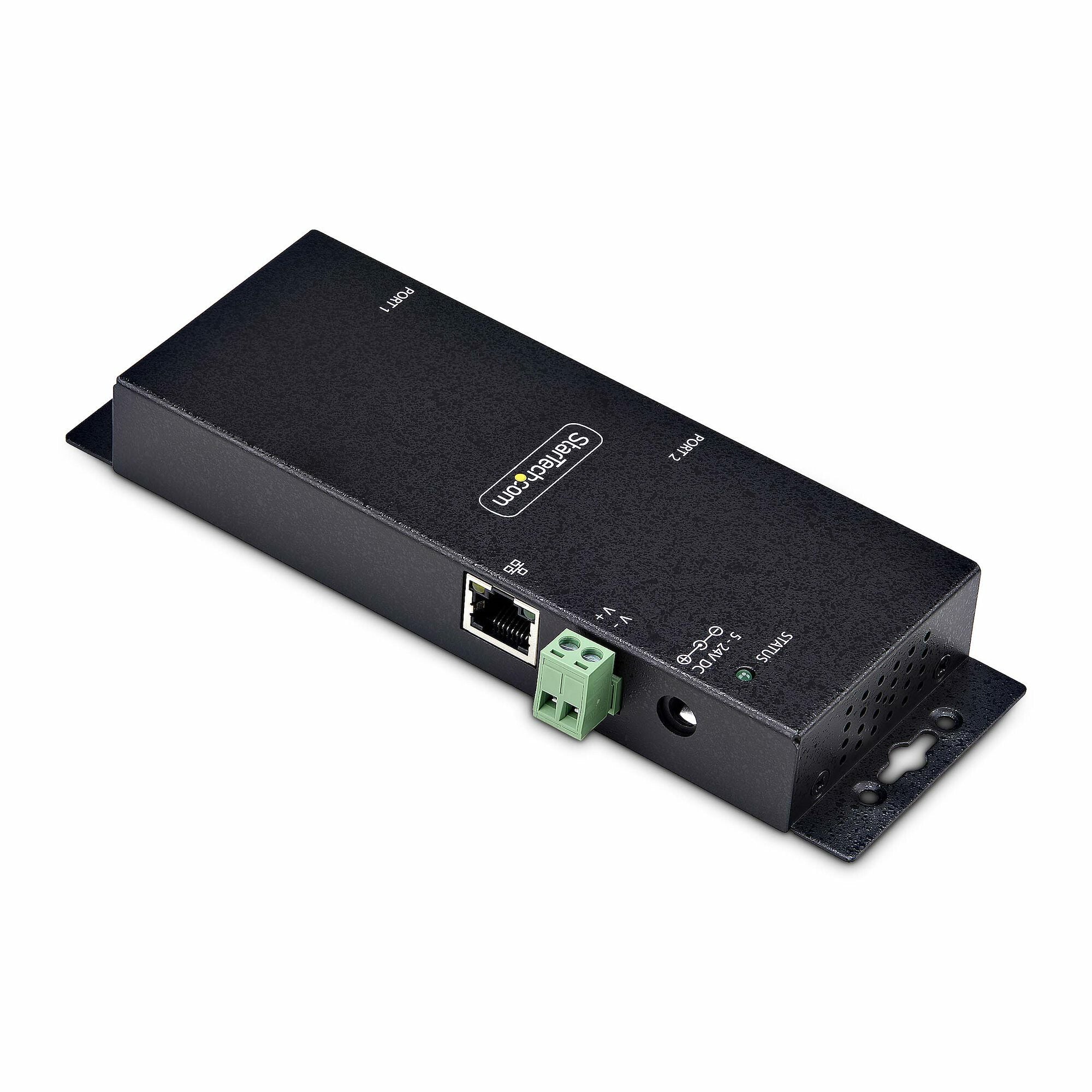

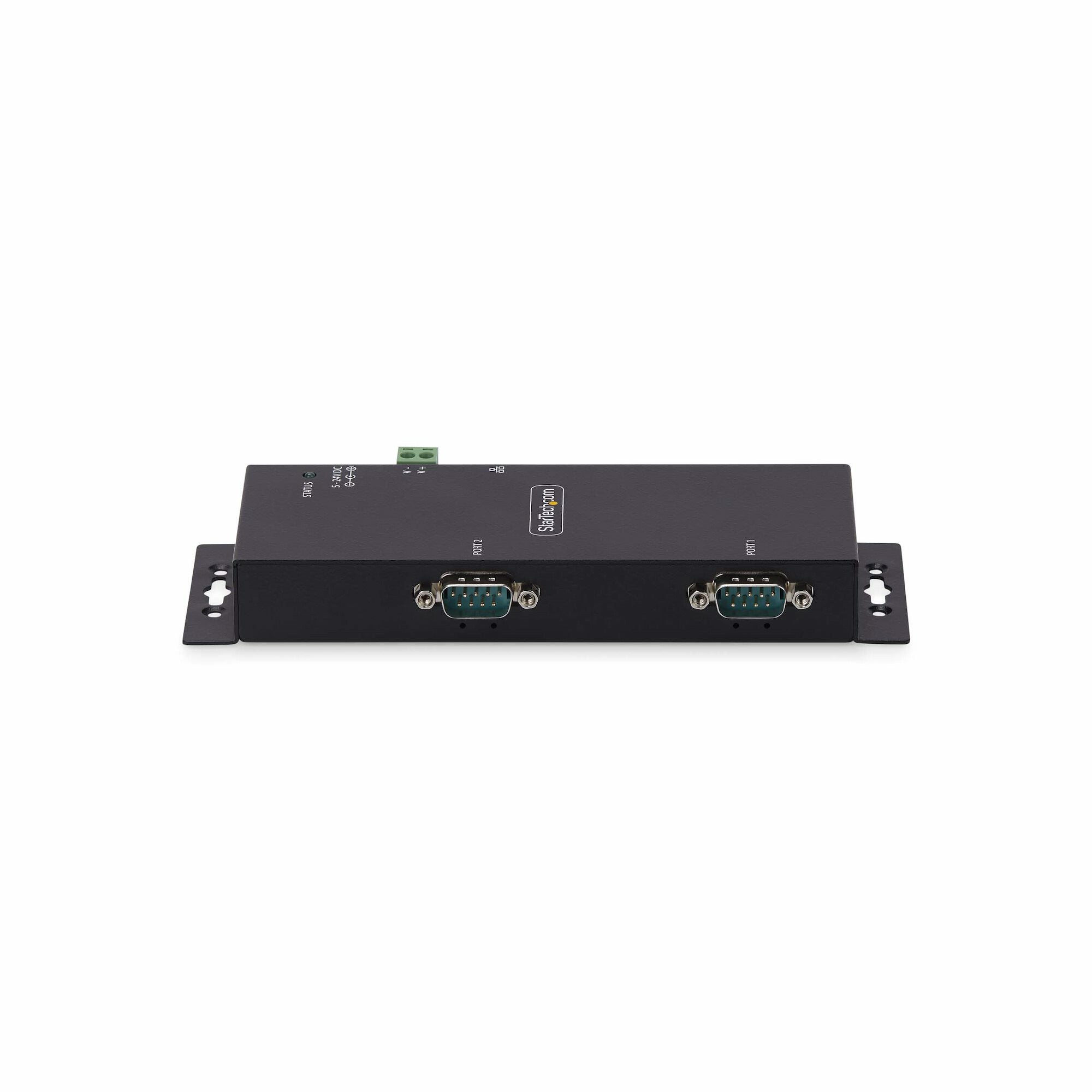

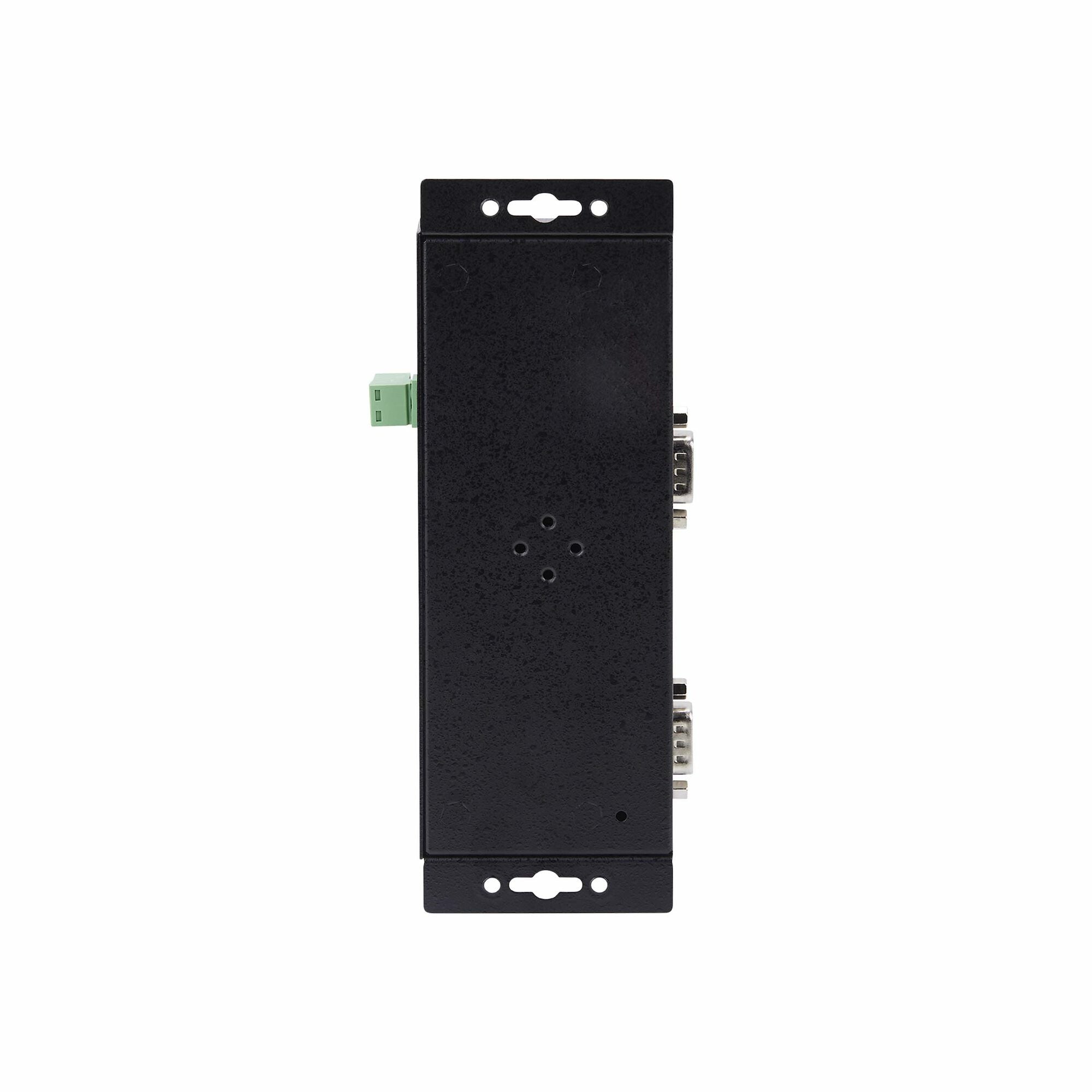

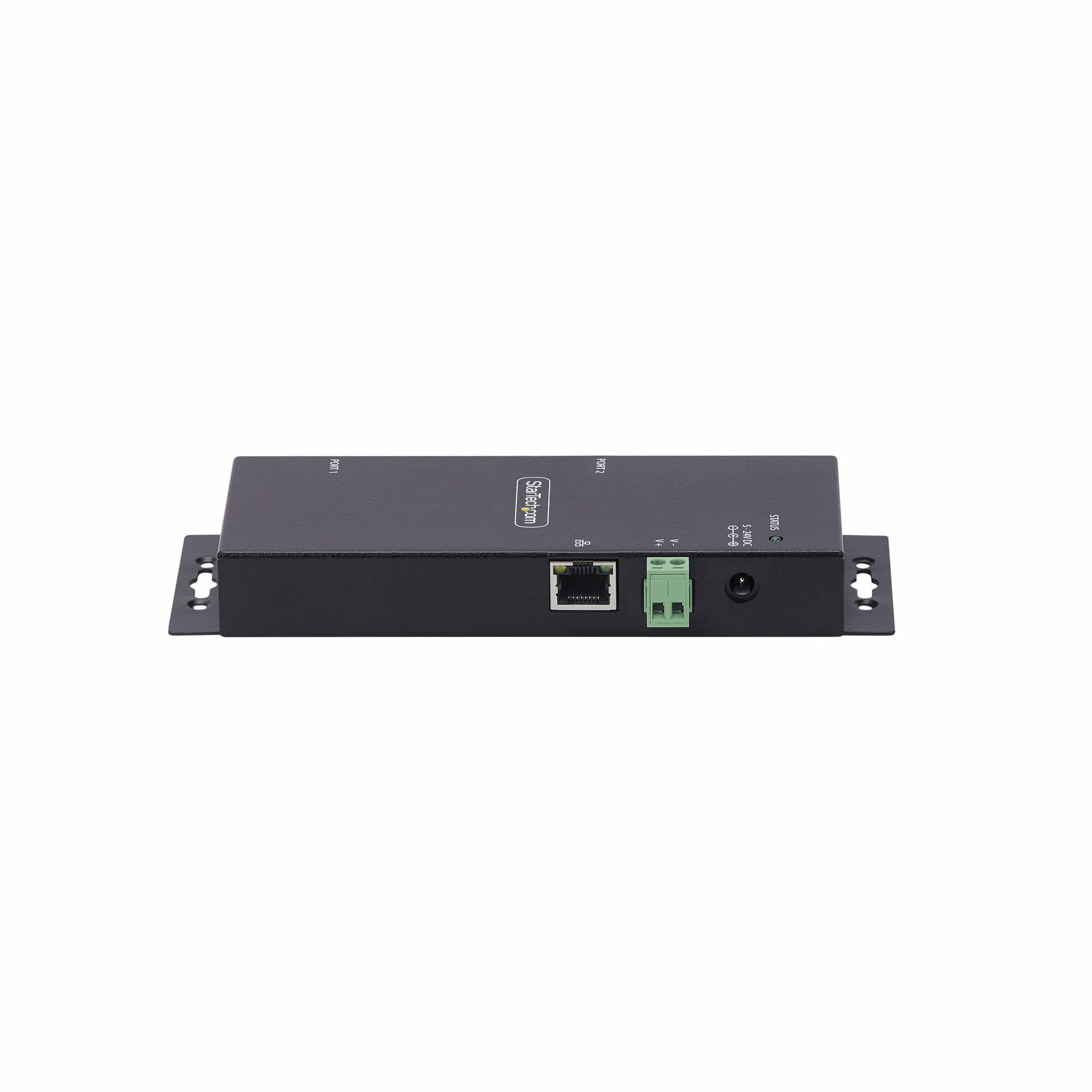

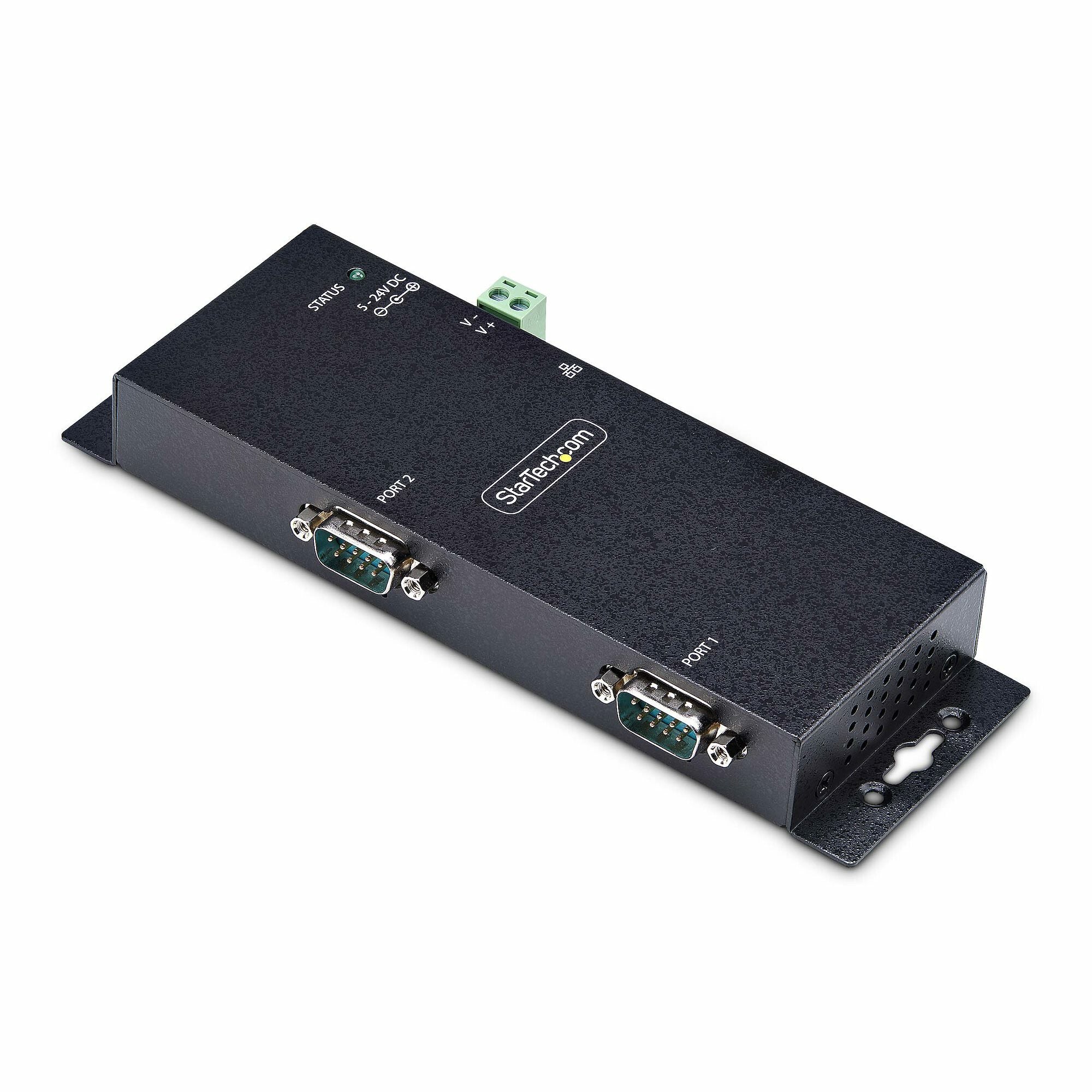

StarTech.com 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter, TAA
StarTech.com 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter, TAA est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
StarTech.com 2-Port Serial to Ethernet Adapter, IP Serial Device Se...
Streamline RS-232 connectivity for serial device management over IP
This 2-port serial to IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.
Configuration and Management
The DB9 to Ethernet Adapter family shares the same Windows Virtual COM Port software and Web User Interface (WebUI) for a unified experience. Users can employ the Windows software to view and manage all device servers within a network and to set up virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can manage their network of device servers efficiently, regardless of the operating system they are using.
The product family includes the following options:
• 1-Port Serial to Ethernet Adapter with PoE (I13P-SERIAL-ETHERNET)
• 1-Port Serial to Ethernet Adapter (I13-SERIAL-ETHERNET)
• 2-Port Serial to Ethernet Adapter (I23-SERIAL-ETHERNET)
• 4-Port Serial to Ethernet Adapter (I43-SERIAL-ETHERNET)
Flexible Installation and Rugged Chassis
Dual power options, DC jack and terminal block, provide installation flexibility and convenience. The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. Dimensions of 7x2.3x0.9in (178x59.4x23mm).
Ethernet and Power Options
The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports Level-4 ESD protection (15kV air/8kV contact), and can supply 5VDC over pin 9 if required.
| Network | |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Technical details | |
|---|---|
| Host interface | RS-232 |
| Output interface | RJ-45 |
| Connector 1 | DB-9 |
| Connector 2 | RJ-45 |
| Connector gender | Female/Female |
| Mounting | Wall/DIN |
| Electrostatic Discharge (ESD) protection (contact) | 8 kV |
| Electrostatic Discharge (ESD) protection (air) | 15 kV |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Compliance certificates | Trade Agreements Act (TAA) |
| Stop bits | 1, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Data bits | 7, 8 |
| Product colour | Black |
| Serial ports quantity | 2 |
| Baud rate | 921.6 Kbit/s |
| Logistics data | |
|---|---|
| Master (outer) case height | 281 mm |
| Master (outer) case width | 433 mm |
| Master (outer) case length | 418 mm |
| Products per master (outer) case | 15 pc(s) |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Packaging data | |
|---|---|
| Manual | Yes |
| Packaging content | |
|---|---|
| DIN rail included | Yes |
| AC adapter included | Yes |
| Number of screws included | 2 pc(s) |
| Indication | |
|---|---|
| LED indicators | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 15 W |
| Output current | 3 A |
| Output voltage | 5 V |
| Input current | 0.48 A |
| Input voltage | 100 - 240 V |
| Material | |
|---|---|
| Housing material | Steel |
| Weight & dimensions | |
|---|---|
| Width | 179 mm |
| Depth | 60 mm |
| Height | 23 mm |
| Weight | 315 g |
| Package width | 245 mm |
| Package depth | 168 mm |
| Package height | 62 mm |
| Package weight | 600 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating temperature (T-T) | 0 - 60 °C |
-
