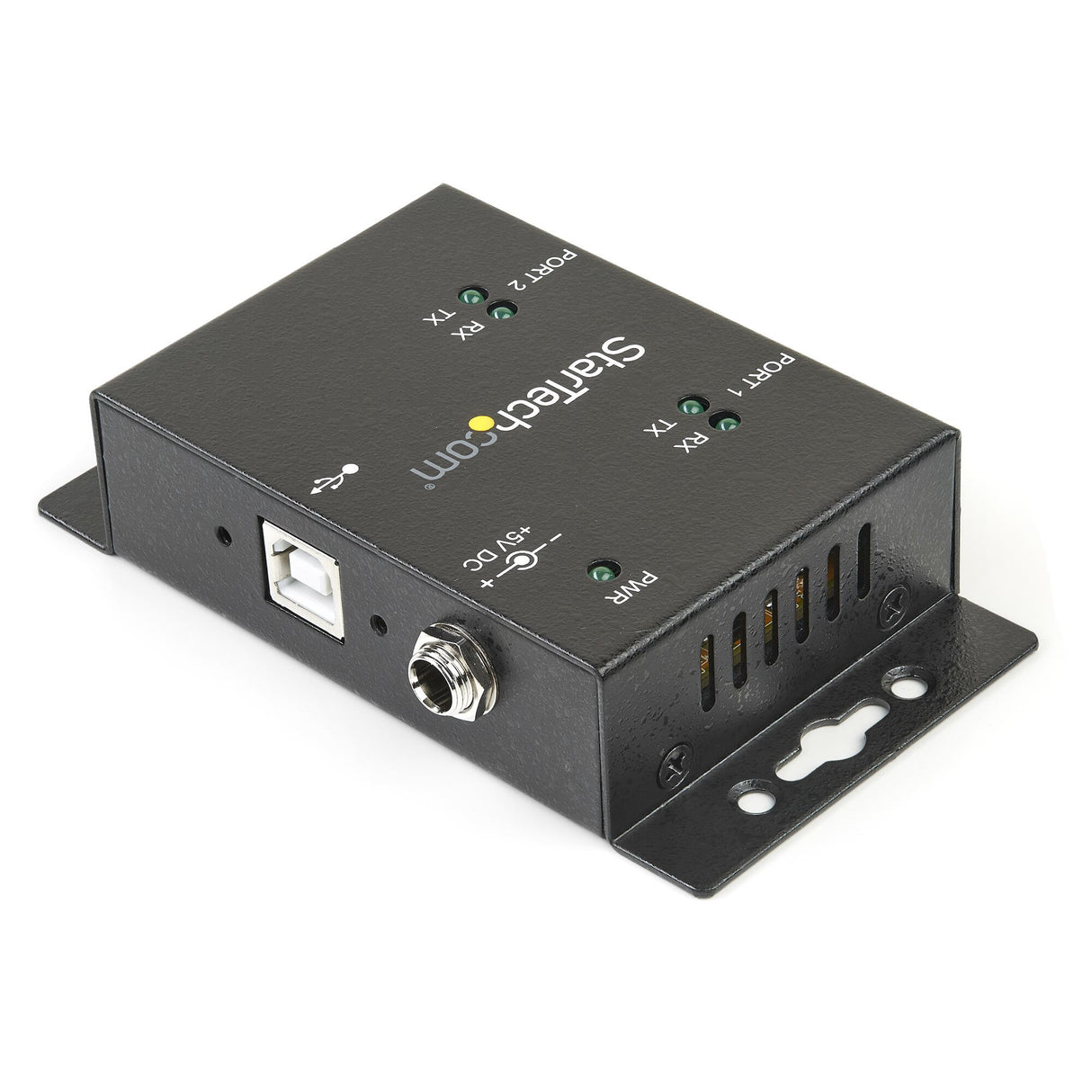

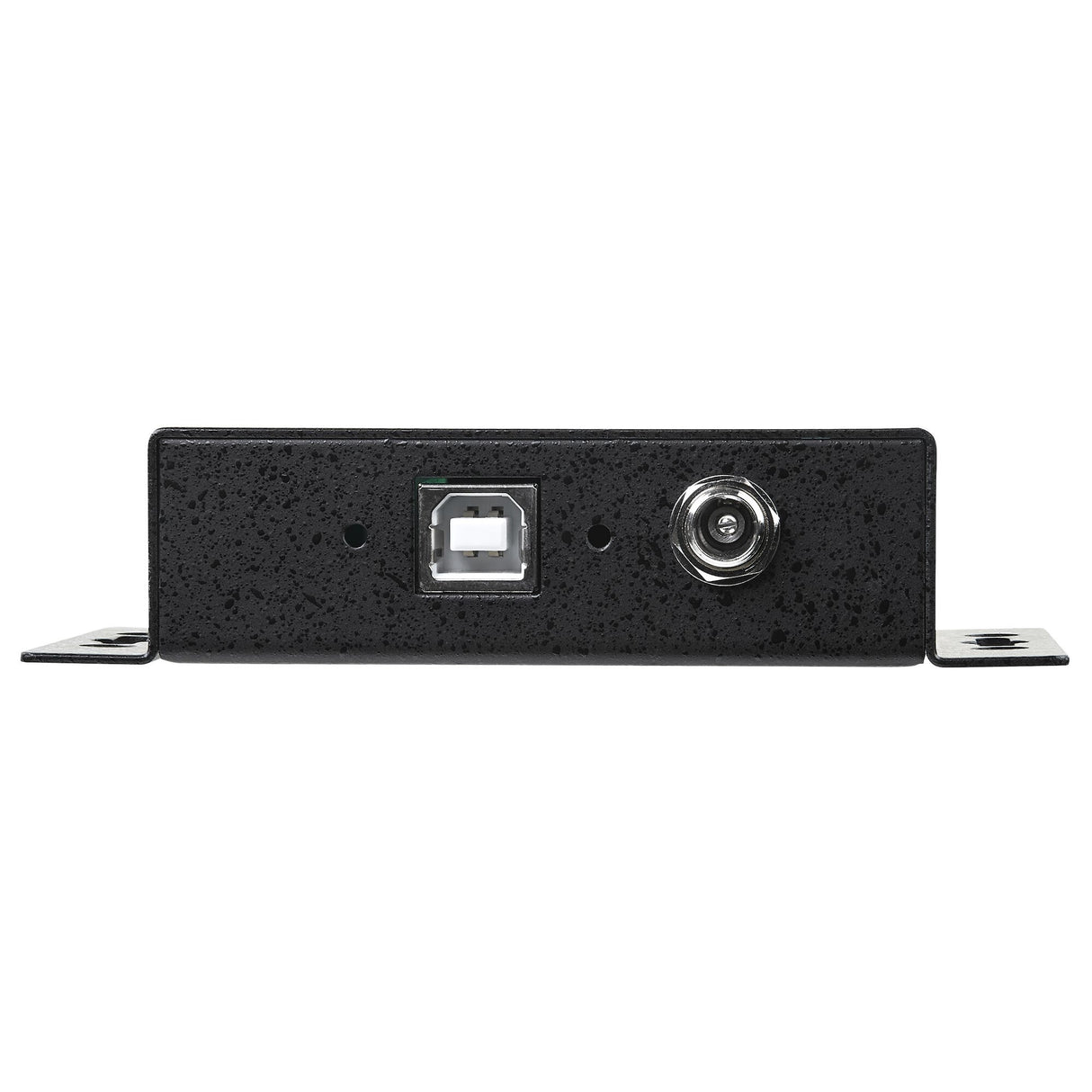

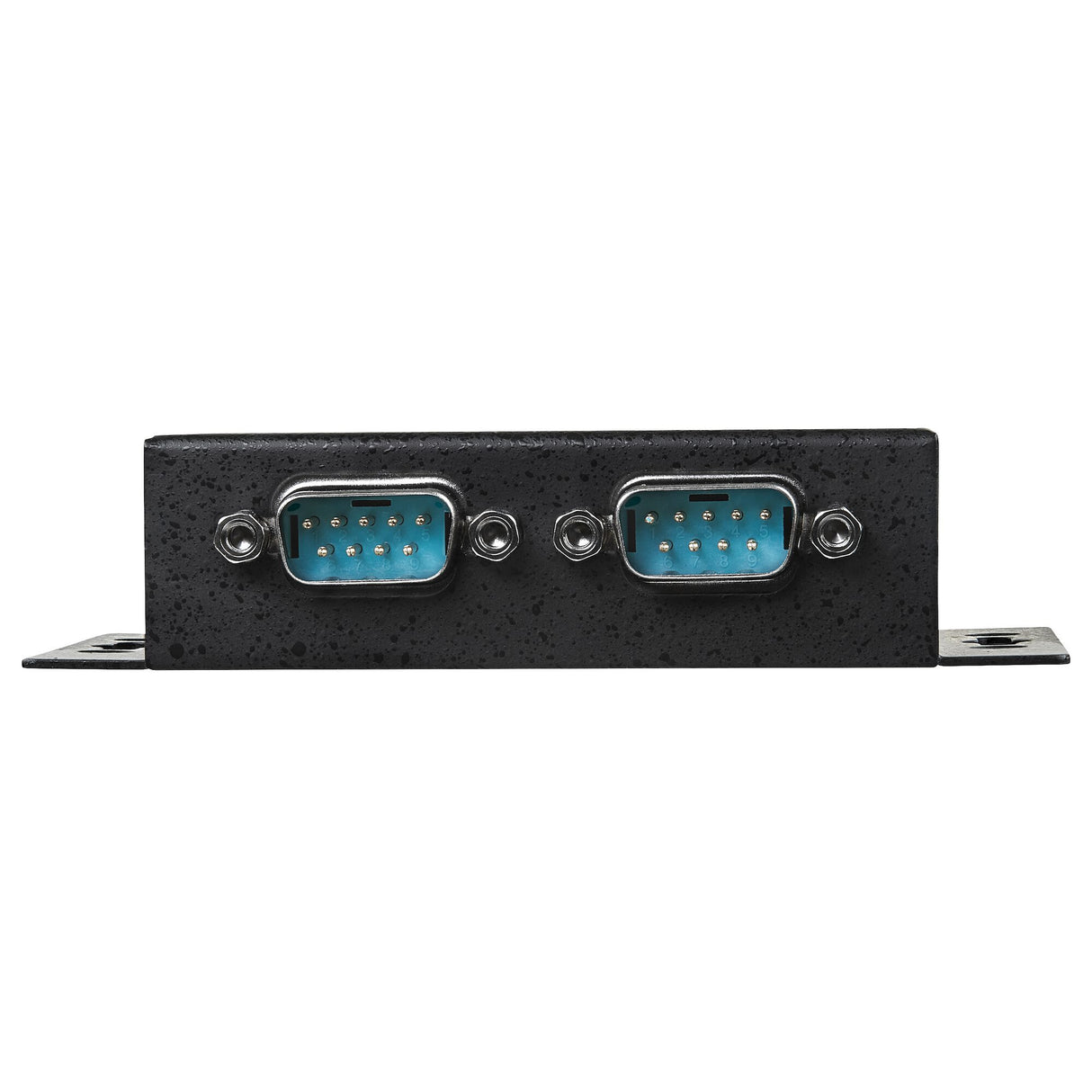

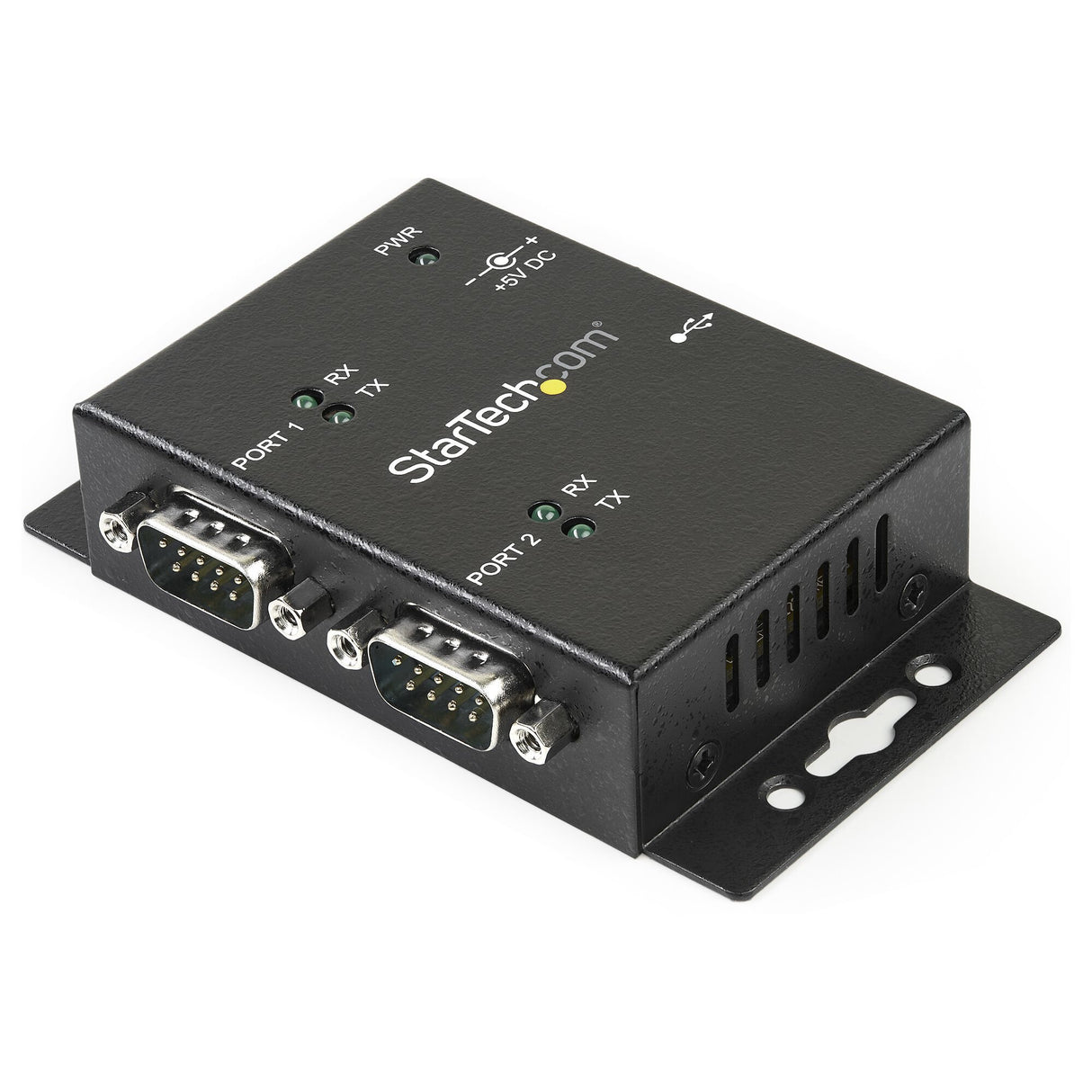

StarTech.com 2 Port Industrial Wall Mountable USB to Serial Adapter Hub with DIN Rail Clips

STARTECH  |  SKU : ICUSB2322I  |  Condition: Brand New  |  Code-barres: 0065030846943

MORE INFO

£70.99
£59.16 excluding VAT @20%
iFrame
StarTech.com USB to Serial Adapter - 2 Port - Wall Mount - Din Rail Clips - Industrial - COM Port Retention - FTDI - DB9

Add 2 DIN Rail-mountable RS232 Serial ports to any system through USB

The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Ports & interfaces
RS-232 ports 2
Hub interfaces Serial
Host interface USB 2.0 Type-B
Ports quantity 2
Features
LED indicators Activity
Product colour Black
Housing material Steel
System requirements
Compatible operating systems Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x
Other operating systems supported Windows XP Embedded
Linux operating systems supported Yes
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Windows operating systems supported Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Weight & dimensions
Weight 162 g
Height 24 mm
Depth 104 mm
Width 66 mm
Packaging data
Package weight 400 g
Package height 41 mm
Package depth 214 mm
Package width 145 mm
Quantity per pack 1 pc(s)

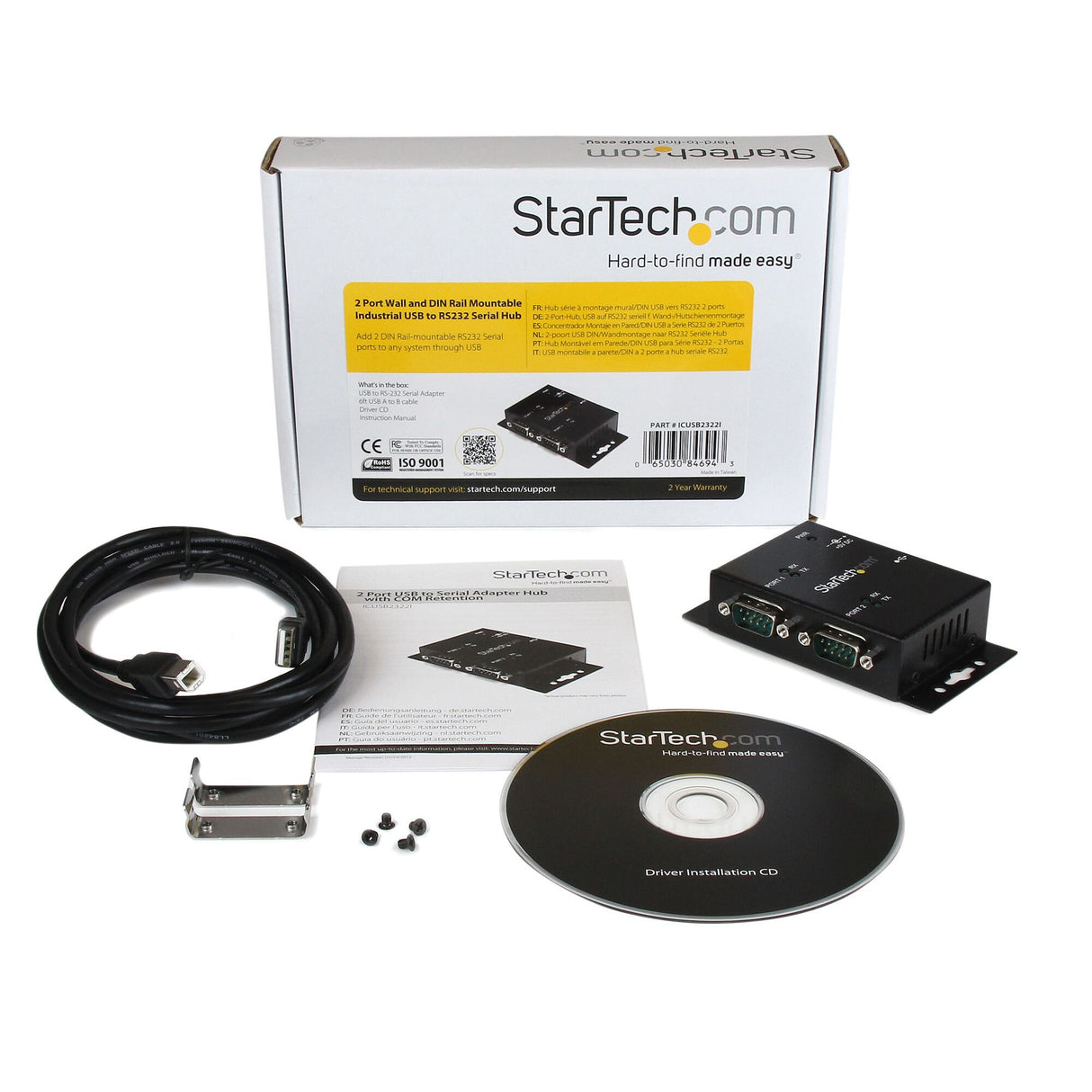

Packaging content
DIN rail kit included Yes
Drivers included Yes
Cables included USB
Manual Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -20 - 85 °C
Operating temperature (T-T) 0 - 55 °C
Performance
Baud rate 921.6 Kbit/s
FIFO (First In, First Out) 256 B
Parity bit Even, Mark, No, Odd, Space
Stop bits 1, 2
Data bits 7, 8
Sustainability
Sustainability compliance Yes
Logistics data
Harmonized System (HS) code 84719000
Products per master (outer) case 45 pc(s)
Master (outer) case height 364 mm
Master (outer) case length 525 mm
Master (outer) case width 444 mm
Technical details
Compliance certificates CE, RoHS
Other features
Chipset FTDI - FT232RL
