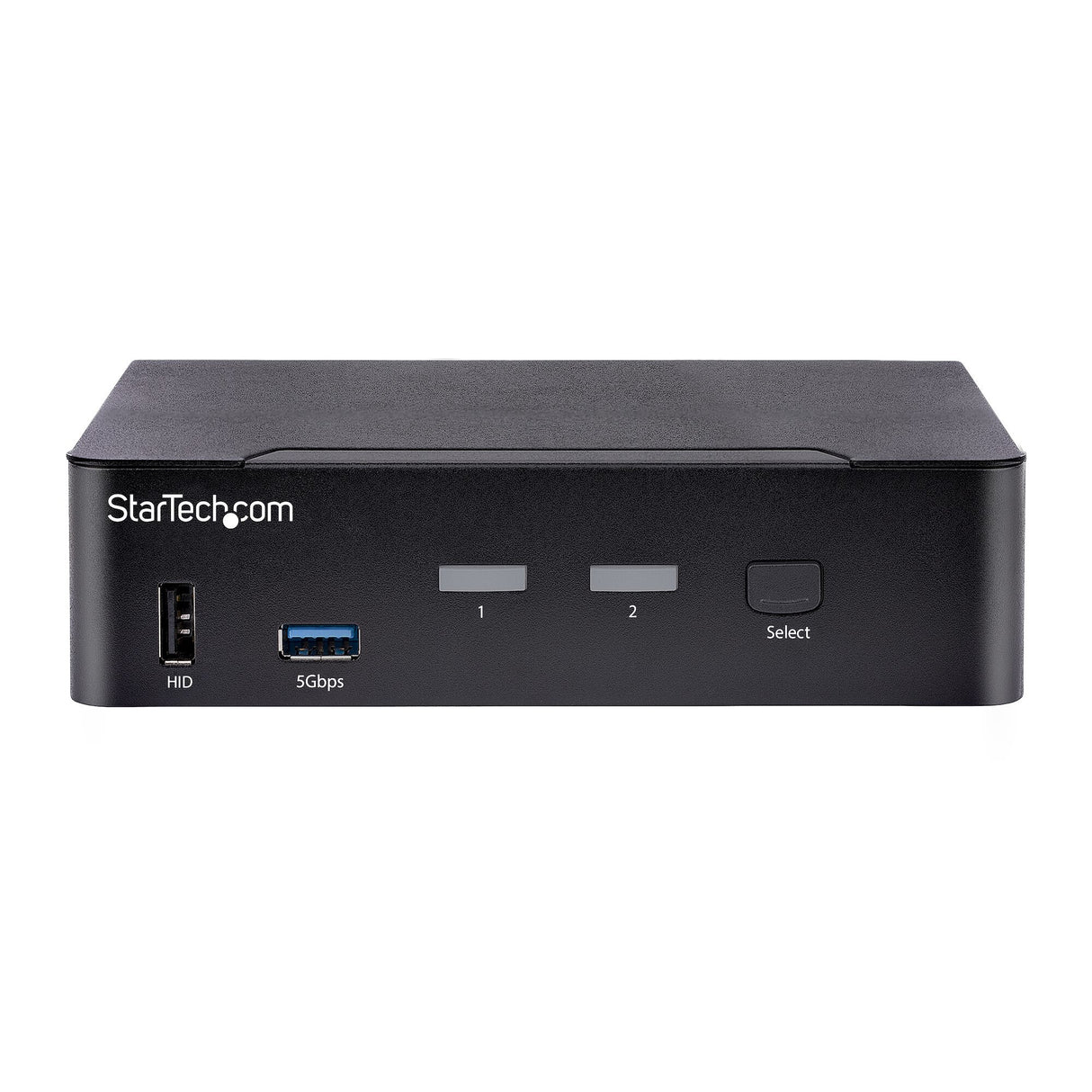

StarTech.com SV231DPUCA KVM switch Black
DisplayPort 1.2 KVM | 6x USB Hub Ports | Digital & Analog Audio | TAA Compliant
This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.
4K 60Hz Resolution
This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Analog and Digital Audio
This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.
Intuitive Control

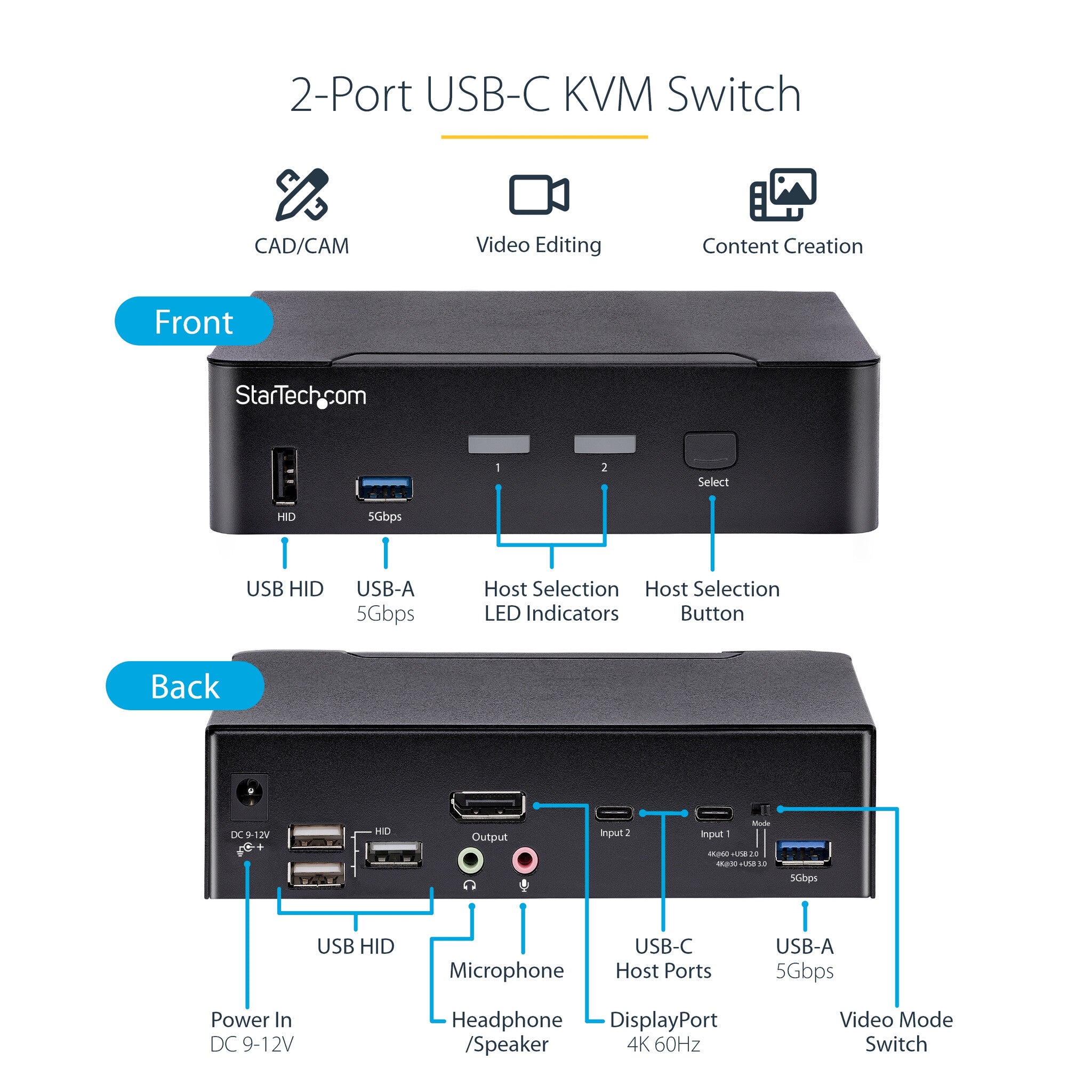

The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Number of microphone inputs | 1 |
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB hub | Yes |
| Console DisplayPorts ports quantity | 1 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort |
| Console USB ports quantity | 6 |
| DisplayPort version | 1.2 |
| Video port type | DisplayPort |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 2 |
| Performance | |
|---|---|
| Number of displays supported | 1 |
| Chipset | Parade - PS8461, Etron - EJ899I |
| Audio channels | 2.0 |
| HDCP | Yes |
| Scan interval | 3,8,15,30 s |
| Data transfer rate (max) | 5 Gbit/s |
| Video bandwidth | 60 Hz |
| Maximum resolution | 5120 x 1440 pixels |
| HD type | 4K Ultra HD |
| Design | |
|---|---|
| Mean time between failures (MTBF) | 158000 h |
| Hot keys | Yes |
| Push button | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power plug type | Type M |
| Output current | 3 A |
| Output voltage | 12 V |
| Input current | 1.2 A |
| Input voltage | 100 - 240 V |
| Power source | AC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 600 g |
| Height | 40 mm |
| Depth | 160 mm |
| Width | 140 mm |
| Packaging data | |
|---|---|
| Package weight | 1 kg |
| Package height | 89 mm |
| Package depth | 238 mm |
| Package width | 184 mm |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Rubber feet | Yes |
| Other features | |
|---|---|
| IP control | No |
| Logistics data | |
|---|---|
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case height | 257 mm |
| Master (outer) case length | 397 mm |
| Master (outer) case width | 300 mm |
-
