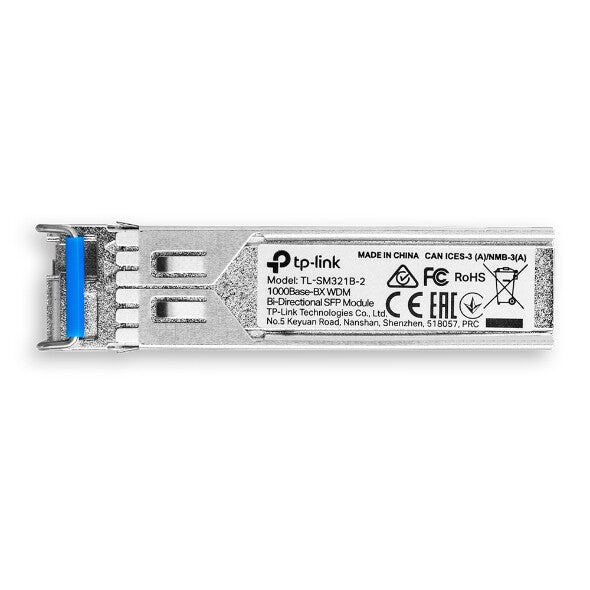

TP-Link TL-SM321B network transceiver module Fiber optic 1250 Mbit/s SFP
Key Details:
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

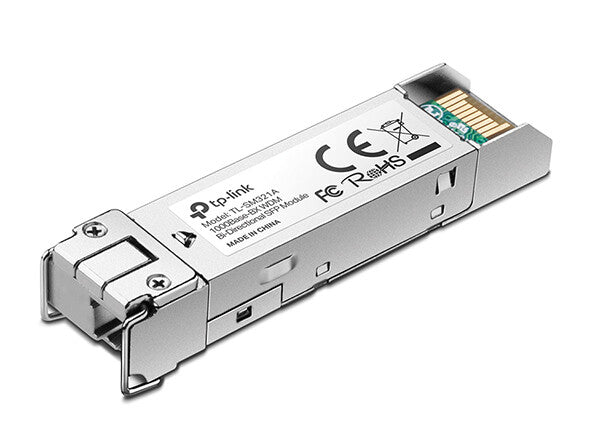

- Pairing with TL-SM321A or MC111CS
- Compatible with T3700 series, T2700 series, T2600 series, T2500 series, T1700 series, T1600 series, T1500 series, 2/3/5 series switches and MC220L
TP-Link TL-SM321B network transceiver module Fiber optic 1250 Mbit/...
Descripción
Descripción

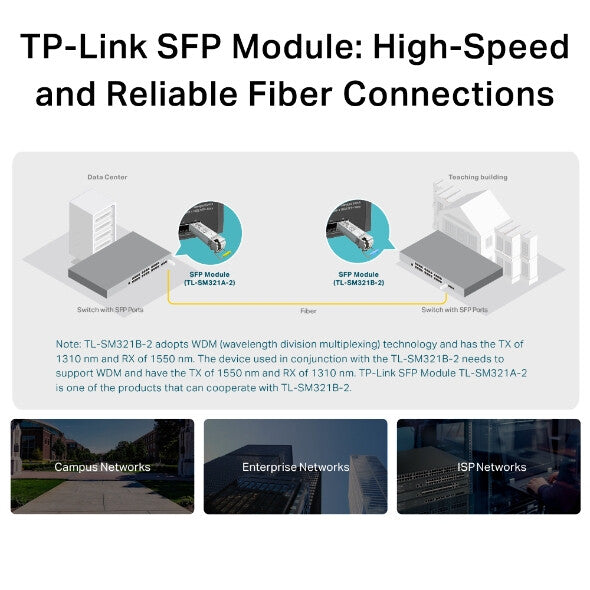

TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
| Performance | |
|---|---|
| Wavelength-division multiplexing (WDM) | Yes |
| Networking standards | IEEE 802.3z |
| Rx wavelength (max) | 1550 nm |
| Tx wavelength (max) | 1310 nm |
| Maximum transfer distance | 1000 m |
| SFP transceiver standard | BX |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Fiber optic connector | LC |
| Multi-mode fiber (MMF) supported | No |
| Single-mode fiber (SMF) supported | Yes |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| SFP transceiver type | Fiber optic |
| Features | |
|---|---|
| Certification | FCC, CE |
| Product colour | Metallic |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Height | 12.9 mm |
| Depth | 14.6 mm |
| Width | 55.4 mm |
| Packaging data | |
|---|---|
| Package weight | 60 g |
| Package height | 38.5 mm |
| Package depth | 122.5 mm |
| Package width | 81.5 mm |
| User guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
