StarTech.com SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1061 Non-Raid - PCIe to SATA Converter

STARTECH  |  SKU: 2P6G-PCIE-SATA-CARD  |  Condition: Brand New  |  Código de barras: 0065030895545

MORE INFO

£58.99
£49.16 excluding VAT @20%
iFrame

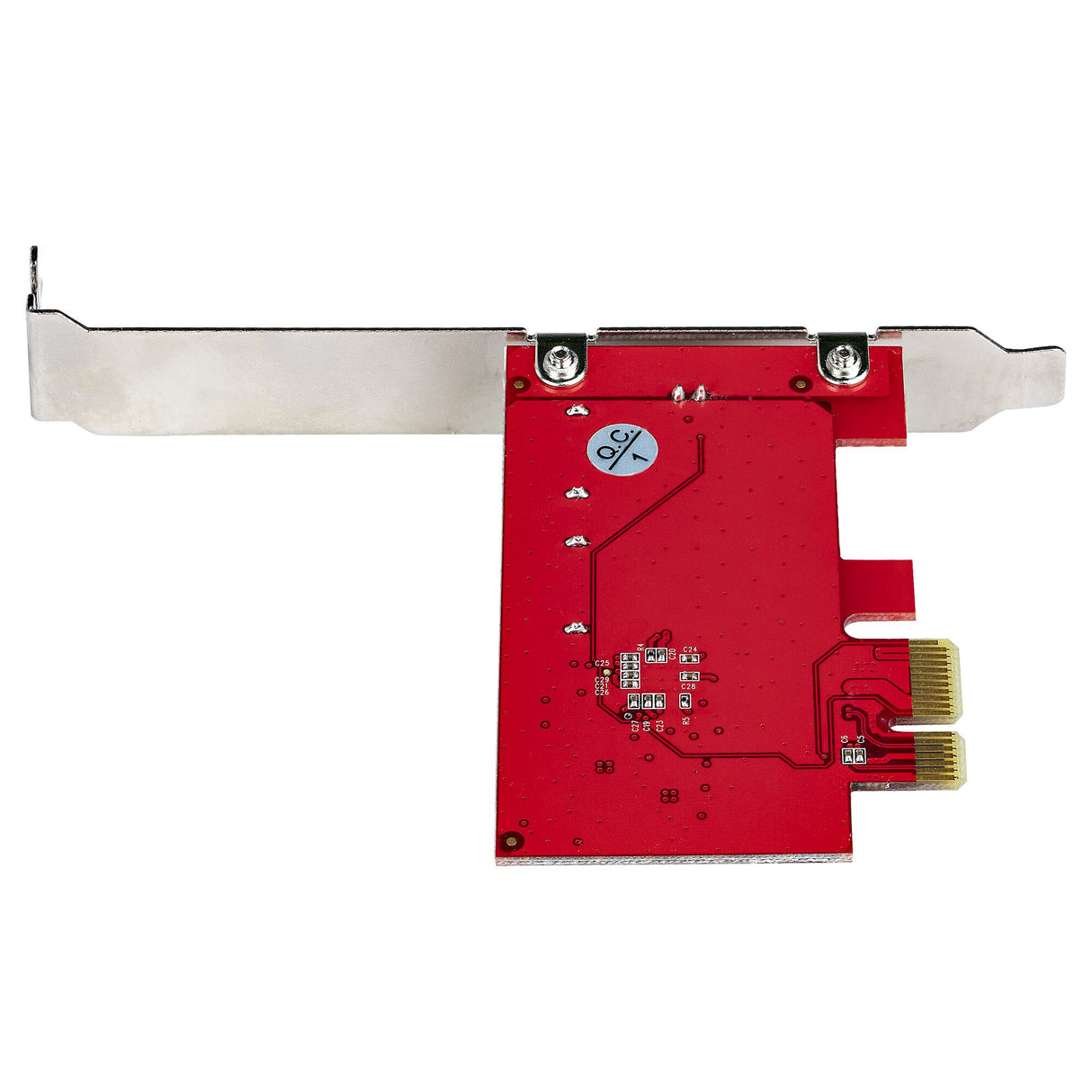

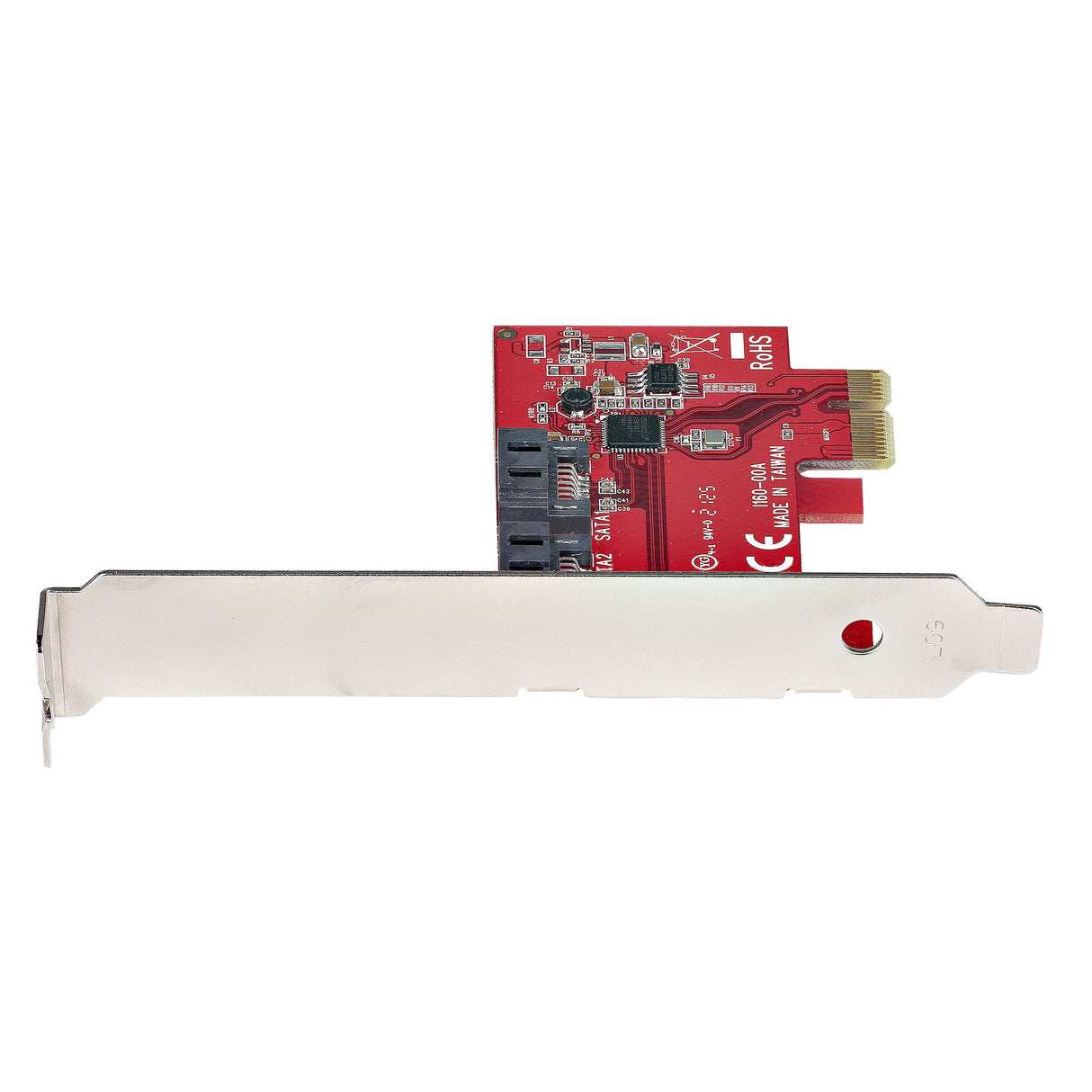

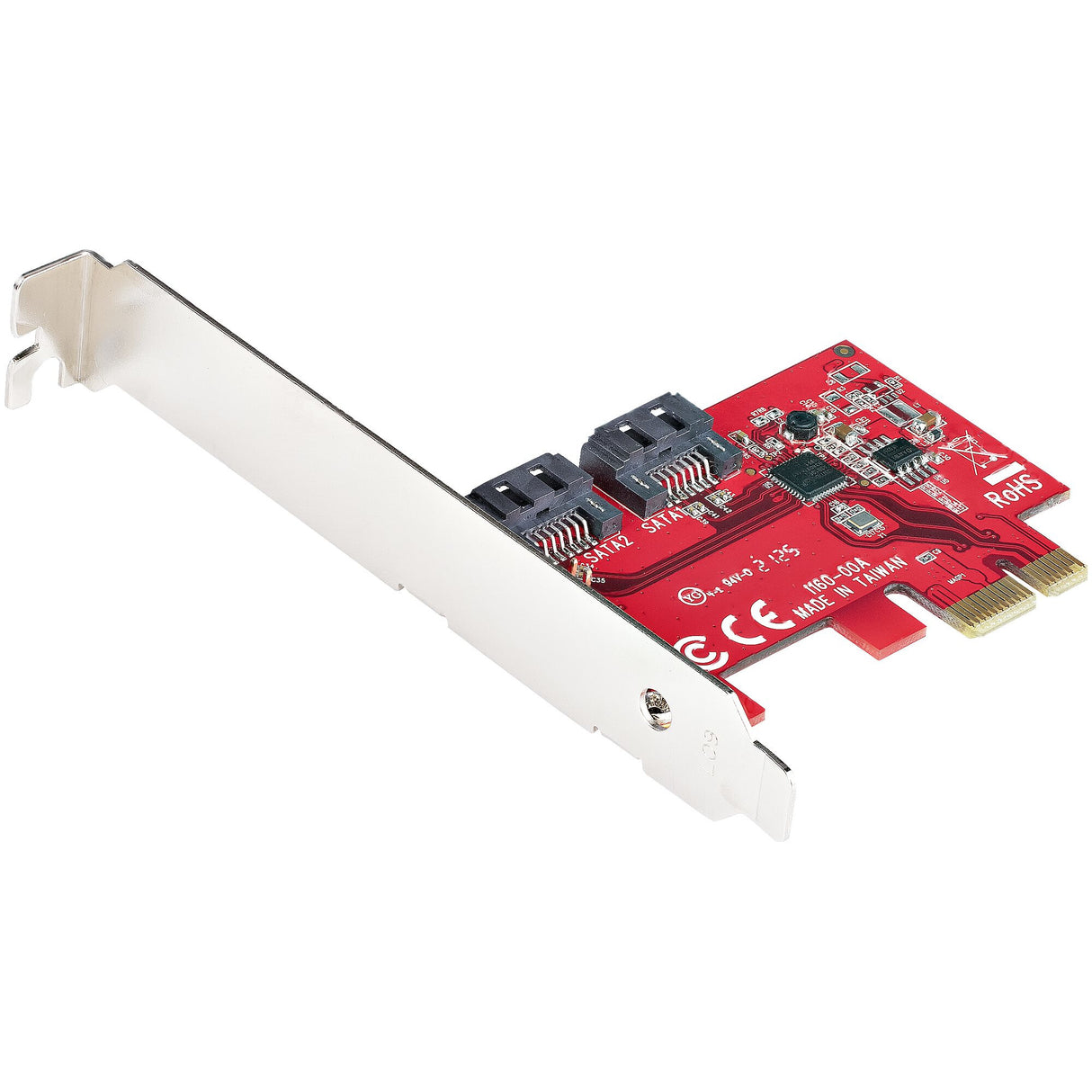

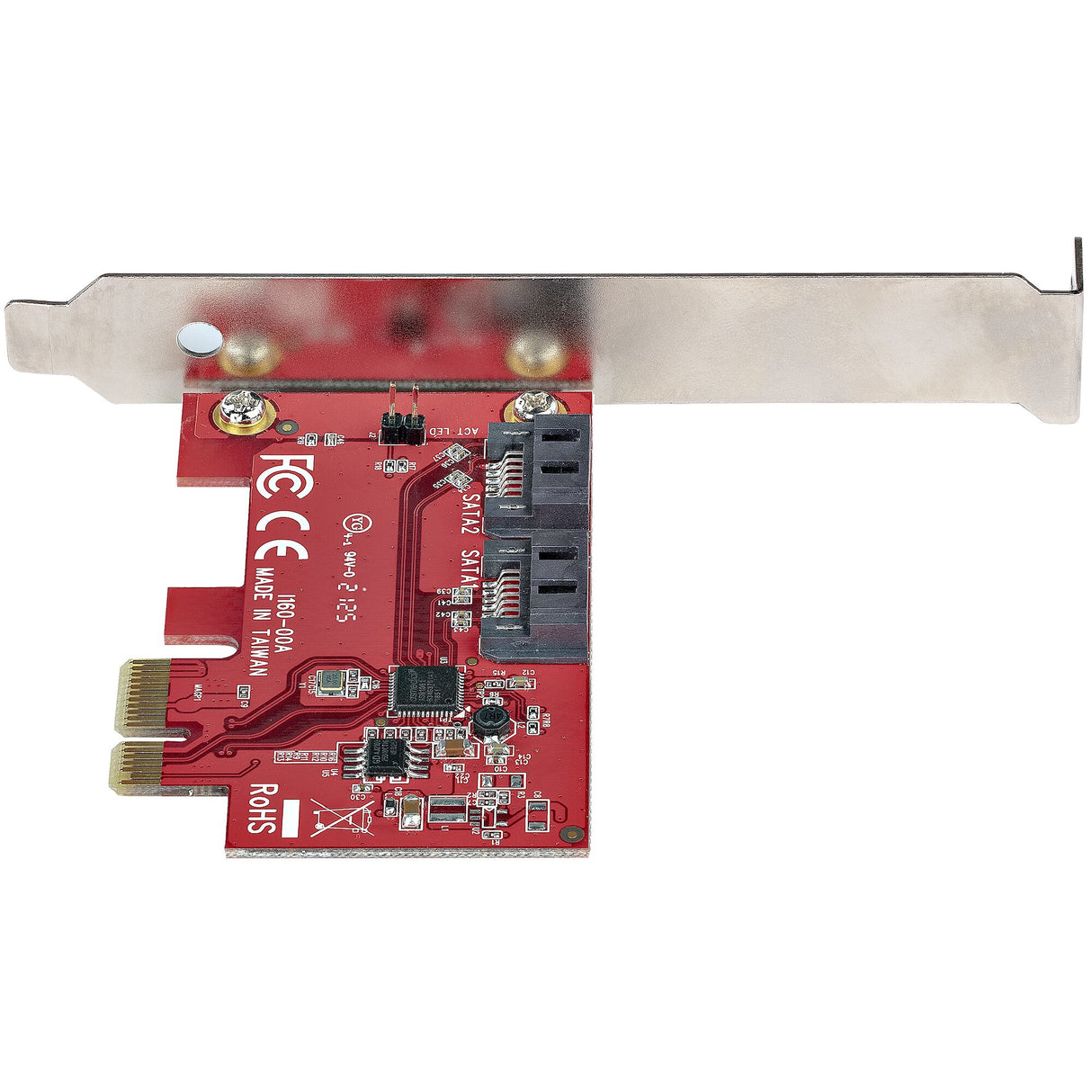

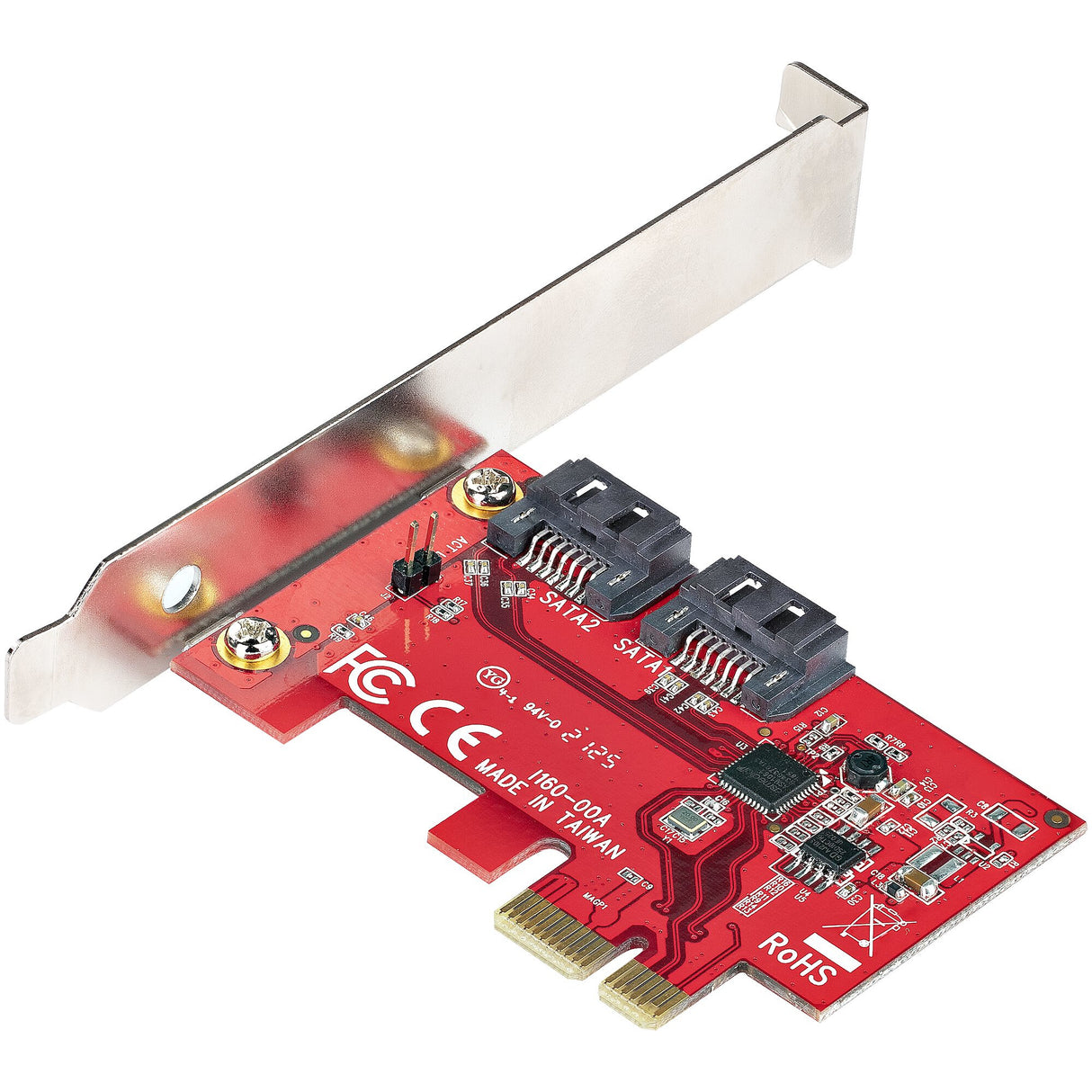

StarTech.com SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1061 Non-Raid - PCIe to SATA Converter (2P6G-PCIE-SATA-CARD)

SATA III (6Gbps) | PCI Express 2.0 | PCIe x1 Slot | 2x SATA Connectors | Lifetime Warranty

This 2-port SATA III (6Gbps) controller enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x1 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.

ASM1061 to Deliver 2-Port SATA 6Gbps Performance

Featuring the ASM1061 controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 4Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).

Wide Compatibility

The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.6.8 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).

To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.

Hassle-Free Installation

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.

2P6G-PCIE-SATA-CARD is backed by a StarTech.com lifetime warranty and free lifetime 24/5 North American based, multi-lingual support.

The StarTech.com Advantage

Ports & interfaces
Port multiplier Yes
Internal SATA ports quantity 2
SATA revision 3.0
Output interface SATA
Host interface PCIe
Design
LED indicators Yes
Product colour Red
Internal Yes
Features
TRIM support Yes
S.M.A.R.T. support Yes
Data transfer rate (max) 6 Gbit/s
Chipset ASMedia - ASM1161
Operational conditions
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -25 - 85 °C
Operating temperature (T-T) 0 - 85 °C
System requirements
Server operating systems supported Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Linux operating systems supported Yes
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Weight & dimensions
Weight 33 g
Height 121 mm
Depth 69 mm
Width 18 mm
Packaging data
Package weight 110 g
Package height 30 mm
Package depth 175 mm
Package width 142 mm
User guide Yes
Mounting brackets included Yes
Logistics data
Master (outer) case height 500 mm
Master (outer) case length 380 mm
Master (outer) case width 370 mm
Products per master (outer) case 60 pc(s)
Harmonized System (HS) code 84733020
