Neomounts WL35-750BL18 Heavy duty wall mount 55-98" - tilt - lockable - fast installation - TÜV

NEOMOUNTS  |  SKU: WL35-750BL18  |  Condition: Brand New  |  Código de barras: 8717371443375

MORE INFO

£112.99
£94.16 excluding VAT @20%
iFrame

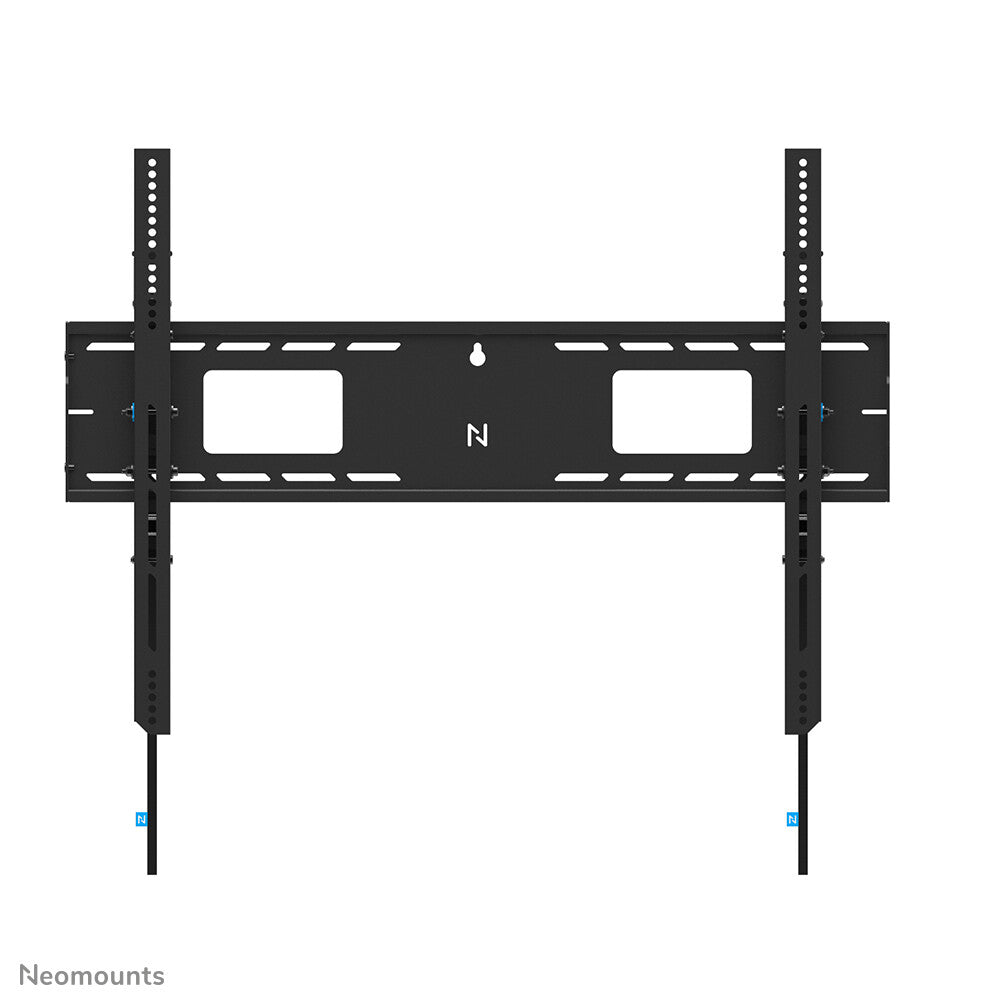

Neomounts LEVEL-750 WL35-750BL18 Tiltable heavy duty wall mount - 55-98" screen - max 125 kg - VESA 100x100-800x600 - d 9,3 cm - level adjustment - lockable (excl. lock) - TÜV certified - Rapid Install-model - Tilt Guard - black

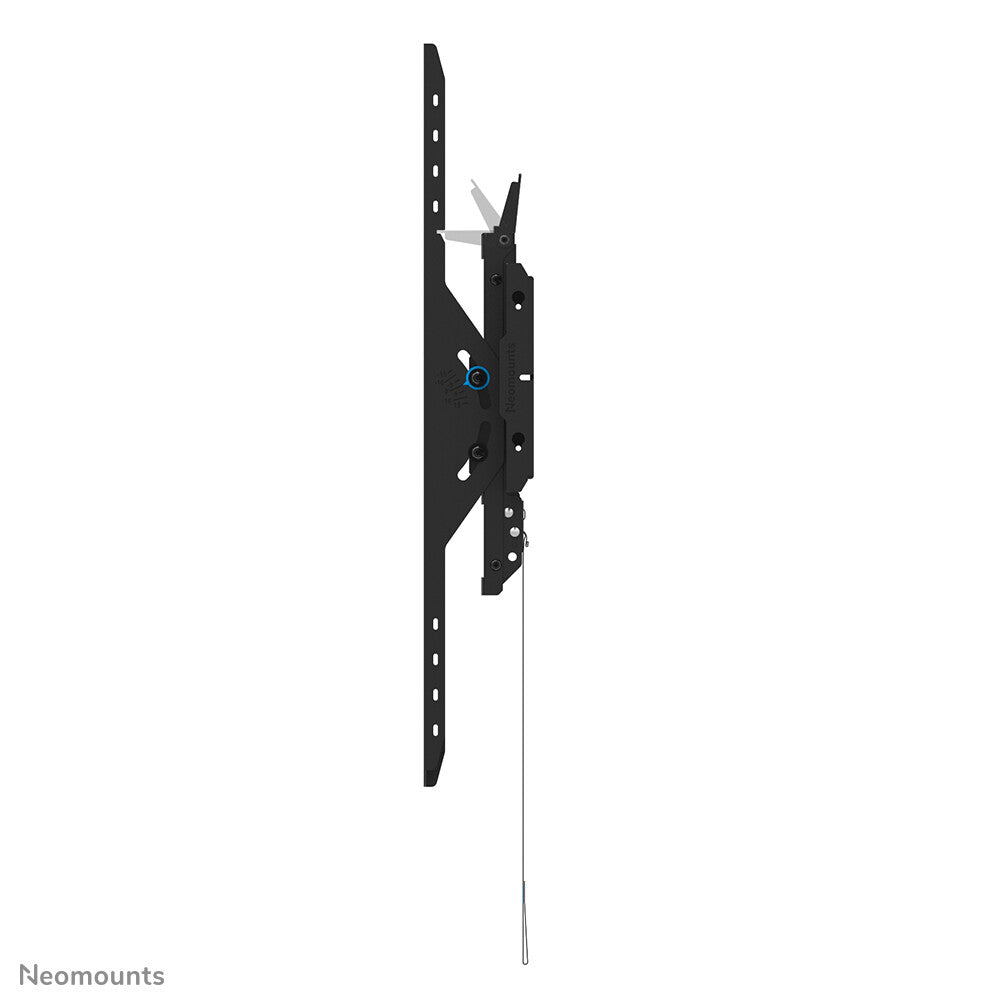

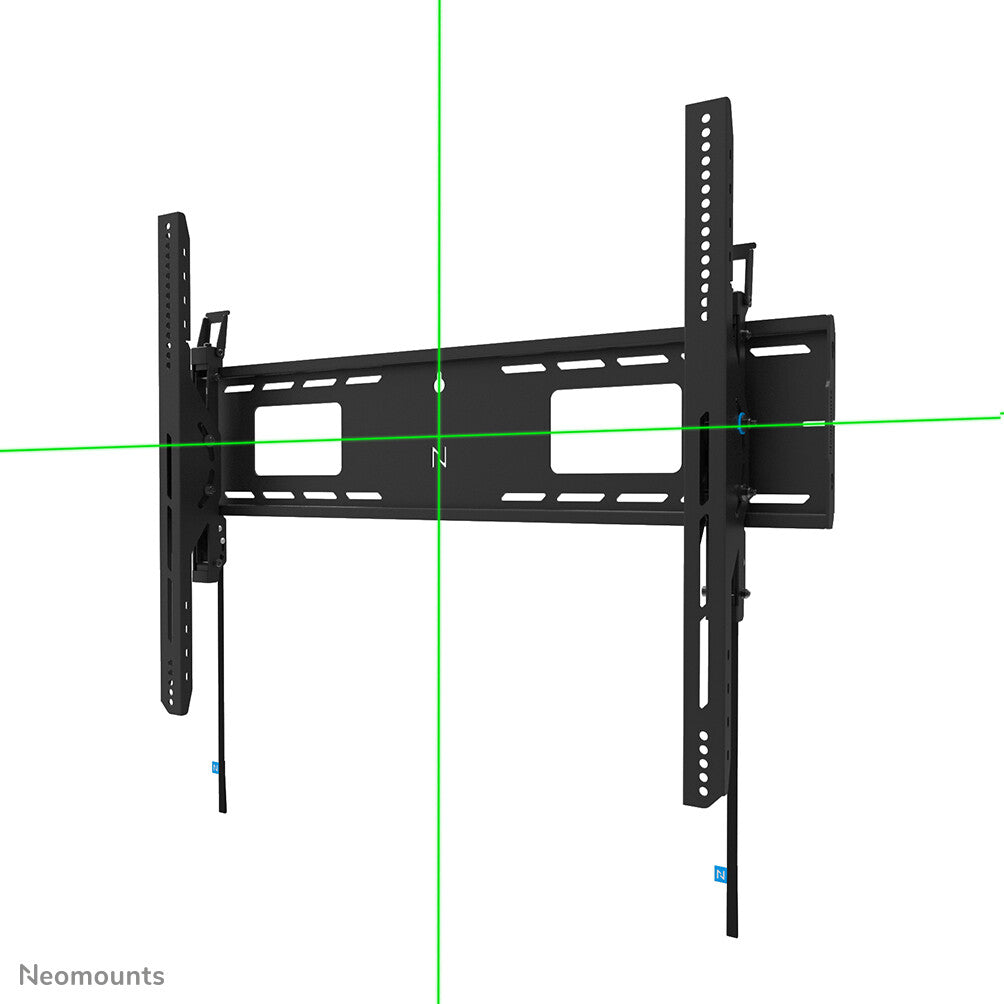

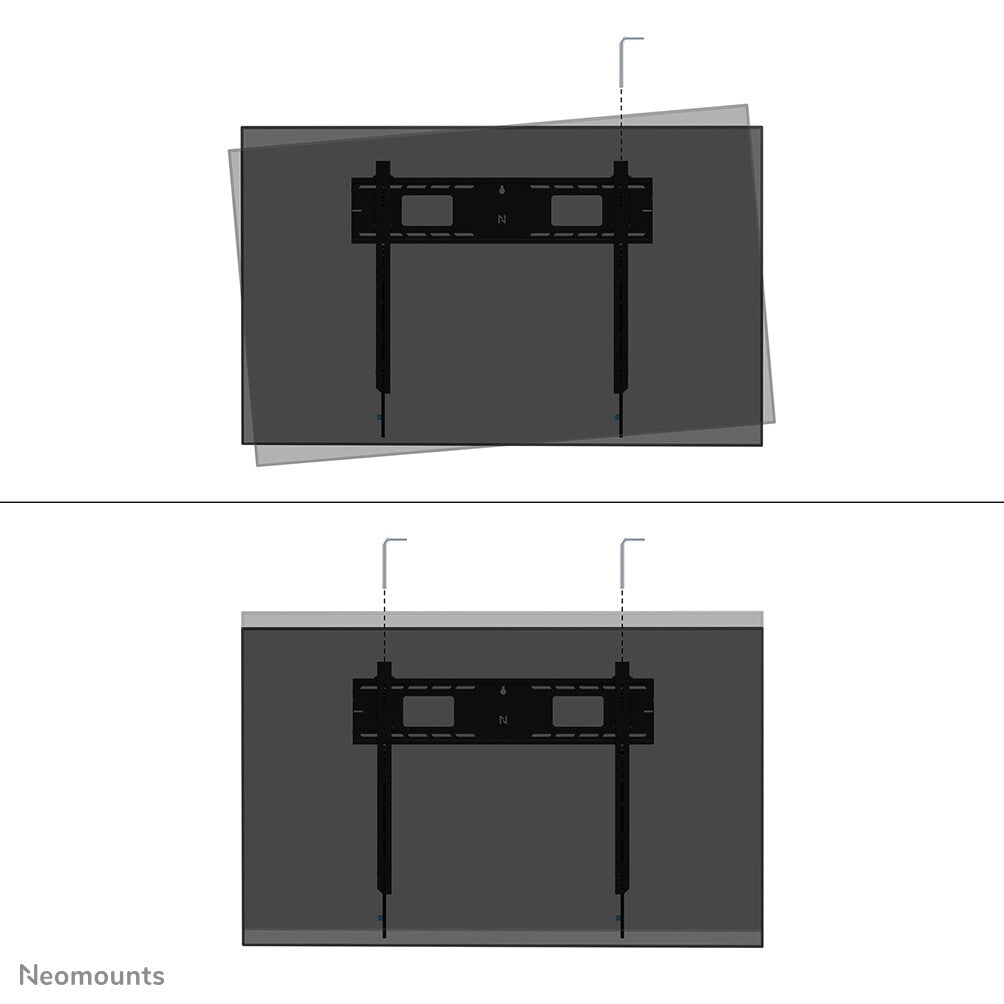

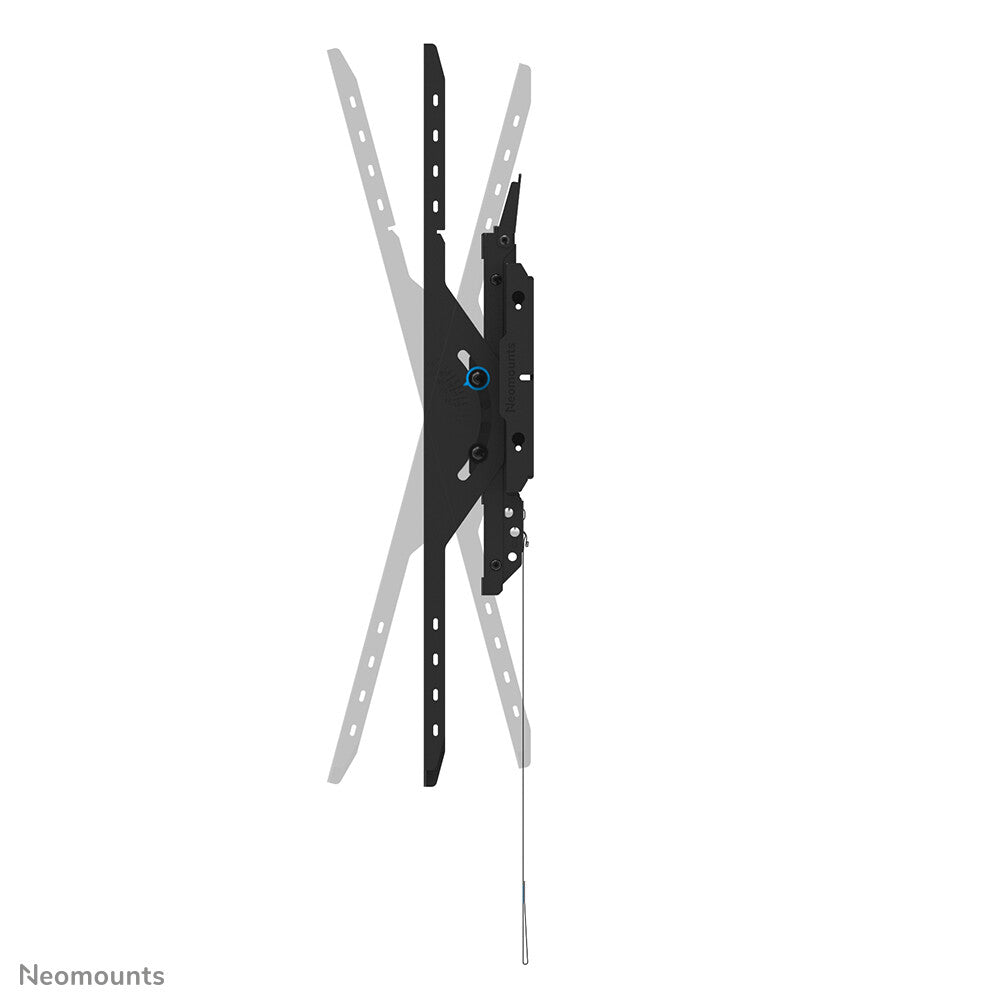

The Neomounts WL35-750BL18 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

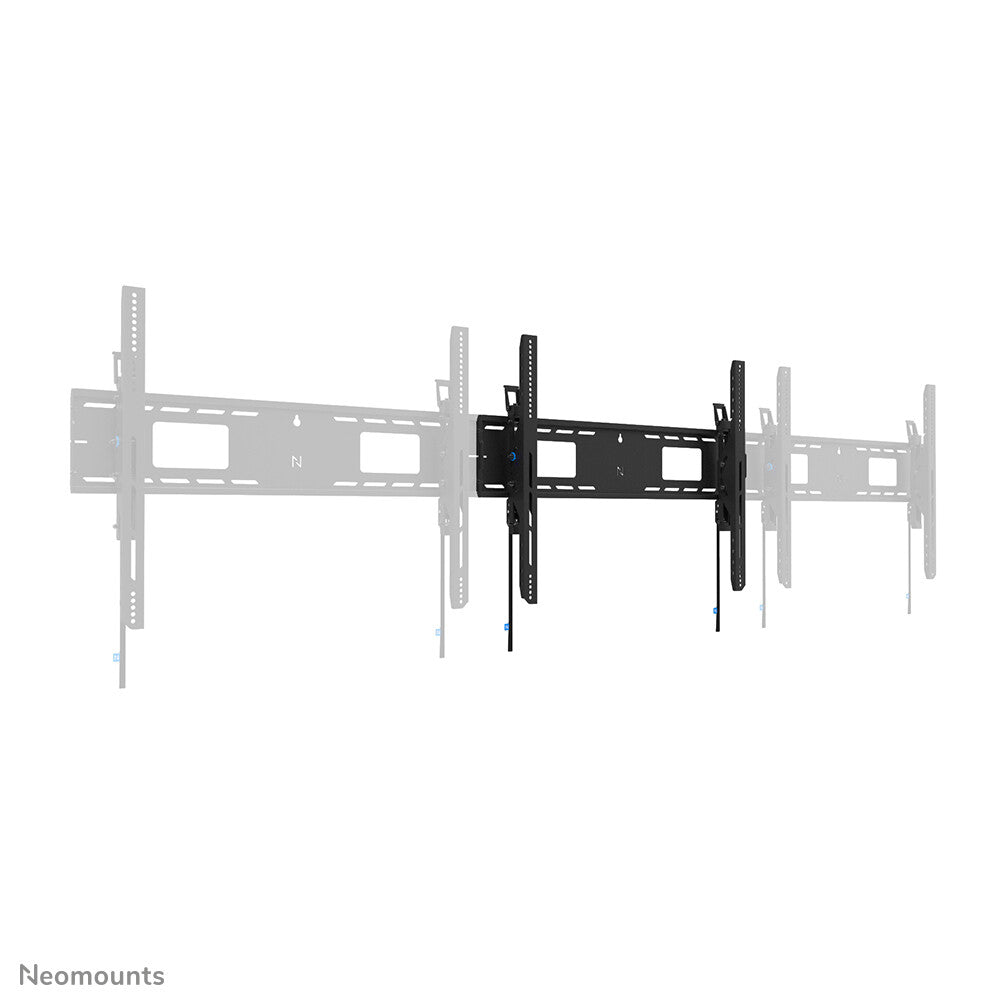

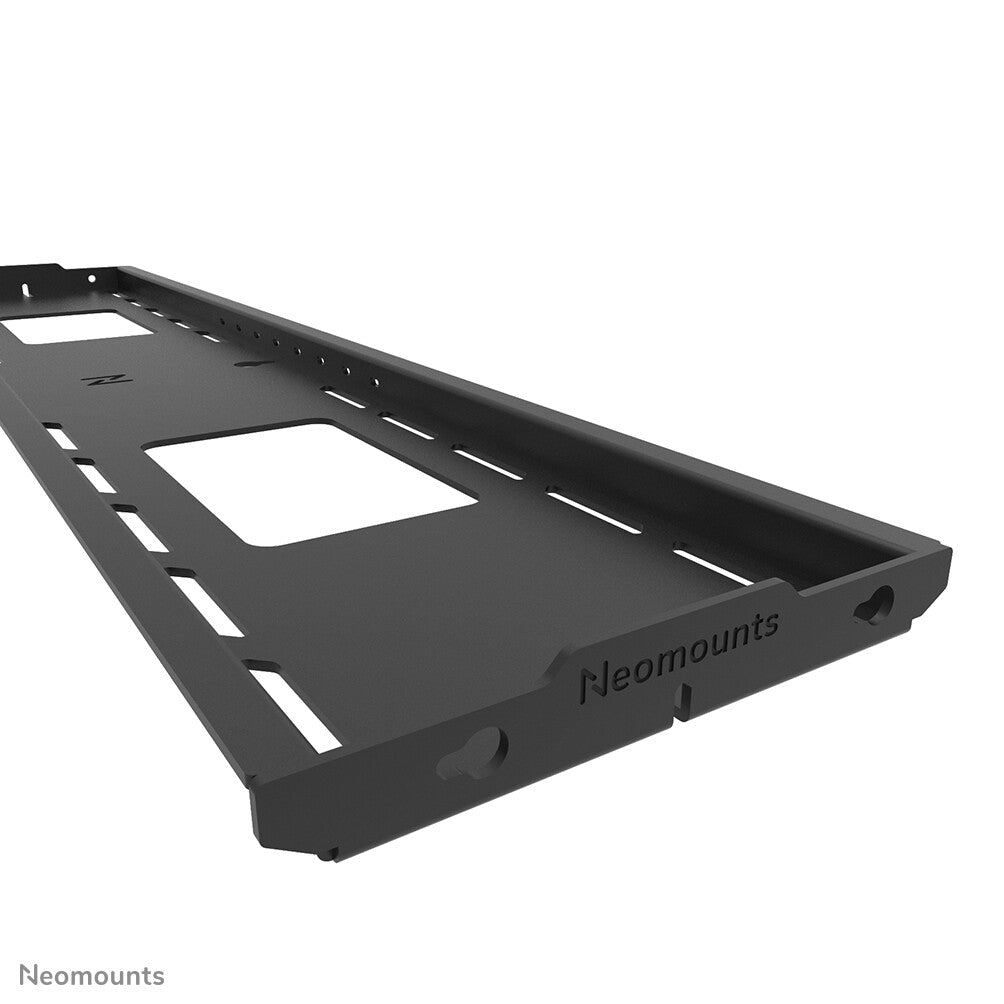

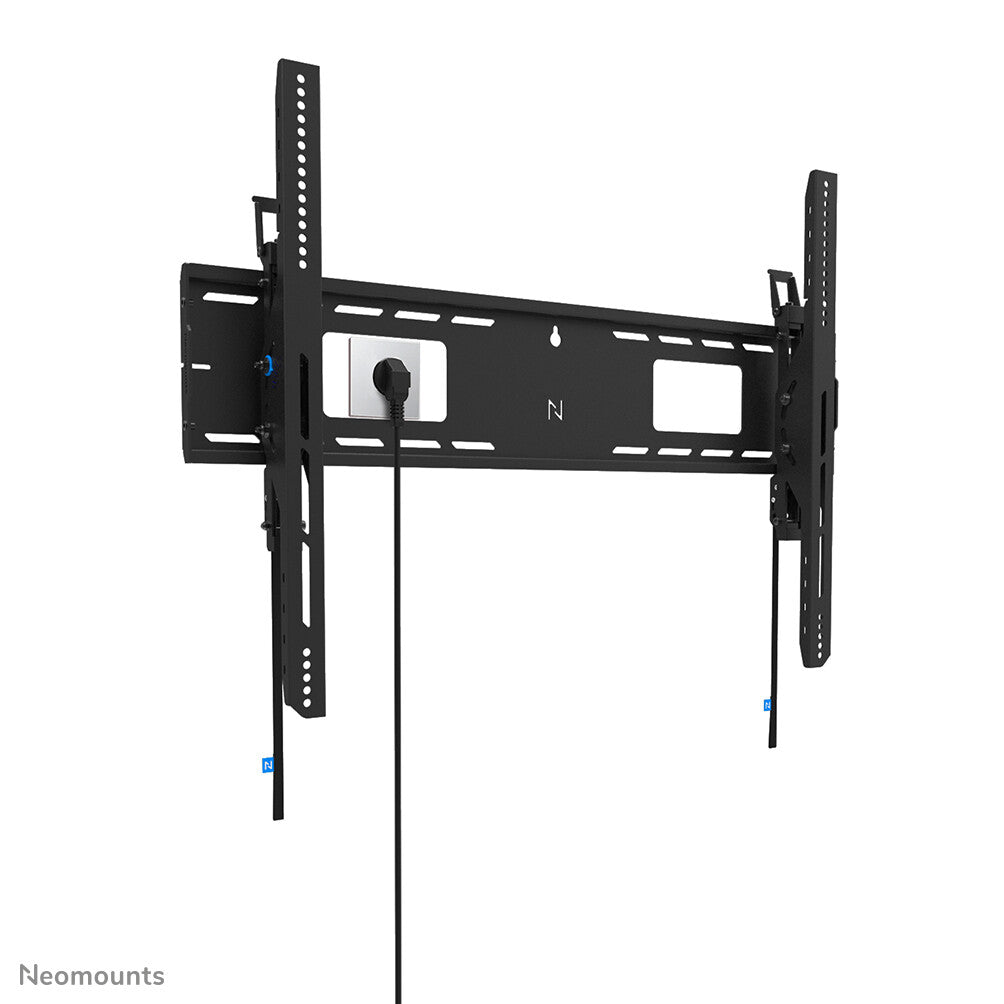

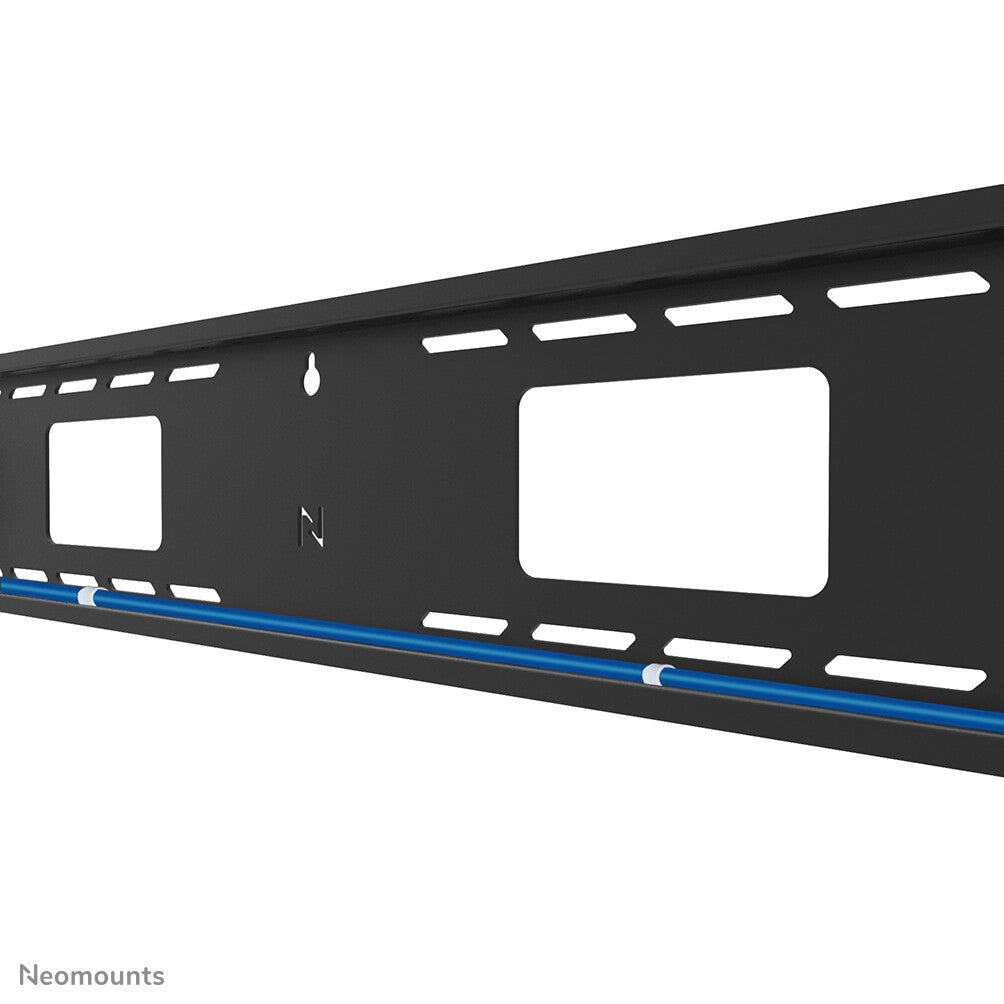

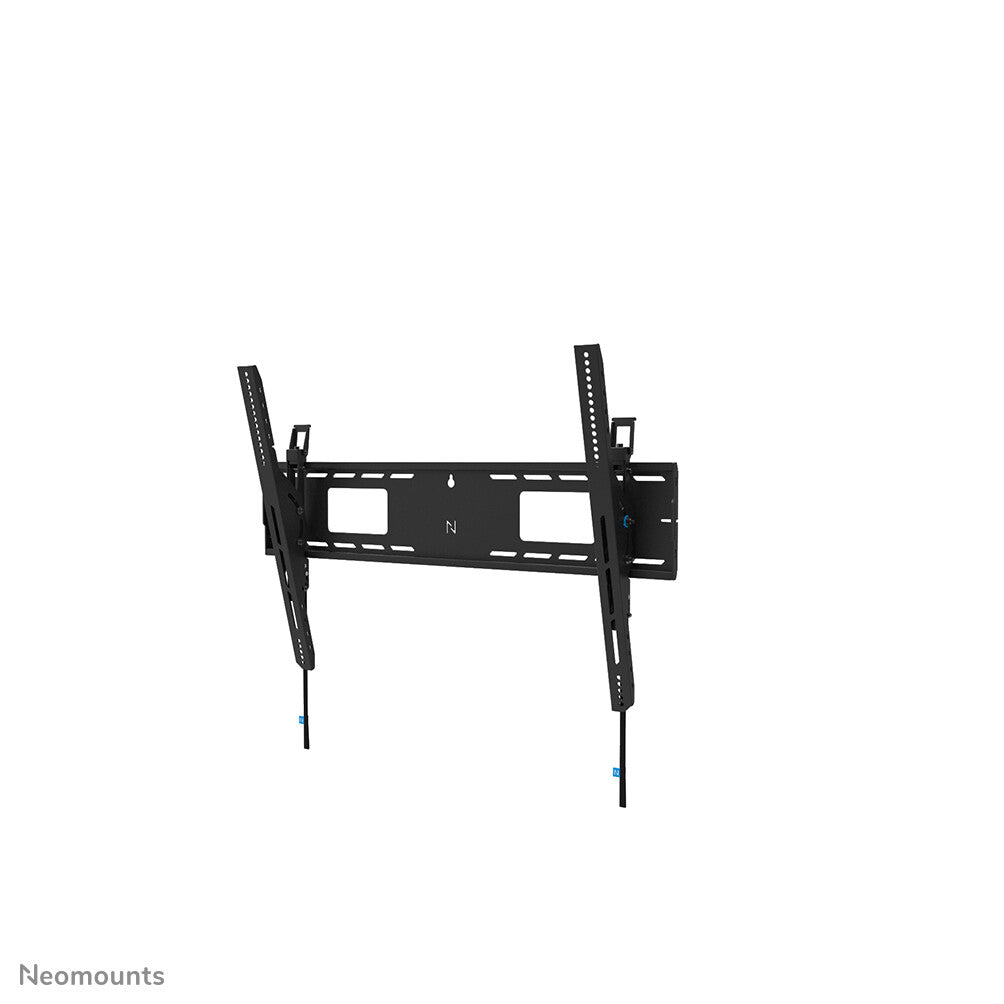

The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

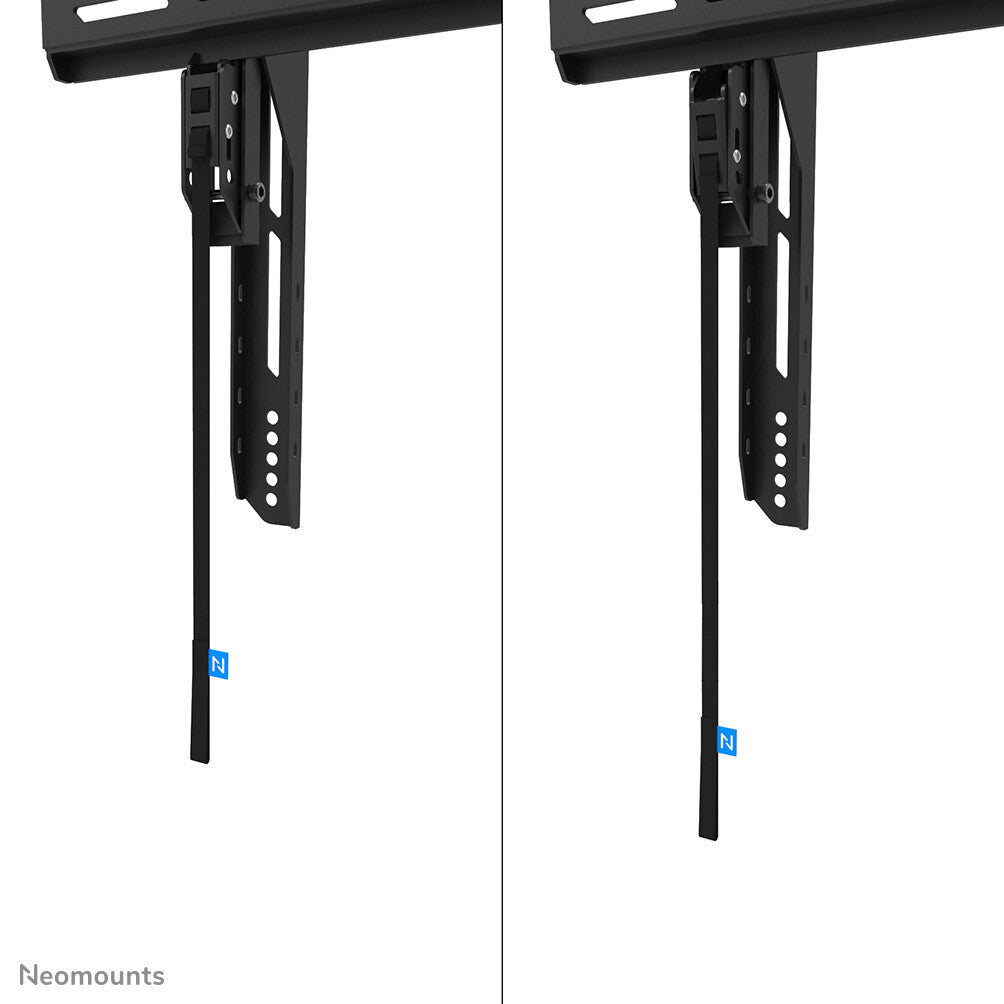

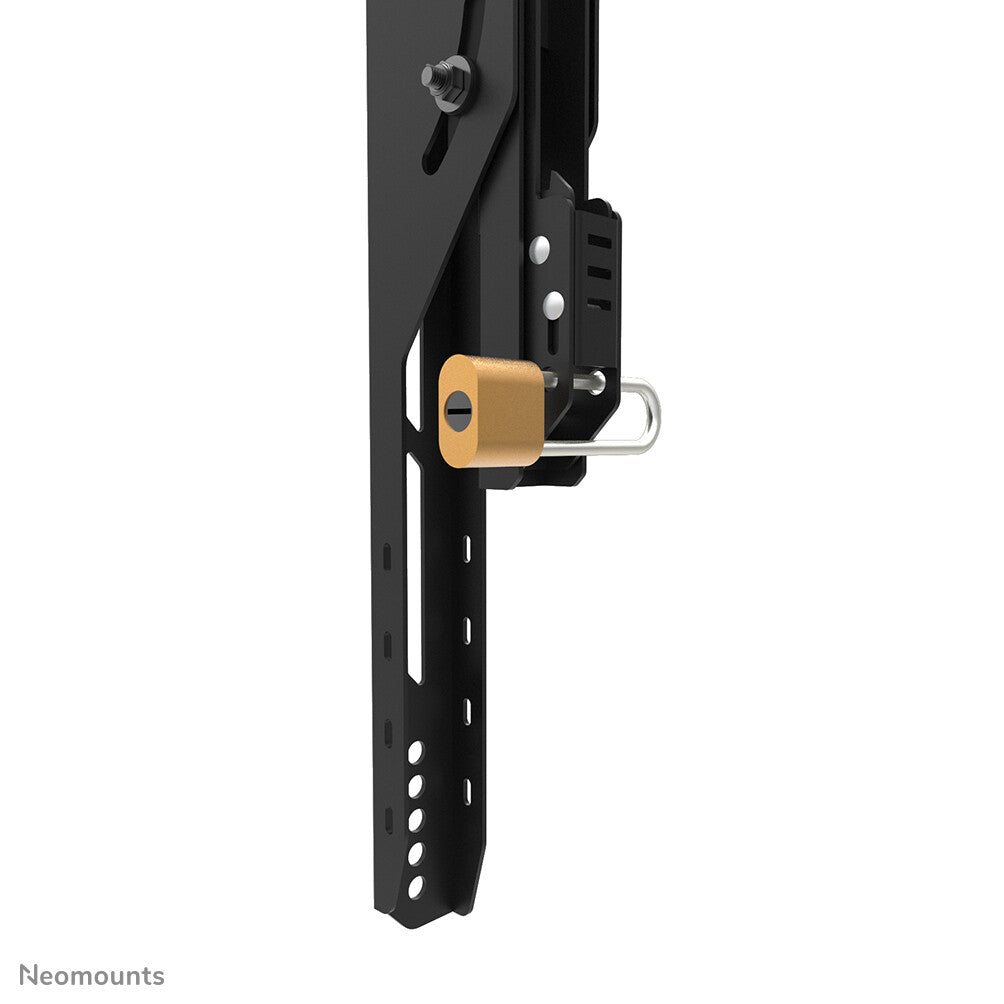

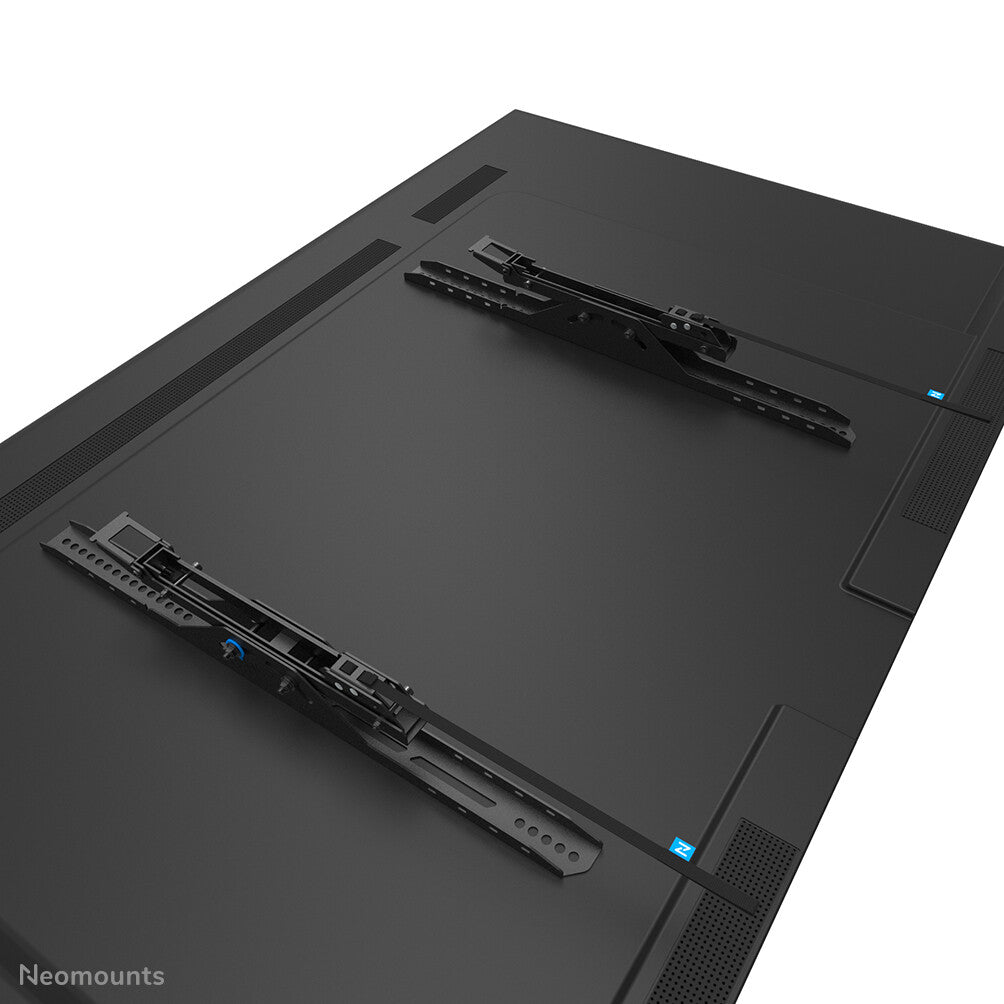

The WL35-750BL18 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.

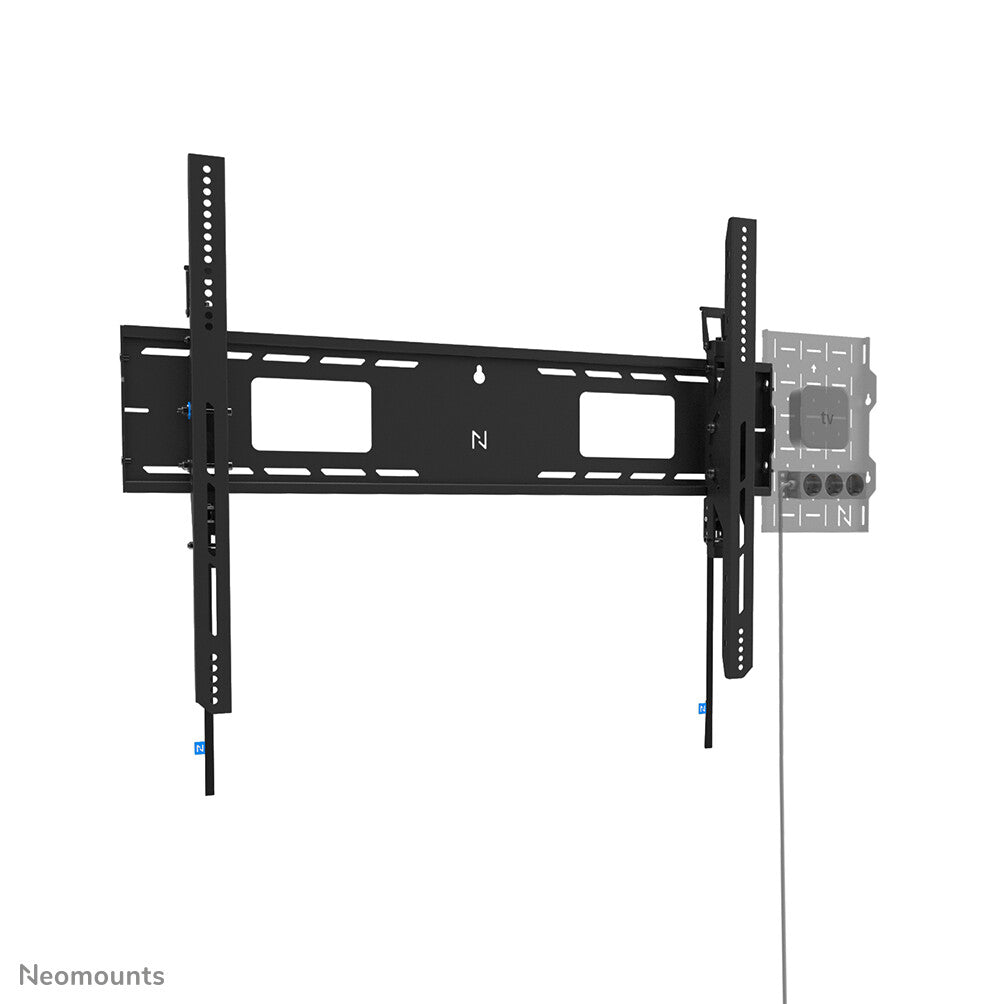

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.

Mounting
Maximum weight capacity (per display) 125 kg
Maximum weight capacity 125 kg
Minimum screen size 139.7 cm (55")
Maximum screen size 2.49 m (98")
Mounting type Wall
Minimum VESA mount 100 x 100 mm
Maximum VESA mount 800 x 600 mm
Panel mounting interface 100 x 200,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 300,200 x 400,300 x 100,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,700 x 400,800 x 200,800 x 450,800 x 500
Number of displays supported 1
Ergonomics
Height adjustment Yes
Height adjustment range 0 - 10 mm
Tilt adjustment Yes
Tilt angle range -15 - 15°
Cable management Yes
Distance to the wall (max) 9.3 cm
Design
Product colour Black
Housing material Steel
Technical details
Country of origin China
Lockable Padlock not included
Weight & dimensions

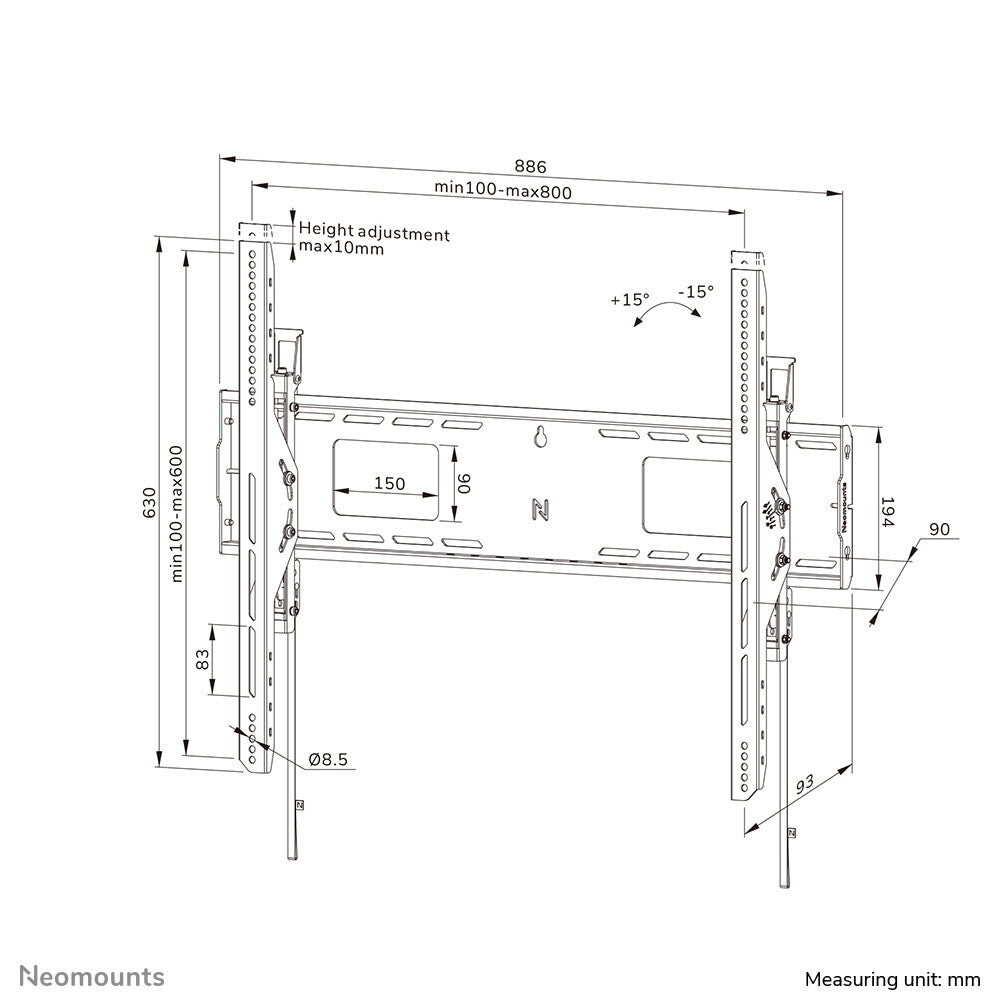

Width 886 mm
Depth 93 mm
Depth (max) 9.3 cm
Height 684 mm
Weight 6.8 kg
Packaging data
Package width 928 mm
Package depth 102 mm
Package height 209 mm
Package weight 8.4 kg
Logistics data
Master (outer) case width 946 mm
Master (outer) case length 227 mm
Master (outer) case height 324 mm
Master (outer) case net weight 20.4 kg
Master (outer) case gross weight 26.3 kg
Products per master (outer) case 3 pc(s)
Products per pallet (EU) 39 pc(s)
Harmonized System (HS) code 7326909890
