ASUS PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX
Key Details:
- Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
Descripción
Descripción
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
| Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 192 GB |
| Supported memory clock speeds | 4800,5000,5200,5400,5600 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 8 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| Number of COM connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Audio connector | Yes |
| Number of SATA III connectors | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |

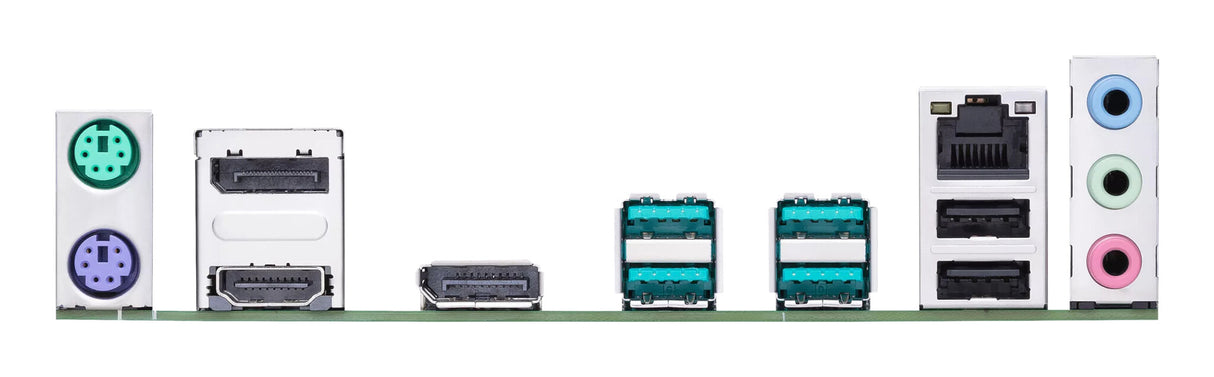

| Rear panel I/O ports | |
|---|---|
| Microphone in | Yes |
| Headphone outputs | 2 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Number of mounting holes | 8 |
| Power source type | ATX |
| Cooling type | Active |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel Q670 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| BIOS | |
|---|---|
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Depth | 244 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Drivers included | Yes |
| Cables included | SATA |
