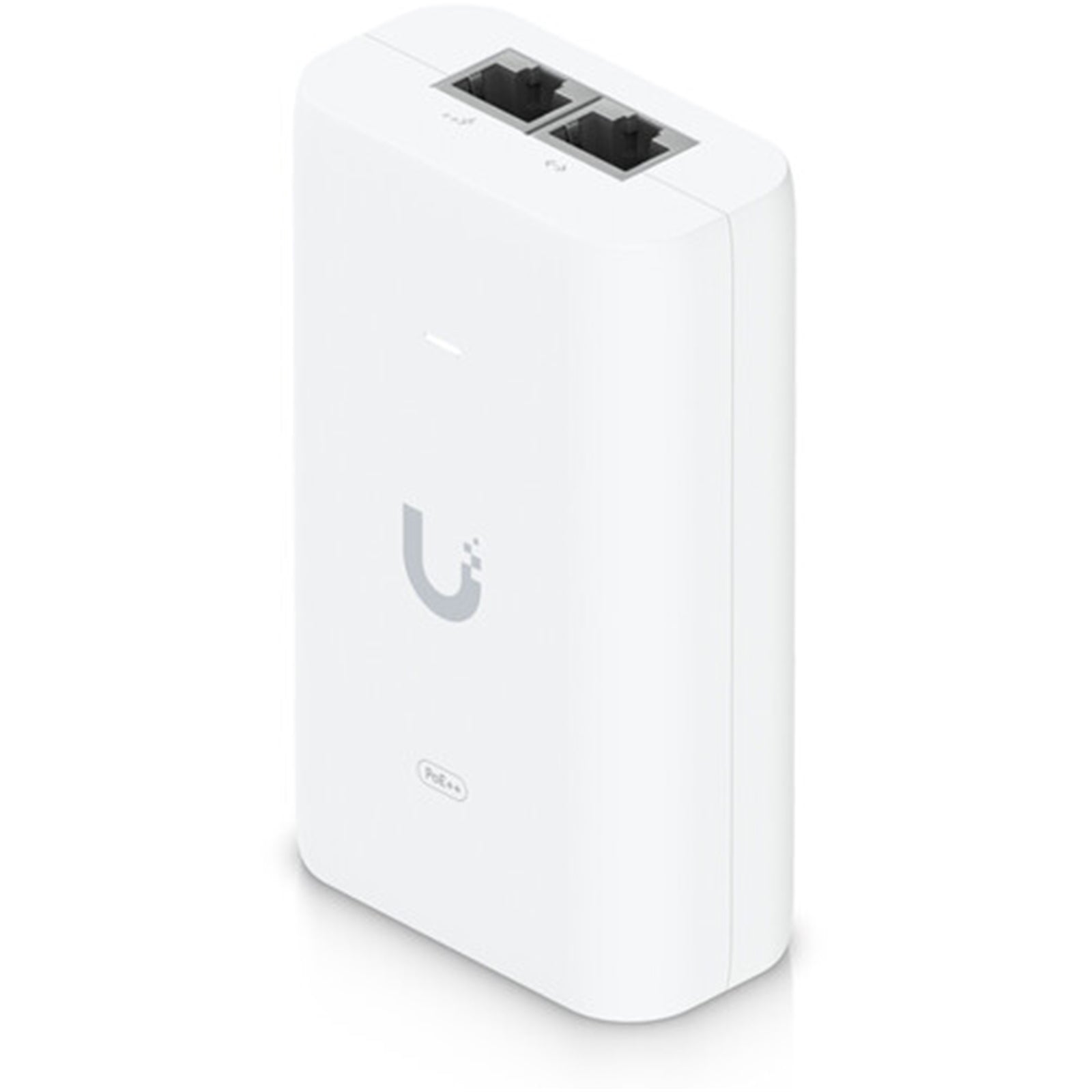

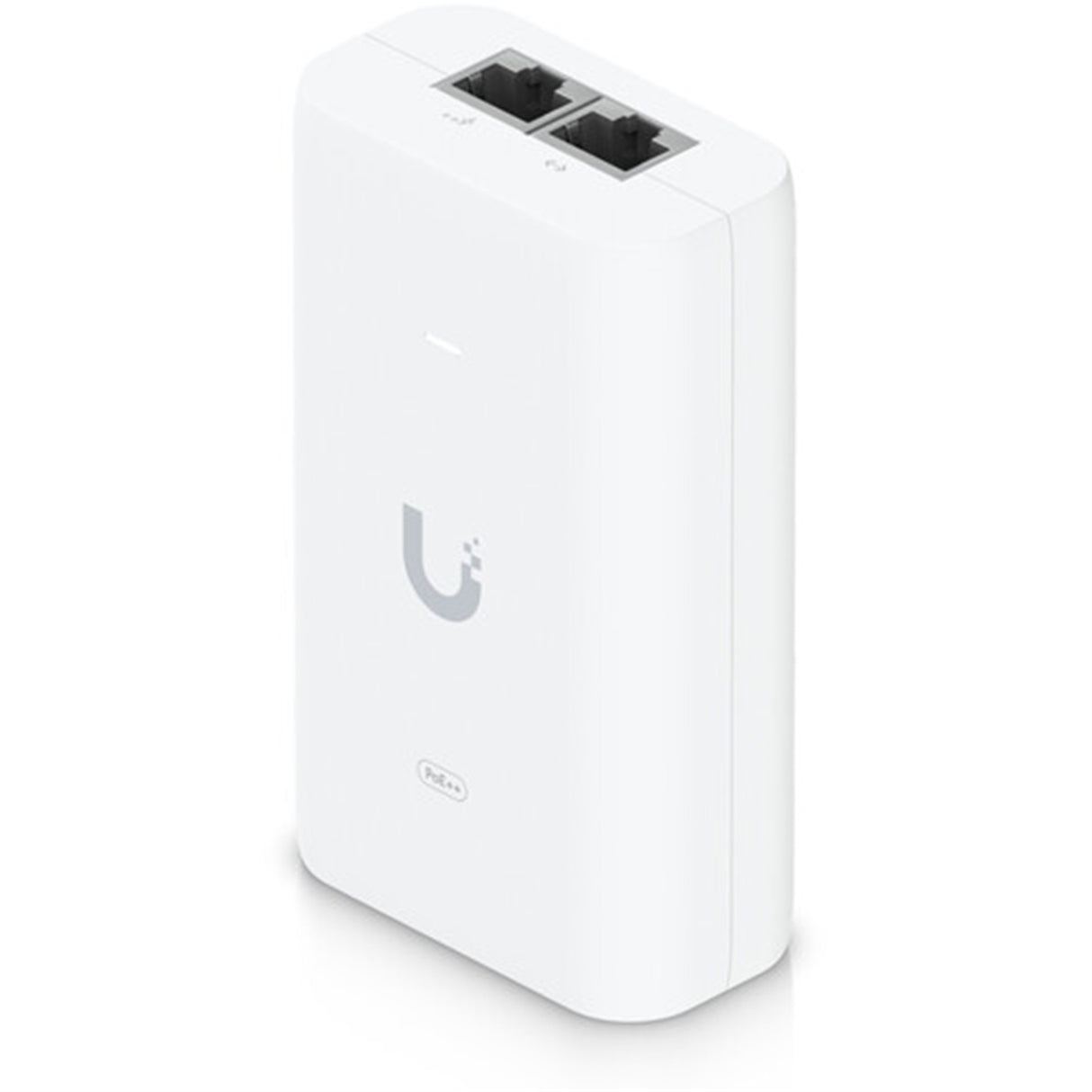

Ubiquiti UniFi U-PoE++ 802.3bt 60W POE Injector Adapter

MORE INFO

UBIQUITI  |  SKU: U-PoE++  |  Condition: Brand New  |  Código de barras: 810084691762
£34.99
Excl VAT £29.16
The Ubiquiti UniFi U-PoE++ Adapter is a versatile and robust device designed to power UniFi PoE++ devices, particularly suitable for wireless mesh applications or to offload power dependencies from PoE switches. This adapter can deliver up to 60W of PoE++, providing ample power for devices like the UA Hub, G4 PTZ, and other PoE++ compatible equipment.

The U-PoE++ is compact and easy to integrate into various setups. It outputs 48V DC @ 1.25A and is equipped with a Gigabit LAN port for high-speed data transmission. The adapter is built with surge, peak pulse, and overcurrent protection mechanisms to ensure the safety and durability of connected devices. It also features an LED indicator for convenient status monitoring.

UniFi U-PoE++ Adapter includes an RJ45 data input and an AC cable with earth ground, along with a PoE++ output. The U-PoE++ operates on a universal AC input of 100–240V AC at 50/60Hz, with an efficiency of over 85%.

U-PoE++ is certified, including CE, FCC, IC, UL, and RoHS, this adapter ensures compliance with various international standards????.

Specifications

Model
U-PoE++

Dimensions
106 x 63 x 34 mm (4.2 x 2.5 x 1.3")

Weight
210 g (7.4 oz)

Output voltage
48V DC @ 1.25A

LAN activity indicator
No

Gigabit LAN port
Yes

Remote reset capability
No

Reset button
No

Rated voltage
100—240V AC @ 50/60Hz

Input current
1.3A @ 120V AC
0.75A @ 230V AC

Inrush current
<100A peak @ 120V AC
<200A peak @ 230V AC

Efficiency
85+%

Output ripple
1% max.

Switching frequency
65 kHz

Line regulation
= 1%

Load regulation
= 3%

2-pair powering
No

4-pair powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

AC connector
IEC-320 C6

Data In / PoE
RJ45 shielded socket

Surge protection
Difference and common mode

Clamping protection
11V data, 60V power

Max. surge discharge
1500A (8/20 µs) power

Peak pulse current
36A (10/1000 µs) data

Shunt capacitance
<5 pF data

Response time
<1 ns

Power method
Universal AC input, 100—240V AC, 50/60Hz, (48V@ 1.25A)

Power supply
AC/DC

Supported voltage range
100—240V AC

Max. PoE+ wattage per port by PSE
60W

Operating temperature
0 to 40° C (32 to 104° F)

Storage temperature
-30 to 70°C (-22 to 158° F)

Operating humidity
10 to 95% noncondensing

Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
  • Product Type: POE Injector
  • POE Capability: 48v
  • Device Support: Universal
