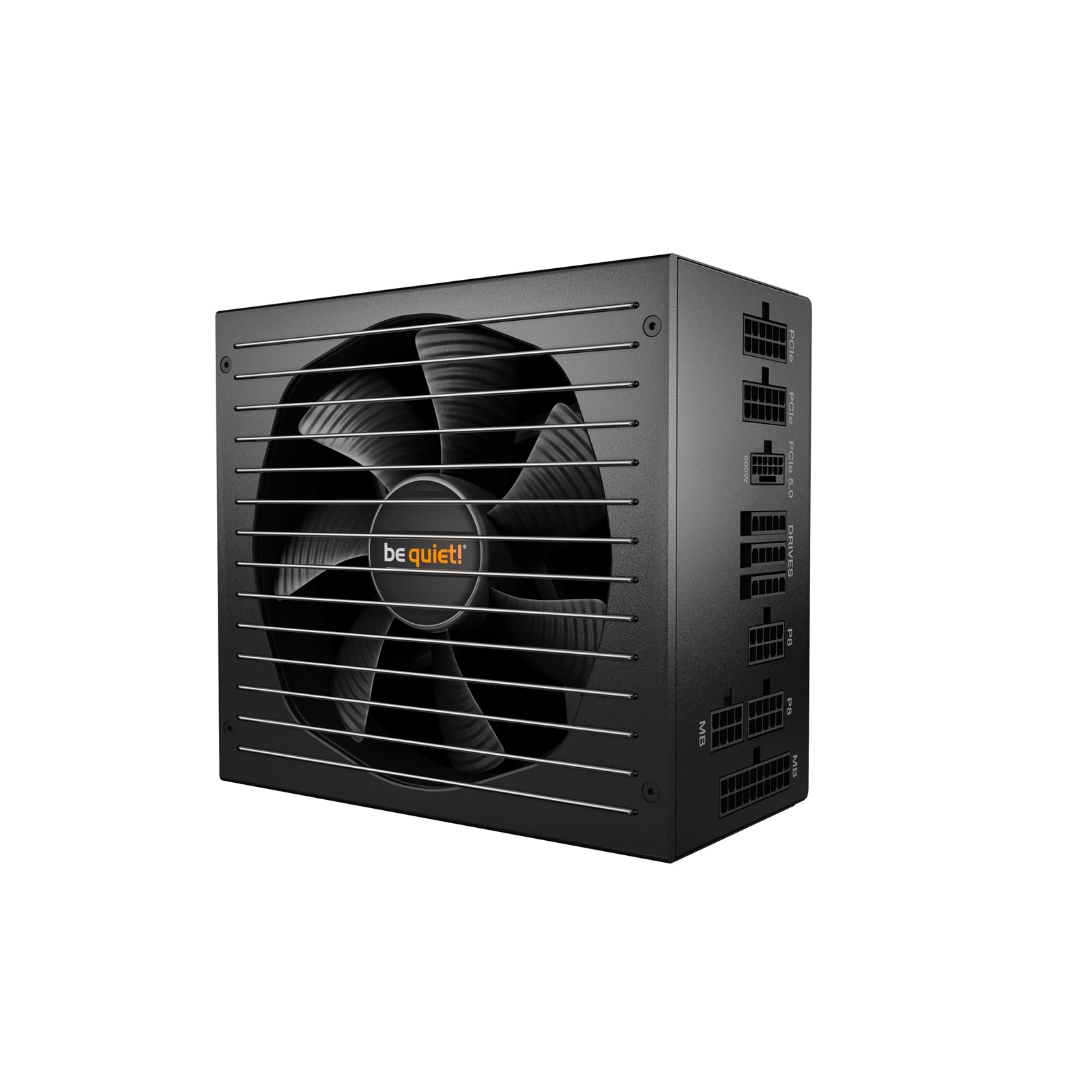

be quiet! Straight Power 12 750W PSU, 80 PLUS Platinum, Japanese Capacitors, Fully Modular, 10 Year Warranty
be quiet! Straight Power 12 750W PSU, 80 PLUS Platinum, Japanese Capacitors, Fully Modular, 10 Year Warranty está agotado y se enviará tan pronto como vuelva a estar disponible.
be quiet! Straight Power 12 750W PSU, 80 PLUS Platinum, Japanese Ca...
Straight Power 12 is a future-proof ATX 3.1 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.
- 80 PLUS Platinum efficiency (up to 93.8%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Virtually inaudible Silent Wings 135mm fan
- Funnel-shaped fan opening on PSU case for high airflow intake
- Full bridge LLC technology for unmatched signal stability
- One massive high-performance 12V-rail
- Japanese 105°C capacitors ensure highest stability and reliability
- Modular cable management for maximum convenience
- 10-year manufacturer warranty
80 PLUS® PLATINUM CERTIFIED - Highly efficient operation
Straight Power 12 750W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.8%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.
FUTURE-PROOF YOUR SYSTEM - Fulfills all ATX 3.1 specifications
Straight Power 12 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER - For massive transient loads
Straight Power 12 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
Specifications
Efficiency
80 PLUS certification:
Platinum
Efficiency (%) at 230V, 2% load:
65.0
Efficiency (%) at 230V, 10% load:
88.3
Efficiency (%) at 230V, 20% load:
92.6
Efficiency (%) at 230V, 50% load:
93.8
Efficiency (%) at 230V, 100% load:
92.9
Output
12V single rail operation:
Yes
+3.3V (A):
25
+5V (A):
25
+12V1 (A):
62.5
-12V (A):
0.3
+5Vsb (A):
3
Max. combined power 12V (W):
750
Max. combined power 12V-2x6 (W):
600
Max. combined power 3.3V + 5V (W):
130
Hold-up time at 100% load (ms):
24.8
Power good signal (ms):
100 - 150
Cables and Connectors
Modular cables:
Yes
Sleeved cables:
Yes
Maximum cable length (cm):
100
Cable length to motherboard (cm):
60
No. of cables:
9
ATX-Motherboard (20+4-pin):
1
P4+4 (CPU):
1
P8 (CPU):
1
12V-2x6 cables:
1
PCI-e 6+2-pin (GPU):
4
SATA:
9
PATA:
2
Environmental Directives
Energy Star:
8.0
ErP:
Yes
WEEE:
Yes
RoHS:
Yes
Triman:
Yes
Scope of Delivery
Screws:
Yes
Cable ties:
Yes
Casing
Dimensions without cable (L x W x H), (mm):
160 x 150 x 86
Weight (kg):
1.76
Color:
Black
Service
Warranty (Years):
10
Logistics Data and RRP
Article Number:
BN336
EAN Code:
4260052189412
- Wattage: 750W
- Size/Version: ATX 3.0
- Modular: Fully
- SATA Connections: 9
- Certification: Platinum
- Colour: Black
-
