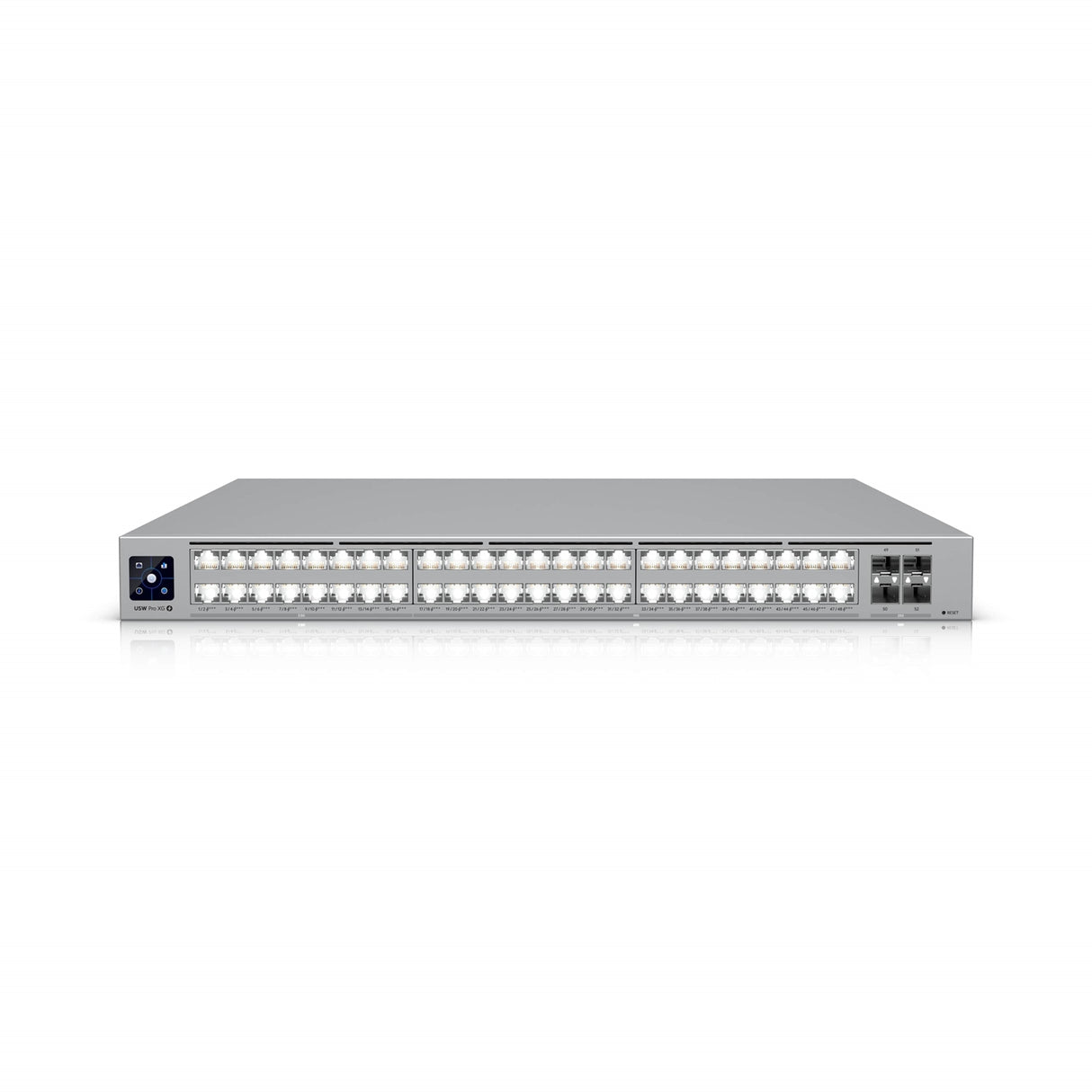

Ubiquiti (USW-Pro-XG-48) Professional-grade, 48-port Layer 3 Etherlighting switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.
Ubiquiti (USW-Pro-XG-48) Professional-grade, 48-port Layer 3 Etherlighting switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports. est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Ubiquiti (USW-Pro-XG-48) Professional-grade, 48-port Layer 3 Etherl...
Professional-grade, 48-port Layer 3 Etherlightin switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.
Specifications
Overview
Dimensions
442 x 480 x 44 mm
(17.4 x 18.9 x 1.7")
Port Layout
2.5 GbE RJ45 - 16 (2.5G/1G/100M/10M)
10 GbE RJ45 - 32 (10G/5G/2.5G/1G/100M/10M)
25G SFP28 - 4 (25G/10G/1G)
Redundancy
DC Power Backup
Layer 3
Yes
Form Factor
Rack mount (1U)
Etherlighting
Yes
Performance
Switching Capacity
920 Gbps
Total Non-Blocking Throughput
460 Gbps
Forwarding Rate
684 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size
ARP Entries -128,000
IPv4 Routes - 256,000
Packet Buffer Size
8 MB
Access Lists
IPv4
256
MAC
256
Layer 3 Features
DHCP Server (Local Networks) - Yes
DHCP Relay - Yes
Inter-VLAN Routing (Local Networks) - Yes
Static Routing (Local Networks) - Yes
Layer 2 Features
LACP Port Aggregation - Yes
STP & RSTP - Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) - Yes
IGMP Snooping - Yes
802.1X Control - Yes
MAC-Based ACLs & Device Isolation - Yes
DHCP Snooping & Guarding - Yes
Egress Rate Limit - Yes
Flow Control - Yes
Storm Control - Yes
Multicast & Broadcast Rate Limiting - Yes
MAC Address Blocking - Yes
IP-Based ACLs & Network Isolation - Yes
MAC-Based Port Restriction - Yes
Port Isolation - Yes
Port Mirroring - Yes
Jumbo Frames - Yes
LLDP-MED - Yes
Voice VLAN - Yes
Loop Protection - Yes
Hardware
Max. Power Consumption
250W
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 300W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Weight
Without mounting brackets: 7.5 kg (16.5 lb)
With mounting brackets: 7.6 kg (16.8 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 30kV, contact: ± 14kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
LEDs
RPS - Yes
NDAA Compliant - Yes
Certifications
CE, FCC, IC
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
- Speed: 10G
- Ports: 52
- POE Capability: No
- Managed or Unmanaged: Unmanaged
- Rack Mountable: Yes
-
