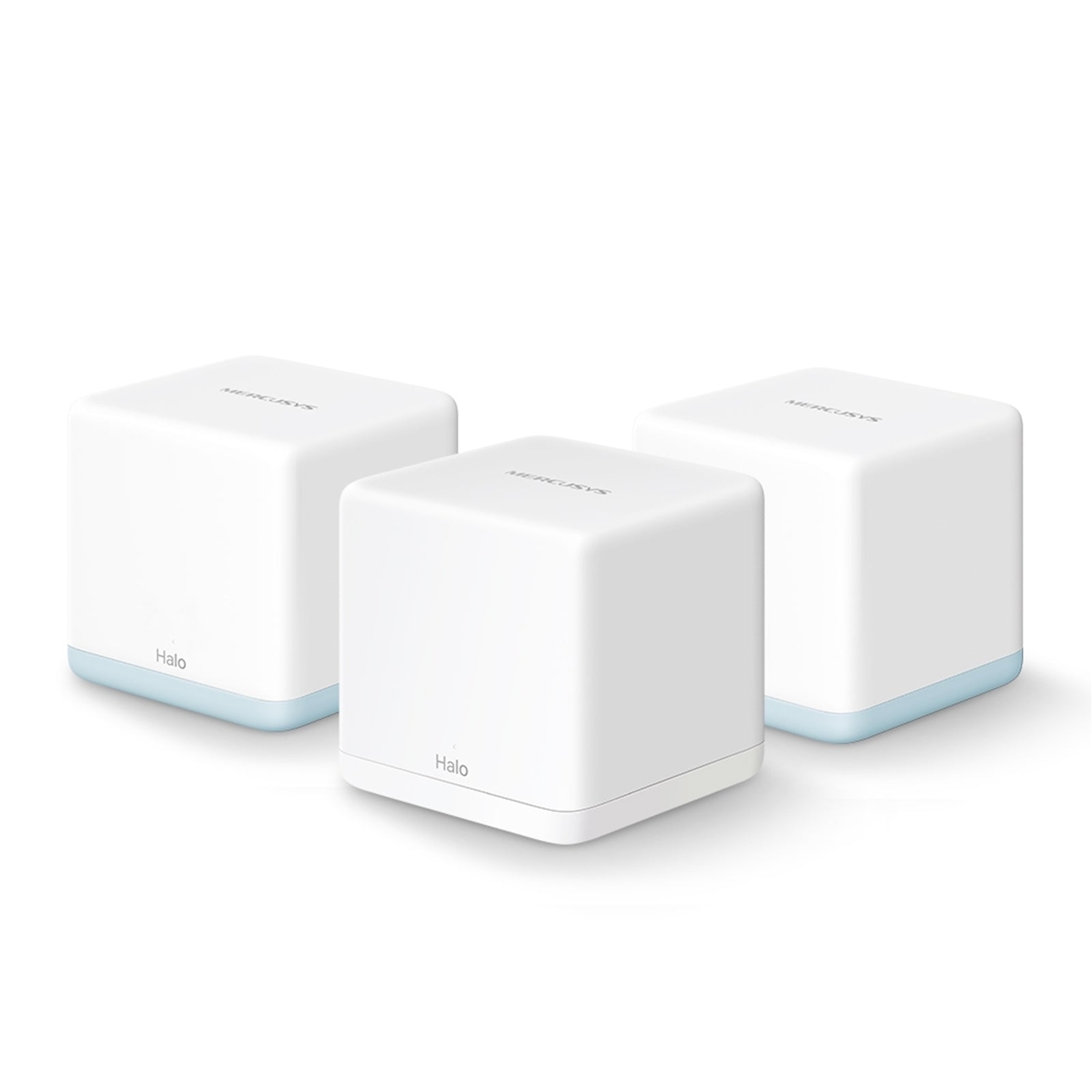

Mercusys Halo H32G AC1200 Whole Home Mesh Wi-Fi System (3 Pack)

Mercusys Halo H32G AC1200 Whole Home Mesh Wi-Fi System

One Unified Network
With advanced Mesh Technology, Halo units work together to form a single unified whole home network with one WiFi name and password.

Seamless Roaming
Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices.

Whole Home Coverage
Blanket up to 3,500 ft² (320 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.

1.2 Gbps Dual Band WiFi
Halo H32G provides fast and stable connections up to 100 devices with speeds of up to 1,200 Mbps and works with major internet service providers (ISPs) and modems.

Easy App Control
Use the MERCUSYS App to quickly set up and manage your WiFi.

Flexible Mesh System
Use H30G and H30 to build a whole home mesh network.

*Please note that the Halo H series and S series cannot work together.

Specifications

Wireless

Wireless Standards
IEEE 802.11 a/n/ac 5 GHz, IEEE 802.11 b/g/n 2.4 GHz

Signal Rate
867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz

Reception Sensitivity
2.4 GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-73dBm

5 GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-72dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security
WPA-PSK/WPA2-PSK

Mesh protocol
802.11k/v/r

SoftwareOperation Modes
Router, Access Point

Quality of Service
WMM

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Local Management, Remote Management, Multi-Managers

DHCP
Server, Client

Firewall Security
SPI Firewall

Protocols
Supports IPv4 and IPv6

Guest Network
2.4 GHz Guest Network x 1,
5 GHz Guest Network x 1

Hardware

Dimensions (W X D X H)
3.5 x 3.5 x 3.5 in (88 x 88 x 88 mm)

Interfaces
Halo H30G: 2x Gigabit Ports (WAN/LAN auto-sensing)
Halo H30: 2x 10/100 Mbps Ports

Button
Reset button

Others

Package Contents - 3 pack
1x Halo H30G Unit + 2x Halo H30 Units
1x RJ45 Ethernet Cable
3x Power Adapters
1x Quick Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

• Product Type: Mesh System
• Included Nodes: 3
• Mesh Speed: AC1200
