Asrock Z790 PG-ITX/TB4, Intel Z790, 1700, Mini ITX, 2 DDR5, HDMI, D...
Description
Description

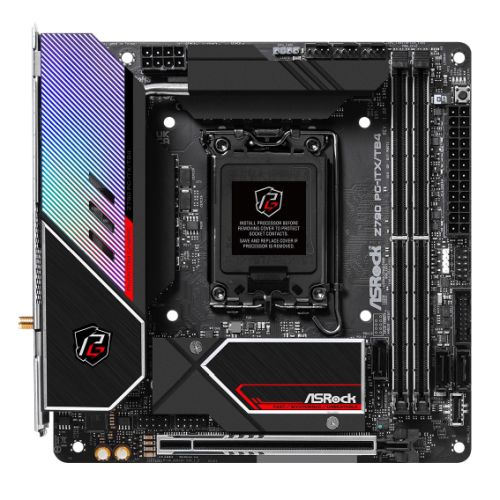

Z790 PG-ITX/TB4
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 10+1+1 Phase Power Design, SPS for VCore
- 2 x DDR5 DIMMs, supports up to 6800+(OC)
- 1 PCIe 5.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), Nahimic Audio
- 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 2 Hyper M.2 (PCIe Gen4x4), 3 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 6 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 2 USB 2.0 (Front)
- Killer 2.5G LAN
- Killer 802.11ax Wi-Fi 6E + Bluetooth
- SPS (Smart Power Stage) - Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
- 10+1+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
- 10 Layer PCB - The 10 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
Reinforced DIMM Slot - The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
- KiLLER E3100 + AX1675 - The Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.
- KiLLER Doubleshot Pro - Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link.
- Speed - DoubleShot Pro Technology delivers the maximum speed and throughput possible for your computer by allowing your computer to use all of your network adapters at the same time.
- Intelligence - The Killer Prioritization Engine to automatically classify and prioritize high priority traffic like online games, streaming video, and high quality audio to be handled by the systems fastest network interface. This will provide users with a higher quality experience with fewer interruptions.
- Maximum Control - Utilize the Killer Control Center 2.0 to see and manage which network connection your applications are using. Set limits using Visual Bandwidth Control or shut them down completely with application blocking, so they don’t interfere with higher priority apps.
- Thunderbolt™ 4/USB4 Type-C - Thunderbolt™ 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.
- Fast Charging Technology - Enjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!
- Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
- Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
- Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
- Works on any devices - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: Intel 1700
- Chipset: Intel Z790
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: DDR5 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: Up to 6800+(OC)
- Maximum Memory: 128GB
-
Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types -
Graphics Ports: 1 x HDMI 2.1
1 x DisplayPort 1.4
2 x Intel Thunderbolt 4 - supports HDCP 2.3 and max. resolution up to 8K 60Hz - PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
-
Storage: 3 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2280) - SATA & PCIe
1 x M.2 (2280) - PCIe -
RAID: "Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices" -
Wireless: 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 160MHz w/ ext 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth + High speed class II
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot Pro - LAN: 2.5GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
-
USB Ports Supported: 2 x USB4 Thunderbolt 4 Type-C (at back)
6 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
2 x USB 2.0 (at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header -
Back Panel I/O Ports: 2 x Antenna
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
2 x USB4 Thunderbolt 4 Type-C
6 x USB 3.2 Gen2 Type-A
1 x RJ-45 LAN
1 x Line Out Jack
1 x Microphone Input Jack -
Internal I/O Connectors: 1 x RGB LED
1 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
1 x Chassis Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen2x2
1 x Clear CMOS Button -
Accessories: 1 x User Manual
2 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
2 x Thermal Pads for M.2 SSD
3 x Screws for M.2 Sockets - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.3000 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
