j5create JCD543 USB-C™ Triple Display Docking Station

J5CREATE  |  SKU : JCD543-N  |  Condition: Brand New  |  Code-barres: 4712795083613
£82.99
£81.99 Save £1.00 £82.99
£68.33 excluding VAT @20%
iFrame
JCD543 USB-C Triple Display Docking Station, includes 2x HDMI ports and 5x USB ports, Silver and Black

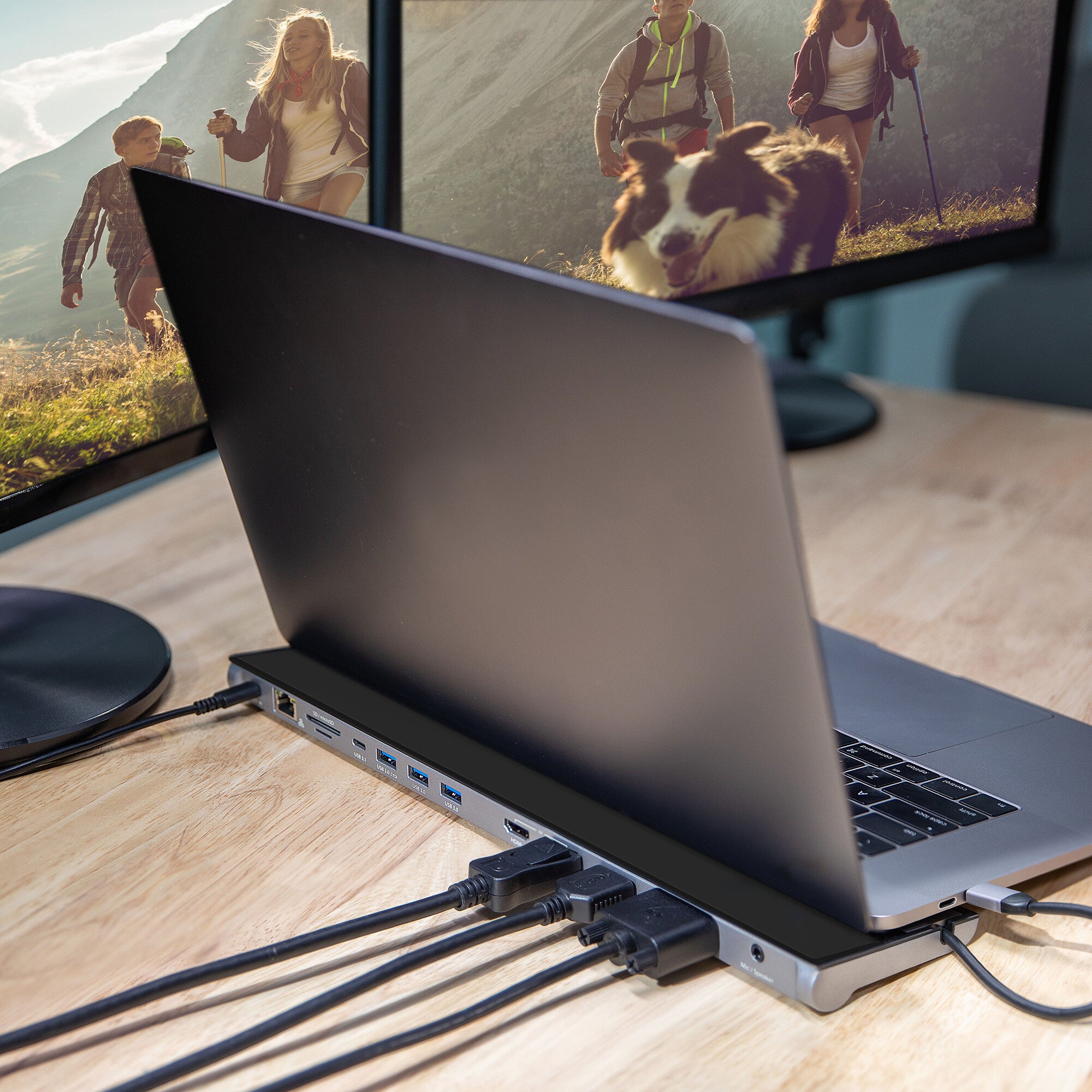

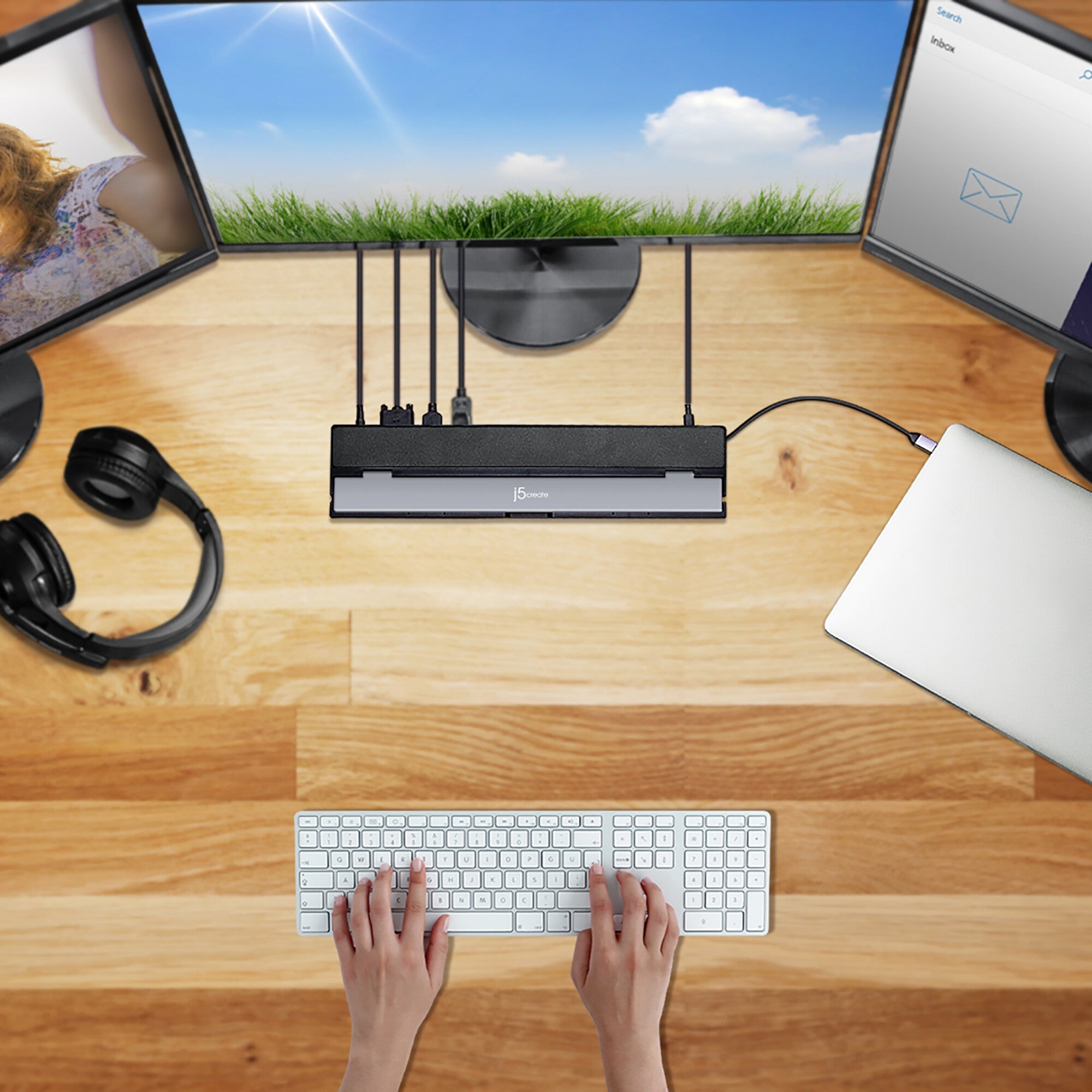

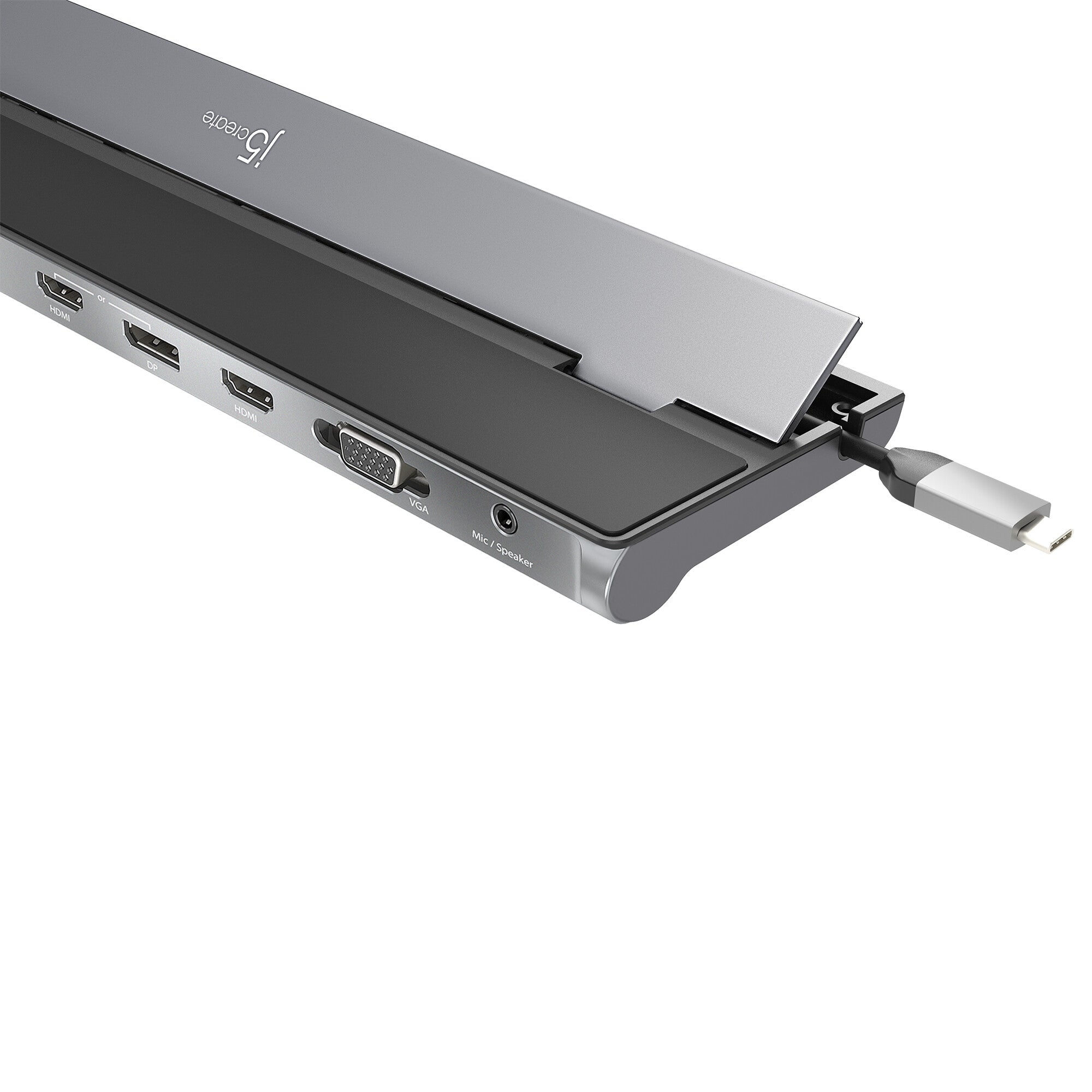

The USB-C™ Triple Display Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI™, VGA, and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.

These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.

Ports & interfaces
Connectivity technology Wired
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB Power Delivery Yes
USB Power Delivery revision 3.0
USB Power Delivery up to 100 W
HDMI ports quantity 2
VGA (D-Sub) ports quantity 1
Microphone in Yes
Headphone outputs 1
USB Type-C DisplayPort Alternate Mode Yes
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Performance
Product colour Black, Silver
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash), SD
HD type 4K Ultra HD
Maximum refresh rate 60 Hz
Number of displays supported 3
Hub interfaces DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA
Housing material Aluminium
Country of origin Taiwan
Power
Input current 5 A
Output current 0.9 A
Output voltage 20 V
Power consumption (typical) 4.5 W
Power plug type Type C
Software
Windows operating systems supported Windows 10, Windows 11, Yes
Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS, Yes
Operational conditions
Operating temperature (T-T) 0 - 48 °C
Storage temperature (T-T) -10 - 65 °C
Operating relative humidity (H-H) 0 - 85%
Storage relative humidity (H-H) 0 - 85%
Weight & dimensions
Width 82.5 mm
Depth 350 mm
Height 23.4 mm
Weight 355 g
Packaging data
Quantity per pack 1 pc(s)
Package width 88 mm
Package depth 358 mm
Package height 28 mm
Package weight 433 g
Packaging content
Packaging content 1 x USB-C™ Triple Monitor Docking Station, 1 x Quick Installation Guide, 1 x 100W USB-C™ Power Adapter
Cables included USB Type-C
Quick start guide Yes
AC adapter included No
Manual Yes
Technical details
Warranty period 2 year(s)
Other features
Maximum operating temperature 48 °C
Cable length 0.45 m
