j5create JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock

J5CREATE  |  SKU : JCD397-N  |  Condition: Brand New  |  Code-barres: 4712795086324
£78.99
£74.99 Save £4.00 £78.99
£62.49 excluding VAT @20%
iFrame
4K60 Elite USB-C® Triple-Monitor 10Gbps Mini Dock

Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4™ hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB™ ports, as well as 100W Power Delivery pass-through charging.

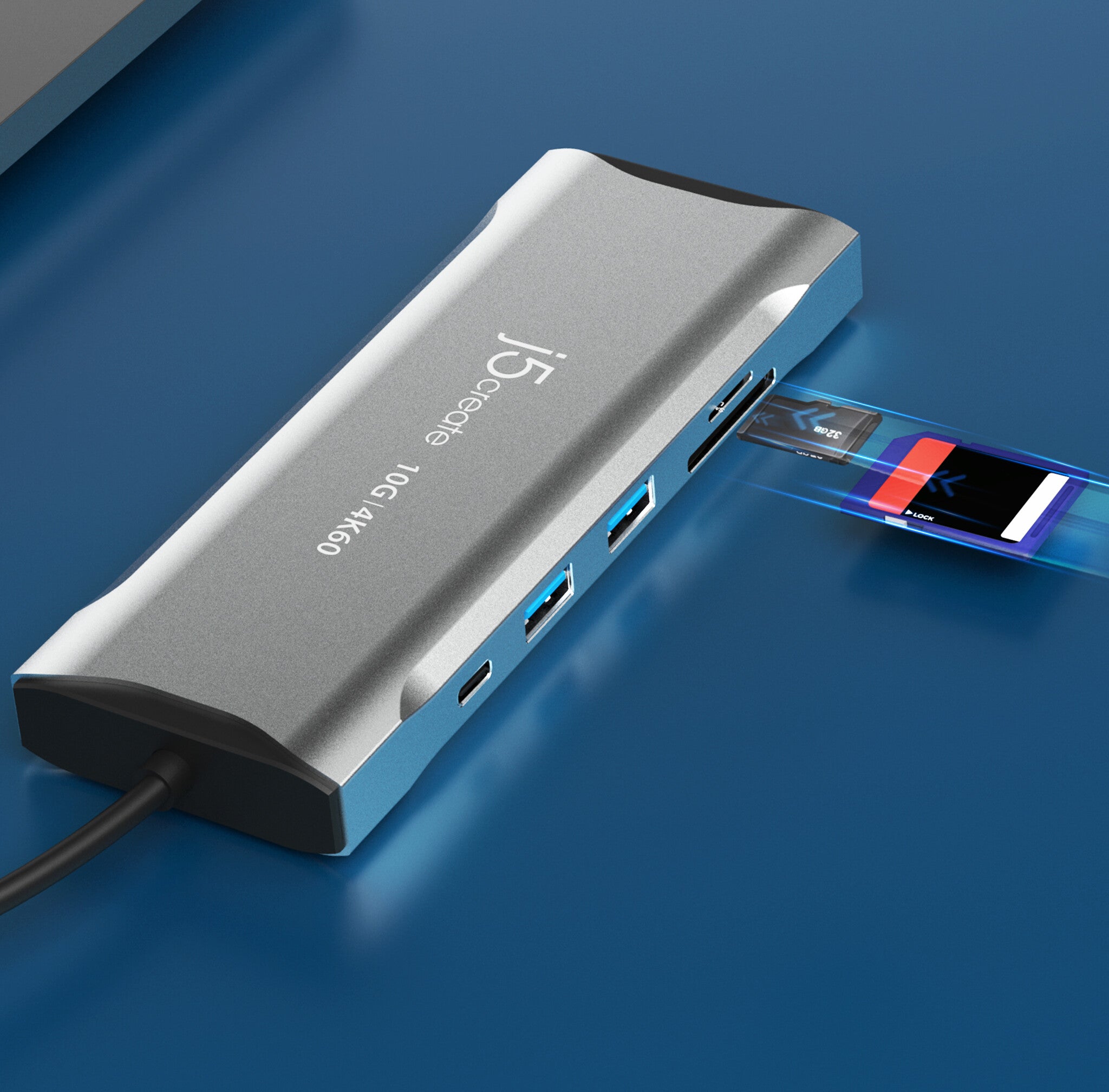

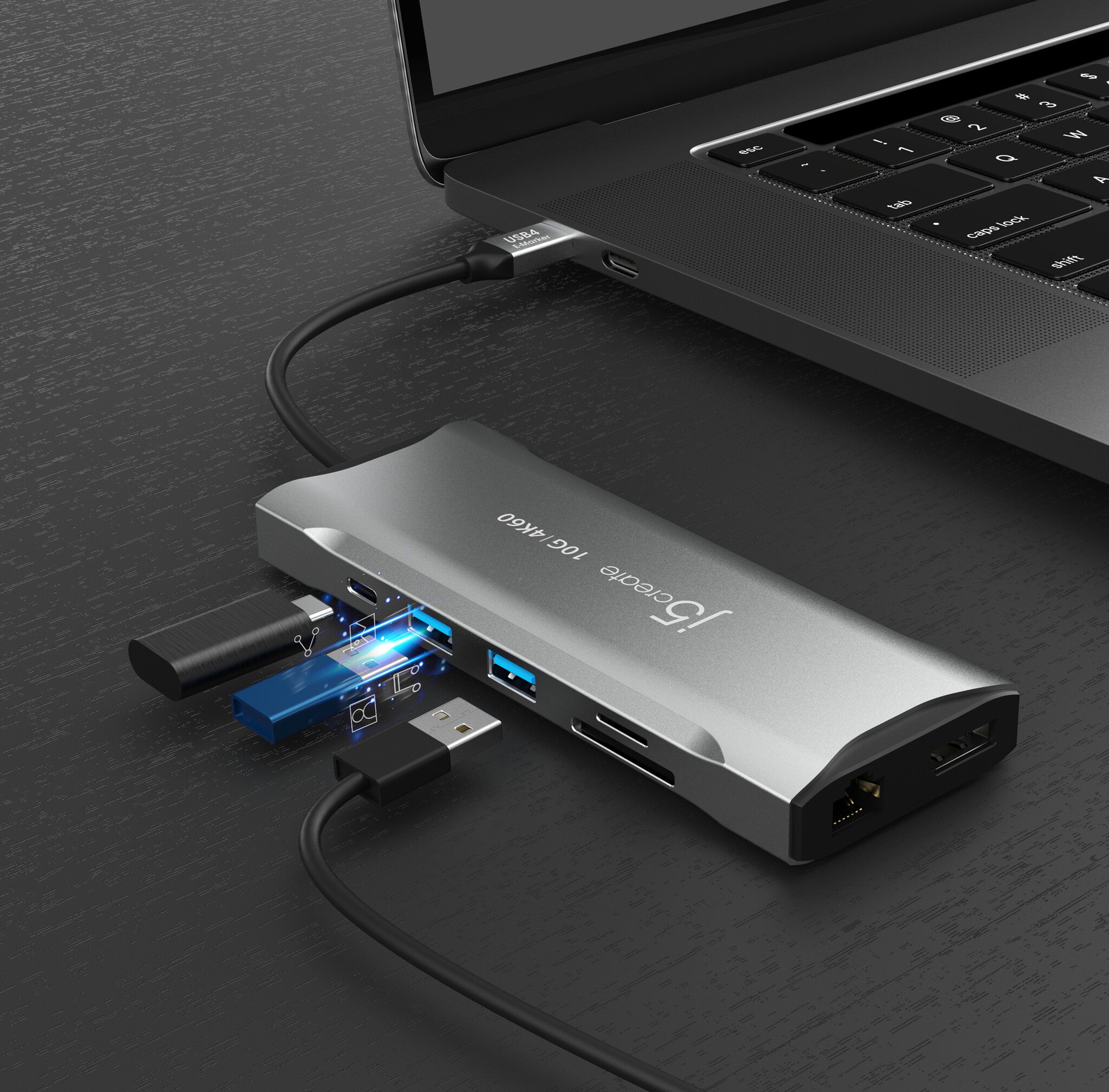

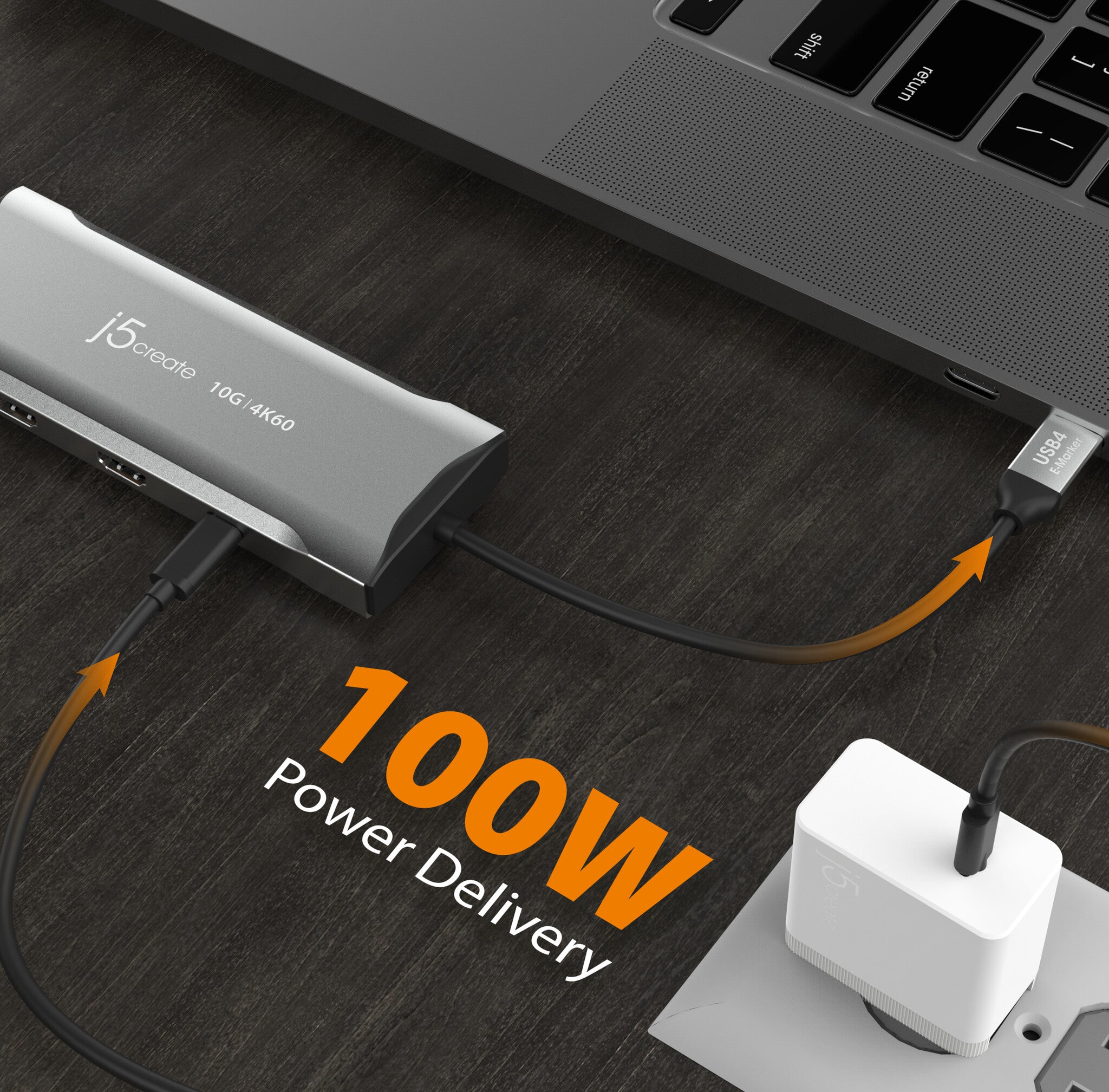

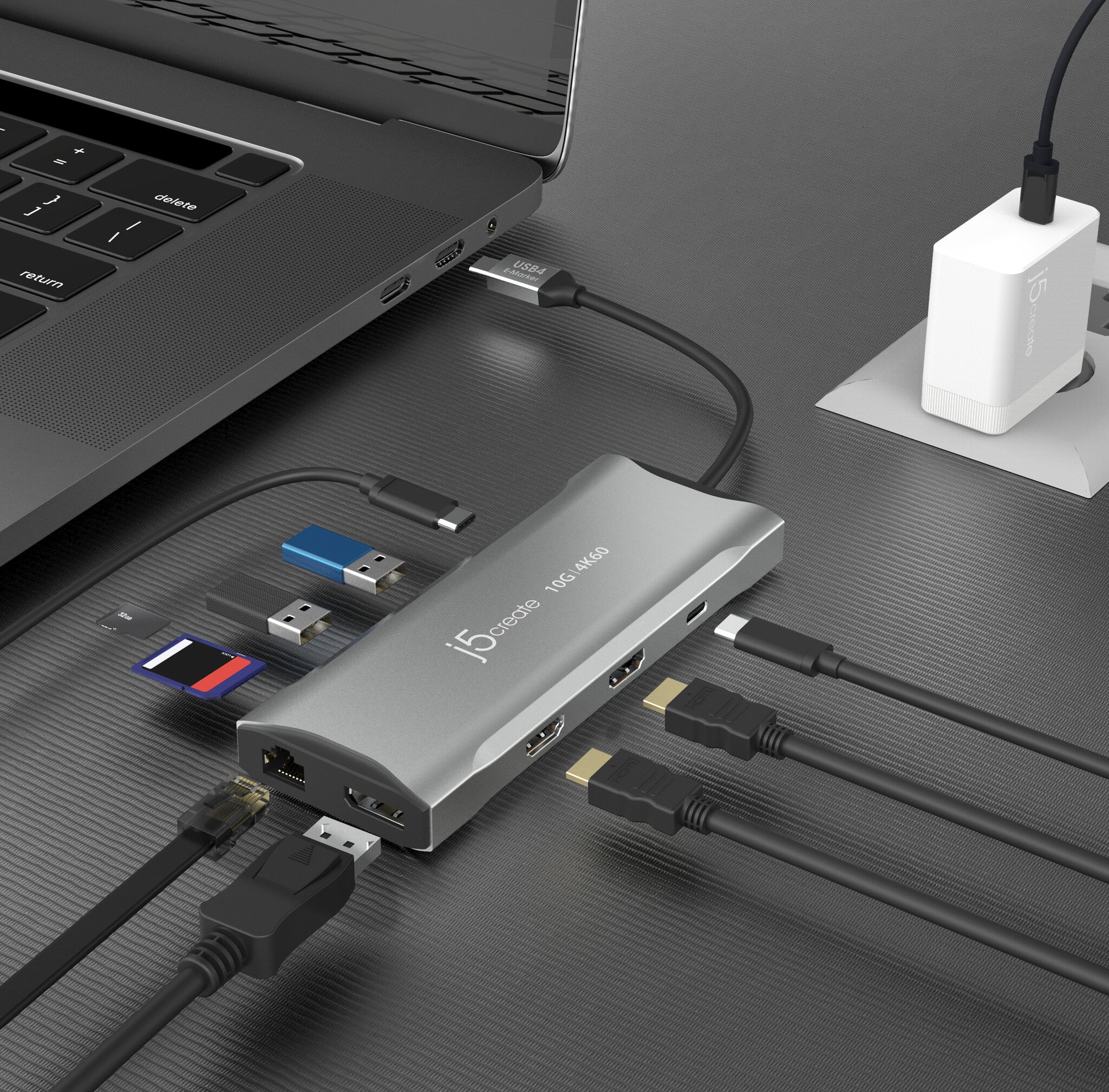

This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (2 USB-C® and 1 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.

Ports & interfaces
Connectivity technology Wired
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 2
USB Power Delivery Yes
USB Power Delivery revision 3.0
USB Power Delivery up to 100 W
HDMI ports quantity 2
HDMI version 2.0
DisplayPorts quantity 1
DisplayPort version 1.4a
Microphone in No
USB Type-C DisplayPort Alternate Mode Yes
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Performance
Product colour Grey
Colour name Space Grey
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash), SD
Data transfer rate 10 Gbit/s
HD type 4K Ultra HD
Maximum digital resolution 3840 x 2160 pixels
Maximum refresh rate 240 Hz
Number of displays supported 3
Display modes Extended, Mirror, Primary display
Charging function Yes
Housing material Aluminium
Plug and Play Yes
Country of origin China
Compatibility Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0.

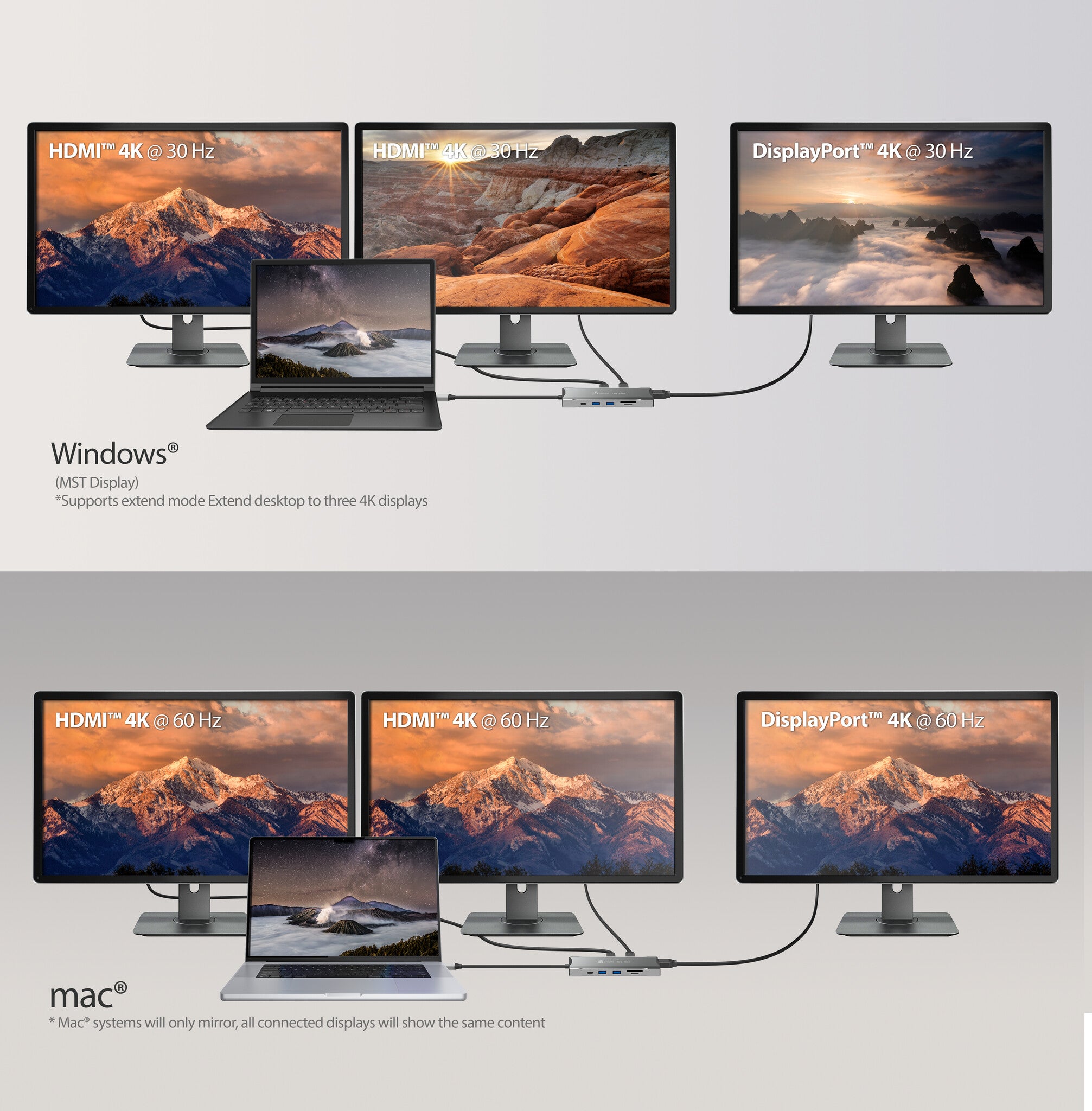

The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.
Power
Power source type USB
Power connector USB Type-C
Output current 0.79 A
Output voltage 5 V
Power consumption (typical) 4.16 W
USB cable length 0.2 m
Software
Windows operating systems supported Yes
Mac operating systems supported Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -17 - 68 °C
Operating relative humidity (H-H) 0 - 85%
Storage relative humidity (H-H) 0 - 85%

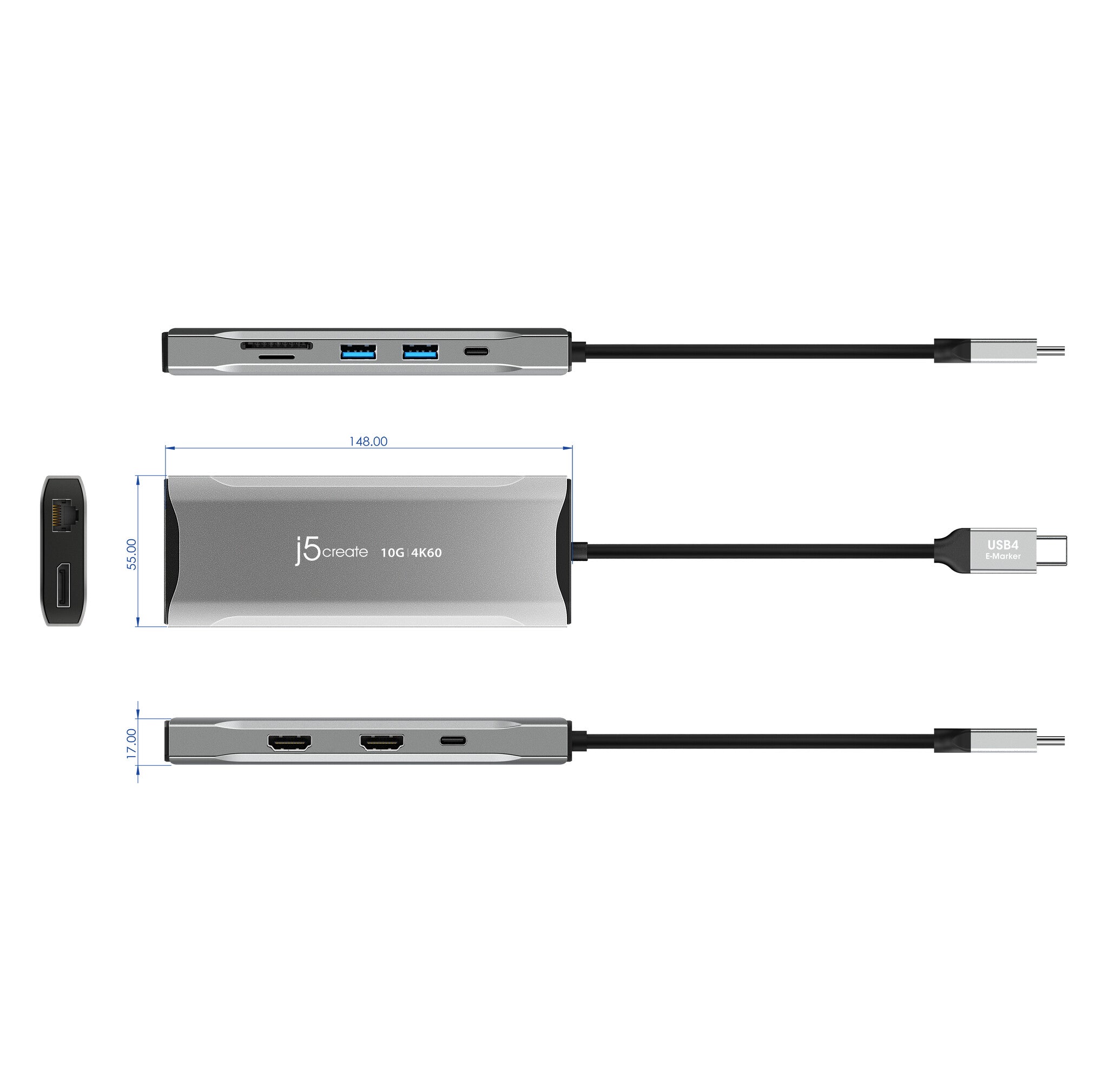

Weight & dimensions
Width 55 mm
Depth 17 mm
Height 148 mm
Weight 121.4 g
Packaging data
Quantity per pack 1 pc(s)
Package width 193 mm
Package depth 125 mm
Package height 22.5 mm
Package weight 151 g
Packaging content
Cables included USB Type-C
Quick start guide Yes
Manual Yes
Technical details
Master (outer) case GTIN (EAN/UPC) 24712795086328
Warranty period 2 year(s)
Logistics data
Export Control Classification Number (ECCN) EAR99
Products per shipping (inner) case 6 pc(s)
Master (outer) case gross weight 3.8 kg
Master (outer) case height 190 mm
Master (outer) case length 445 mm
Master (outer) case width 226 mm
Products per master (outer) case 18 pc(s)
Shipping (inner) case width 16.5 cm
Shipping (inner) case length 21.2 cm
Shipping (inner) case height 13.7 cm
Shipping (inner) case net weight 1.06 kg
Other features
Special features Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a Dual 4K HDMI™ output, DP display output.
