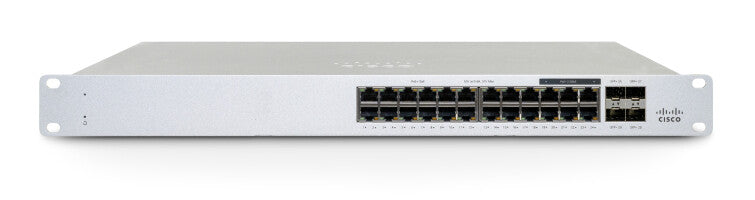

Cisco Meraki MS130-24P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

CISCO  |  SKU : MS130-24P-HW  |  Condition: Brand New  |  Code-barres: 81008720006

MORE INFO

£2,602.99
£2,169.16 excluding VAT @20%
iFrame
L2, 24 - 10/100/1000 Mbps RJ45, 4x 10 Gbe SFP, 802.3bt PoE up to 30W per port, DHCP Snooping, 802.1X Authentication, IPv4/6 ACL, SNMP/Syslog, 100-240V~, 8A-4A, 50-60Hz, 4.4 x 44 x 25cm, 4.04 kg

Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options
designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready
to support future wireless infrastructure deployments across a variety of different environments.

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 4
Number of management ports 1 pc(s)
Network
Networking standards IEEE 802.1Q, IEEE 802.3bt
10G support Yes
Port mirroring Yes
Spanning tree protocol Yes
Link aggregation Yes
Virtual LAN features Voice VLAN
Data transmission
Switching capacity 56 Gbit/s
Security
DHCP features DHCP snooping
IGMP snooping Yes
Authentication type IEEE 802.1x, RADIUS
Security algorithms SNMP
Authentication MAC-based authentication
Multicast features
Multicast support Yes
Multicast features Multicast traffic suppression
Protocols
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL)
Design
Rack mounting Yes
Form factor 1U
Product colour White
LED indicators Yes
Performance
Firmware upgradeable Yes
Mean time between failures (MTBF) 768152 h
General
Product family Meraki
Power
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 8 A
Power consumption (max) 406 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 370 W
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 440 mm
Depth 250 mm
Height 34 mm
Weight 4.04 kg
