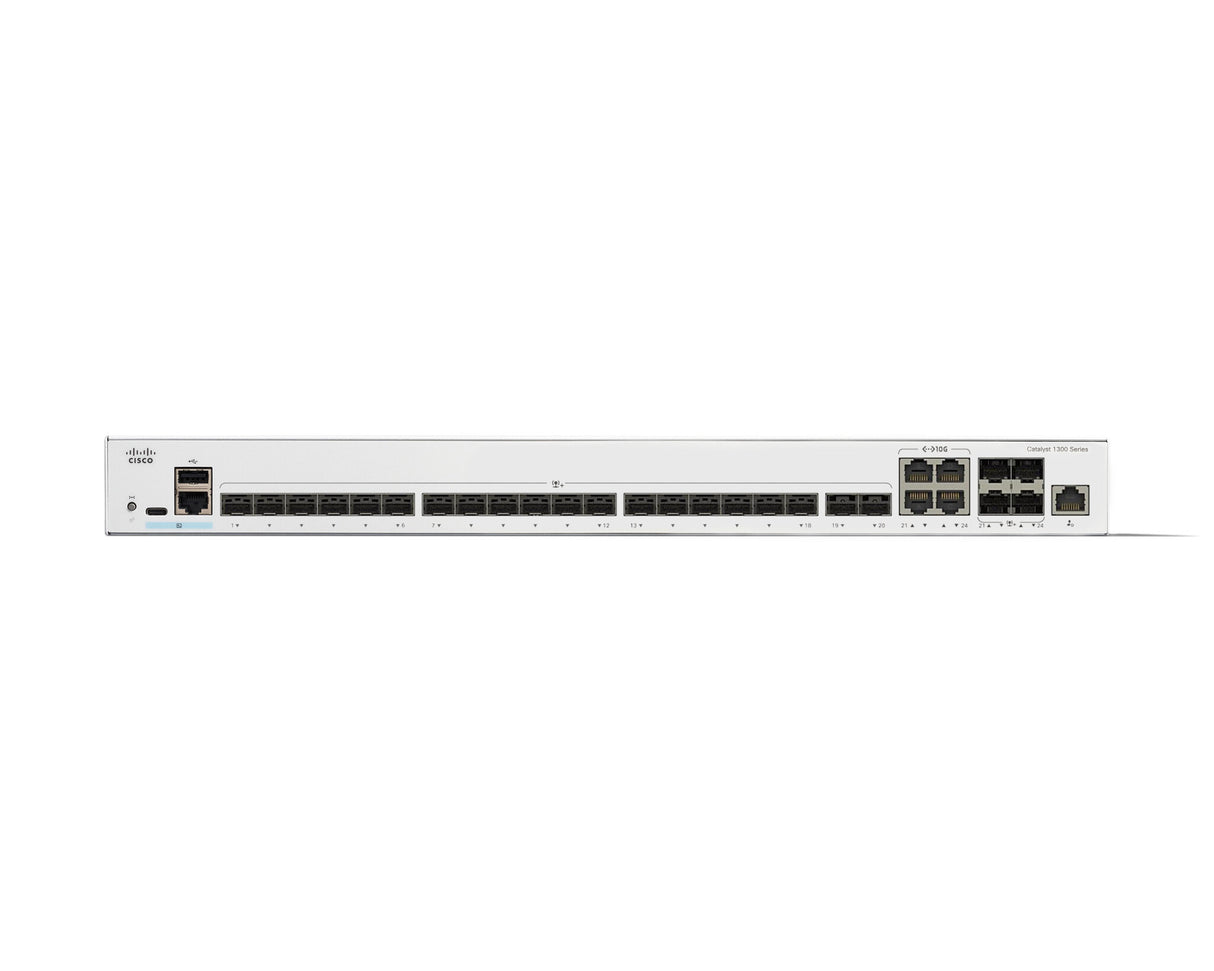

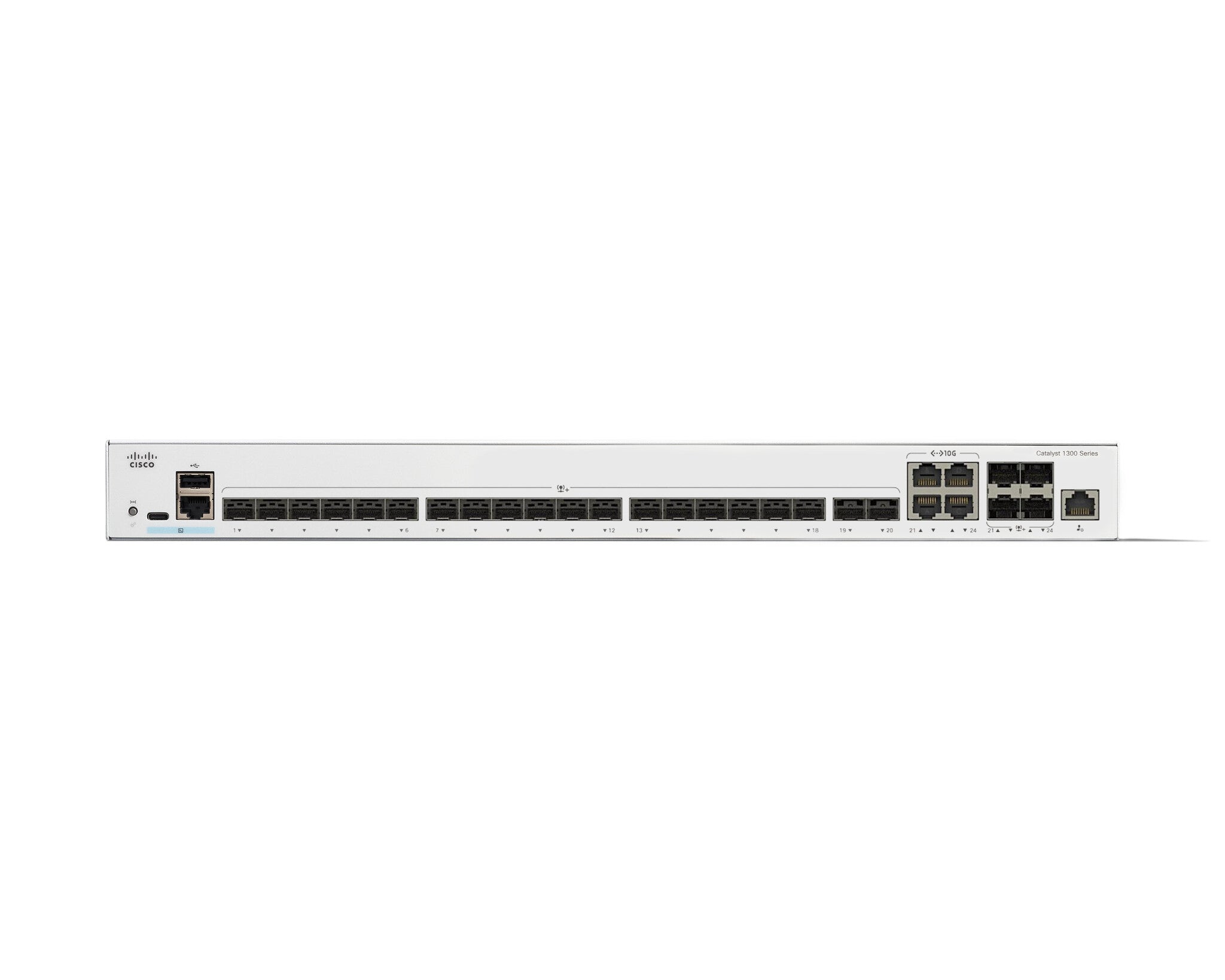

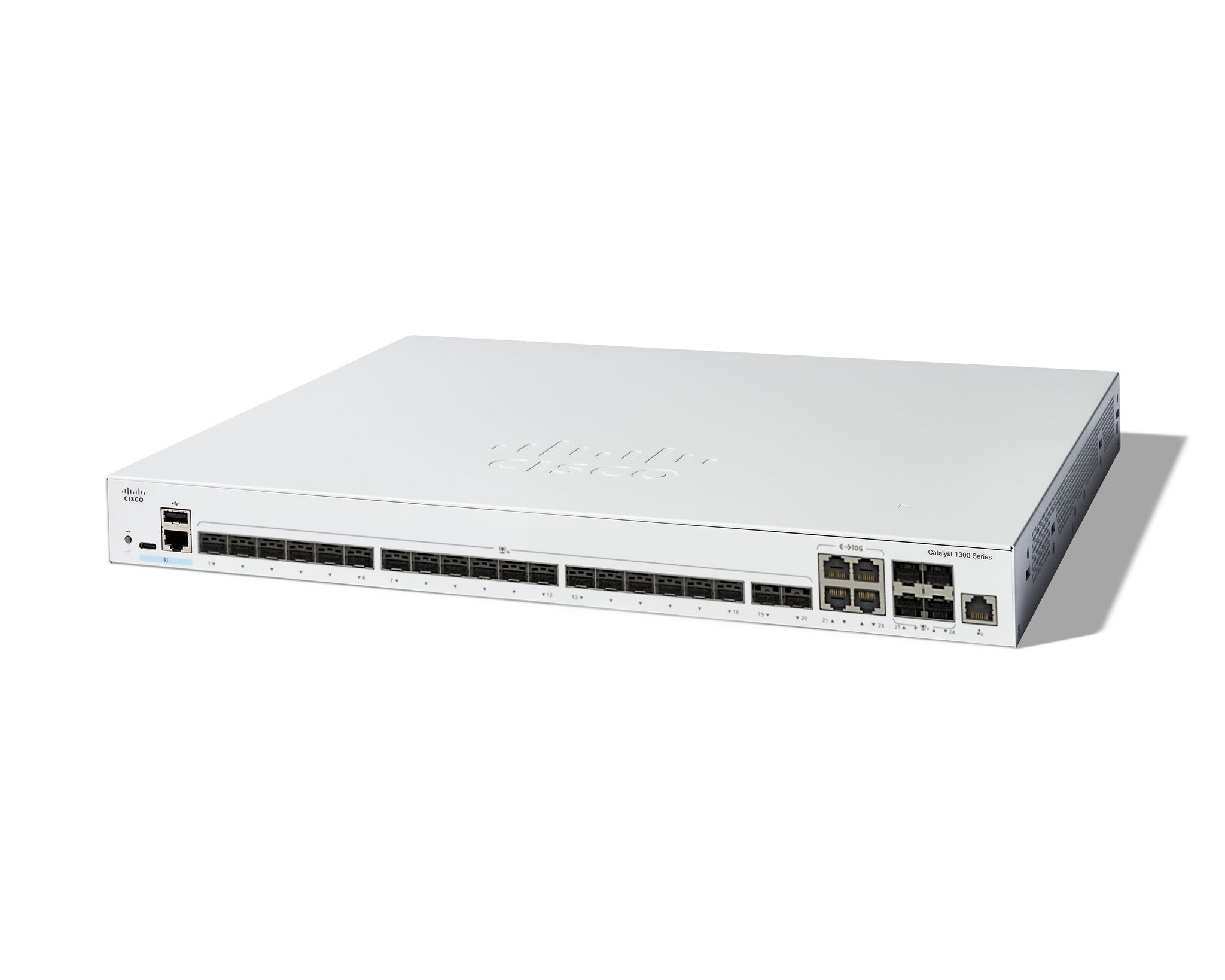

Cisco Catalyst C1300-24XS network switch Managed L2/L3 Grey
The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300 Series Switches.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Combo SFP ports quantity | 4 |
| SFP+ module slots quantity | 20 |
| Console port | RJ-45/USB Type-C |
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Cable types supported | Cat5e |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| QinQ implementation | Selective QinQ |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 480 Gbit/s |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 990 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 8 MB |
| Security | |
|---|---|
| DHCP features | DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 1024 |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| DoS attack prevention | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Authentication type | RADIUS, TACACS+ |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2 |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| Reset button | Yes |
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1.4 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 1000 MB |
| Flash memory | 512 MB |
| Plug and Play | Yes |
| General | |
|---|---|
| Product family | Catalyst |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 220 V |
| AC input frequency | 50/60 Hz |
| Power plug type | Type C |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 445 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 4.15 kg |
| Packaging data | |
|---|---|
| Package width | 390.1 mm |
| Package depth | 539.2 mm |
| Package height | 103.7 mm |
| Package weight | 5.52 kg |
| Logistics data | |
|---|---|
| Country of origin | China |
-
